Plan 95216RW

Country Farmhouse Style Workshop with 727 Heated Square Footage

Heated S.F.
727
Beds
0
Baths
1
Stories
1
Cars
2- 4

Floor Plan

Plan 95216RW

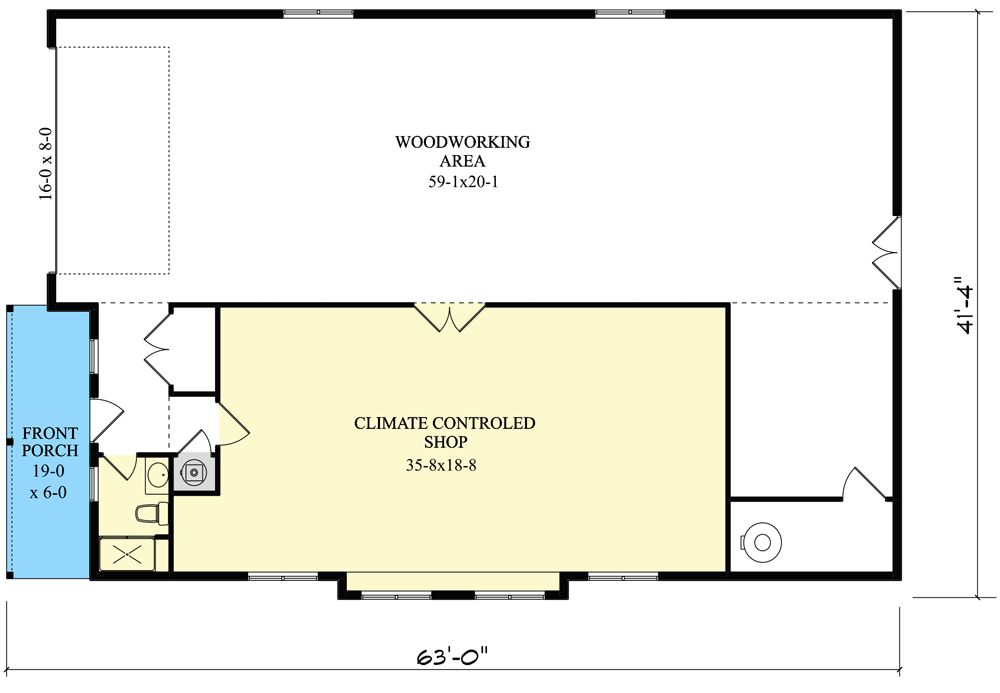

Main Level
Main Level

Plan 95216RW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 95216RW: Country Farmhouse Style Workshop with 727 Heated Square Footage - Floor Plan - Main Level - Country, Craftsman, Modern Farmhouse

Plan Details

  • With the ever-popular country farmhouse aesthetic, this workshop will pair well with any home, while providing a climate controlled work area.
  • A 19' by 6' front porch guides you into an entry with a full bath.
  • Enjoy the climate controlled shop during the winter months, with french doors that lead into a larger woodworking area.

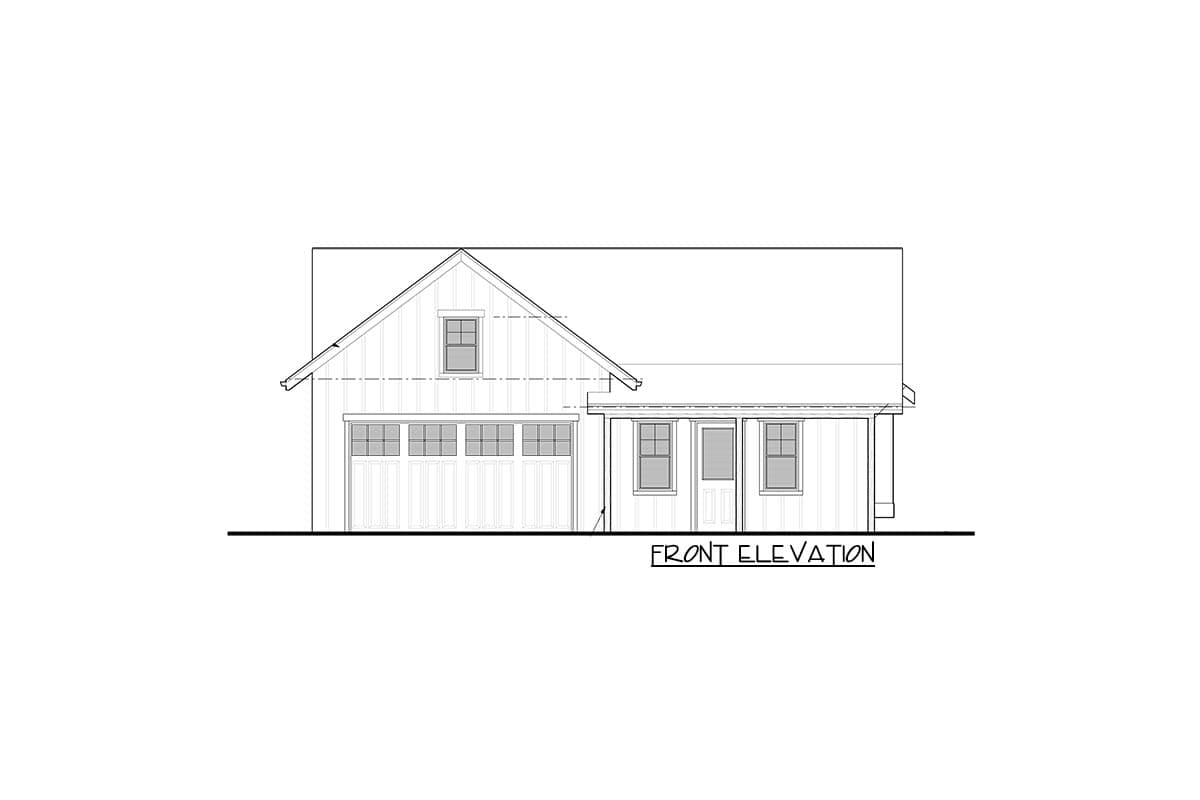

  • On the front elevation, an overhead door measures 16' by 8' to help provide a versatile space to suit all of your needs.

What's Included

  • Cover Page

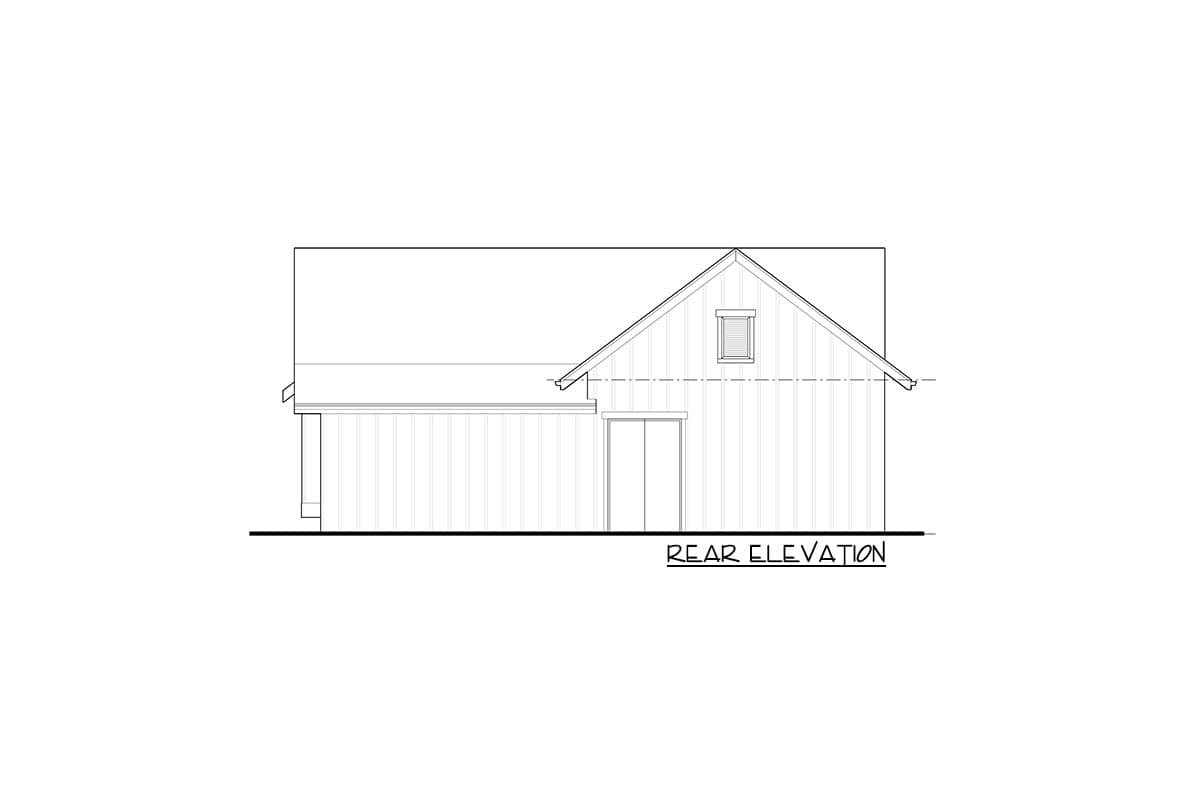

  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

727 sq. ft.

1st Floor

727 sq. ft.

Porch, Front

114 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 0"

Depth

41' 4"

Max Ridge Height

20' 4"

Garage

Area

1500 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Architectural Style

Country

Craftsman

Modern Farmhouse

Special Features

Laundry - Main Level

Workshop

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

727 sq. ft.

1st Floor

727 sq. ft.

Porch, Front

114 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 0"

Depth

41' 4"

Max Ridge Height

20' 4"

Garage

Area

1500 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Architectural Style

Country

Craftsman

Modern Farmhouse

Special Features

Laundry - Main Level

Workshop

Plan Collections

Photo Gallery
