Plan 12027JL

Country Home Plan Master on Main

Heated S.F.
4,469
Beds
4 - 5
Baths
3
Stories
2
Cars
4

Floor Plan

Plan 12027JL

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 12027JL

M-F 9am-5pm EST |

1-203-761-8500

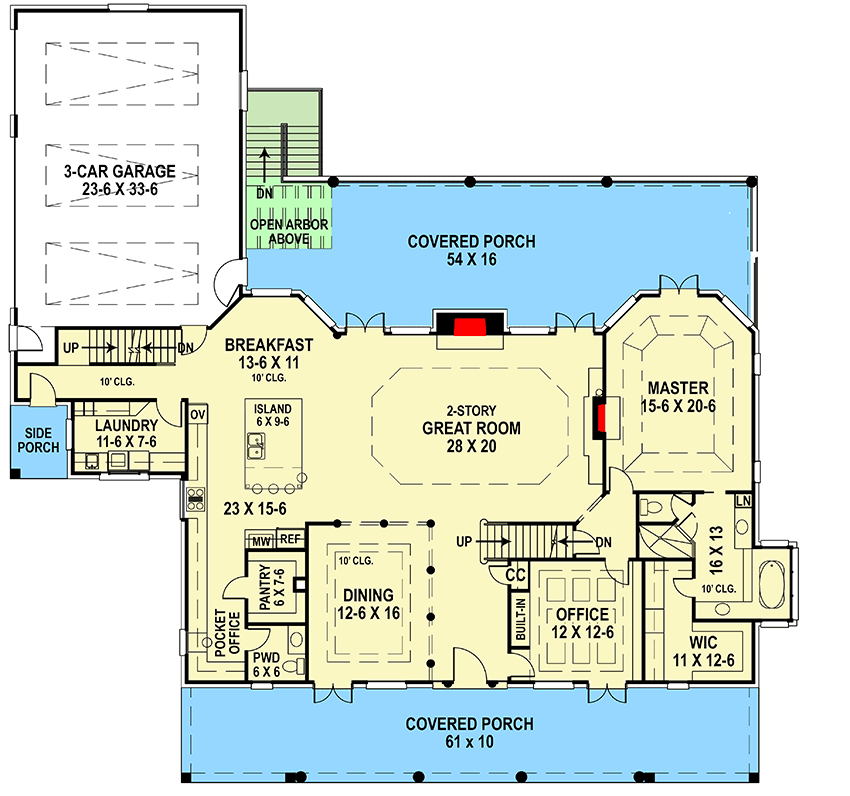

Main Level

Plan 12027JL: Country Home Plan Master on Main - Floor Plan - Main Level - Country, Southern

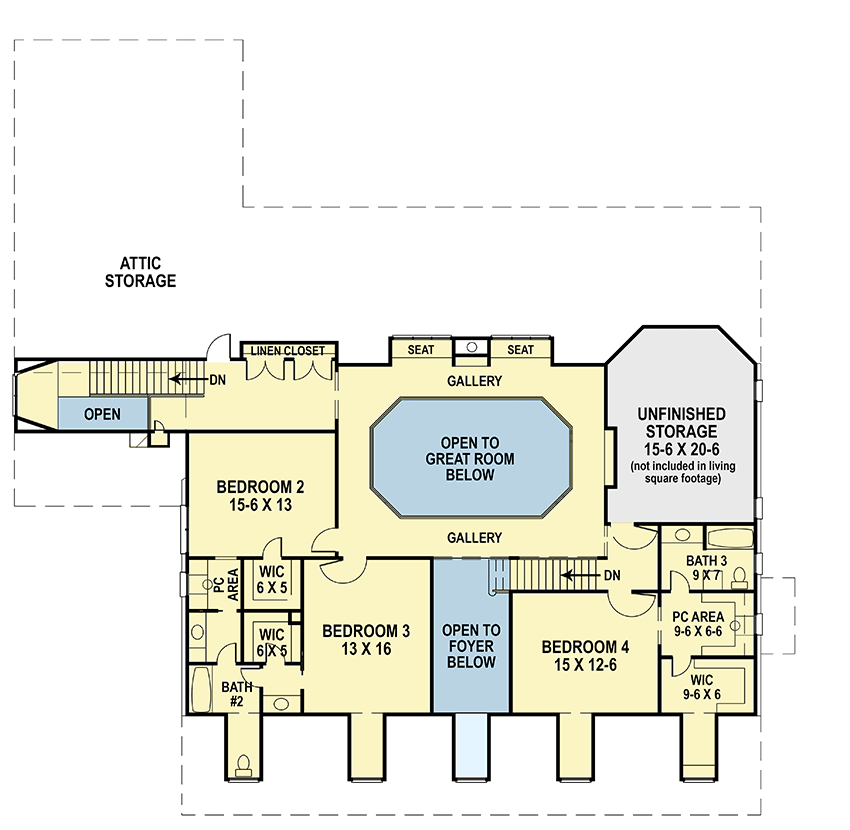

2nd Floor

Plan 12027JL: Country Home Plan Master on Main - Floor Plan - 2nd Floor - Country, Southern

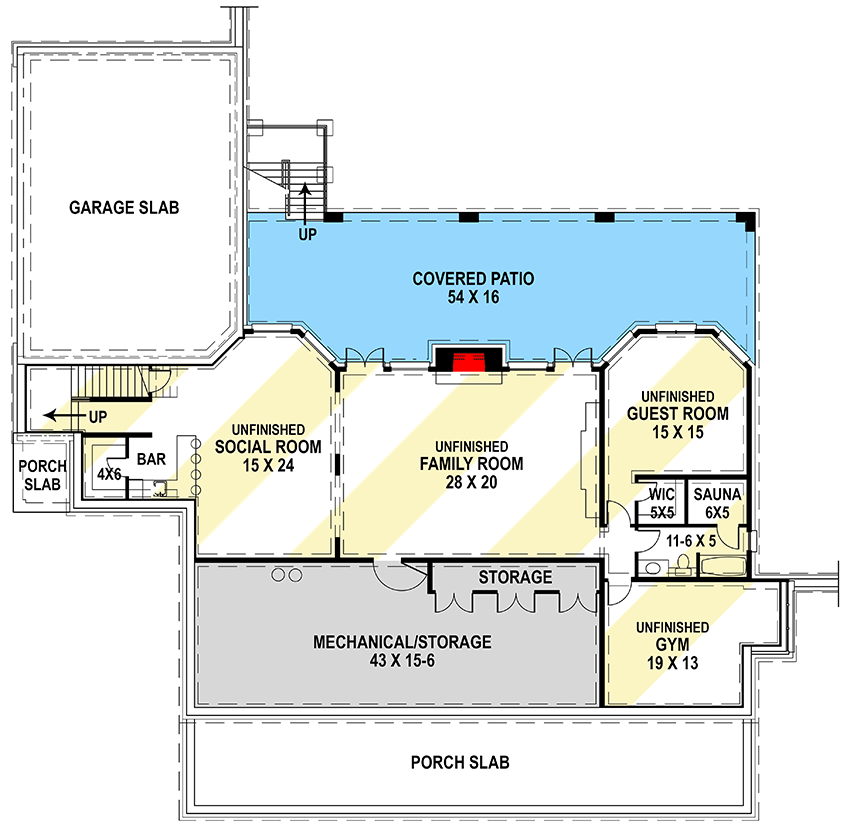

Optional Lower Level

Plan 12027JL: Country Home Plan Master on Main - Floor Plan - Optional Lower Level - Country, Southern

Plan Details

  • Why sacrifice luxury or good taste for easy living? This house plan includes such conveniences and luxuries as a master on main, the grand room open to the second floor, coffered ceilings in the office and unique ceilings in the dining room and master suite.
  • The home is ideal for outdoor living and entertainment with large porches front and rear.
  • Extra space and convenience can be found in thoughtful touches such as the bonus room, the computer room and the 3-car garage.
  • The roof pitch is 8 on 12.

What's Included

  • Cover Sheet/Index
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor.
  • Foundation Plan: Shows the location of all concrete footings, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Overview: Shows roof outlines, pitches, hips, valleys, roof detail notes, etc. Specific details such as fireplaces, stairways, decks, etc.
  • Building Section: Shows a cross-section of the home. Shows exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.



What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Framing Plans and Beam sizes
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,469 sq. ft.

1st Floor

2,573 sq. ft.

2nd Floor

1,896 sq. ft.

Bonus

304 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

82' 0"

Depth

82' 0"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

812 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Special Features

Breakfast Nook

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Multiple Stairs

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

4,469 sq. ft.

1st Floor

2,573 sq. ft.

2nd Floor

1,896 sq. ft.

Bonus

304 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

82' 0"

Depth

82' 0"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

812 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Special Features

Breakfast Nook

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Multiple Stairs

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Wet Bar
