Plan 60704ND

Country Home Plan With RV Garage And Upstairs Apartment - 2816 Sq Ft

Heated S.F.
2,816
Beds
3 - 5
Baths
3.5 - 5.5
Stories
2
Cars
3

Floor Plan

Plan 60704ND

Main Level
Main Level
Second Level
Second Level
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 60704ND

M-F 9am-5pm EST |

1-203-761-8500

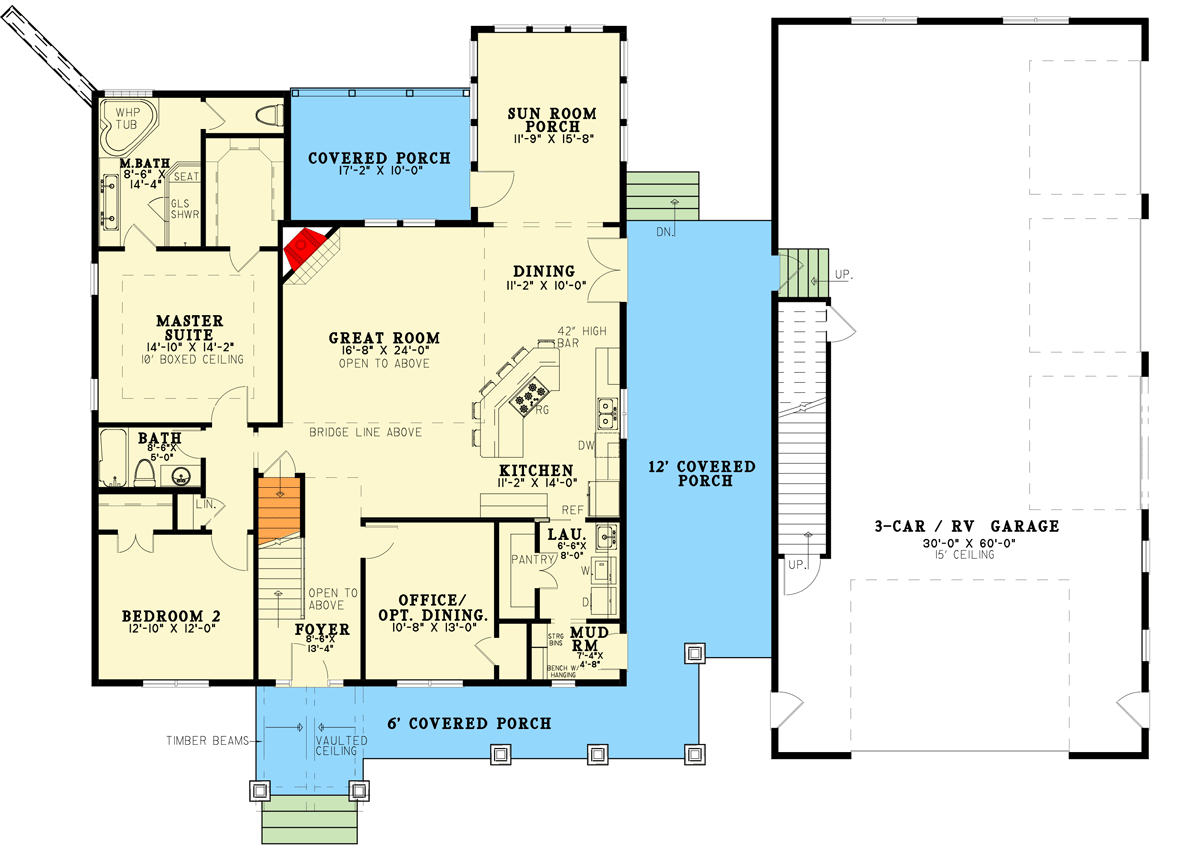

Main Level

Plan 60704ND: Country Home Plan With RV Garage And Upstairs Apartment - 2816 Sq Ft - Floor Plan - Main Level - Country, Rustic, Southern, Traditional

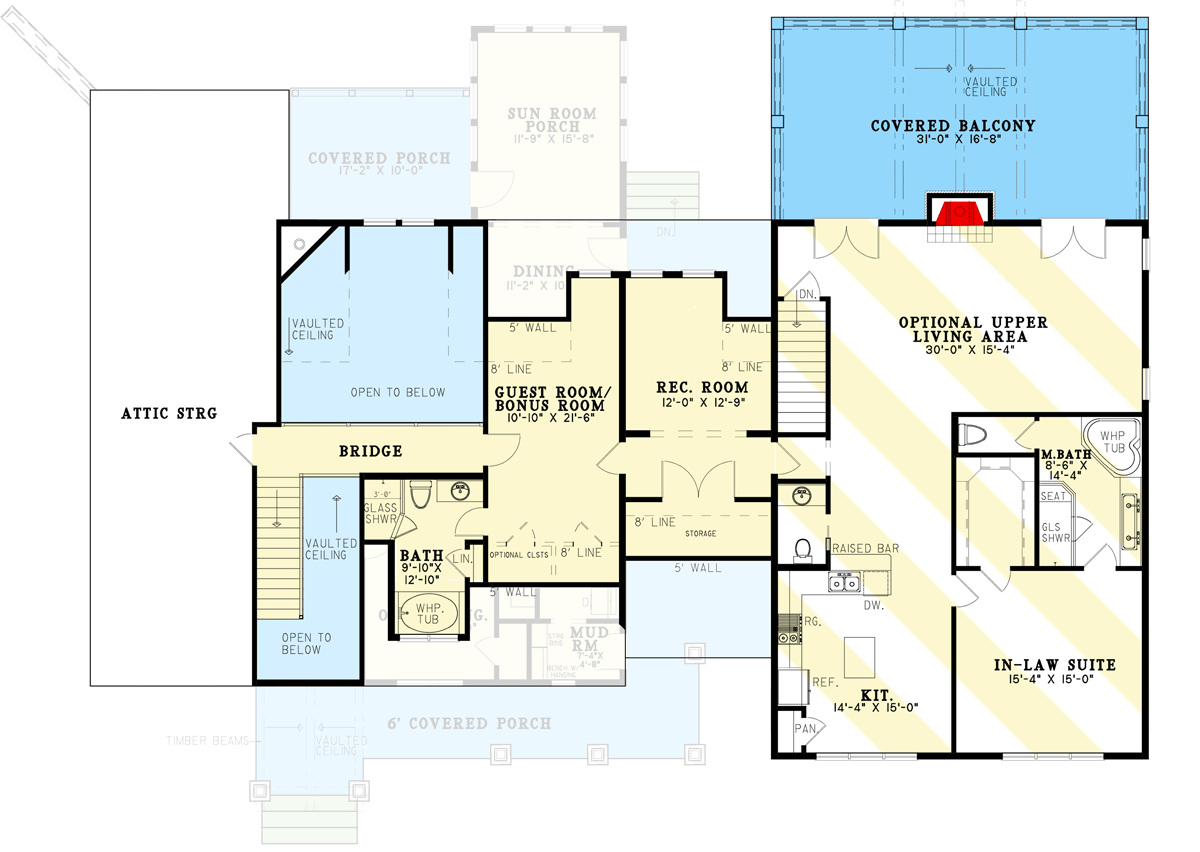

Second Level

Plan 60704ND: Country Home Plan With RV Garage And Upstairs Apartment - 2816 Sq Ft - Floor Plan - Second Level - Country, Rustic, Southern, Traditional

Optionally Finished Lower Level

Plan 60704ND: Country Home Plan With RV Garage And Upstairs Apartment - 2816 Sq Ft - Floor Plan - Optionally Finished Lower Level - Country, Rustic, Southern, Traditional

Plan Details

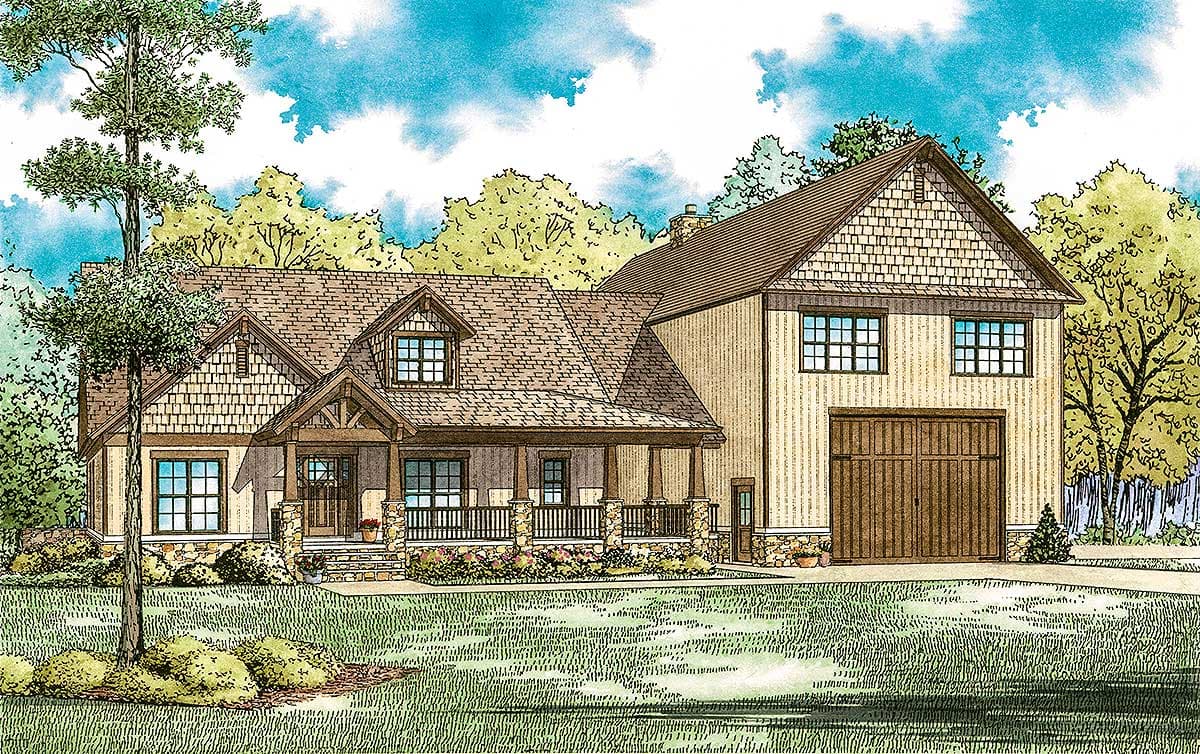

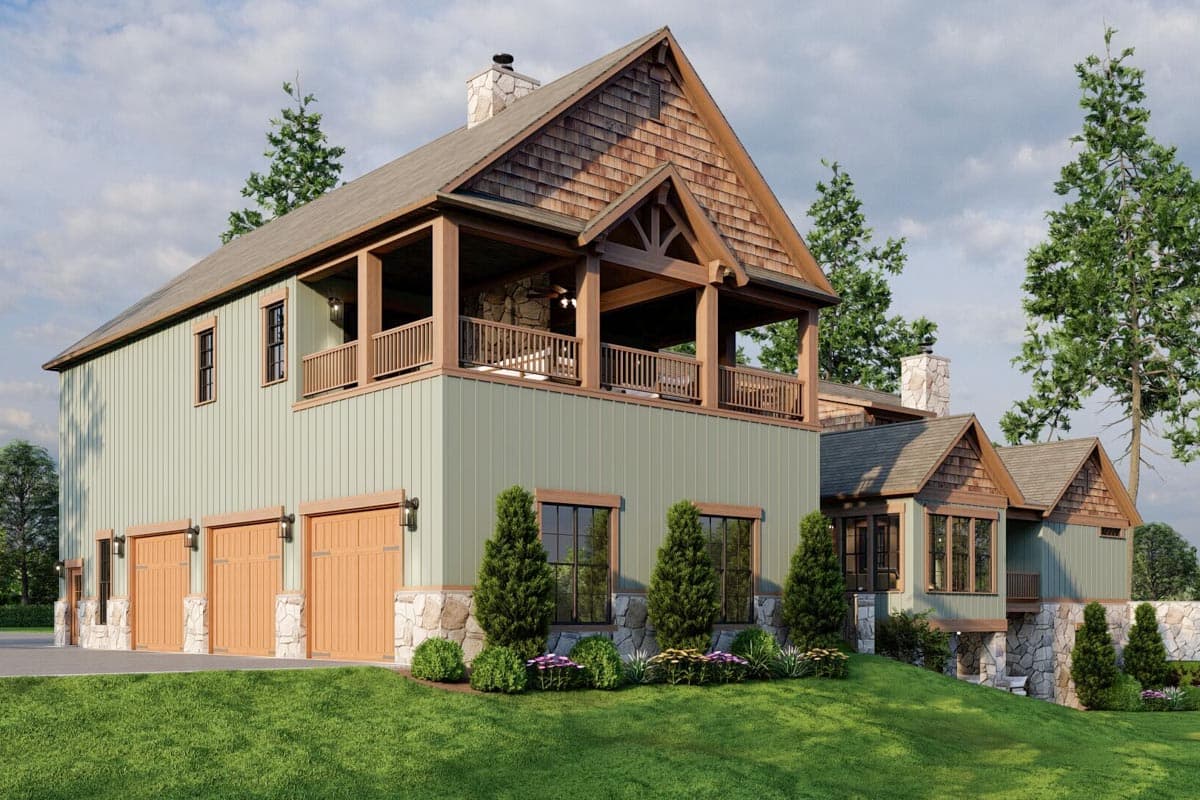

  • The exterior of this rustic home features timber and stone columns, a large covered porch, and a 3 car RV garage.

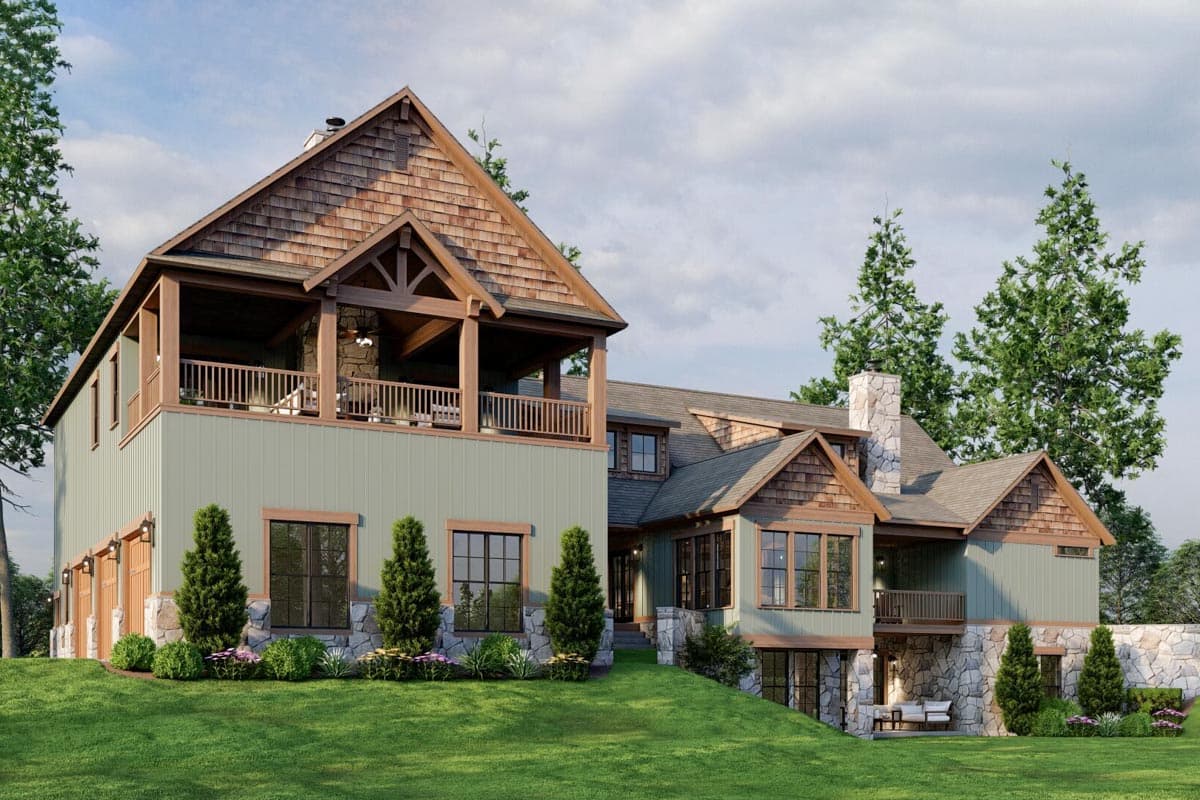

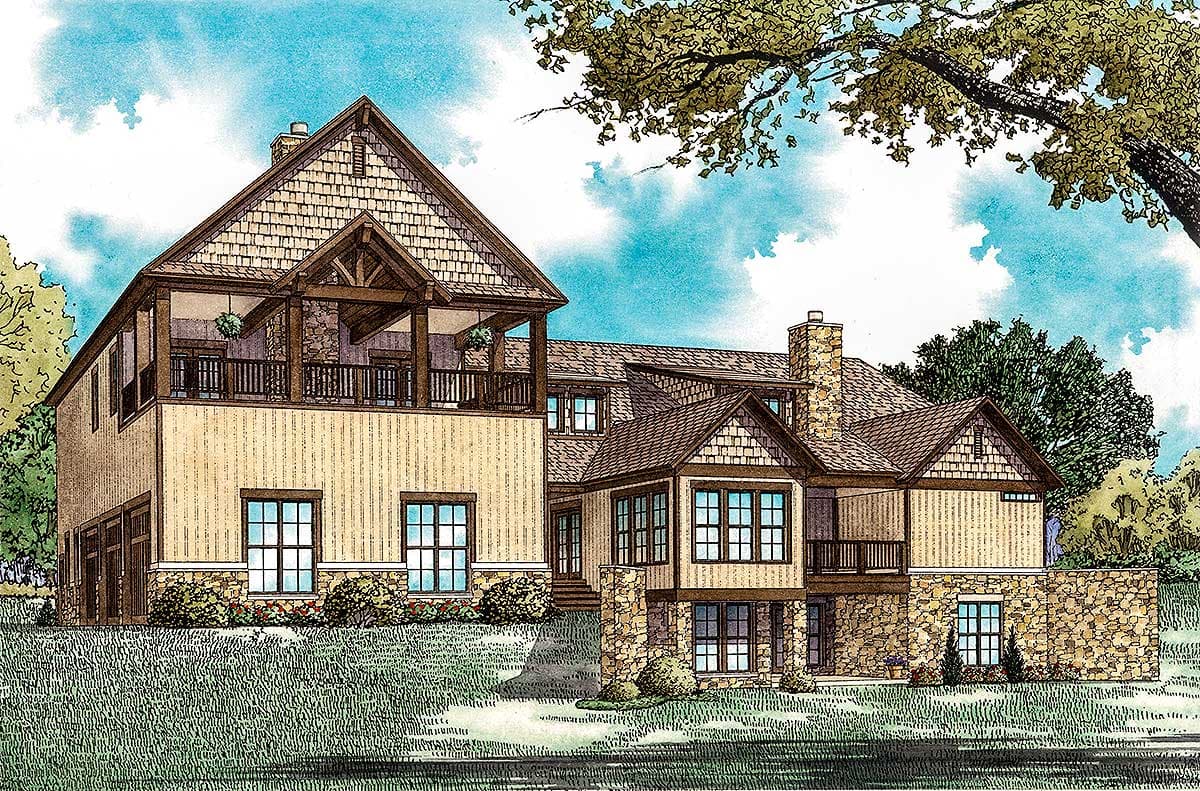

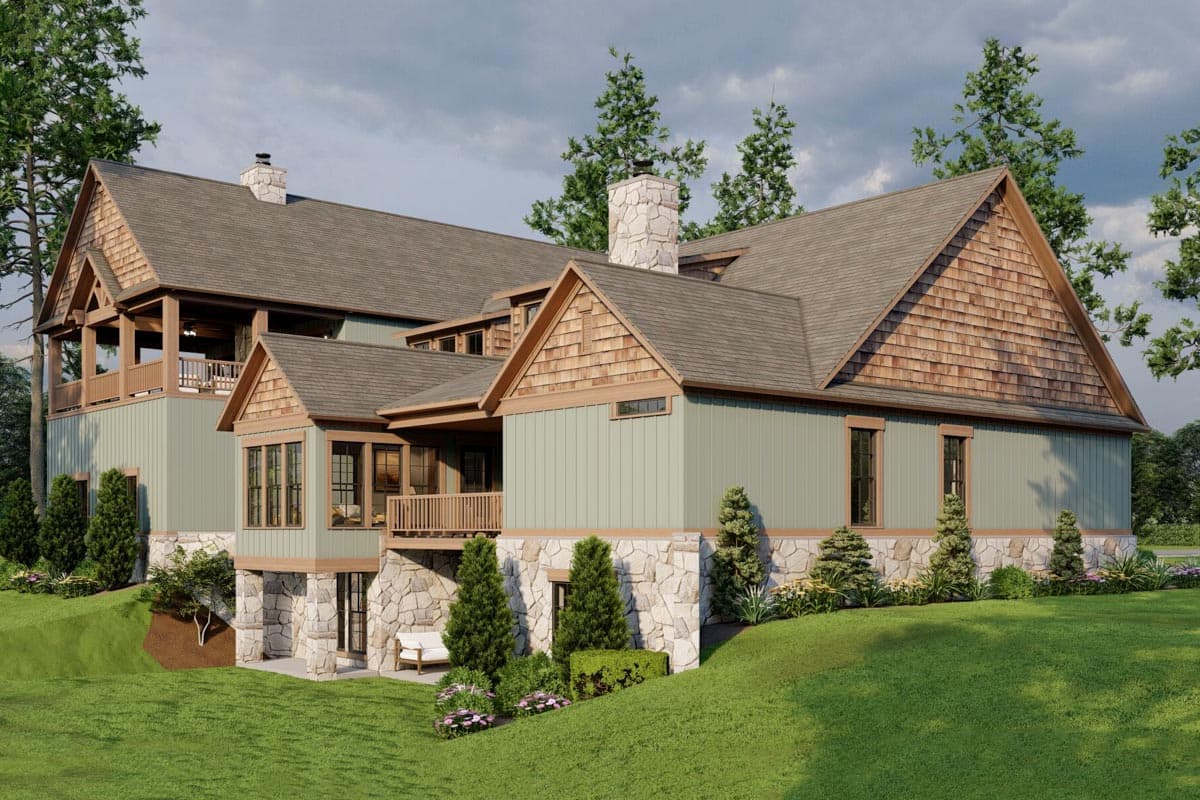

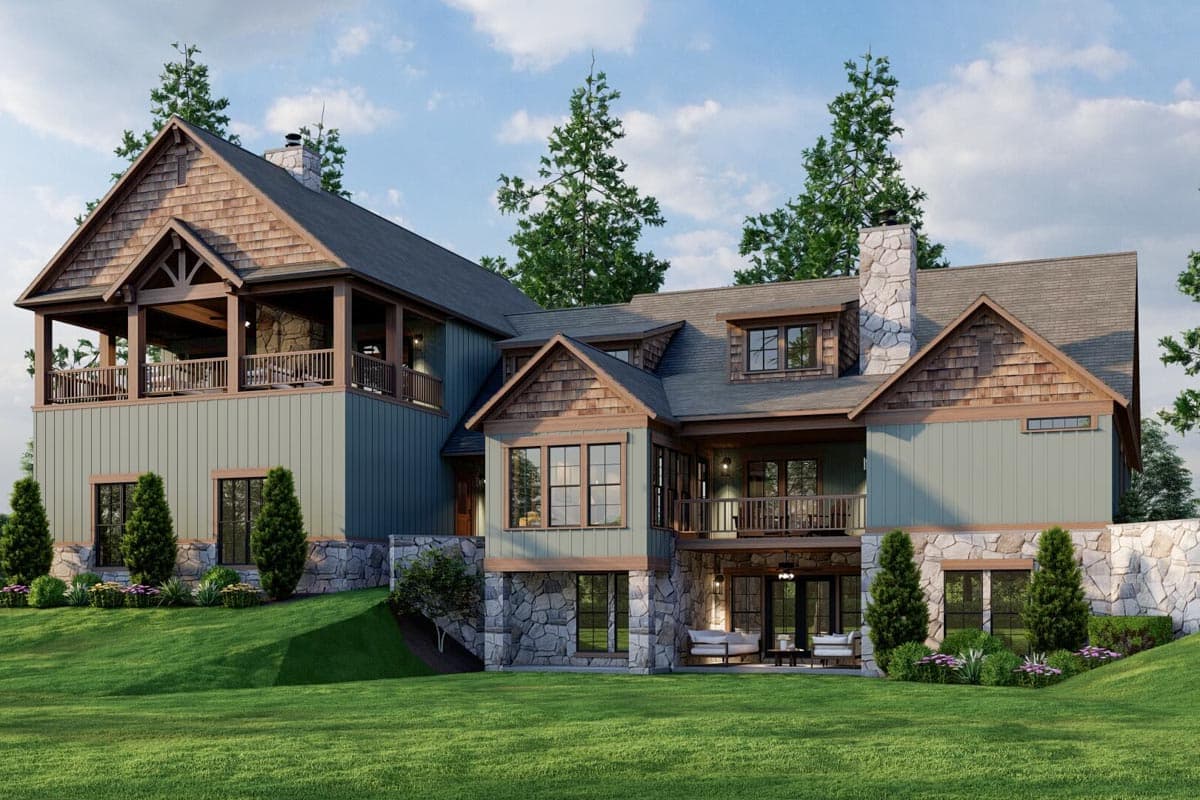

  • The amount of space this home contains is disguised from the front. Step around to the rear of the home and be blown away by the magnificent size and design.
  • Outdoor living is at its finest in this home with three covered porches, a sunroom, and a covered balcony.
  • The main floor of the home features an expansive great room with a corner fireplace.
  • The open layout allows for convenient access to the kitchen and dining room.
  • The master suite complete with a large walk-in closet is also featured on the main level.
  • Upstairs you will find an optionally finished apartment over the garage giving you an additional 1,326 square feet of living space (not included in total living area).
  • The portion that is above the main home gives you 746 square feet of heated living space (included in the total living area).
  • The lower level features a large game room, another bedroom and full bath, and adding to the outdoor space, a covered patio.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,816 sq. ft.

1st Floor

2,065 sq. ft.

2nd Floor

746 sq. ft.

Optional Lower Level

1,903 sq. ft.

Apartment

1,367 sq. ft.

Porch, Combined

1,356 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 0"

Depth

64' 0"

Max Ridge Height

35' 0"

Garage

Type

Attached, RV Garage

Area

1891 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Country

Rustic

Southern

Traditional

Special Features

Flex Room

Formal Dining

Game/Rec Room

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Multiple Stairs

Safe Room

Sunroom

Two Story Great Room

Walk-in Pantry

Wraparound Porch

Plan Collections

Home Office

Multi-Generational

Square Footage Breakdown

Total Heated Area

2,816 sq. ft.

1st Floor

2,065 sq. ft.

2nd Floor

746 sq. ft.

Optional Lower Level

1,903 sq. ft.

Apartment

1,367 sq. ft.

Porch, Combined

1,356 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 0"

Depth

64' 0"

Max Ridge Height

35' 0"

Garage

Type

Attached, RV Garage

Area

1891 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Country

Rustic

Southern

Traditional

Special Features

Flex Room

Formal Dining

Game/Rec Room

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Multiple Stairs

Safe Room

Sunroom

Two Story Great Room

Walk-in Pantry

Wraparound Porch

Plan Collections

Home Office

Multi-Generational
