Plan 59294ND

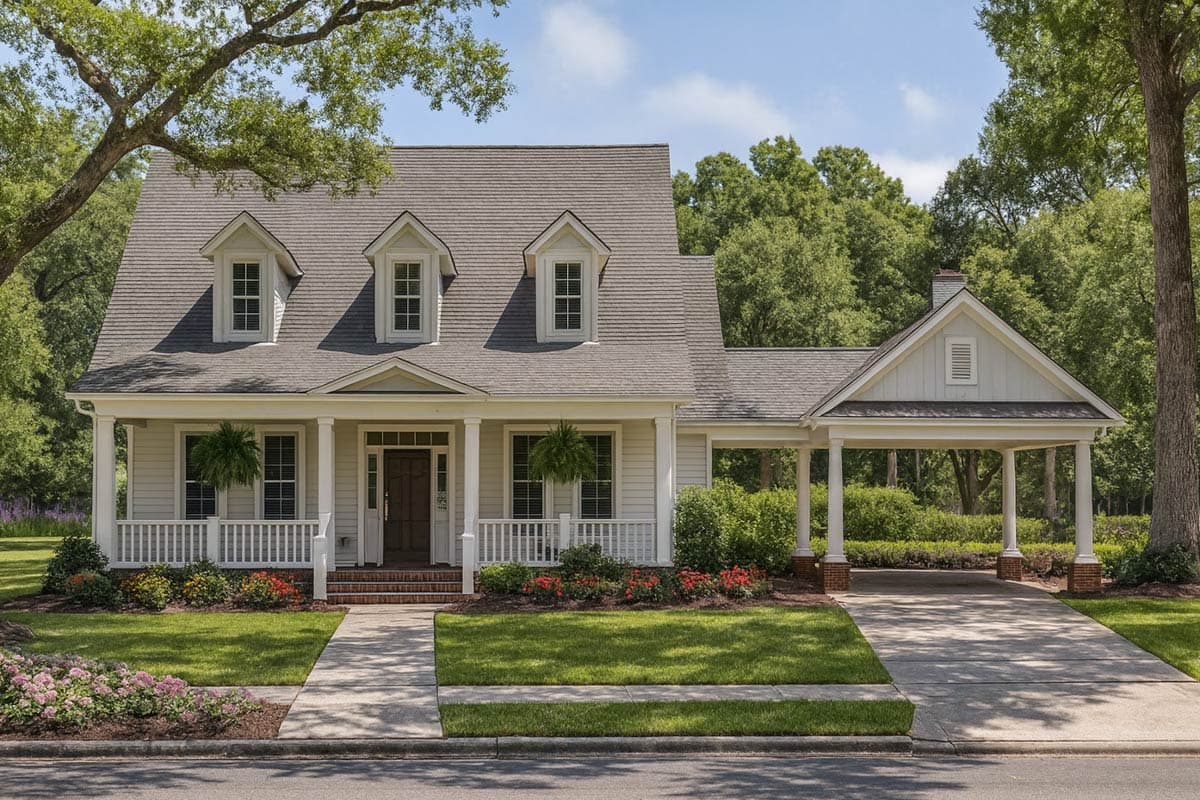

Country Home Plan with Timeless Porte Cochere

Heated S.F.
2,286
Beds
3 - 4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 59294ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59294ND

M-F 9am-5pm EST |

1-203-761-8500

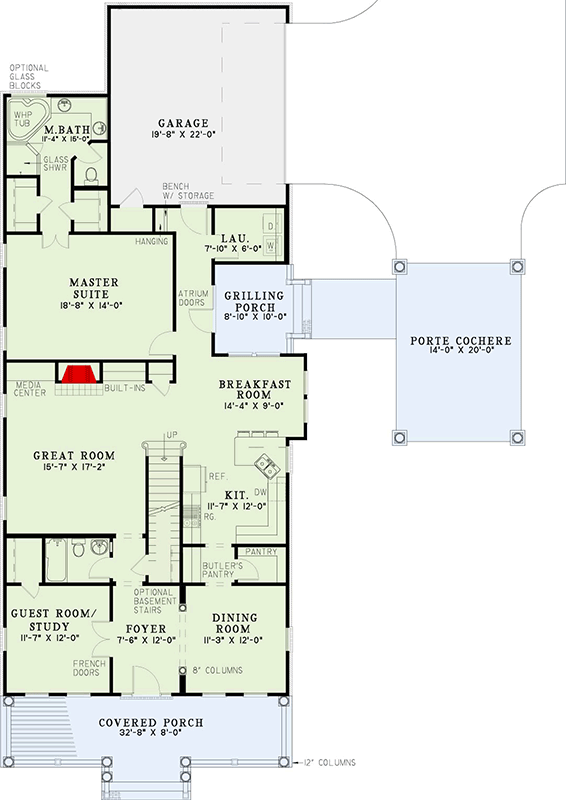

Main Level

Plan 59294ND: Country Home Plan with Timeless Porte Cochere - Floor Plan - Main Level - Country, Southern

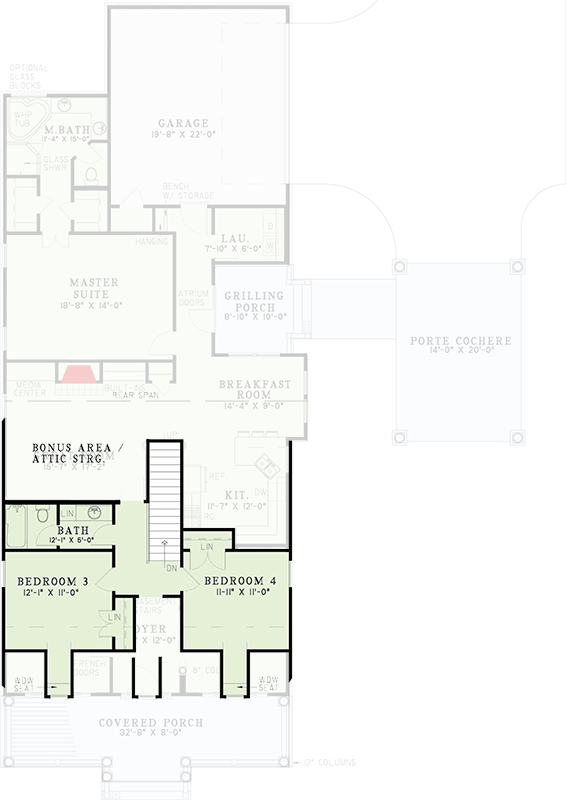

2nd Floor

Plan 59294ND: Country Home Plan with Timeless Porte Cochere - Floor Plan - 2nd Floor - Country, Southern

Plan Details

  • This four bedroom home plan has porches front and rear as well as a timeless porte cochere. The interior has a formal dining room with butler pantry leading to the step-saver kitchen and blended breakfast room.
  • The nearby great room has built-in shelves and a media center perfect for family time.
  • Placed on the main level is the master suite with two walk-in closets and a well-planned bathroom.
  • The upstairs has two bedrooms with dormer window seats and a bonus area.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,286 sq. ft.

1st Floor

1,831 sq. ft.

2nd Floor

455 sq. ft.

Porch, Combined

416 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 0"

Depth

85' 4"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

746 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Porte Cochere

Walk-in Pantry
