Country Style Garage House Plan with Storage Space

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

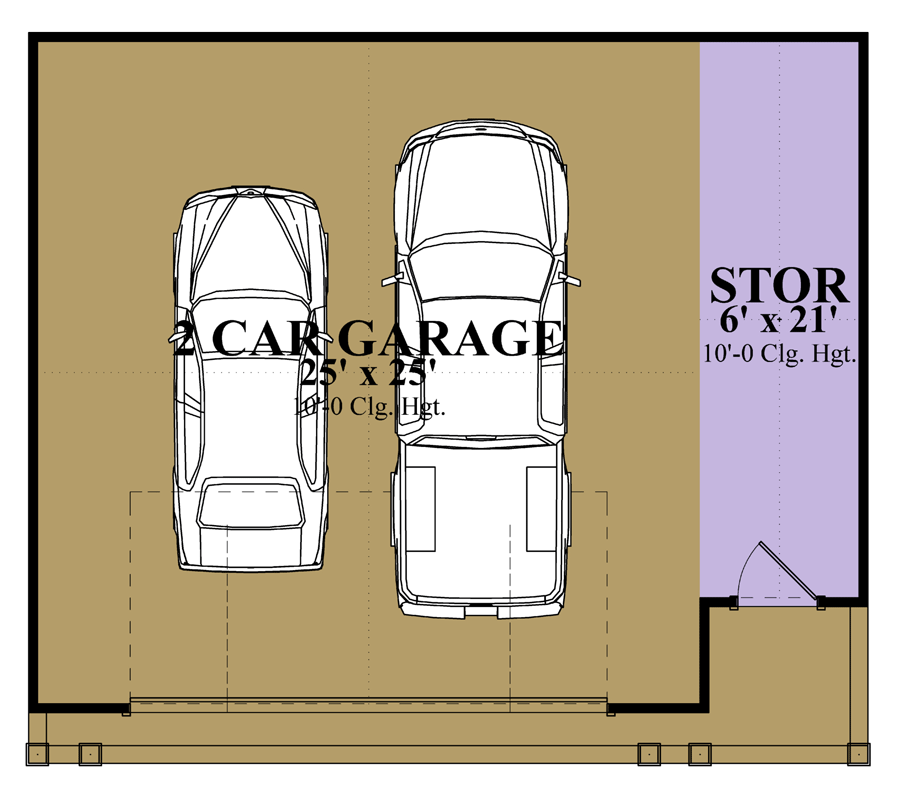

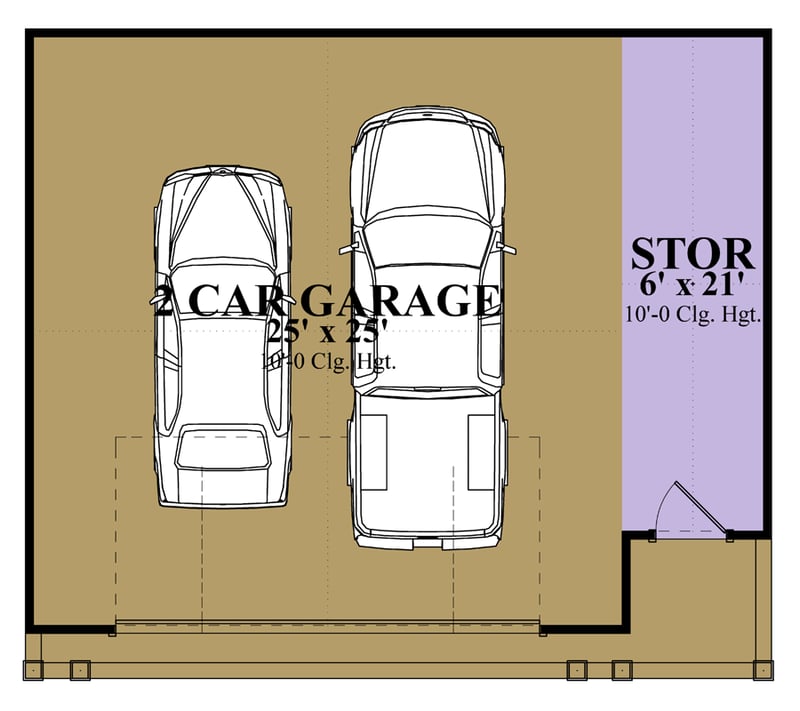

Floor Plan

Plan 86423HH

Floor Plan 1

Plan 86423HH

M-F 9am-5pm EST |

1-203-761-8500

Plan 86423HH: Country Style Garage House Plan with Storage Space - Floor Plan - - Country, Craftsman, New American

Plan Details

  • This versatile cottage-style garage plan provides 789 square feet of space with a 2-car configuration.
  • The exterior showcases a timeless aesthetic, blending country and New American influences with a classic roofline and a prominent front-facing dormer.
  • A dedicated pedestrian entry door sits adjacent to the main garage bay, offering convenient access separate from the vehicle entrance.
  • The structure is designed with a spacious interior footprint measuring 31 feet 8 inches wide by 27 feet 7 inches deep.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

31' 8"

Depth

27' 7"

Max Ridge Height

21' 11"

Garage

Area

789 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Architectural Style

Country

Craftsman

New American

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

31' 8"

Depth

27' 7"

Max Ridge Height

21' 11"

Garage

Area

789 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Architectural Style

Country

Craftsman

New American

Special Features

Workshop
