Plan 82006KA

Courtyard Beauty

7,340 5 5.5+ 2 4
Pageloader

Courtyard Beauty

Plan 82006KA

  • 7,340

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

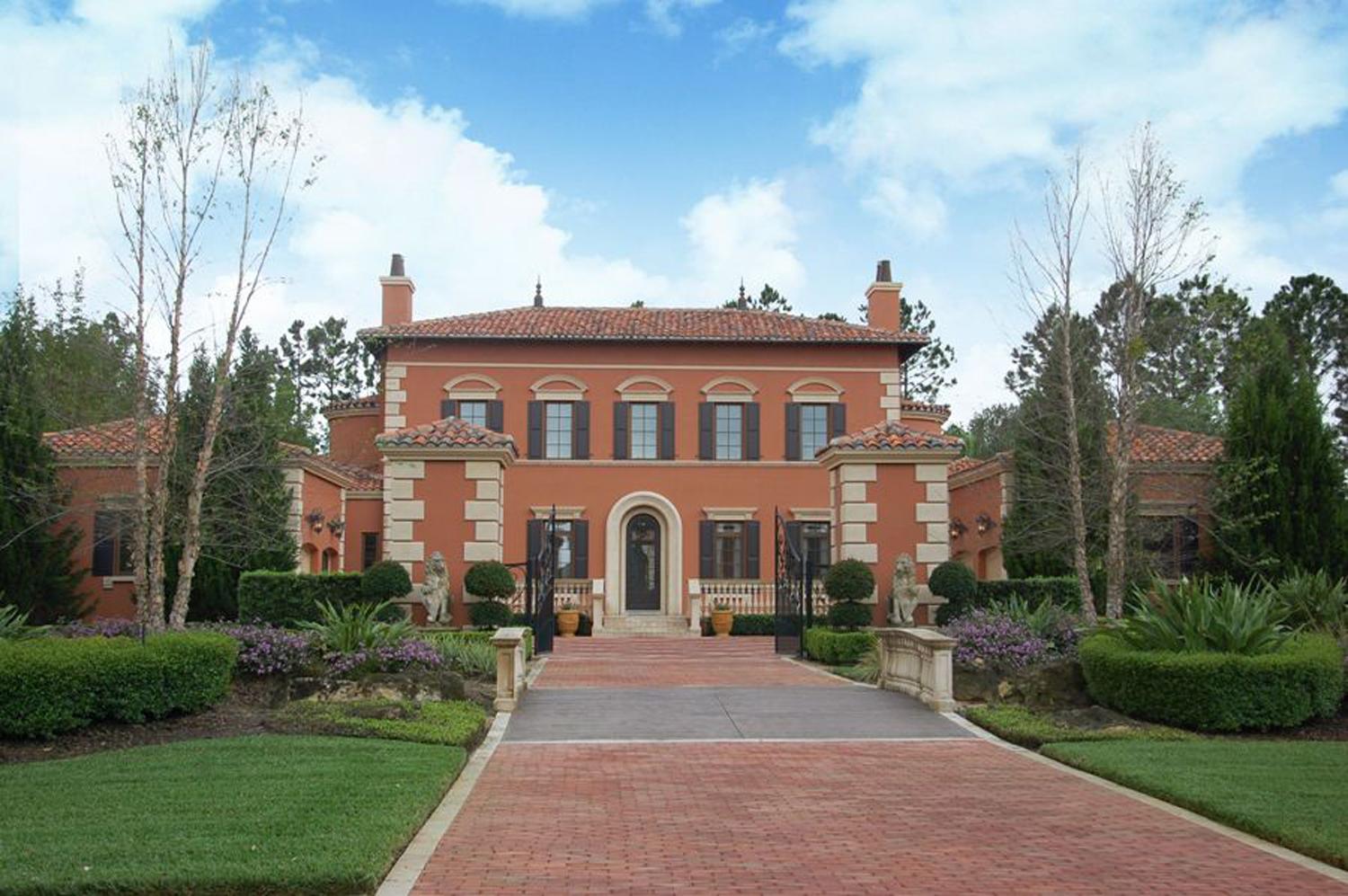

  • This splendid home is built around a courtyard, giving great views to every room on both floors.

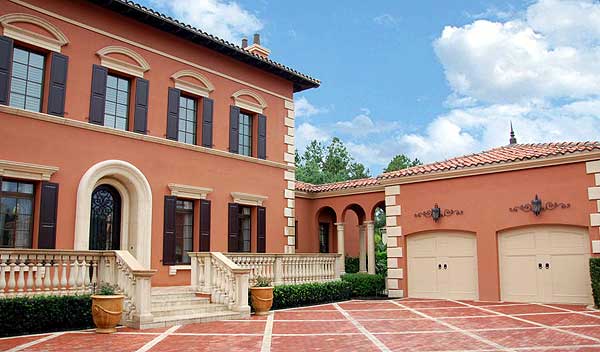

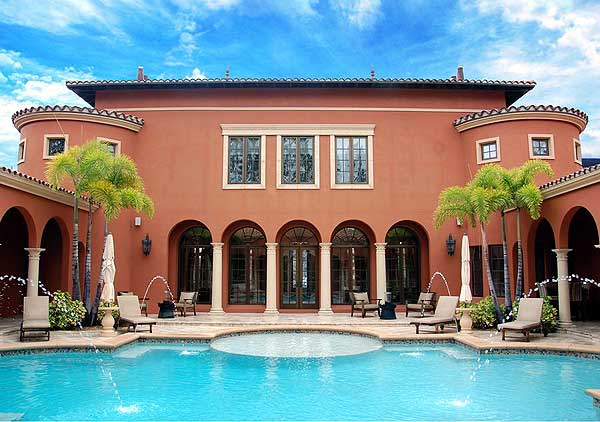

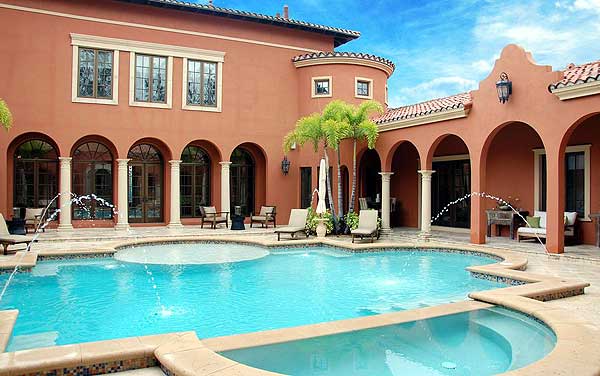

  • Enter the house from the motorcourt (with split garage space for four cars) and step into the foyer. From here, a wall of French doors gives you a gorgeous vista of the pool and extensive loggias.

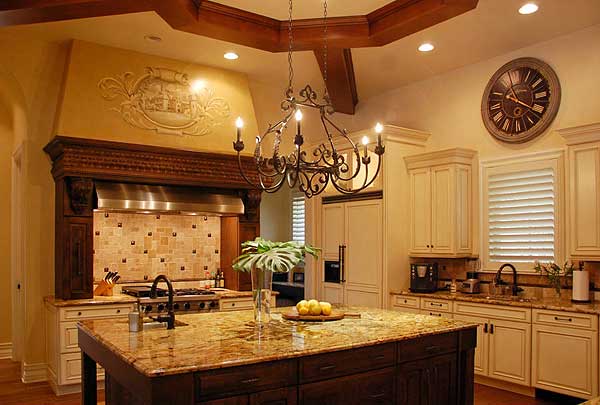

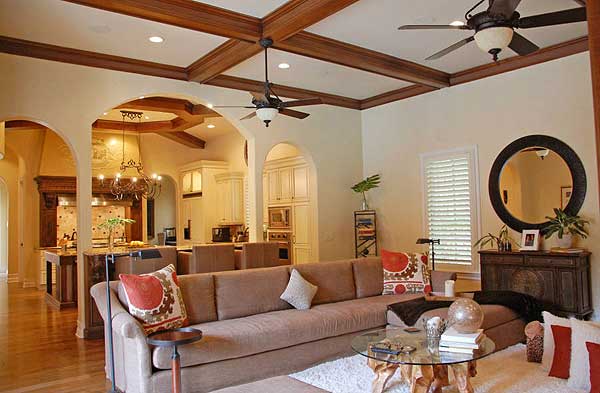

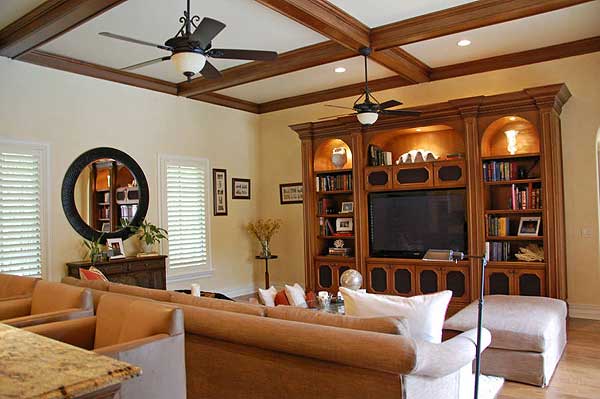

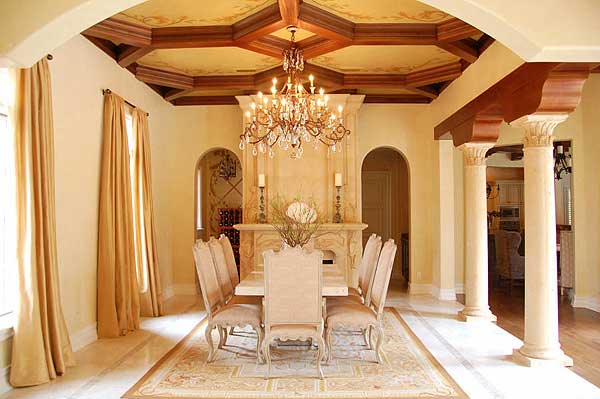

  • To the left, everyone can relax in the family room, open kitchen, and circular breakfast nook. More formal reception happens in the "sala" and dining room, each boasting a fireplace. Kids will love the game room and wet bar.
  • Clear across the courtyard, the owner's retreat has the wing to itself: a sitting room, fireplace, two big closets, and great bathroom (with two water closets) surround you with comfort.

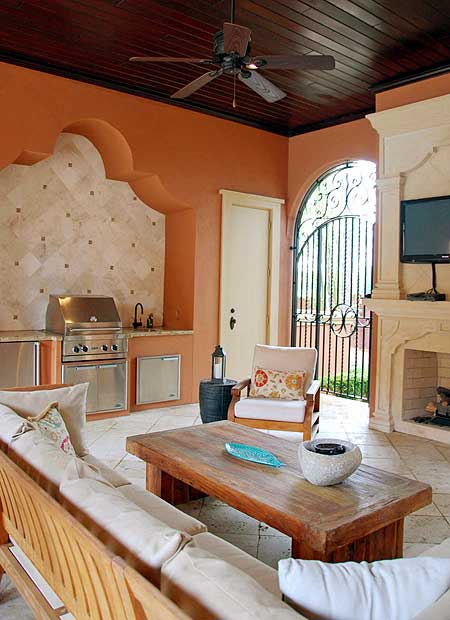

  • A detached guest suite sits next to the veranda and near the exercise room.
  • Three more bedroom suites rest upstairs.
  • The roof has a 4:12 pitch and is a truss design.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

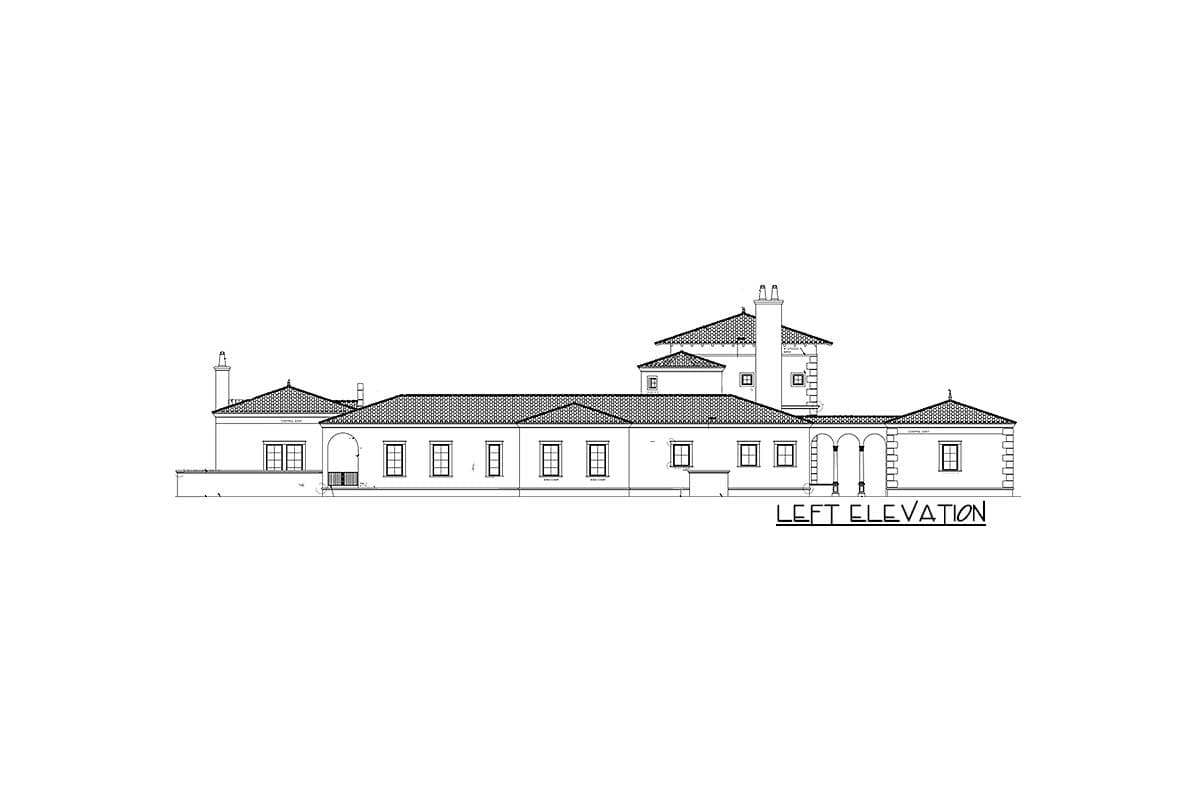

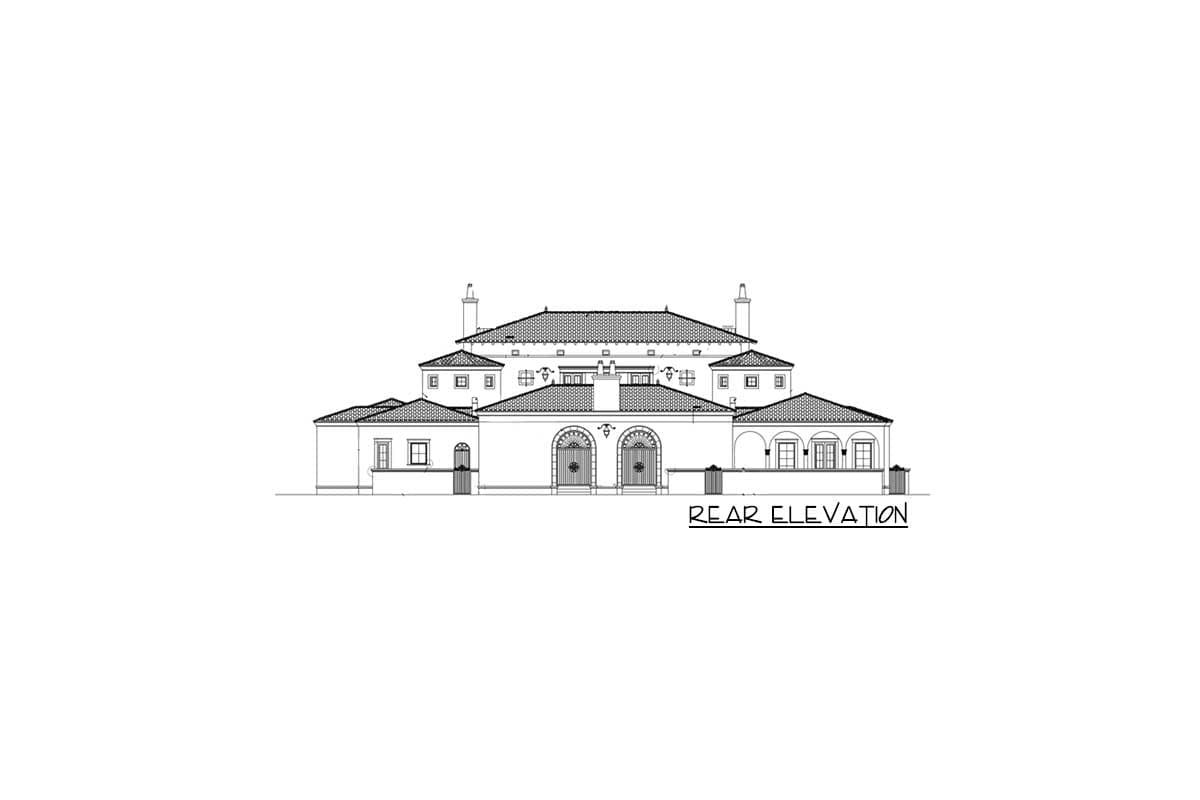

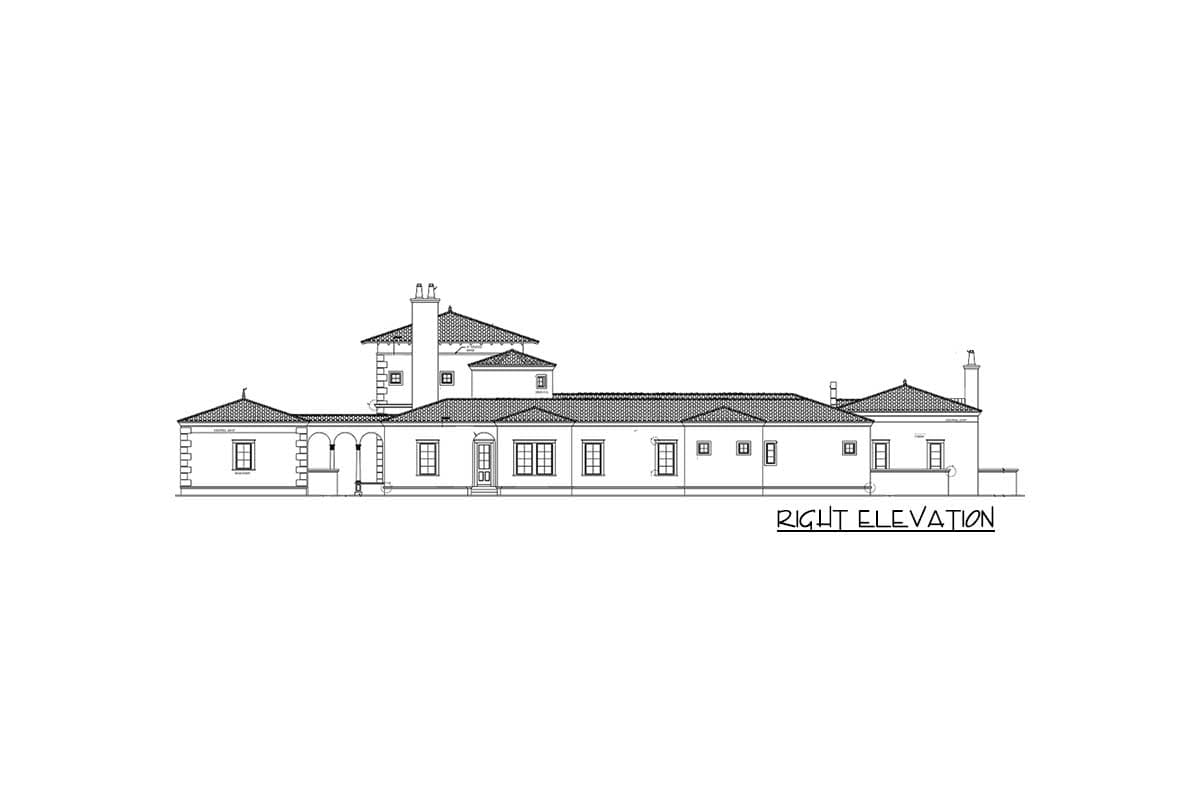

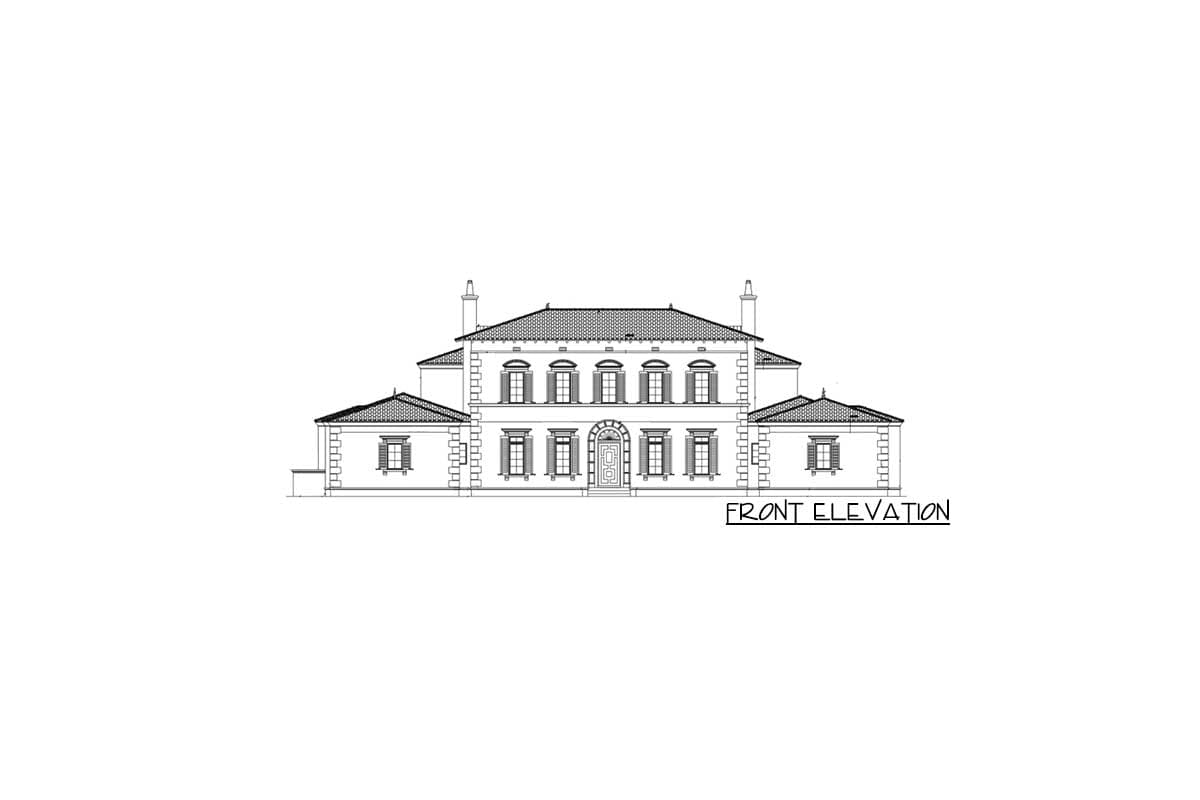

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

Plan details



Courtyard Beauty

  • 7,340

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $3,315
  • 8 Sets $3,435
  • PDF - single-use $3,525
  • CAD $3,525
  • View all purchase option online

About This Plan

  • This splendid home is built around a courtyard, giving great views to every room on both floors.
  • Enter the house from the motorcourt (with split garage space for four cars) and step into the foyer. From here, a wall of French doors gives you a gorgeous vista of the pool and extensive loggias.
  • To the left, everyone can relax in the family room, open kitchen, and circular breakfast nook. More formal reception happens in the "sala" and dining room, each boasting a fireplace. Kids will love the game room and wet bar.
  • Clear across the courtyard, the owner's retreat has the wing to itself: a sitting room, fireplace, two big closets, and great bathroom (with two water closets) surround you with comfort.
  • A detached guest suite sits next to the veranda and near the exercise room.
  • Three more bedroom suites rest upstairs.
  • The roof has a 4:12 pitch and is a truss design.

Floor Plans

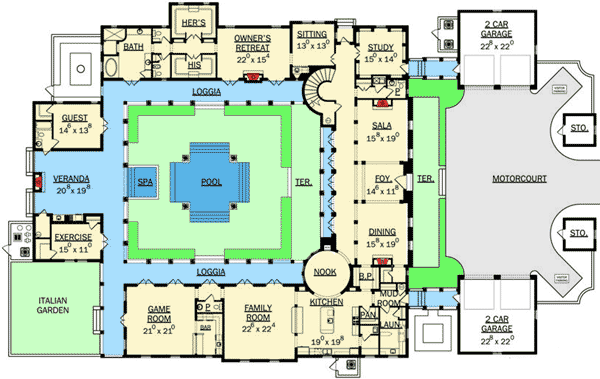

  • Main Level

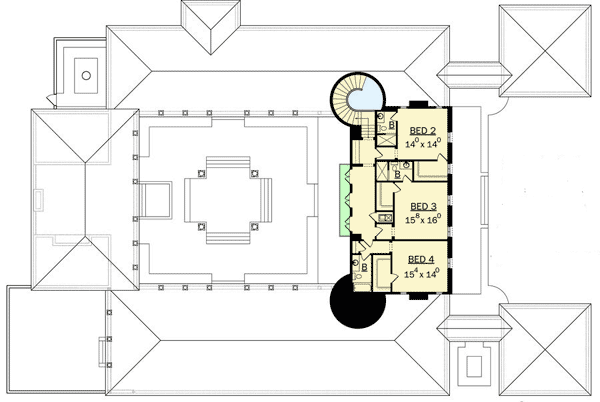

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,340 sq. ft.
  • 1st Floor: 5,911 sq. ft.
  • 2nd Floor: 1,429 sq. ft.
  • Porch, Rear: 2,193 sq. ft.
  • Storage: 200 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 109' 0"
  • Depth: 160' 4"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 1152 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 4.5 on 12
  • Framing Type: Truss
