Plan 25400TF
Courtyard Pleaser
Heated S.F.
2,771
Beds
4
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details

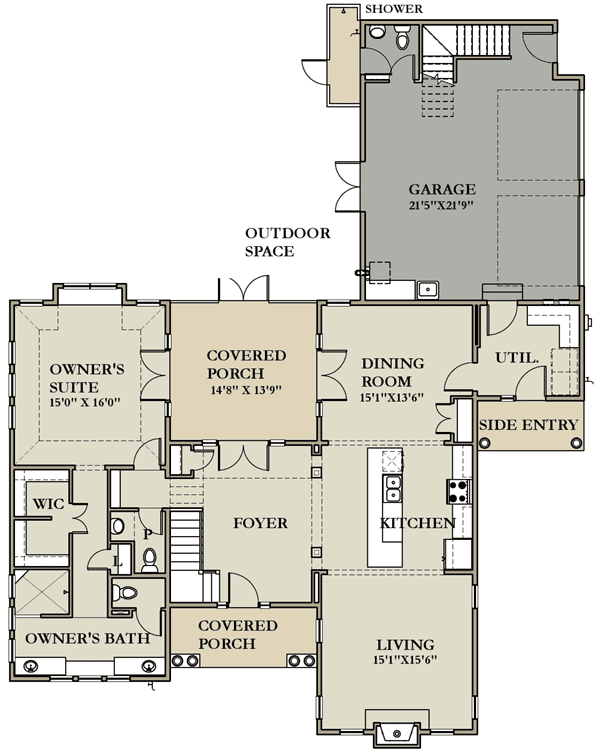

  • The 2-story foyer is a great guest greeter and the covered porch beyond - accessed by french doors on four sides - acts as a courtyard hub to this attractive 4 bedroom master down house plan. The upstairs gallery has views down to below.
  • The kitchen is spacious and open to the dining room and living room and has views through the columned entry to the foyer. A fireplace in the living room is a nice touch.
  • The owner's suite has an attractive bay window and a pair of french doors leading to the covered porch. Note the walk-in shower, his-and-her walk-ins and separate vanities in the bath.

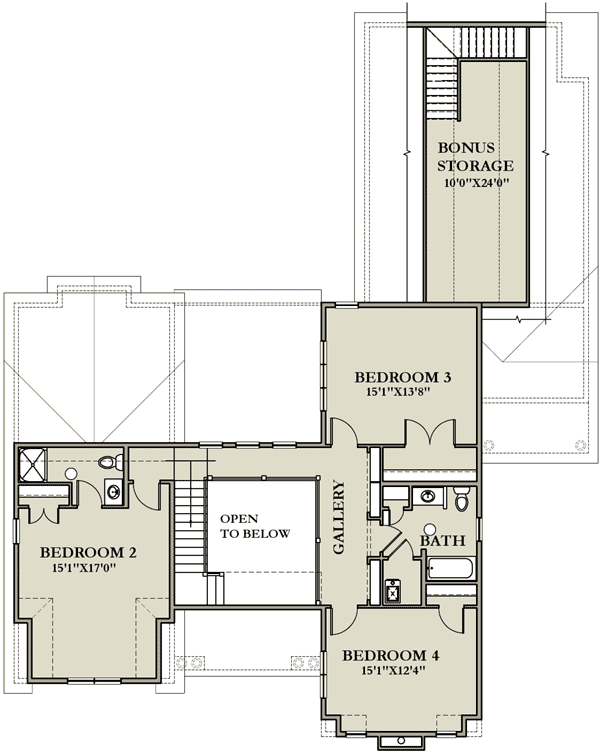

  • A side entry gives you access to the utility room and the garage beyond, which has stairs leading to the bonus room and even has a shower inside.
What's Included
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Courtyard Pleaser

  • 2,771

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,771 sq. ft.
  • 1st Floor: 1,715 sq. ft.
  • 2nd Floor: 1,056 sq. ft.

Dimensions

  • Width: 57' 4"
  • Depth: 72' 8"
  • Max ridge height: 28' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 572 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick and Truss
