Covered Porch Home Plan

Plan 9359EL

  • 2,021

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A cozy covered porch gives this home curb appeal. As you enter the foyer there is a dining room on your left and an open view to the great room with optional fireplace. This home was designed with entertaining in mind. The layout of the open kitchen and breakfast area in combination with the great room provides easy access.
  • The master bedroom with walk-in closet and master bath with dual sink vanity make a nice retreat after the party is over.
  • Two additional bedrooms are located on the second level of this home and share a full bath.
  • A two car attached garage completes this plan.
  • See these related house plans: 9360EL, 9361EL.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

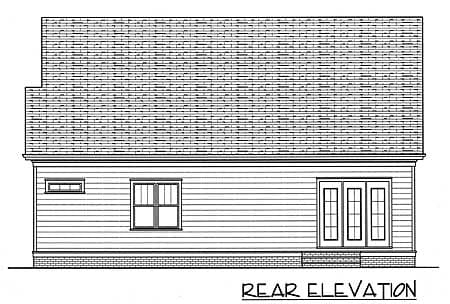

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

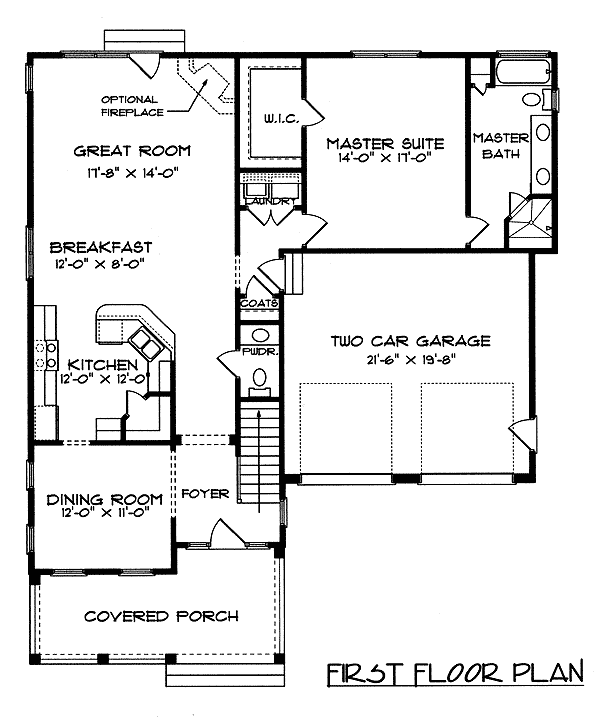

Covered Porch Home Plan - 9359EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

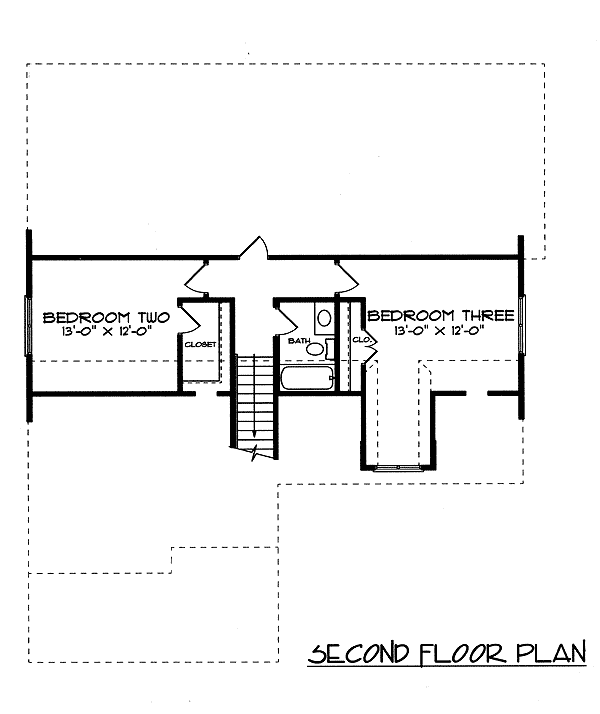

Covered Porch Home Plan - 9359EL floor plan - 2nd Floor

Architectural Style

Special features

Plan Collections

Covered Porch Home Plan

  • 2,021

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,021 sq. ft.
  • 1st Floor: 1,430 sq. ft.
  • 2nd Floor: 591 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 49' 8"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 444 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
