Cozy 1-Bedroom Cabin House Plan with Front Porch and Main Level Master Suite

Heated S.F.
716
Beds
1
Baths
1
Stories
1

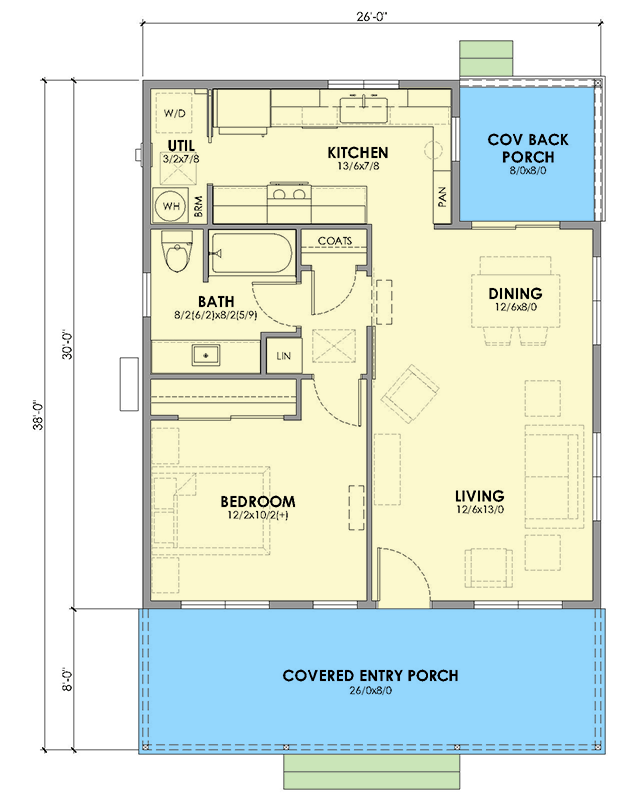

Floor Plan

Plan 470319REY

Floor Plan 1

Plan 470319REY

M-F 9am-5pm EST |

1-203-761-8500

Plan 470319REY: Cozy 1-Bedroom Cabin House Plan with Front Porch and Main Level Master Suite - Floor Plan - - Cabin, Cottage, Country, Farmhouse

Plan Details

  • Boasting 716 finished sq ft, this charming 1-bedroom, 1-bath house plan features a versatile Cabin, Cottage, and Farmhouse exterior style.
  • A welcoming 208 sq ft front porch invites you into a thoughtfully designed single-level layout, emphasizing comfort and efficiency.
  • Inside, the efficient layout maximizes living space, providing a comfortable environment ideal for daily living and relaxation.
  • The master suite is conveniently located on the first floor, offering a private retreat within this compact and cozy home.
  • Enjoy tranquil moments on the generous 208 sq ft front porch or the more secluded 64 sq ft rear porch, perfect for enjoying the outdoors.

What's Included

  • Cover Sheet: Includes front elevation or perspective, plan description, general notes, building footprint, building area breakdowns, drawing sheet index, etc. These elements are not to scale.
  • Floor Plan: Includes layout of each floor with locations and dimensions of walls, doors, and windows. Overhead beams and vaults are indicated. Shows locations of cabinetry, appliances, plumbing fixtures, closets and shelf packs.

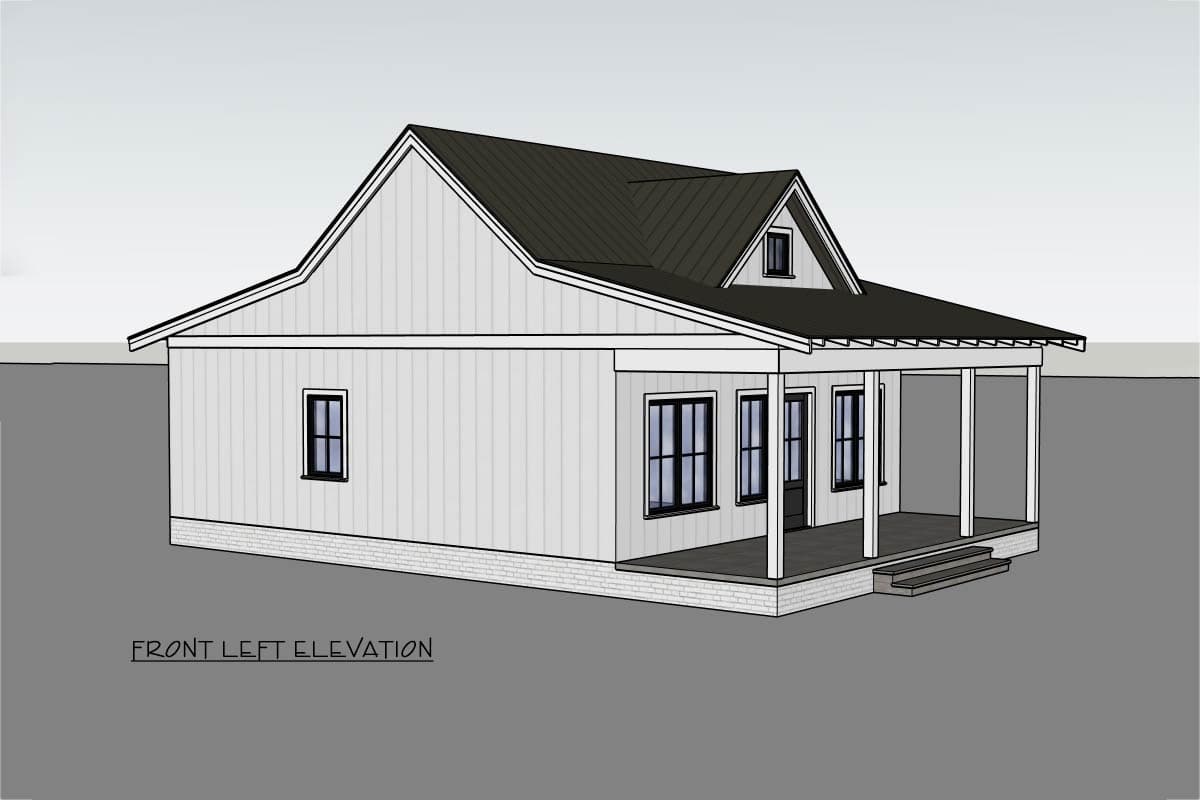

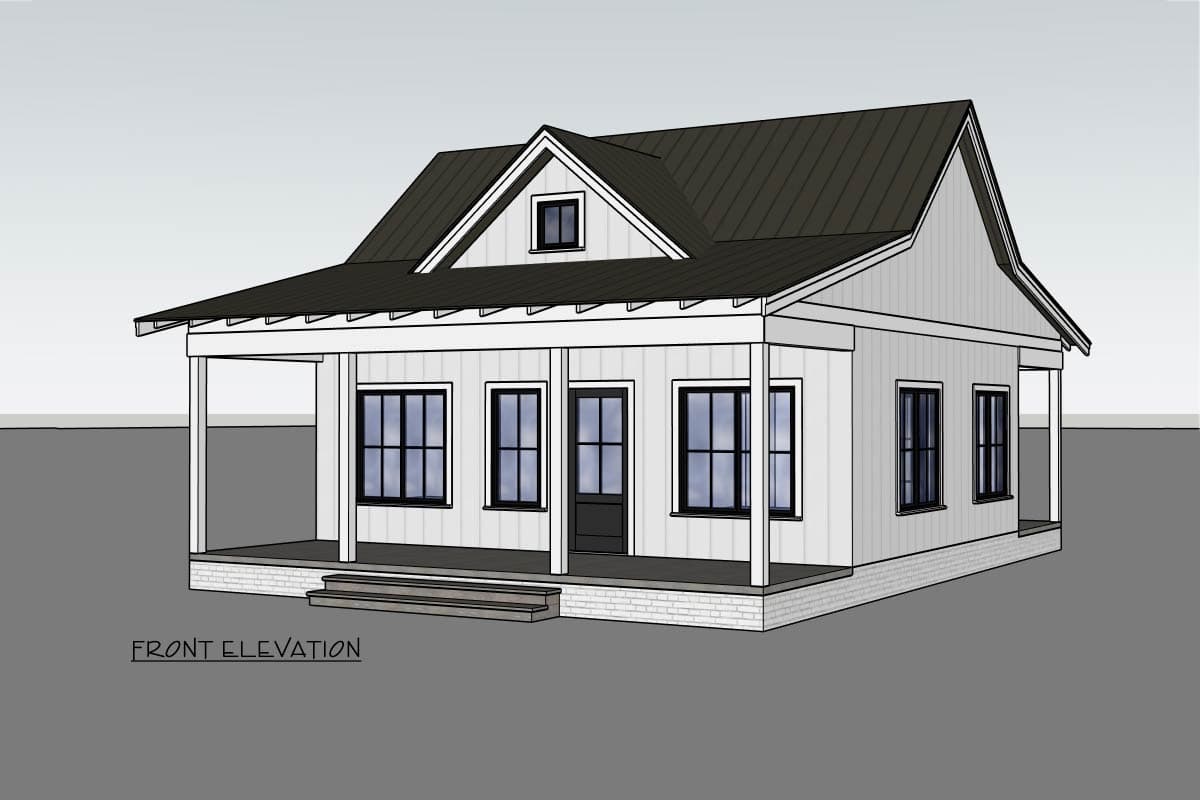

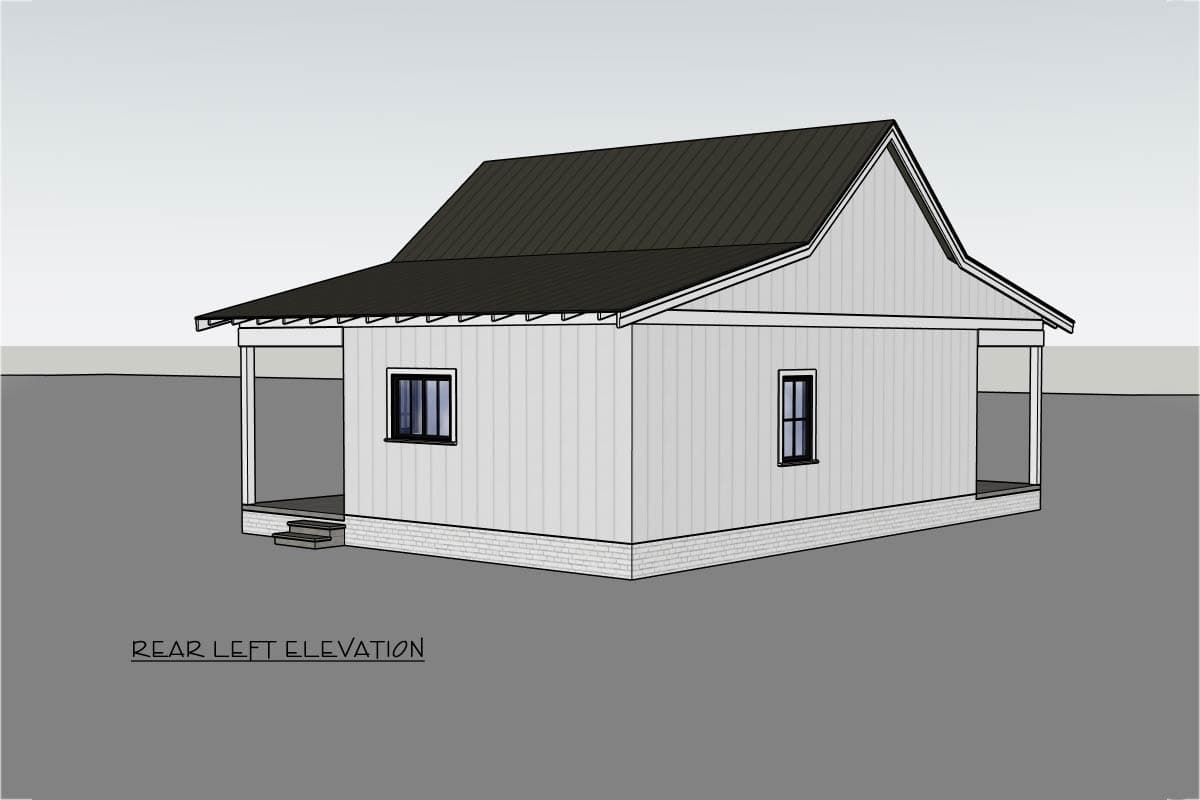

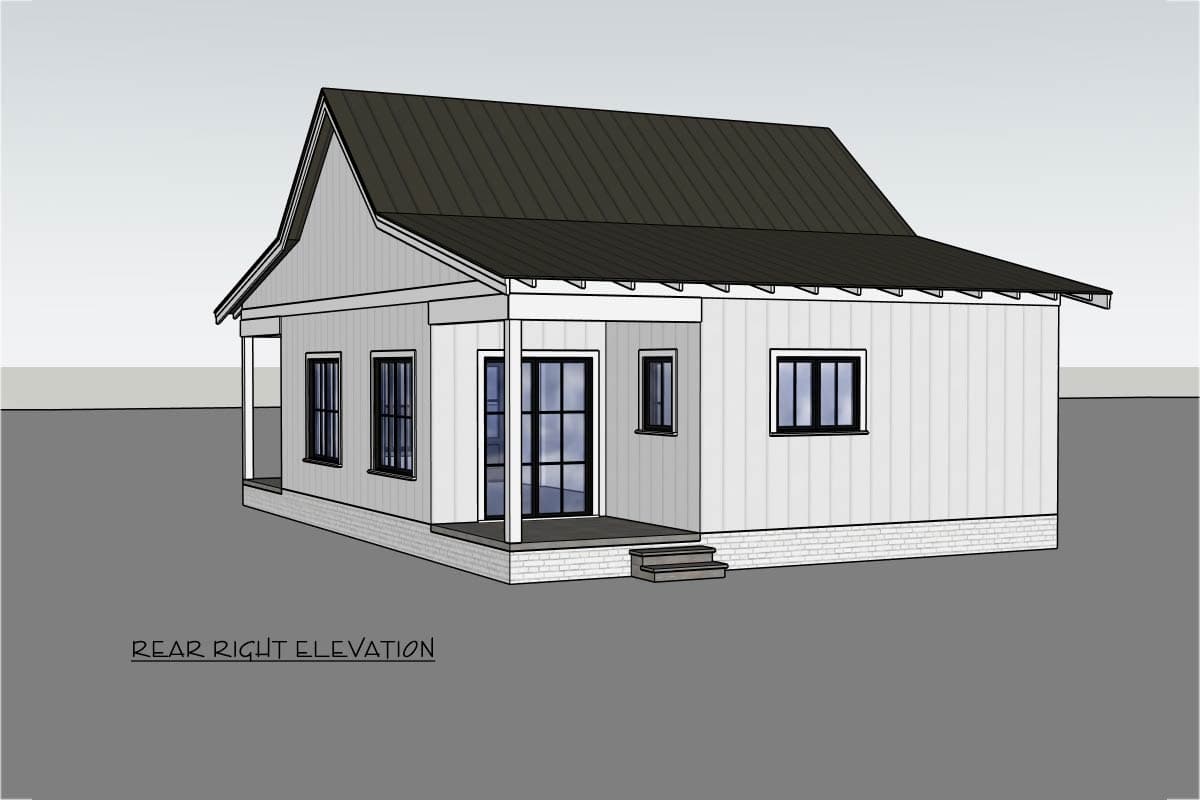

  • Exterior Elevations: Shows front, sides and back building elevations along with roof pitches, and exterior siding and trim materials.
  • Typical Section: Usually drawn to ½”=1’-0”. Shows a cross-section of the building with typical elements such as ceiling and header heights, roof style, insulation locations (thermal envelope), and foundation style. Specific details may be shown in an additional Typical Wall Section, if included.
  • Electrical Plan: Includes a general suggested layout of light fixtures, switches, and electrical outlets.
  • Foundation Plan: Shows locations of foundation walls, strip footings and pier pads.
  • Floor Framing Plan: First floor framing may be combined with Foundation Plan. Shows floor framing type, spacing and direction along with supporting element locations.
  • Roof Framing Plan: Shows truss/rafter spacing and direction, typical overhangs, roof outline, supporting member locations, and over framing locations (if any).
  • Typical Details: Scales may vary, typically at to ½”=1’-0” or to 1”=1’-0”, some not to scale. Shows the suggested typical details such as transitions from foundation to walls, walls to ceiling/roof, general flashing strategies, and other connection points. Other specific architectural finish details may be included at designer’s discretion.
  • Interior Elevations of Cabinetry may be included, but are not always part of a standard drawing set.
This is a general description of the content of each main drawing set element. Elements may be grouped on single sheets for smaller plans or over multiple sheets for larger plans. Additional information may be included. All information provided, and particularly any structural information, simply reflects the conditions of the original build location and may not be appropriate for the plan purchaser’s build location and are included for reference only. Therefore, all drawing information is to be verified by a person qualified to ensure compliance with the actual build location conditions and regulations as needed. Unless otherwise noted, elements are typically drawn to a scale of ¼”=1’-0”.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

716 sq. ft.

1st Floor

716 sq. ft.

Porch, Front

208 sq. ft.

Porch, Rear

64 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

38' 0"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Farmhouse

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

716 sq. ft.

1st Floor

716 sq. ft.

Porch, Front

208 sq. ft.

Porch, Rear

64 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

38' 0"

Max Ridge Height

21' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Farmhouse

Special Features

Laundry - Main Level

Master Suite - 1st Floor
