Cozy and Compact Cottage
Heated S.F.
1,490
Beds
3
Baths
2
Stories
1
Photos
What's Included
Plan Details
  • Just the right size to make it easy to clean and maintain, this cozy Cottage house plan fits well on a narrow lot.
  • An open floor plan makes the home feel much large, with sight lines that run from the front door all the way to the deck in back.
  • The efficient kitchen benefits from both an island and a peninsula eating bar.
  • Double doors in the master suite lead out to the large back deck.
  • Two family bedrooms lie across the house away from the master suite.
What's Included
This plan set has 13 pages as follows:

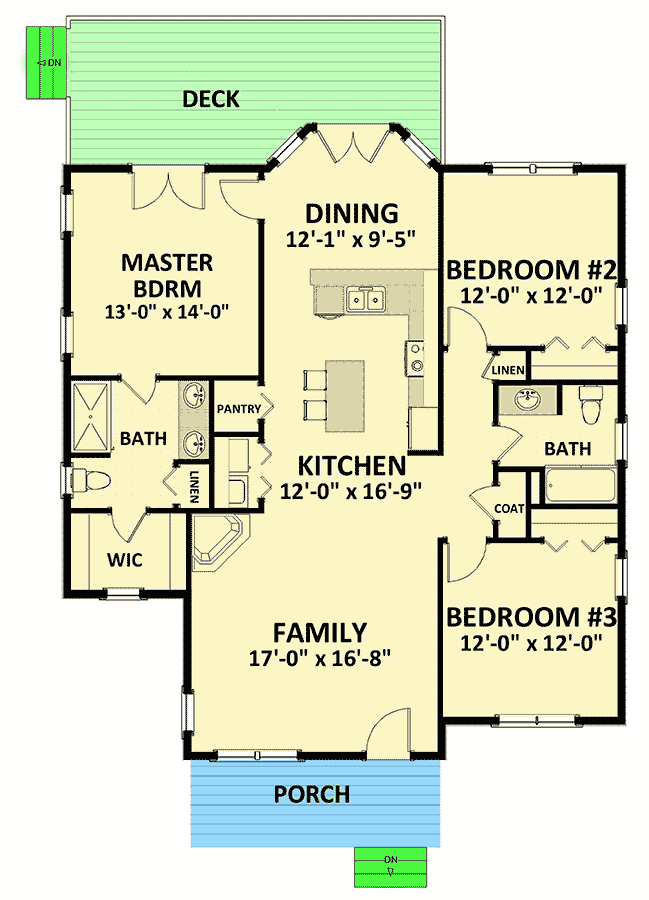

  1. First floor plan with window and door schedules
  2. Roof plan
  3. Front and left elevations
  4. Rear and right elevations

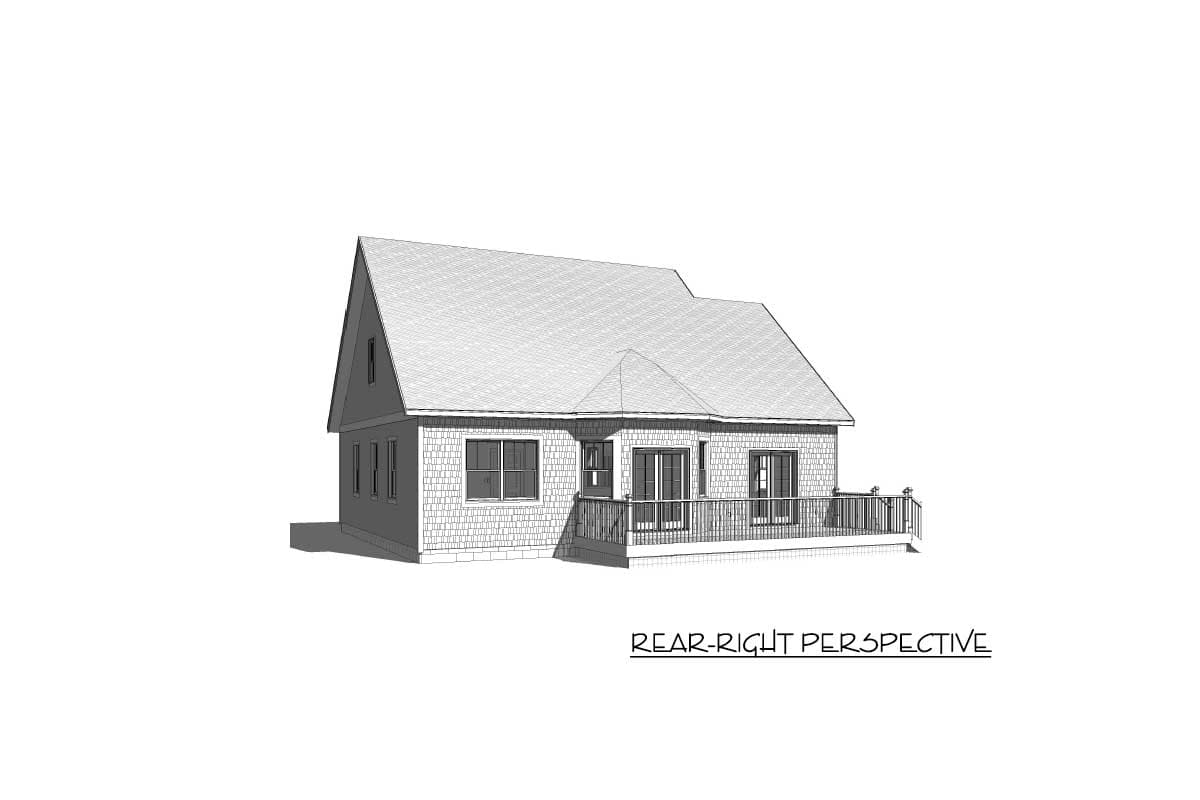

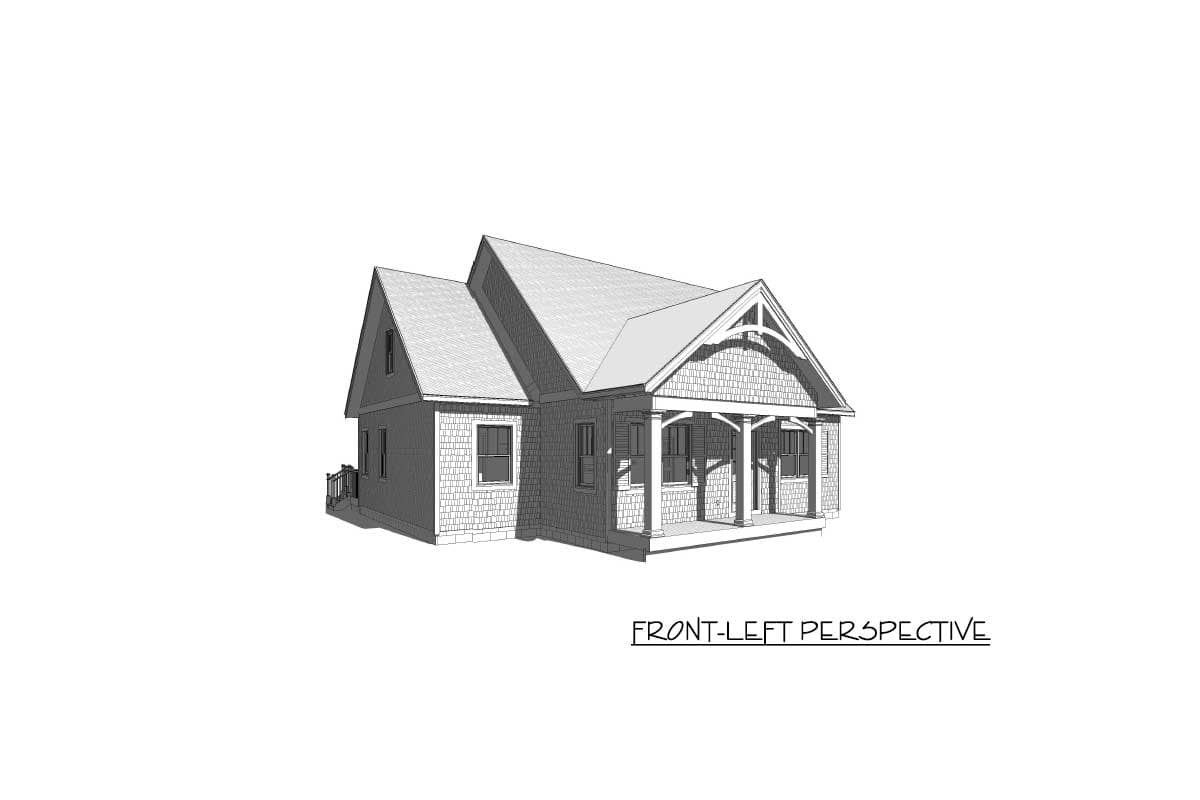

  5. Front and rear perspectives
  6. Building section and eave detail
  7. Interior perspective and kitchen elevations (3)

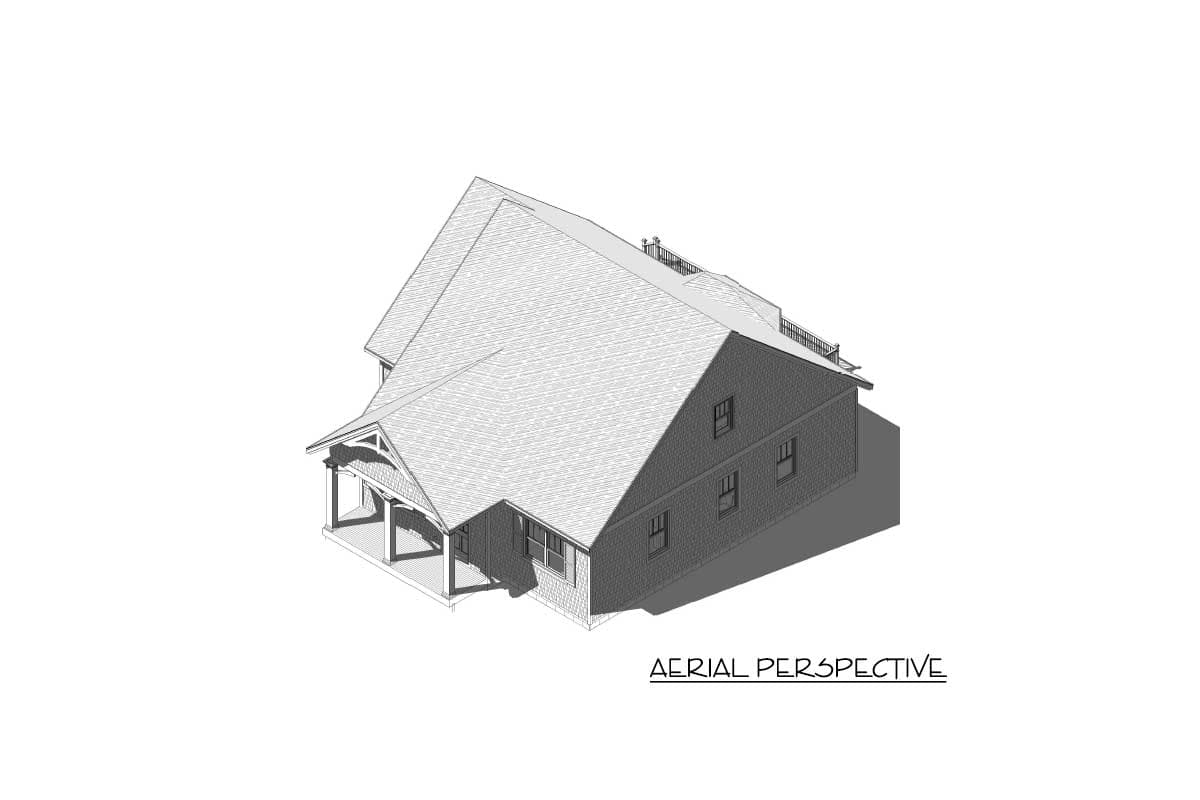

  8. Aerial perspective and front rendering
  9. First floor electrical plan
  10. Foundation plan
  11. First floor framing
  12. Second floor framing
  13. Roof framing plan

These items are NOT included with the plan set:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
