Plan 69396AM

Cozy and Quaint Contemporary Plan

1,719 2-3 2 1 2
Pageloader

Cozy and Quaint Contemporary Plan

Plan 69396AM

  • 1,719

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Compact and built with sophistication, this one level bungalow features spacious rooms and handsome details throughout.
  • Featuring three bedrooms and tons of character, this home's style blossoms from its eclectic mix of contemporary materials along the exterior.
  • Inside, a foyer leads directly into the vaulted, open living room, which features built-in shelving, media space and a well-appointed kitchen island.
  • The bedrooms all feature vaulted ceilings as well, furthering this modern home's spacious feel. H
  • His and her sinks in the master bath, ample closet space, and plenty of built-in furniture round out the charming details of this single-level charmer.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Basement stair location

Pinit white
Cozy and Quaint Contemporary Plan - 69396AM floor plan - Basement stair location

Plan details



Cozy and Quaint Contemporary Plan

  • 1,719

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $674
  • PDF - single-use $1,024
  • 5 Sets $1,174
  • 5 Sets PLUS $1,224
  • CAD - multi-use $2,048
  • View all purchase option online

About This Plan

  • Compact and built with sophistication, this one level bungalow features spacious rooms and handsome details throughout.
  • Featuring three bedrooms and tons of character, this home's style blossoms from its eclectic mix of contemporary materials along the exterior.
  • Inside, a foyer leads directly into the vaulted, open living room, which features built-in shelving, media space and a well-appointed kitchen island.
  • The bedrooms all feature vaulted ceilings as well, furthering this modern home's spacious feel. H
  • His and her sinks in the master bath, ample closet space, and plenty of built-in furniture round out the charming details of this single-level charmer.

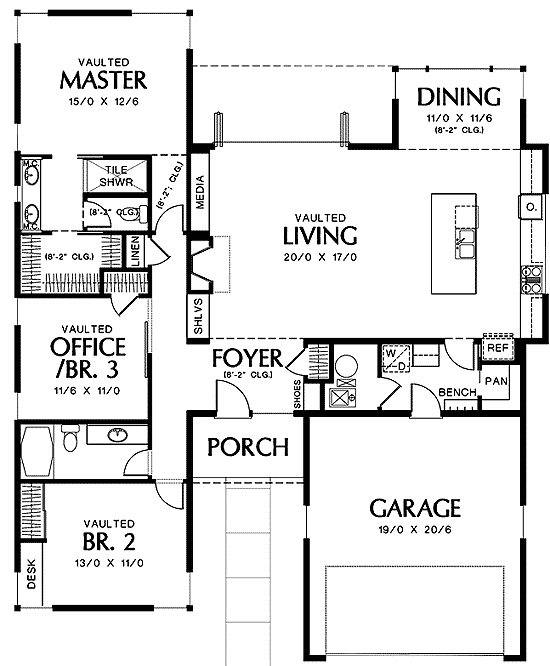

Floor Plans

  • Main Level

  • Basement stair location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,719 sq. ft.
  • 1st Floor: 1,719 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 59' 0"
  • Max ridge height: 13' 10"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Stick
