Plan 5743HA

Cozy Carriage House Plan

Heated S.F.
632
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 5743HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 5743HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

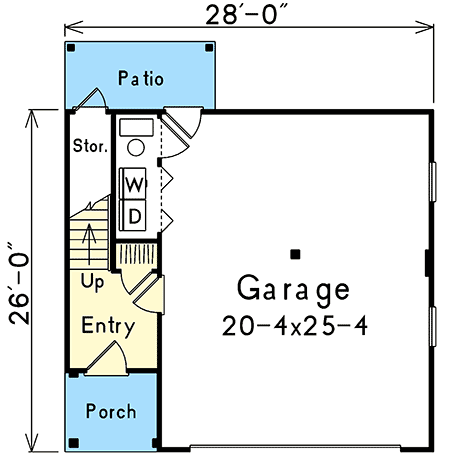

Plan 5743HA: Cozy Carriage House Plan - Floor Plan - Main Level - Cottage

2nd Floor

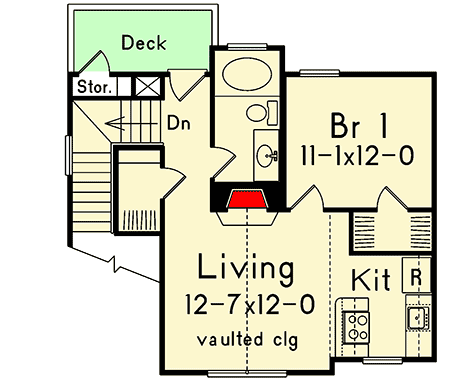

Plan 5743HA: Cozy Carriage House Plan - Floor Plan - 2nd Floor - Cottage

Plan Details

  • Porch leads to vaulted entry and stair with feature window, coat closet and access to garage/laundry.
  • Cozy living room offers vaulted ceiling, fireplace, large palladian window and pass-through to kitchen.
  • A garden tub with arched window is part of a very roomy bath.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

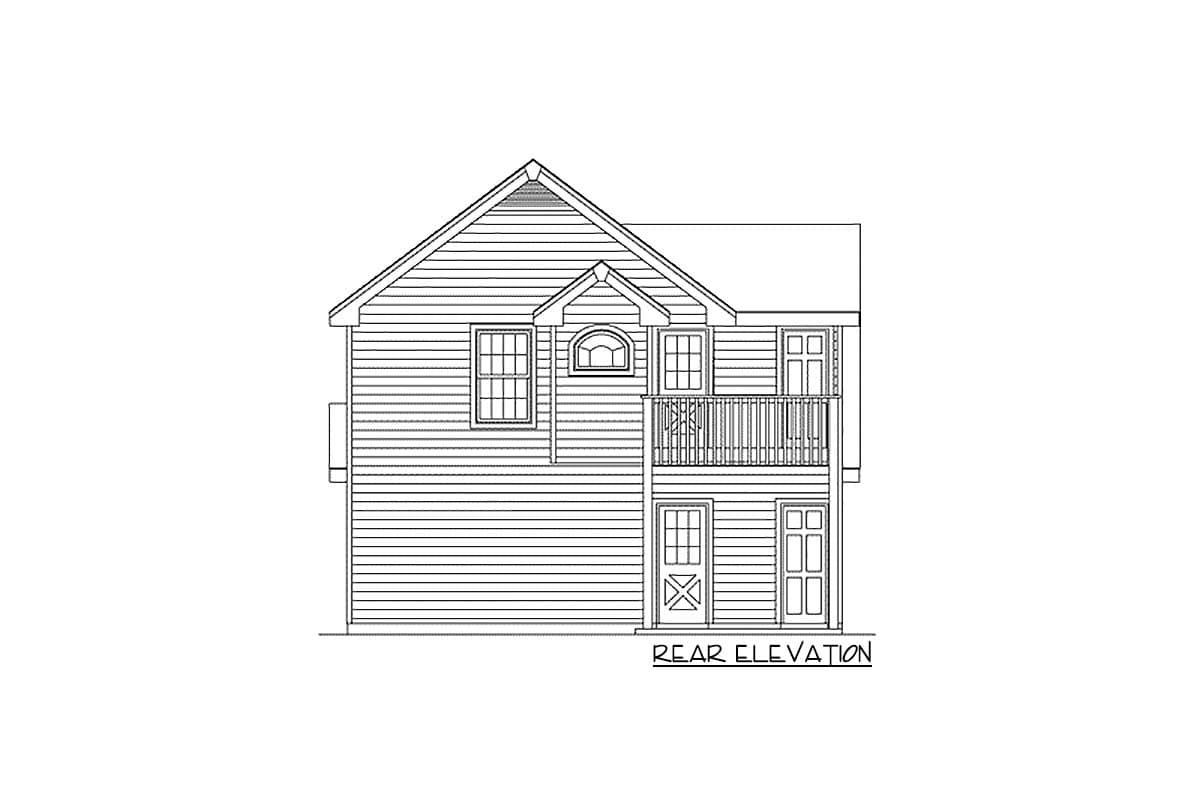

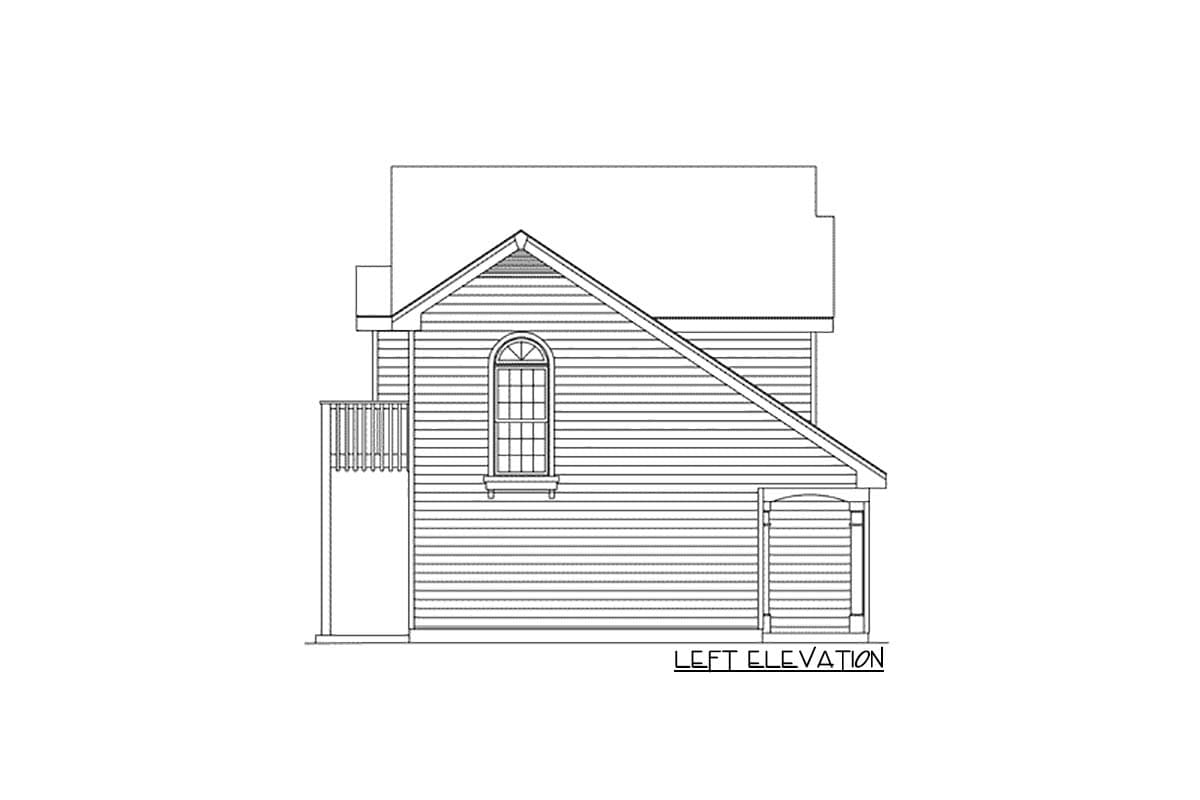

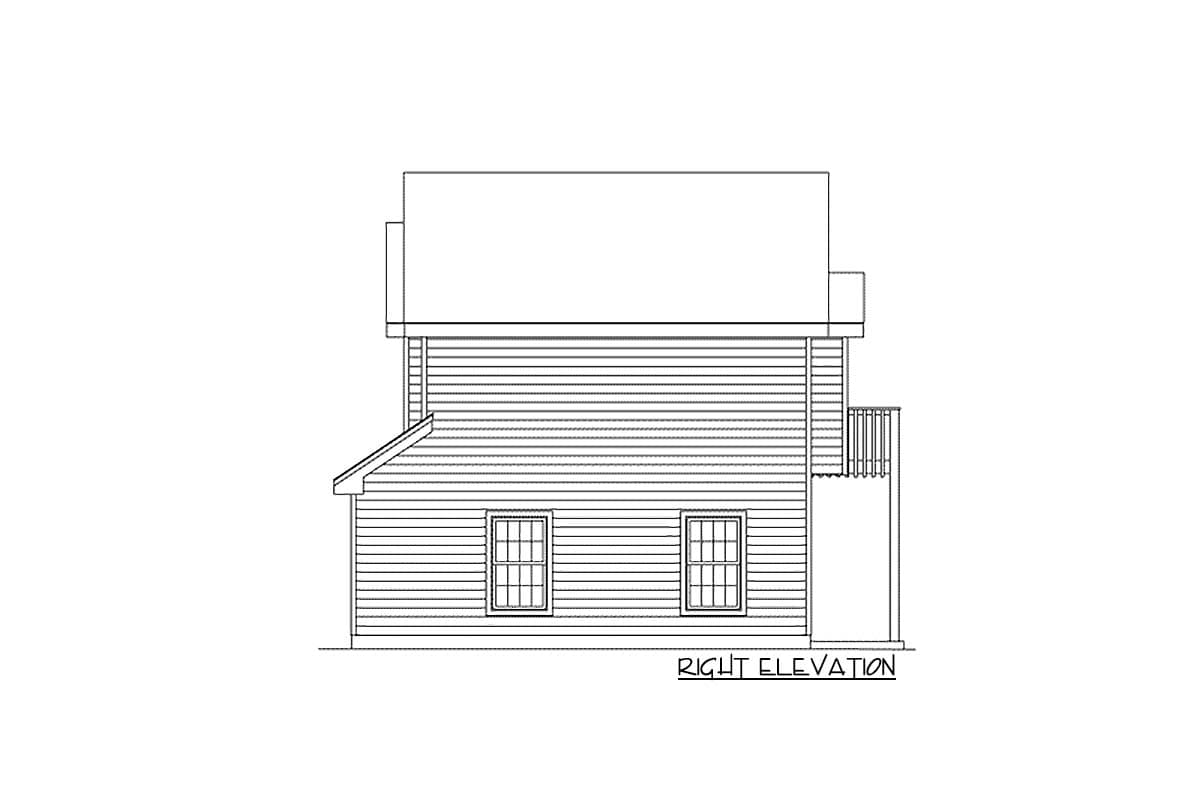

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

632 sq. ft.

1st Floor

120 sq. ft.

2nd Floor

512 sq. ft.

Deck

55 sq. ft.

Entry

42 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

26' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

515 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Cottage

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

632 sq. ft.

1st Floor

120 sq. ft.

2nd Floor

512 sq. ft.

Deck

55 sq. ft.

Entry

42 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

26' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

515 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Cottage

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
