Plan 52313WM
Cozy Cottage Under 800 Square Feet
Heated S.F.
788
Beds
2
Baths
1
Stories
1
What's Included
Plan Details
  • A brick trim grounds this Cozy Cottage home plan that provides you with 788 square feet of living space.
  • The open-concept design allows you to live large in this economical plan.
  • A tray ceiling helps to define the living space that flows freely into the island kitchen and dining room.
  • Each of the bedrooms are similar in size, while one of the bedrooms includes a 6' by 5' walk-in closet.
  • The laundry closet and 4-fixture bathroom are centrally located for easy access.
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Cozy Cottage Under 800 Square Feet

  • 788

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

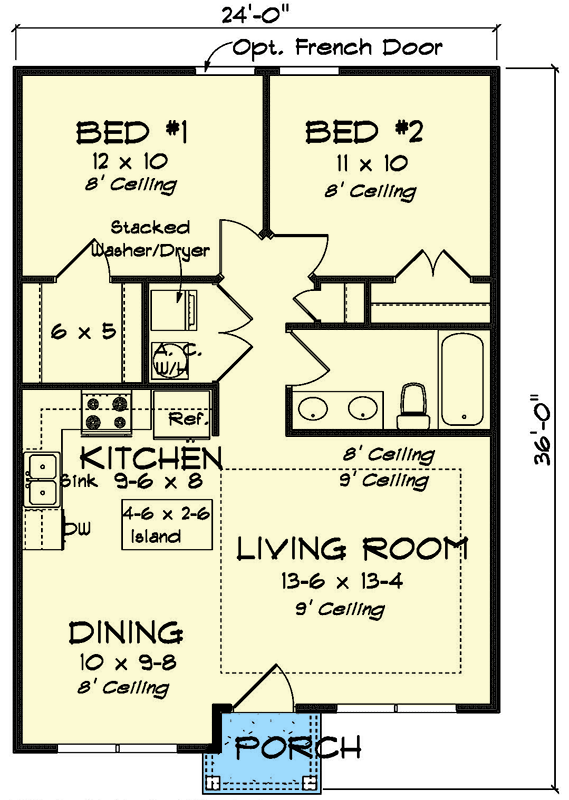

Floor Plan
