Plan 710088BTZ

Cozy Craftsman Cottage with Optional Second Floor

Pageloader

Cozy Craftsman Cottage with Optional Second Floor

Plan 710088BTZ

  • 1,656

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Cheery dormers atop a covered porch extend a warm welcome to this Craftsman cottage house plan.
  • A vaulted family room is the focal point from the foyer, with a cozy fireplace as its backdrop.
  • The master suite is secluded from the other bedrooms giving homeowners privacy.
  • A serving bar in the kitchen caters to the breakfast area and family room – convenient for entertaining.
  • Finishing the optional second floor adds a bedroom and bath, as well as a bonus room that can be used to the homeowner's discretion.

The plans include the following:

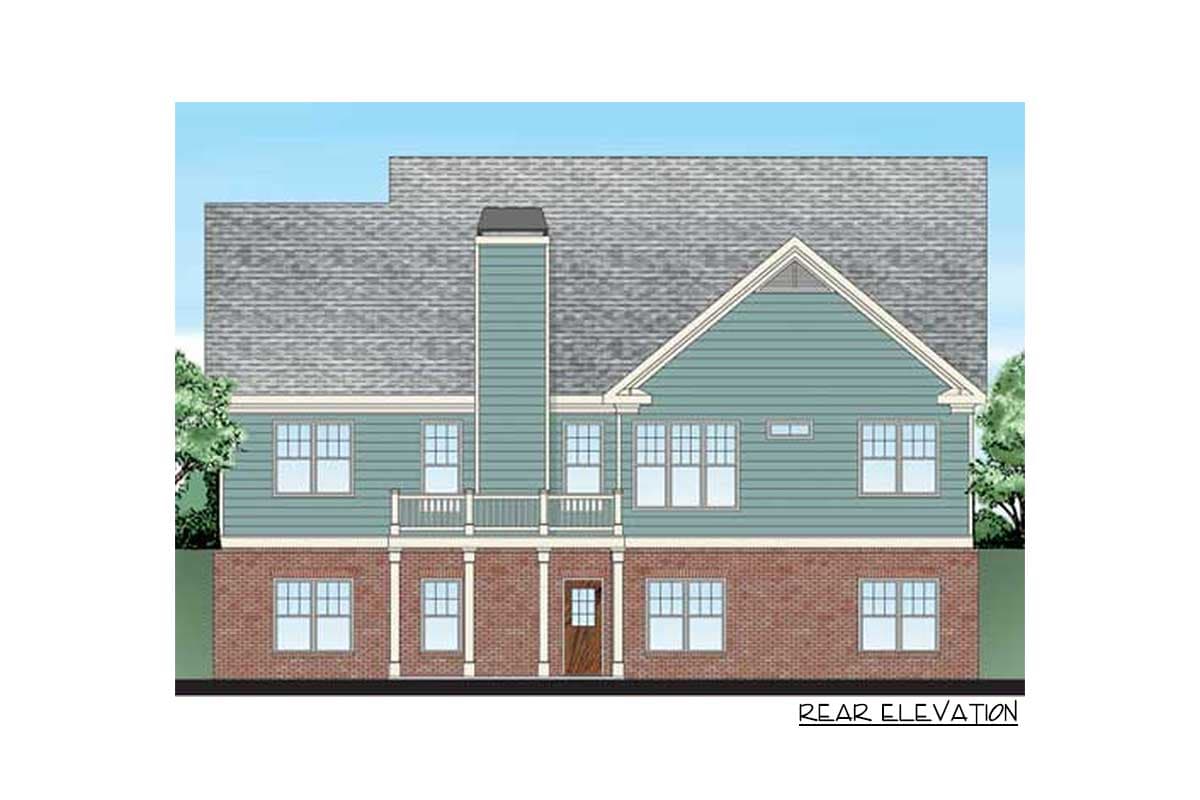

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

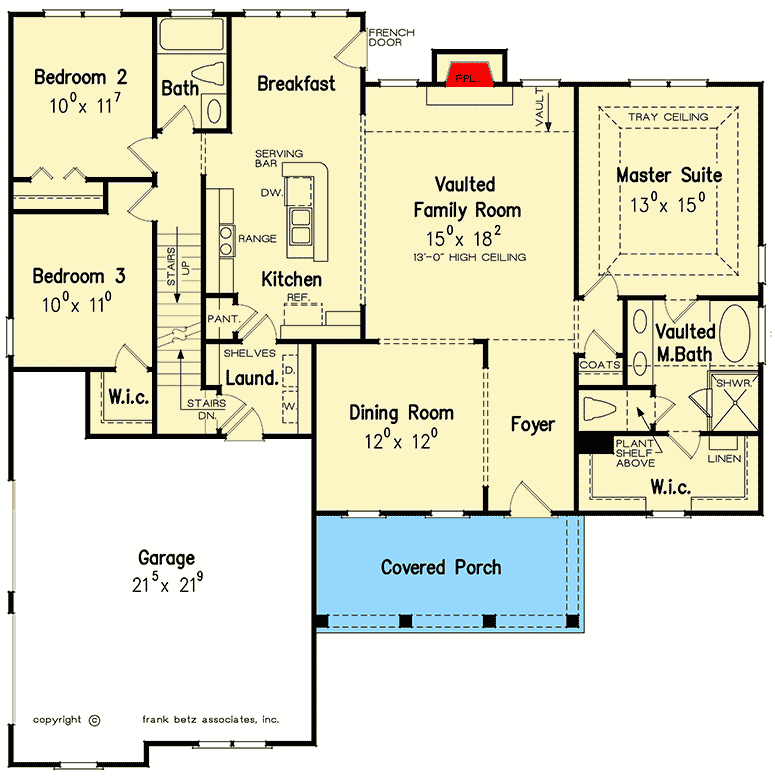

Floor Plan

Optional Second Floor

Pinit white

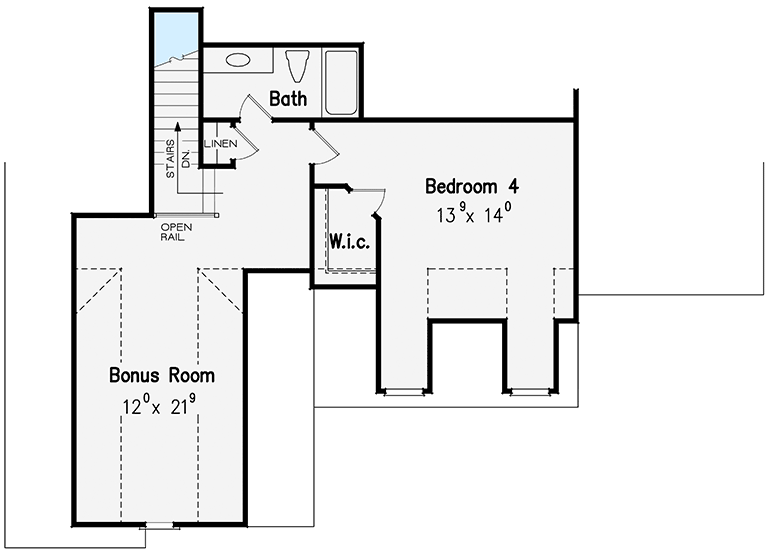

Cozy Craftsman Cottage with Optional Second Floor - 710088BTZ floor plan - Optional Second Floor

Plan details



Cozy Craftsman Cottage with Optional Second Floor

  • 1,656

    Heated s.f.

  • 3 - 4

    Beds

  • 2 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,150
  • 8 Sets $1,195
  • PDF - multi-use $1,255
  • Reproducible Set $1,315
  • CAD - multi-use $2,390
  • View all purchase option online

About This Plan

  • Cheery dormers atop a covered porch extend a warm welcome to this Craftsman cottage house plan.
  • A vaulted family room is the focal point from the foyer, with a cozy fireplace as its backdrop.
  • The master suite is secluded from the other bedrooms giving homeowners privacy.
  • A serving bar in the kitchen caters to the breakfast area and family room – convenient for entertaining.
  • Finishing the optional second floor adds a bedroom and bath, as well as a bonus room that can be used to the homeowner's discretion.

Floor Plans

  • Main Level

  • Optional Second Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,656 sq. ft.
  • 1st Floor: 1,656 sq. ft.
  • Bonus: 717 sq. ft.
  • Basement Unfinished: 1,656 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 0"
  • Depth: 54' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 524 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
