Cozy Craftsman House Plan with Flexible Living and Front Porch

Heated S.F.
860
Beds
1 - 2
Baths
1
Stories
1
Cars
1

Floor Plan

Plan 470317REY

Main Level
Main Level

Plan 470317REY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

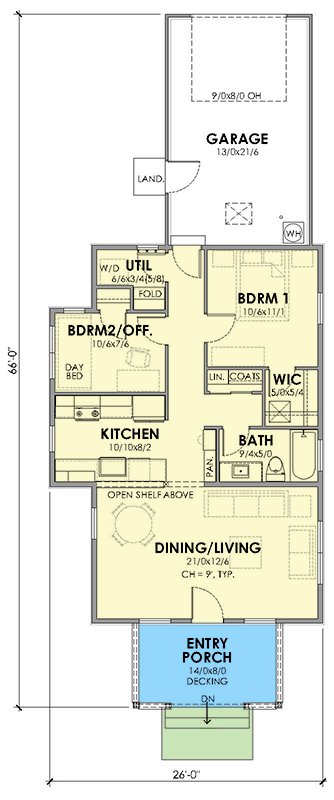

Plan 470317REY: Cozy Craftsman House Plan with Flexible Living and Front Porch - Floor Plan - Main Level - Bungalow, Cottage, Craftsman

Plan Details

  • This charming 860 sq ft Craftsman-style house plan offers flexible 1-2 bedrooms, 1 bath, and a convenient rear-entry 1-car garage.
  • Step onto the inviting front porch and through the entry, where 9-foot ceilings and ample natural light immediately create an open flow and a sense of spaciousness.
  • The central kitchen serves as the home's gathering spot, featuring open shelves and easy sightlines to the dining and living areas, fostering connection.
  • A private wing houses the primary bedroom and a versatile second bedroom or office, providing a quiet retreat separated from the main living spaces.
  • The dedicated utility room functions as an efficient drop zone and main-level laundry, conveniently connecting to the kitchen and garage for daily organization.
  • The generous front porch acts as a natural outdoor extension, offering a welcoming space to relax and enjoy the surroundings, enhancing curb appeal.

What's Included

  • Cover Sheet: Includes front elevation or perspective, plan description, general notes, building footprint, building area breakdowns, drawing sheet index, etc. These elements are not to scale.
  • Floor Plan: Includes layout of each floor with locations and dimensions of walls, doors, and windows. Overhead beams and vaults are indicated. Shows locations of cabinetry, appliances, plumbing fixtures, closets and shelf packs.
  • Exterior Elevations: Shows front, sides and back building elevations along with roof pitches, and exterior siding and trim materials.
  • Typical Section: Usually drawn to ½”=1’-0”. Shows a cross-section of the building with typical elements such as ceiling and header heights, roof style, insulation locations (thermal envelope), and foundation style. Specific details may be shown in an additional Typical Wall Section, if included.
  • Electrical Plan: Includes a general suggested layout of light fixtures, switches, and electrical outlets.
  • Foundation Plan: Shows locations of foundation walls, strip footings and pier pads.
  • Floor Framing Plan: First floor framing may be combined with Foundation Plan. Shows floor framing type, spacing and direction along with supporting element locations.
  • Roof Framing Plan: Shows truss/rafter spacing and direction, typical overhangs, roof outline, supporting member locations, and over framing locations (if any).
  • Typical Details: Scales may vary, typically at to ½”=1’-0” or to 1”=1’-0”, some not to scale. Shows the suggested typical details such as transitions from foundation to walls, walls to ceiling/roof, general flashing strategies, and other connection points. Other specific architectural finish details may be included at designer’s discretion.
  • Interior Elevations of Cabinetry may be included, but are not always part of a standard drawing set.
This is a general description of the content of each main drawing set element. Elements may be grouped on single sheets for smaller plans or over multiple sheets for larger plans. Additional information may be included. All information provided, and particularly any structural information, simply reflects the conditions of the original build location and may not be appropriate for the plan purchaser’s build location and are included for reference only. Therefore, all drawing information is to be verified by a person qualified to ensure compliance with the actual build location conditions and regulations as needed. Unless otherwise noted, elements are typically drawn to a scale of ¼”=1’-0”.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

860 sq. ft.

1st Floor

860 sq. ft.

Porch, Front

112 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

66' 0"

Max Ridge Height

21' 4"

Garage

Type

Standard, Attached

Area

308 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

860 sq. ft.

1st Floor

860 sq. ft.

Porch, Front

112 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

66' 0"

Max Ridge Height

21' 4"

Garage

Type

Standard, Attached

Area

308 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Master Suite - 1st Floor
