Plan 22003SL

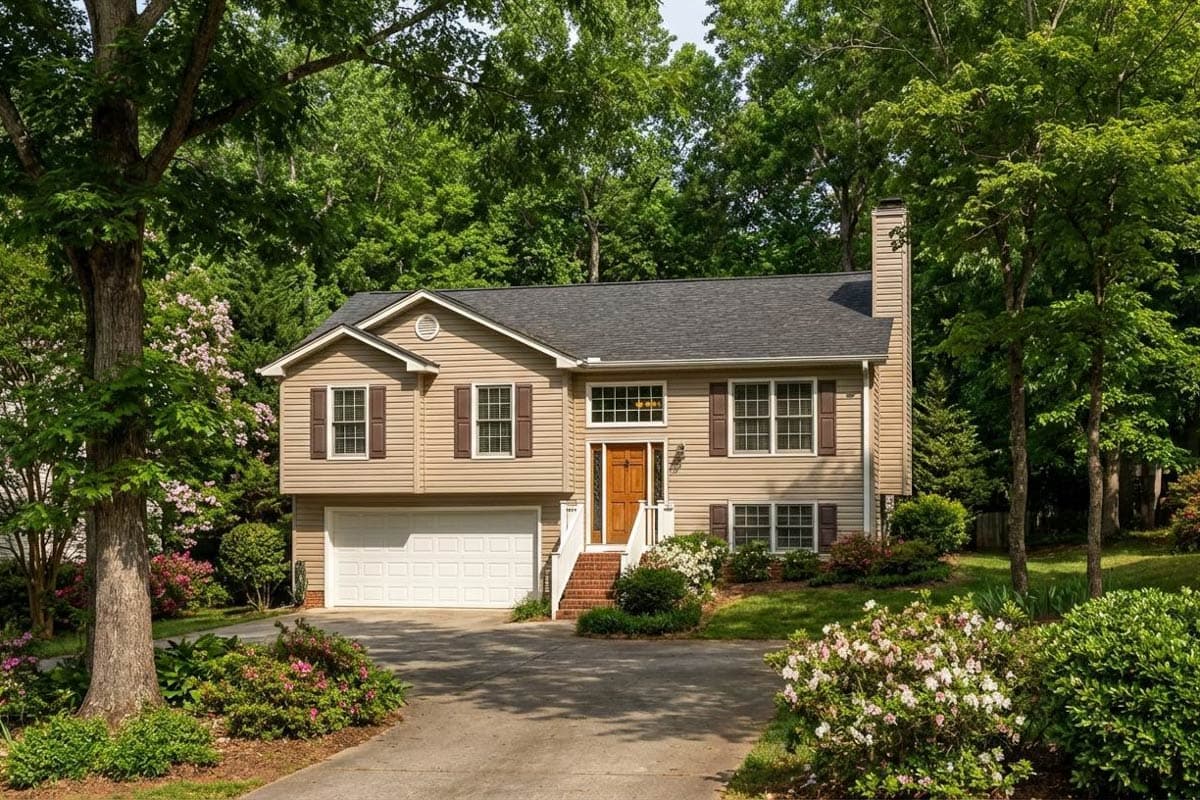

Cozy Split-Level Home Plan

Heated S.F.
1,229
Beds
3
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 22003SL

Main Level
Main Level
Lower Level
Lower Level

Plan 22003SL

M-F 9am-5pm EST |

1-203-761-8500

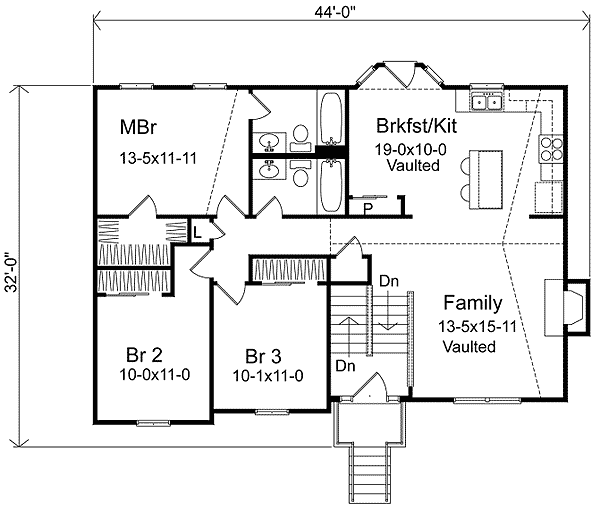

Main Level

Plan 22003SL: Cozy Split-Level Home Plan - Floor Plan - Main Level - Traditional

Lower Level

Plan 22003SL: Cozy Split-Level Home Plan - Floor Plan - Lower Level - Traditional

Plan Details

  • This cozy split-level home plan enters into an impressive vaulted family room.
  • An efficient U-shaped kitchen adjoins the bayed breakfast room.
  • The master bedroom features a walk-in closet and deluxe bath.
  • Related Plan: For an alternate version see house plan 2298SL.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans

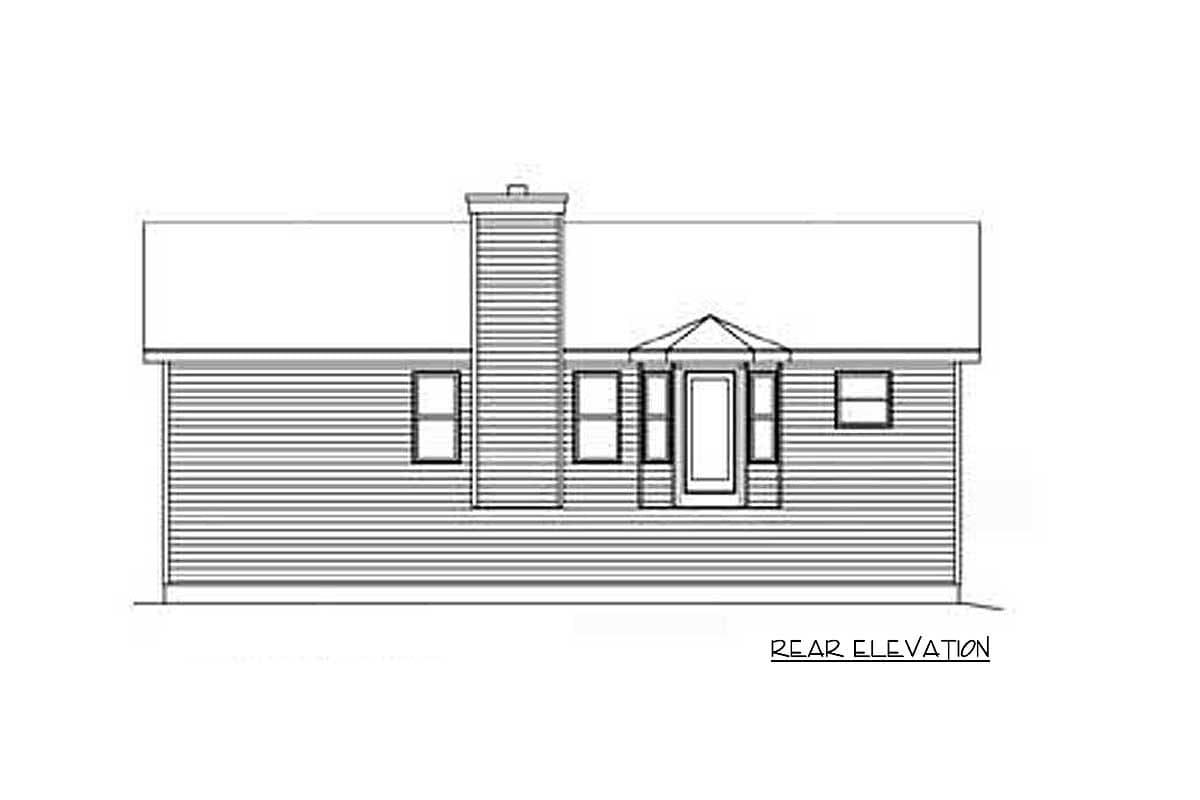

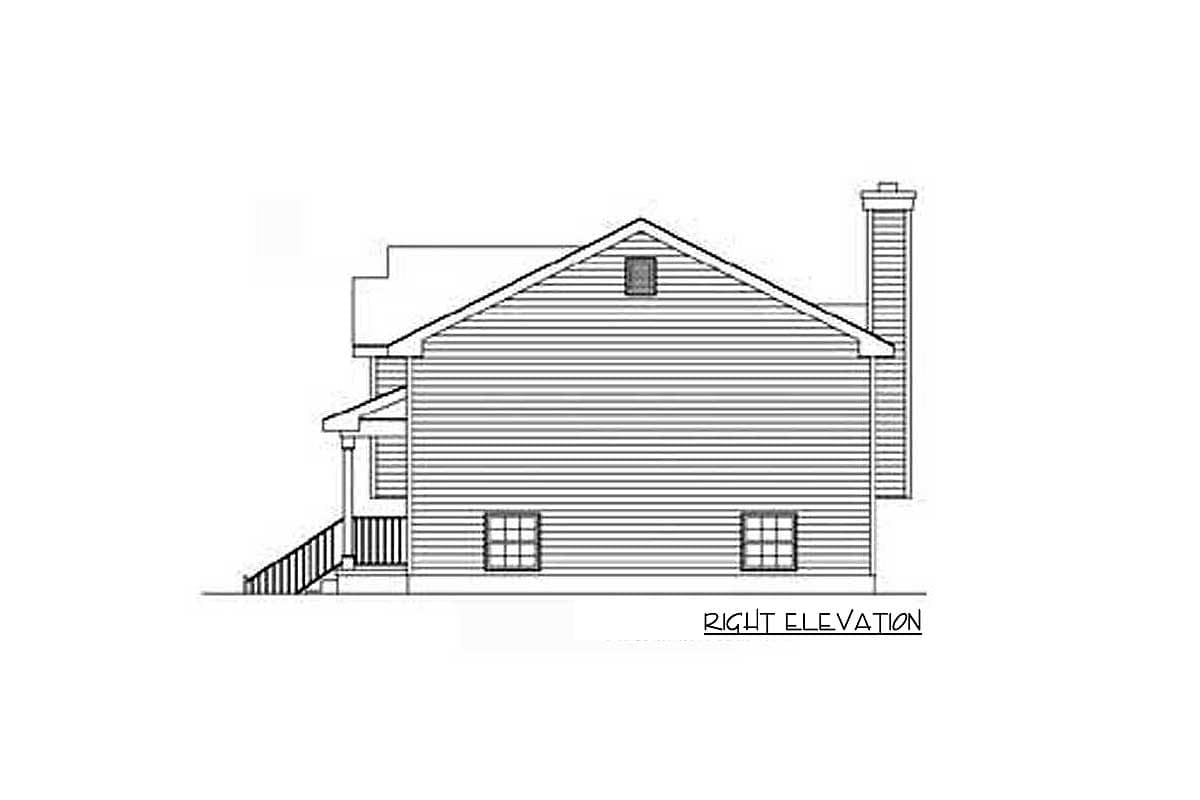

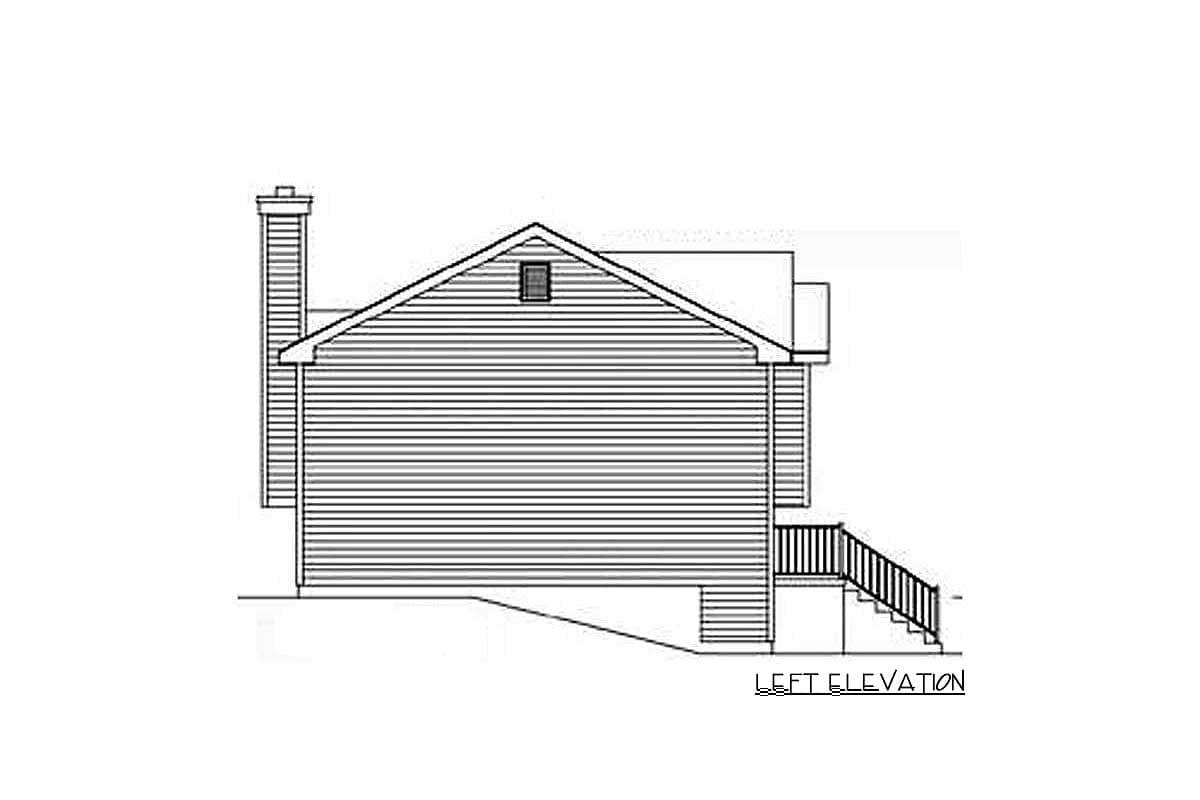

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,229 sq. ft.

1st Floor

1,229 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

32' 0"

Max Ridge Height

21' 0"

Garage

Type

Drive Under, Attached

Area

540 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Master Suite - 1st Floor

Split Level

Square Footage Breakdown

Total Heated Area

1,229 sq. ft.

1st Floor

1,229 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

32' 0"

Max Ridge Height

21' 0"

Garage

Type

Drive Under, Attached

Area

540 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Master Suite - 1st Floor

Split Level
