Plan 720172DA

Craftsman 3-Car Garage House Plan with Carport and Spacious Attic Storage

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3

Floor Plan

Plan 720172DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 720172DA

M-F 9am-5pm EST |

1-203-761-8500

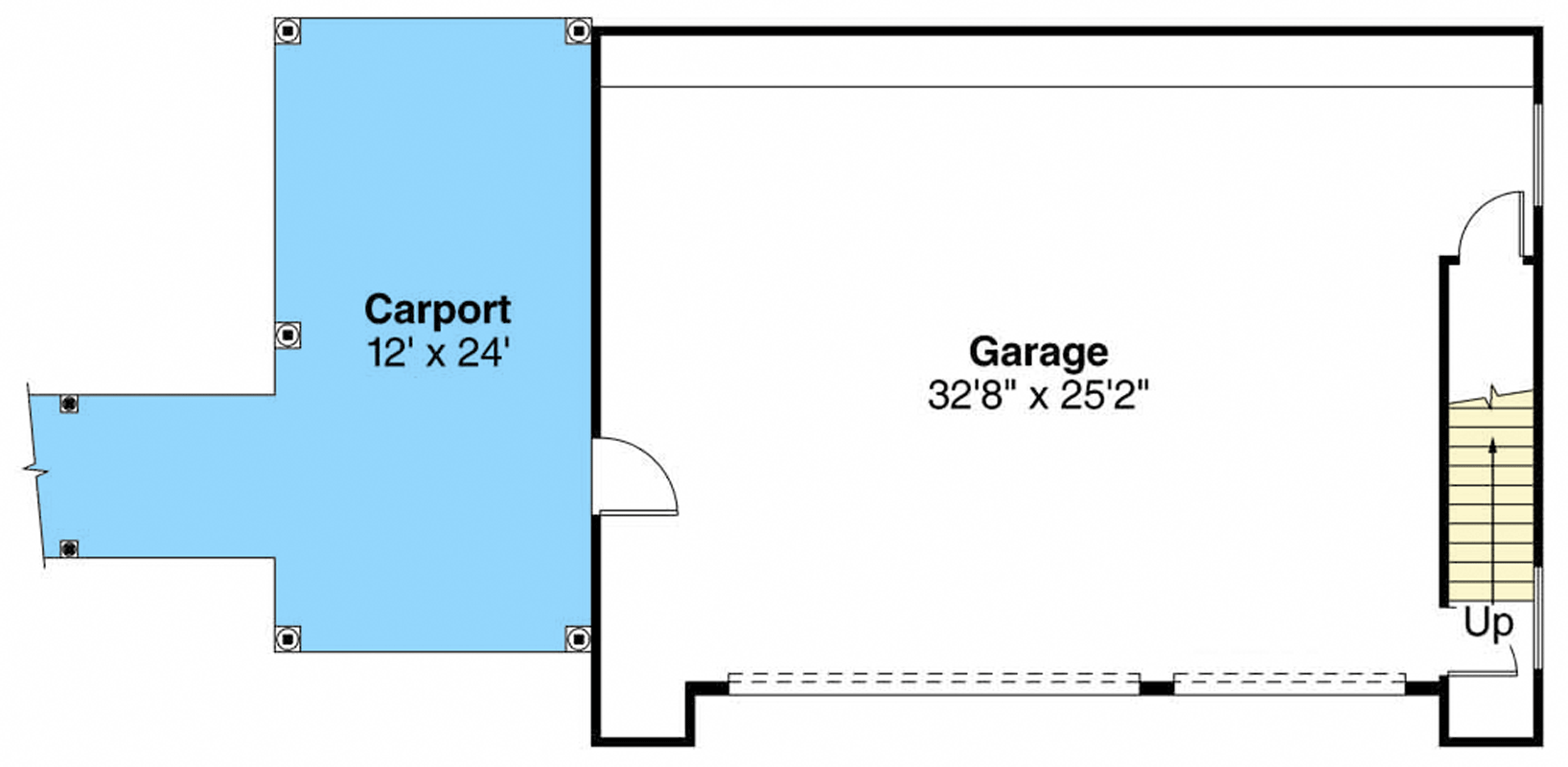

Main Level

Plan 720172DA: Craftsman 3-Car Garage House Plan with Carport and Spacious Attic Storage - Floor Plan - Main Level - Country, Craftsman, Traditional

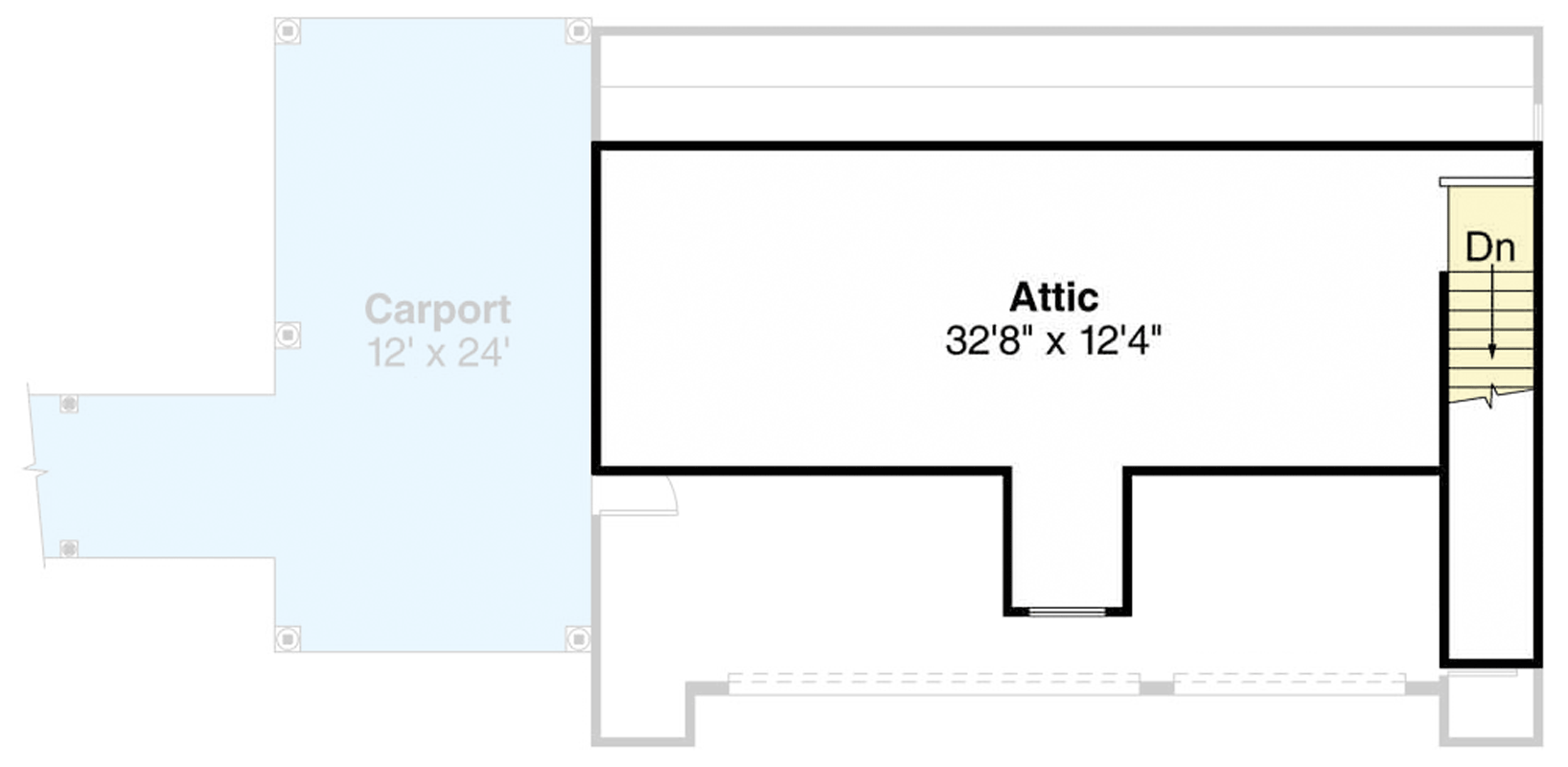

2nd Floor

Plan 720172DA: Craftsman 3-Car Garage House Plan with Carport and Spacious Attic Storage - Floor Plan - 2nd Floor - Country, Craftsman, Traditional

Plan Details

  • This charming Craftsman-style accessory structure offers a substantial 978 sq. ft. 3-car garage, an integrated 12'x24' carport, and a 467 sq. ft. unfinished attic, providing exceptional storage and utility.
  • Upon arrival, the prominent three-car garage doors offer direct access to the expansive garage bay, designed to accommodate multiple vehicles, recreational gear, or serve as a substantial workshop.
  • The main level features a vast 32'8" x 25'2" garage space, providing ample room for vehicles and projects, seamlessly connecting to the adjacent 12'x24' covered carport for additional sheltered parking or outdoor utility.
  • Beyond vehicle storage, the oversized garage offers flexible space for hobbies, a personal gym, or a dedicated workspace, while the convenient interior staircase leads to the upper level.
  • The integrated 12'x24' carport provides a sheltered outdoor area, ideal for additional vehicle protection, a covered outdoor workspace, or simply enjoying the surrounding landscape.
  • Ascend to the 467 sq. ft. unfinished attic, a versatile space measuring 32'8" x 12'4", offering immense potential for organized storage or future conversion into a bonus room, home office, or studio, accessible via a dedicated staircase from the garage.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

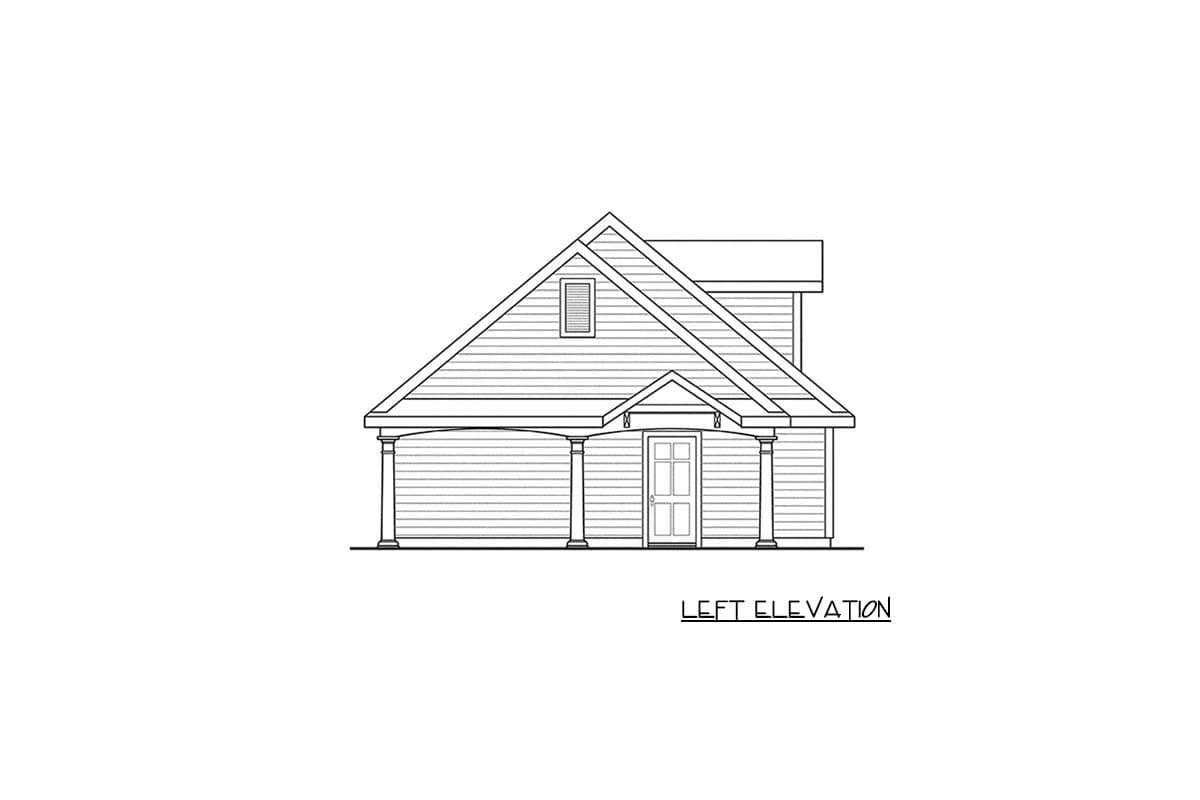

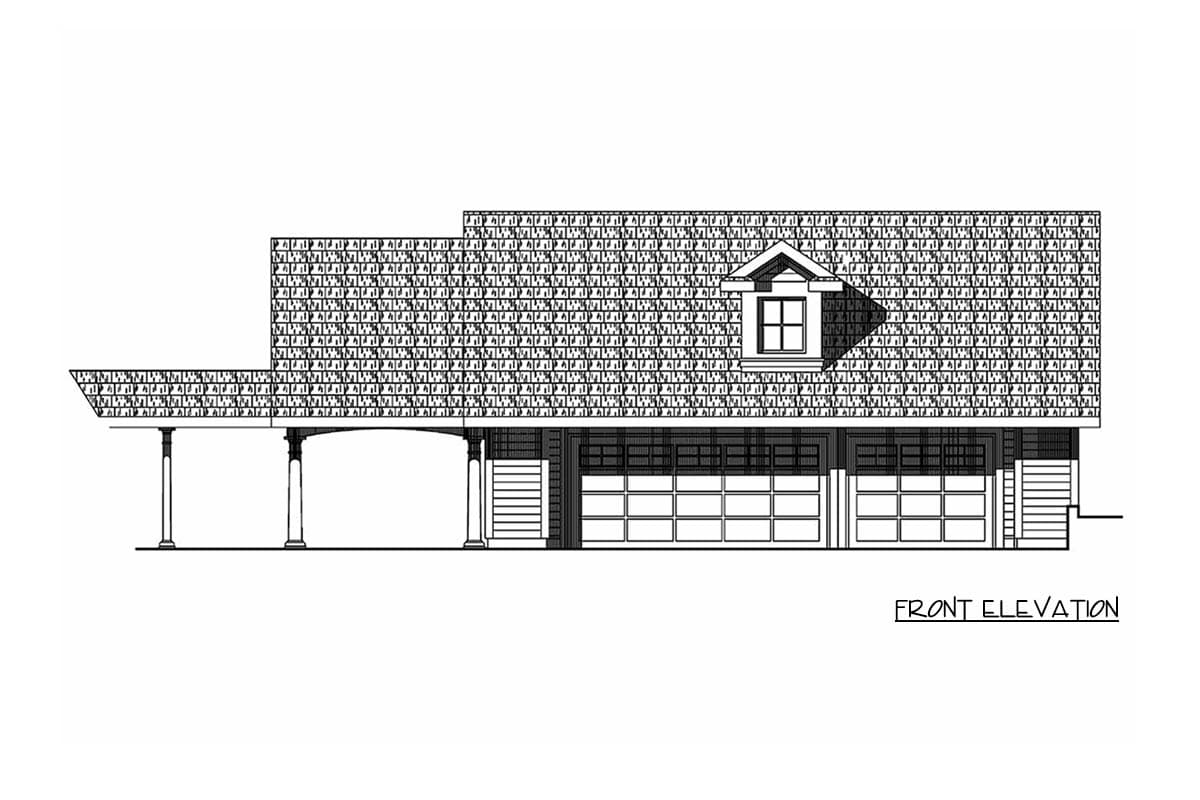

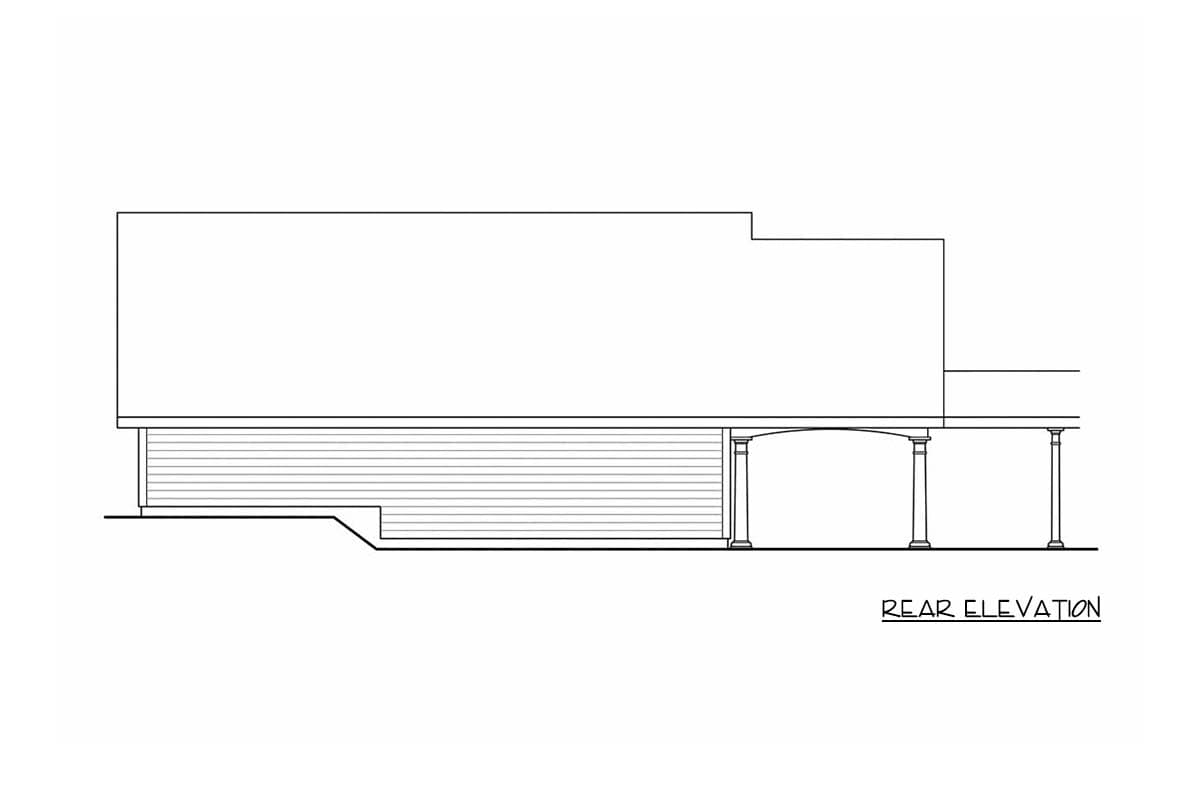

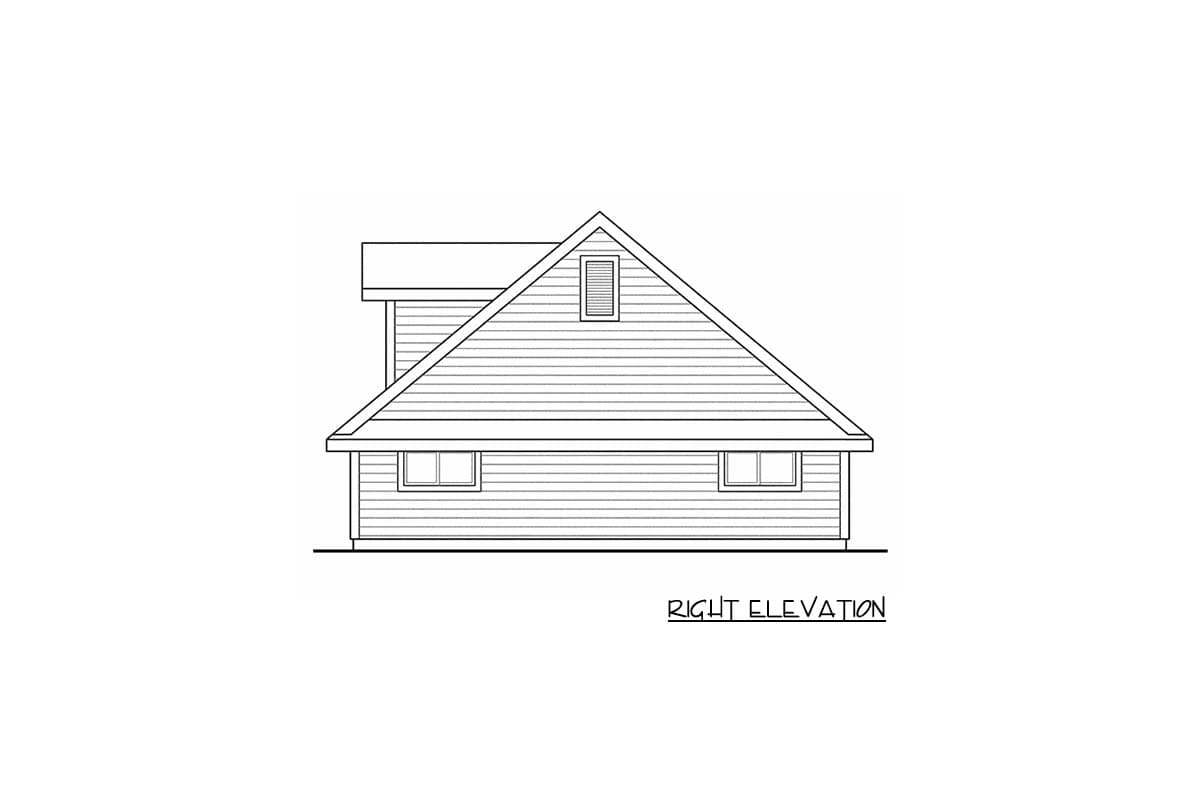

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Attic

467 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

28' 0"

Max Ridge Height

21' 1"

Garage

Type

Carport, Detached

Area

978 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Traditional

Special Features

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Attic

467 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

28' 0"

Max Ridge Height

21' 1"

Garage

Type

Carport, Detached

Area

978 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Traditional

Special Features

Optionally Finished Bonus Room
