Craftsman Cottage

Plan 41835DB

  • 1,344

    Heated s.f.

  • 1-2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Wood shakes and sturdy columns adorn this Craftsman Cottage home plan.
  • Use the den as an optional second bedroom since the hall bath is close by.
  • The main living area is in the rear and has a wonderful open layout that gives you sweeping views from the kitchen to the dining area to the family room.
  • A spacious master suite gives you an upgraded tray ceiling and large private bathroom.
  • The front porch is 20' x 6'8";the rear porch is 6'8" x 8'8".
  • Related Plans: See house plans 41836DB for a front-facing master suite and 41837DB for a different front porch.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

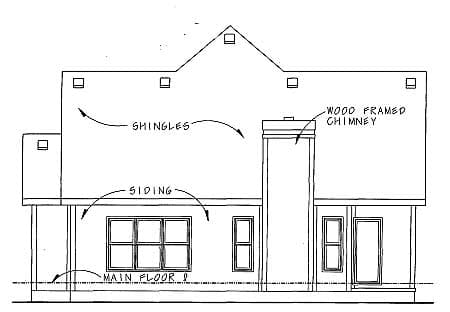

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Main Level

Pinit white
Reverse Floor Plan

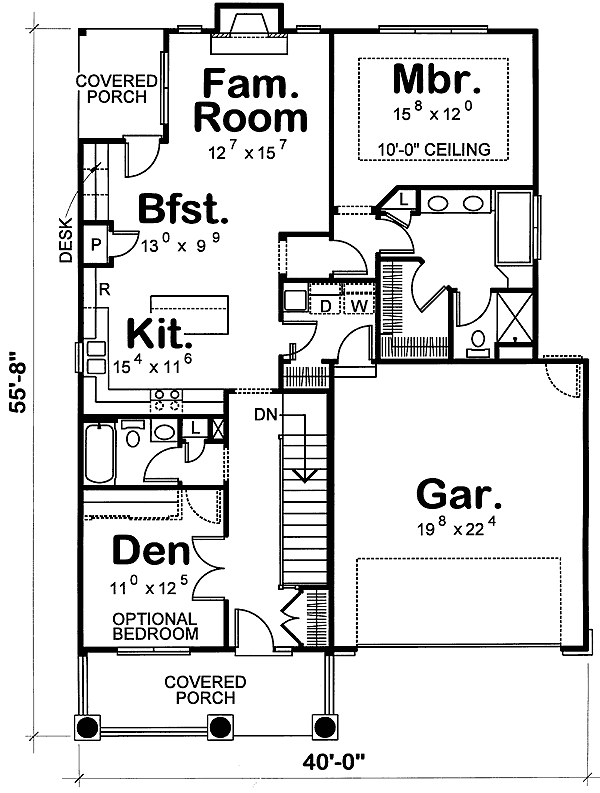

Craftsman Cottage - 41835DB floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,344 sq. ft.
  • 1st Floor: 1,344 sq. ft.
  • Porch, Front: 191 sq. ft.

Beds/Baths

  • Bedrooms: 1 or 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 55' 8"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 455 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features



Craftsman Cottage

  • 1,344

    Heated s.f.

  • 1 - 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $600
  • PDF - single-use $915
  • 5 Sets $1,040
  • 5 Sets PLUS $1,085
  • 8 Sets $1,110
  • PDF - multi-use $1,415
  • CAD $1,601
  • CAD - multi-use $2,101
  • View all purchase option online

About This Plan

  • Wood shakes and sturdy columns adorn this Craftsman Cottage home plan.
  • Use the den as an optional second bedroom since the hall bath is close by.
  • The main living area is in the rear and has a wonderful open layout that gives you sweeping views from the kitchen to the dining area to the family room.
  • A spacious master suite gives you an upgraded tray ceiling and large private bathroom.
  • The front porch is 20' x 6'8";the rear porch is 6'8" x 8'8".
  • Related Plans: See house plans 41836DB for a front-facing master suite and 41837DB for a different front porch.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,344 sq. ft.
  • 1st Floor: 1,344 sq. ft.
  • Porch, Front: 191 sq. ft.

Beds/Baths

  • Bedrooms: 1 or 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 55' 8"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 455 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick
