Plan 59767ND
Craftsman Cottage Built for Entertaining - 1654 Sq Ft
Heated S.F.
1,654
Beds
3
Baths
2.5
Stories
2
Cars
2
Flyer
What's Included
Plan Details
  • An arched covered porch and carriage style garage doors add great street appeal to this Craftsman home plan. Enjoy entertaining friends and family in your large great room with a sliding glass door for back yard grilling.
  • The open dining room has plenty of light while viewing the rear yard.
  • The master suite has plenty of wall space for large furniture, a private bathroom and an extra large walk-in closet.
  • For convenience, the garage access is located in the kitchen area as well as a half bath.
  • The upper floor features a full bath and two spacious bedrooms with unique ceilings.
  • Related Plan: Get an alternate exterior with house plan 59302ND.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Cottage Built for Entertaining - 1654 Sq Ft

  • 1,654

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

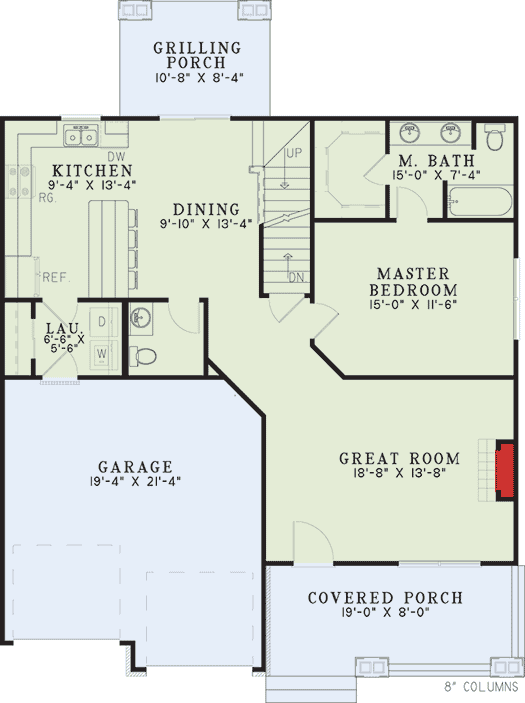

  • Main Level

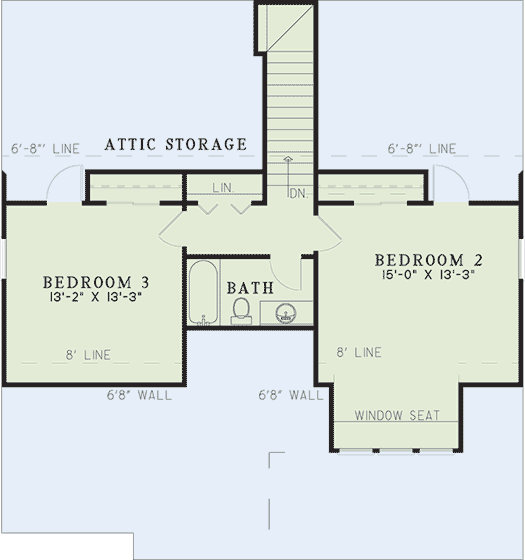

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,654 sq. ft.
  • 1st Floor: 1,048 sq. ft.
  • 2nd Floor: 606 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 50' 2"
  • Max ridge height: 25' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
