Craftsman Cottage Duplex House Plan with Mirrored 2-Bed 2-Bath - 1048 Sq Ft Per Unit

Heated S.F.
2,096
Units
2
Width
Depth

Floor Plan

Plan 51967HZ

Main Level
Main Level

Plan 51967HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

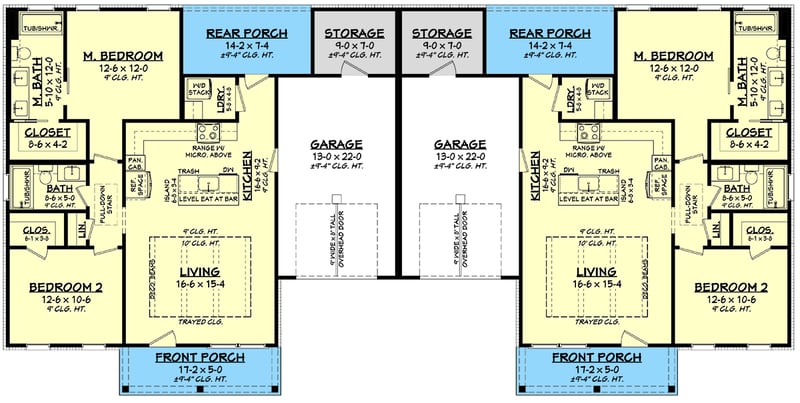

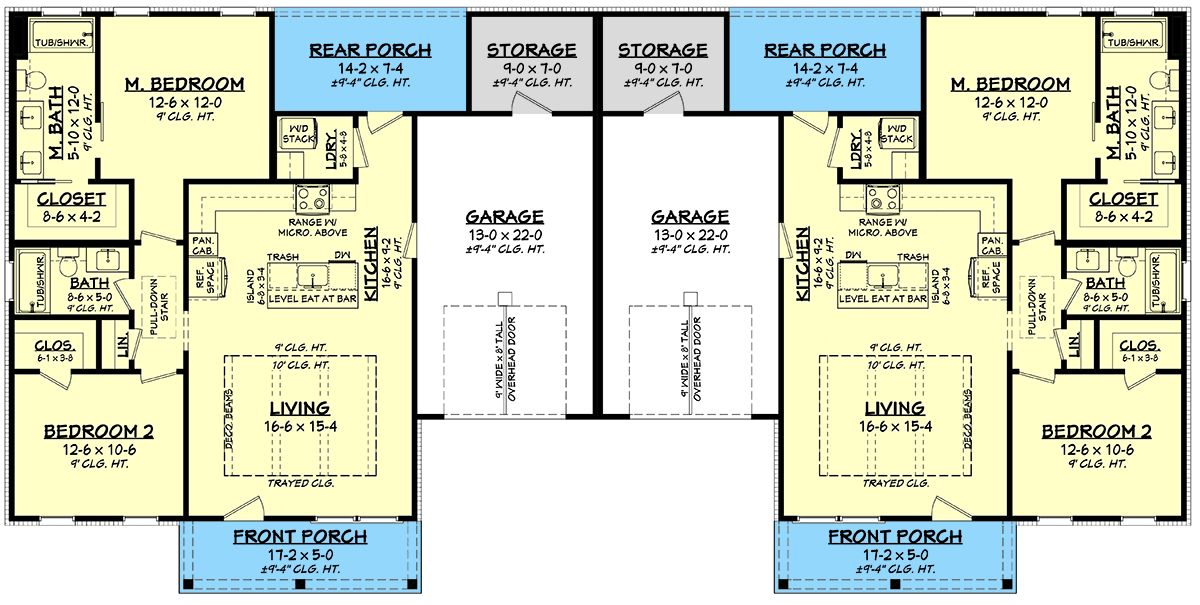

Plan 51967HZ: Craftsman Cottage Duplex House Plan with Mirrored 2-Bed 2-Bath - 1048 Sq Ft Per Unit - Floor Plan - Main Level - Cottage, Country, Craftsman, Farmhouse

Plan Details

  • This Craftsman cottage styled duplex multi-family house plan has two mirrored units, each with 1,048 square feet of heated living space, 2 bedrooms with large closets, and 2 baths per unit.
  • A single-car garage (302 sq. ft./unit) with a 9' by 8' overhead door and oversized storage area (142 sq. ft./unit) accesses the home by the kitchen.
  • The spacious living area is open to the eat in kitchen that is equipped with a large island.
  • Each unit also has a private covered rear porch.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,048Sq. Ft.
1048 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
302 Sq. Ft.
Dimensions
43' 4"width
42' 6"depth
19'height
Unfinished Areas
302 Sq. Ft. Garage
86 Sq. Ft. Porch, Front
104 Sq. Ft. Porch, Rear
71 Sq. Ft. Storage
Unit B
Heated Area
1,048Sq. Ft.
2096 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
302 Sq. Ft.
Dimensions
43' 4"width
42' 6"depth
19'height
Unfinished Areas
302 Sq. Ft. Garage
86 Sq. Ft. Porch, Front
104 Sq. Ft. Porch, Rear
71 Sq. Ft. Storage

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
