Plan 52503WM

Craftsman Cottage House Plan with 1 Bedroom and Main Level Laundry

Heated S.F.
574
Beds
1
Baths
1
Stories
1

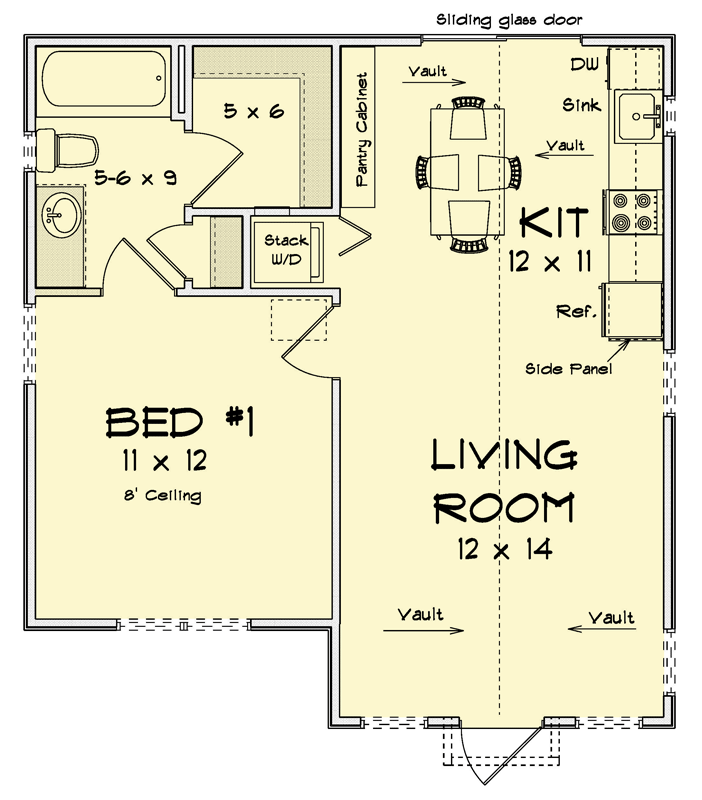

Floor Plan

Plan 52503WM

Main Level
Main Level

Plan 52503WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52503WM: Craftsman Cottage House Plan with 1 Bedroom and Main Level Laundry - Floor Plan - Main Level - Cottage, Craftsman

Plan Details

  • This charming 574 sq. ft. 1-bedroom, 1-bathroom Craftsman Cottage house plan offers a delightful living experience, characterized by its warm cedar shake siding and inviting curb appeal.
  • Step inside to discover a thoughtfully designed, open-concept layout that maximizes every square foot, with the entry immediately opening into the main living area to create an airy and functional space.
  • The main living area seamlessly connects to the kitchen and dining space, fostering an intimate atmosphere perfect for daily routines and efficient use of space.
  • The comfortable master suite is conveniently located on the first floor, offering privacy and ease of access, and features a well-appointed full bathroom, ensuring a serene retreat.
  • The exterior showcases classic Craftsman details, including a welcoming front stoop beneath a decorative awning, perfect for enjoying a quiet morning coffee or greeting guests.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

574 sq. ft.

1st Floor

574 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

25' 8"

Max Ridge Height

16' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

574 sq. ft.

1st Floor

574 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

25' 8"

Max Ridge Height

16' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Special Features

Laundry - Main Level

Master Suite - 1st Floor
