Craftsman Cottage House Plan with Dual Primary Suites and Office

Name: Plan 52471WM: Craftsman Cottage House Plan with Dual Primary Suites and Office
Brand: Architectural Designs
SKU: 52471WM
Price: 1025.0 USD
Availability: InStock

Heated S.F.

1,049

Beds

Baths

Stories

Cars

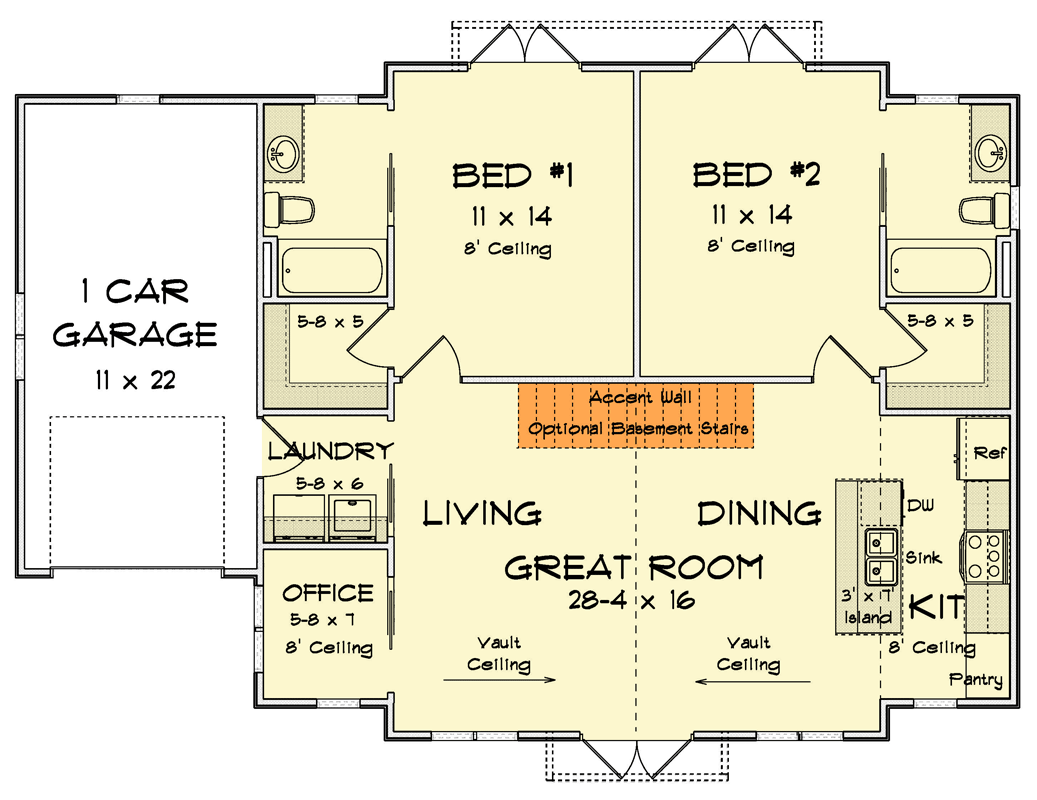

Floor Plan

Main Level

Plan Details

Discover this charming 1,049 sq. ft. single-story Craftsman Cottage house plan, featuring 2 bedrooms, 2 full bathrooms, and a convenient 242 sq. ft. 1-car front-entry garage.
Upon entering through the inviting double French doors, you are greeted by an expansive, open-concept living space where a vaulted Great Room immediately creates an airy and welcoming atmosphere. An intelligently placed home office provides a dedicated, quiet workspace just off the main living area.
The vaulted Great Room flows effortlessly into the dining area and a well-appointed kitchen, complete with an island perfect for morning coffee or casual meals, and a convenient pantry for ample storage, fostering a cohesive and functional living environment.
Designed for ultimate comfort and privacy, this unique layout features two generously sized bedrooms, each serving as its own private primary suite with an en-suite full bathroom. Both suites are thoughtfully clustered, ensuring convenience with a main-level laundry room nearby.
The charming Craftsman Cottage exterior, with its shingle siding and crisp white trim, presents a welcoming facade, offering an ideal setting for a small stoop to enjoy the neighborhood ambiance.
An optional basement staircase is thoughtfully integrated into the plan, providing the flexibility for future expansion and the potential to develop additional living space downstairs, perfectly adaptable to your lifestyle.

What's Included

Front elevation and construction notes
Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Full building section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
