Craftsman Cottage House Plan with Pocket Office

Pageloader

Craftsman Cottage House Plan with Pocket Office

Plan 42509DB

  • 1,858

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Delightful arches greet you in the front entry and a pair of them define a display gallery for favorite artwork. The rear foyer is equally well-appointed, leading to an island kitchen with generous walk-in pantry.
  • The pocket office makes quick work of finishing work at home and when it’s time to relax, the owner’s suite beckons with its comfy sitting area.
  • A unified entertaining core combines the dining room, great room and kitchen.
  • All bedrooms are well-separated for maximum privacy. Notice the compartmented design of the hall bathroom serving the secondary bedrooms, as well as the extra-large laundry room!

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

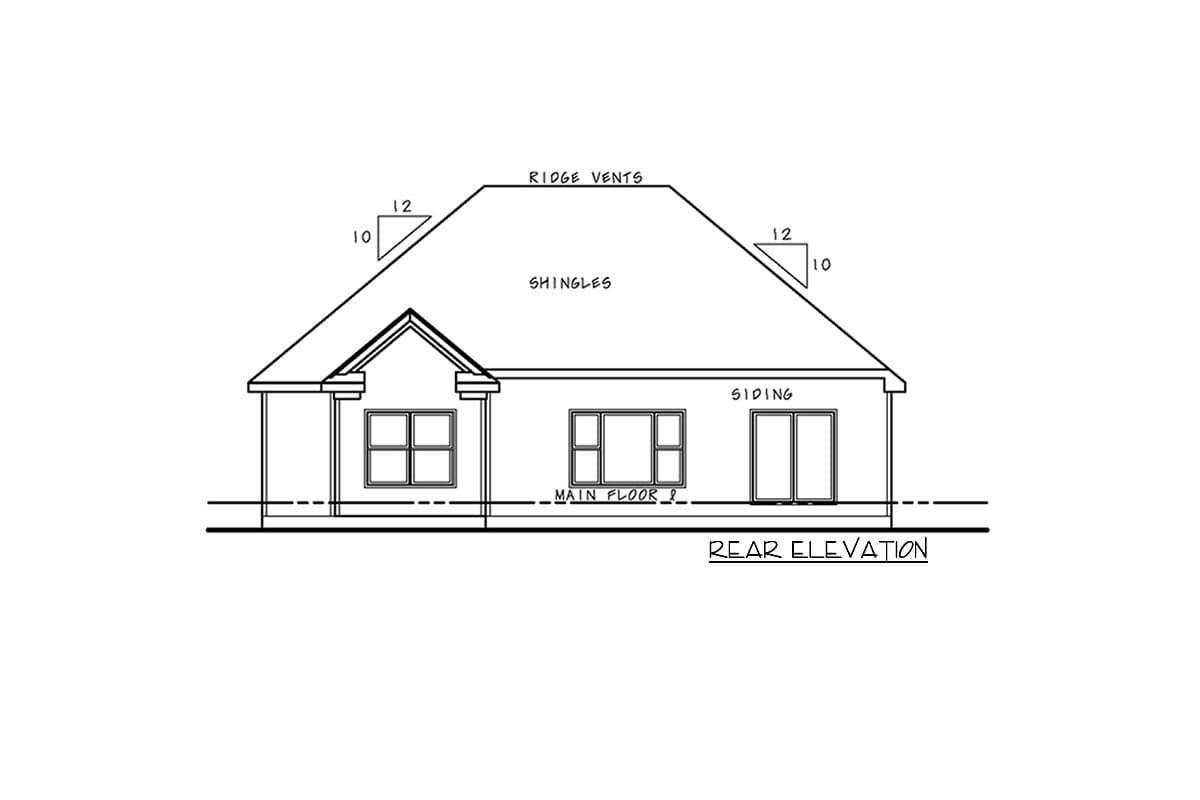

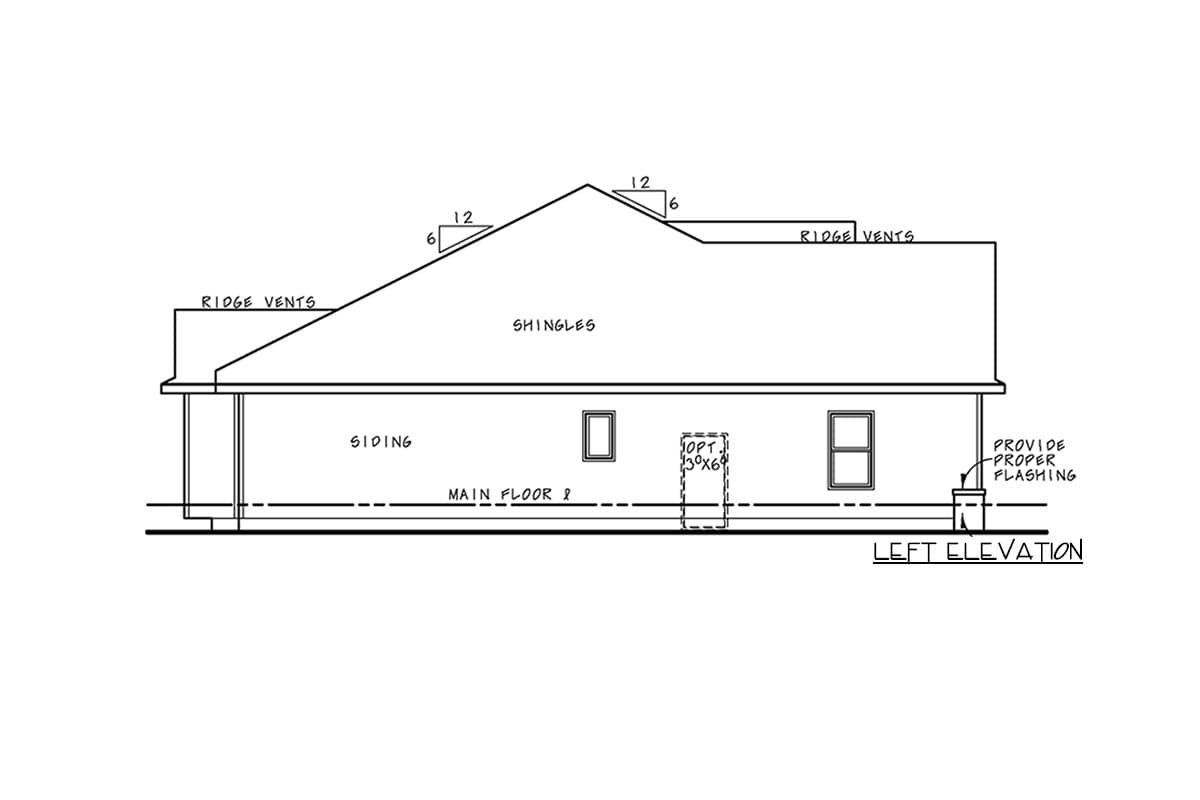

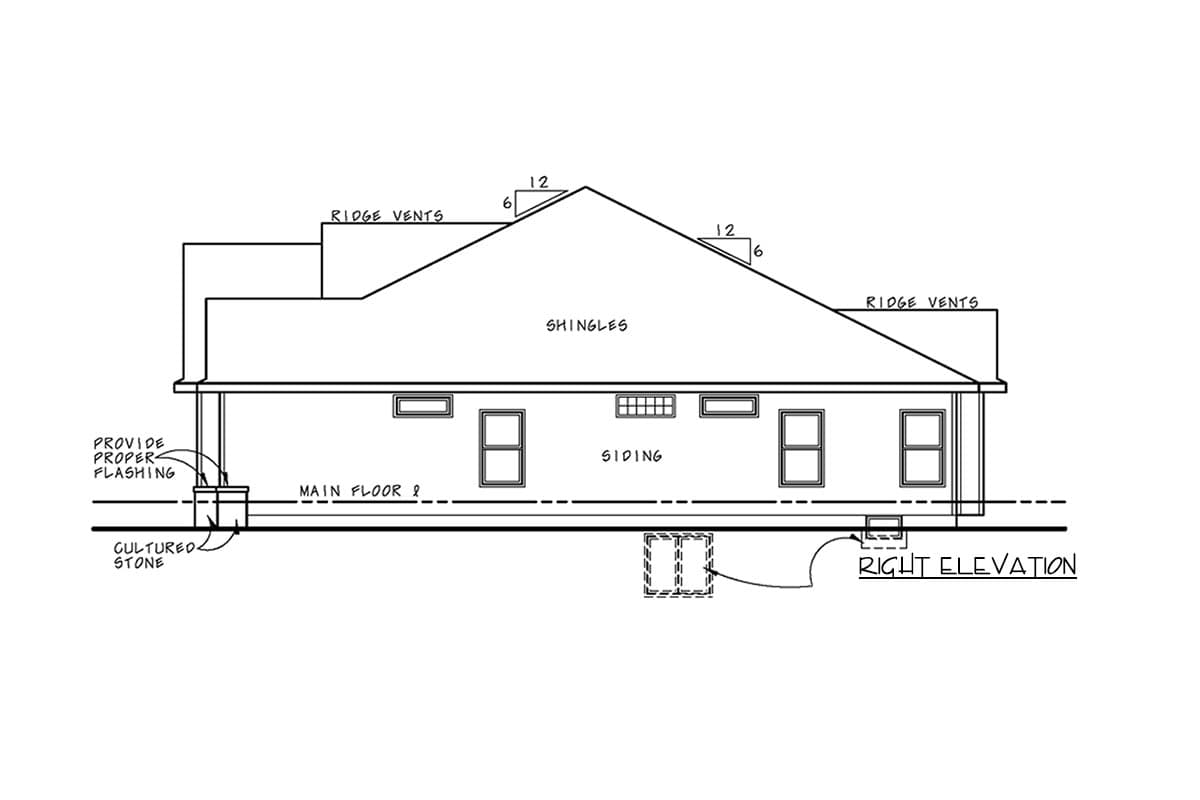

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

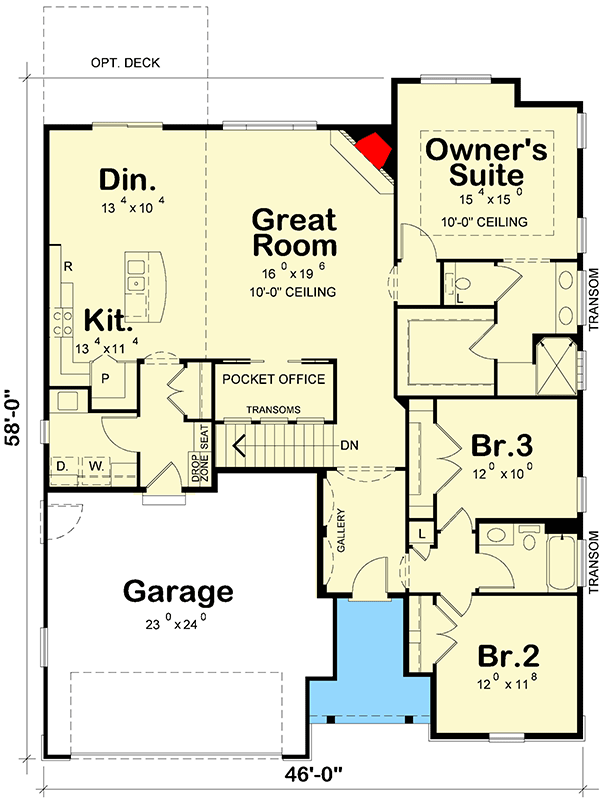

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Craftsman Cottage House Plan with Pocket Office

  • 1,858

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $635
  • PDF - single-use $965
  • 5 Sets $1,090
  • 5 Sets PLUS $1,135
  • 8 Sets $1,160
  • PDF - multi-use $1,465
  • CAD $1,689
  • CAD - multi-use $2,189
  • View all purchase option online

About This Plan

  • Delightful arches greet you in the front entry and a pair of them define a display gallery for favorite artwork. The rear foyer is equally well-appointed, leading to an island kitchen with generous walk-in pantry.
  • The pocket office makes quick work of finishing work at home and when it’s time to relax, the owner’s suite beckons with its comfy sitting area.
  • A unified entertaining core combines the dining room, great room and kitchen.
  • All bedrooms are well-separated for maximum privacy. Notice the compartmented design of the hall bathroom serving the secondary bedrooms, as well as the extra-large laundry room!

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,858 sq. ft.
  • 1st Floor: 1,858 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 46' 0"
  • Depth: 58' 0"
  • Max ridge height: 25' 7"

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
