Plan 720179DA

Craftsman Cottage House Plan with Split Bedroom Layout

Heated S.F.
1,974
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 720179DA

Main Level
Main Level
Walkout Basement Level
Walkout Basement Level

Plan 720179DA

M-F 9am-5pm EST |

1-203-761-8500

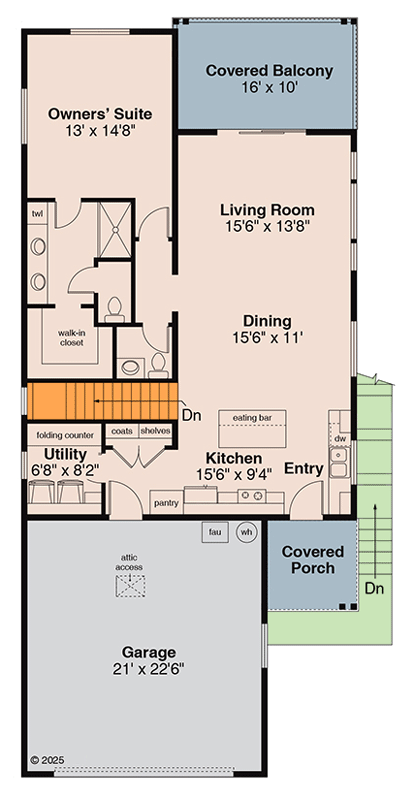

Main Level

Plan 720179DA: Craftsman Cottage House Plan with Split Bedroom Layout - Floor Plan - Main Level - Bungalow, Cottage, Craftsman

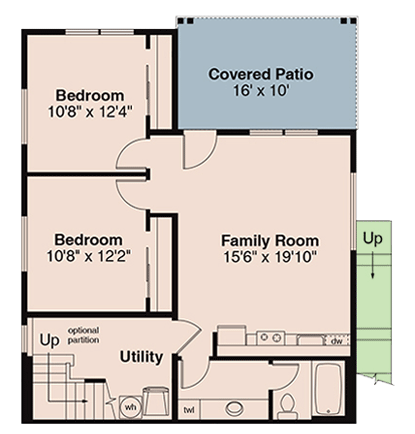

Walkout Basement Level

Plan 720179DA: Craftsman Cottage House Plan with Split Bedroom Layout - Floor Plan - Walkout Basement Level - Bungalow, Cottage, Craftsman

Plan Details

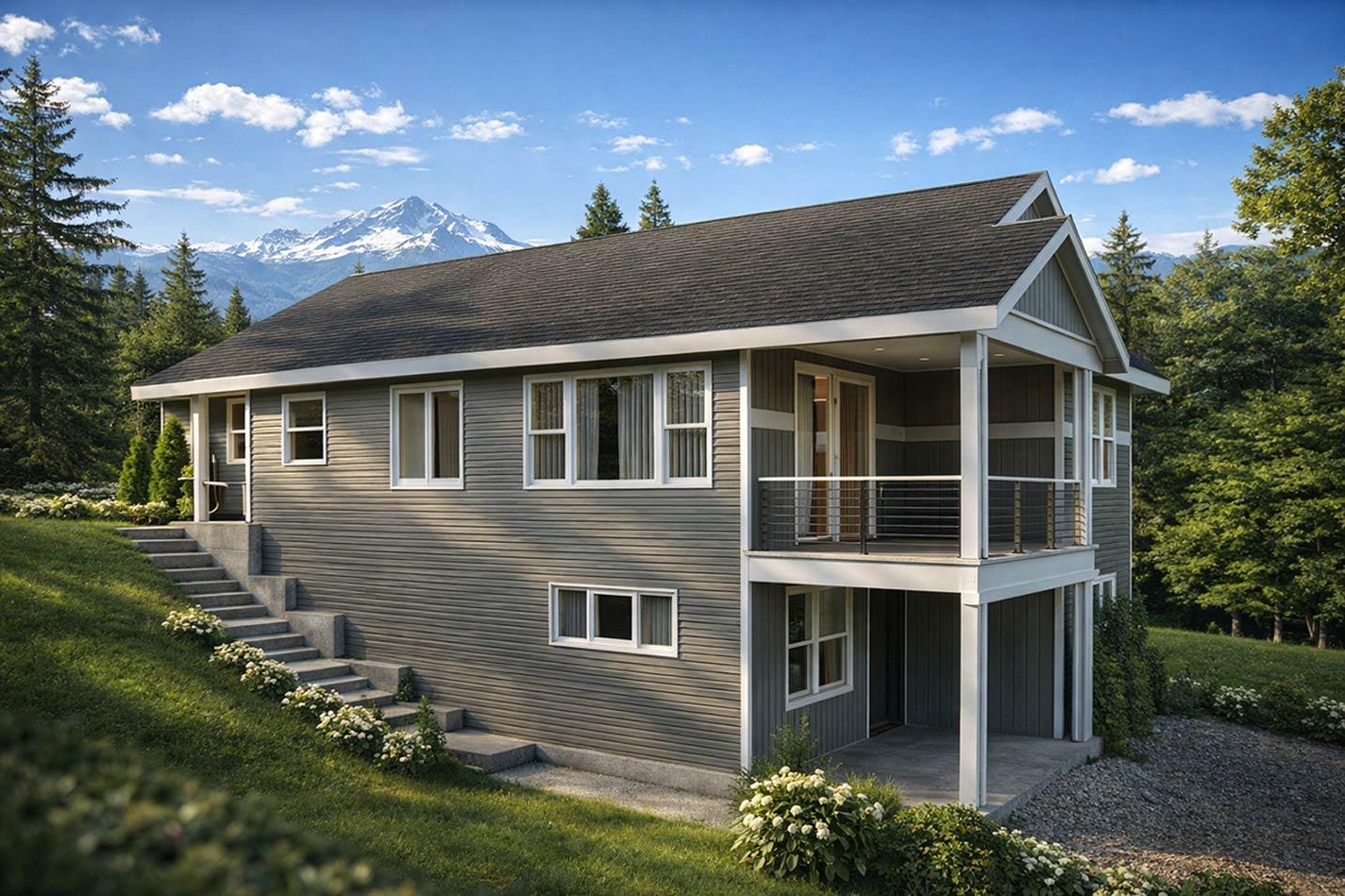

  • This 1,974 sq. ft. Craftsman-style house plan offers 3 bedrooms, 2.5 bathrooms, and a convenient 2-car front-entry garage.
  • Step onto the inviting entry porch and through the front door, where 9-foot ceilings and abundant natural light create an immediately welcoming atmosphere.
  • The kitchen serves as the home's central gathering spot, featuring a large island, ample pantry storage, and an open flow directly into the main living areas.
  • Designed with a split-bedroom layout, the primary suite is located on the main floor, separate from the additional bedrooms for enhanced privacy.
  • A dedicated drop zone and main-level laundry room are strategically placed to help keep daily life organized and clutter-free as you enter from the garage.
  • The generous combined 353 sq. ft. of porch space, including a walkout lower level, provides a natural outdoor extension for relaxation and entertaining.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

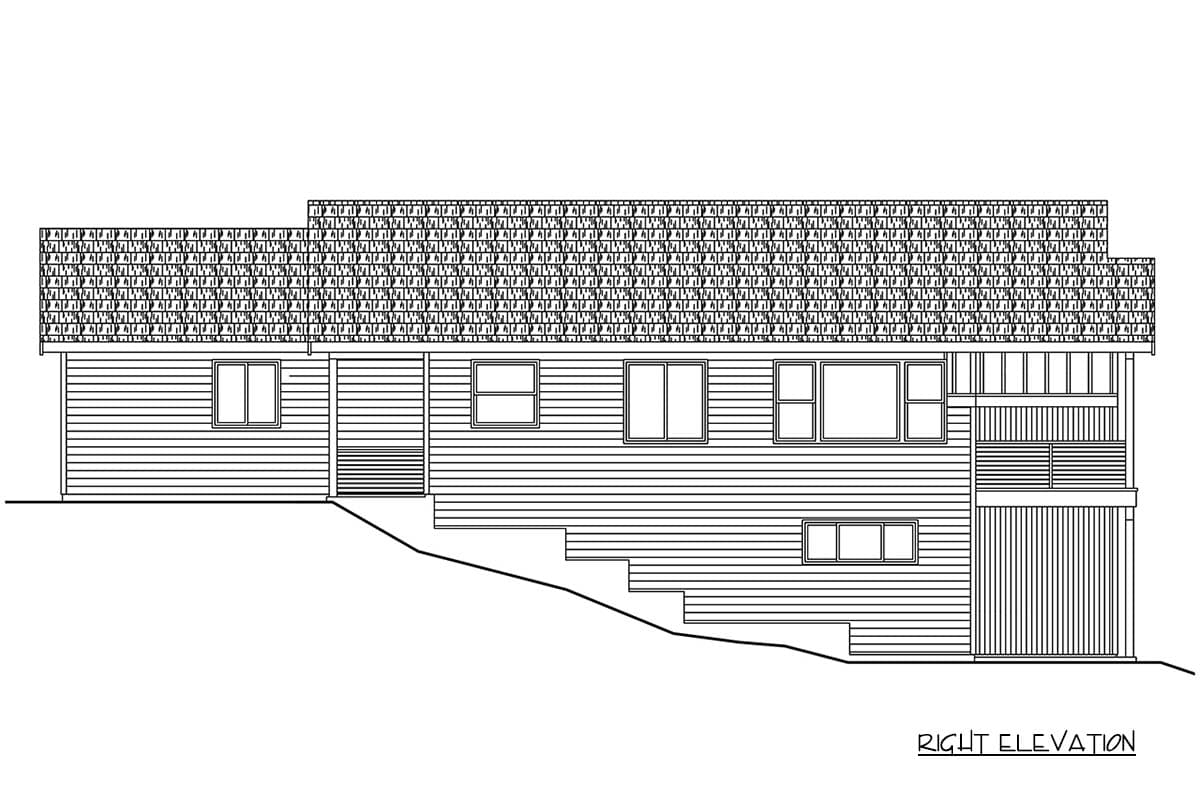

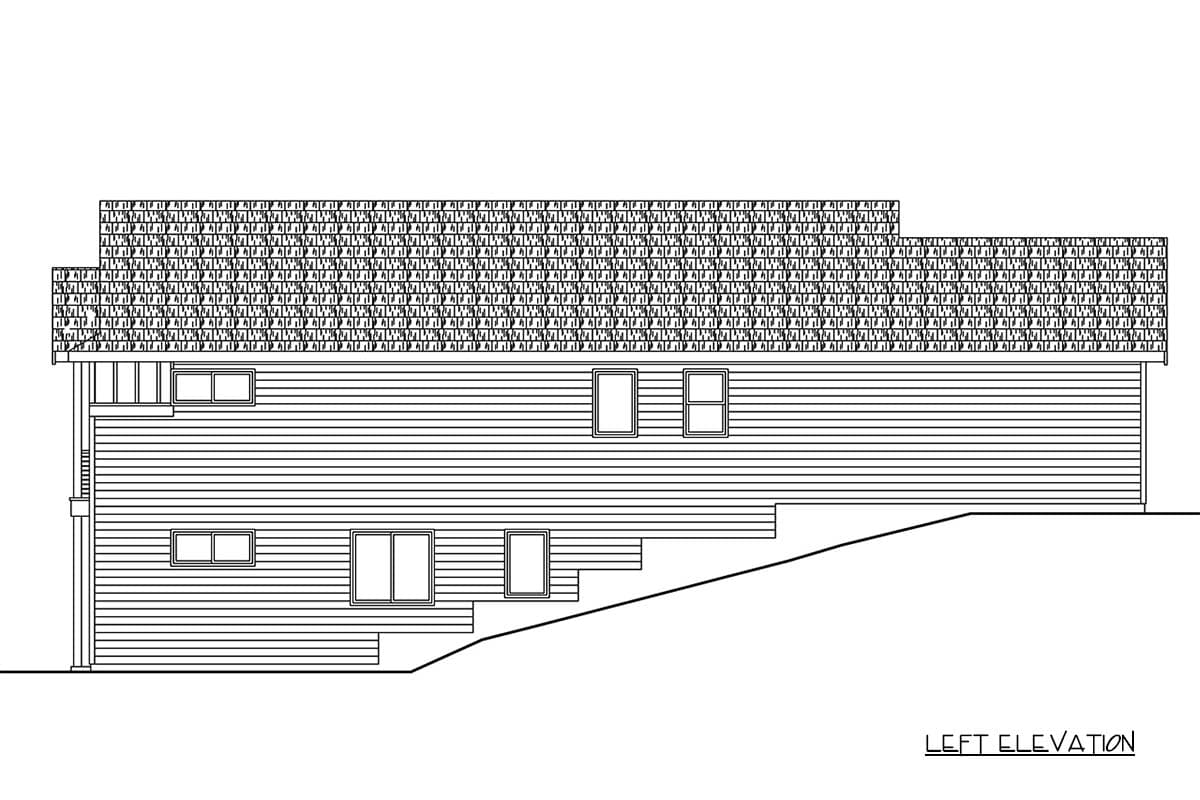

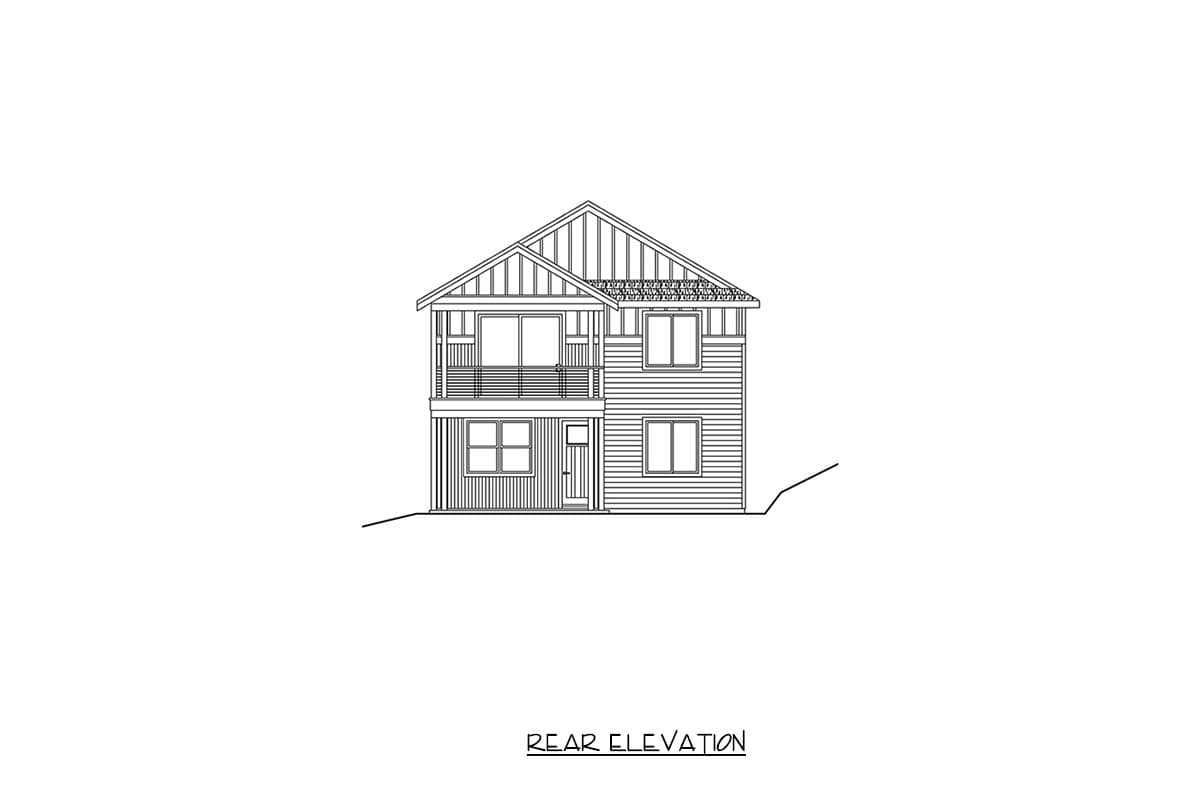

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,974 sq. ft.

Lower Level

845 sq. ft.

1st Floor

1,129 sq. ft.

Porch, Combined

353 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

68' 0"

Max Ridge Height

19' 9"

Garage

Type

Standard

Area

506 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,974 sq. ft.

Lower Level

845 sq. ft.

1st Floor

1,129 sq. ft.

Porch, Combined

353 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

68' 0"

Max Ridge Height

19' 9"

Garage

Type

Standard

Area

506 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
