Craftsman Cottage With Sturdy Front Porch
Heated S.F.
1,630
Beds
1-4
Baths
2 - 3
Stories
1
Cars
2
What's Included
Plan Details
  • Stout columns support the gabled front porch on this Craftsman bungalow. The floor plan is flexible, making it equally suitable for a couple in need of a single bedroom or a family home with two with the den in front playing two roles.
  • The entry off the porch greets you to views that extend all the way to the back of the home where a covered patio awaits to enjoy the views outside. At 10' in depth, that space makes a great outdoor living room.
  • The main portion of the home has an open floor plan with the living room, dining room and kitchen all open to each other. A fireplace on the back wall is flanked by pairs of sliding doors giving you access to the back patio.
  • The master has a tray ceiling and access to the patio. A walk-in closet is a nice feature in a home this size.
  • The family entry off the garage has built-in storage cubbies plus a closet to help reduce clutter, plus laundry tucked away in an alcove.
  • The roof has a 6:12 main pitch and an 8:12 secondary pitch.
What's Included

  • Cover Page

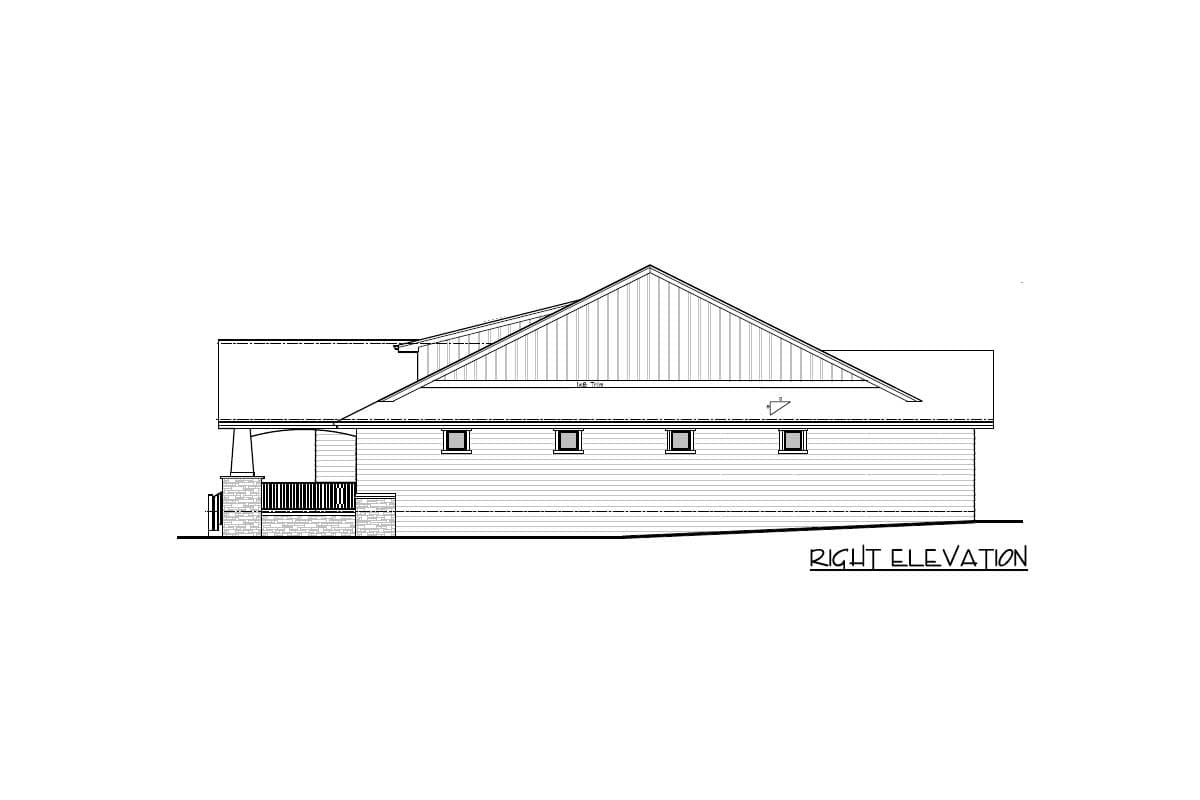

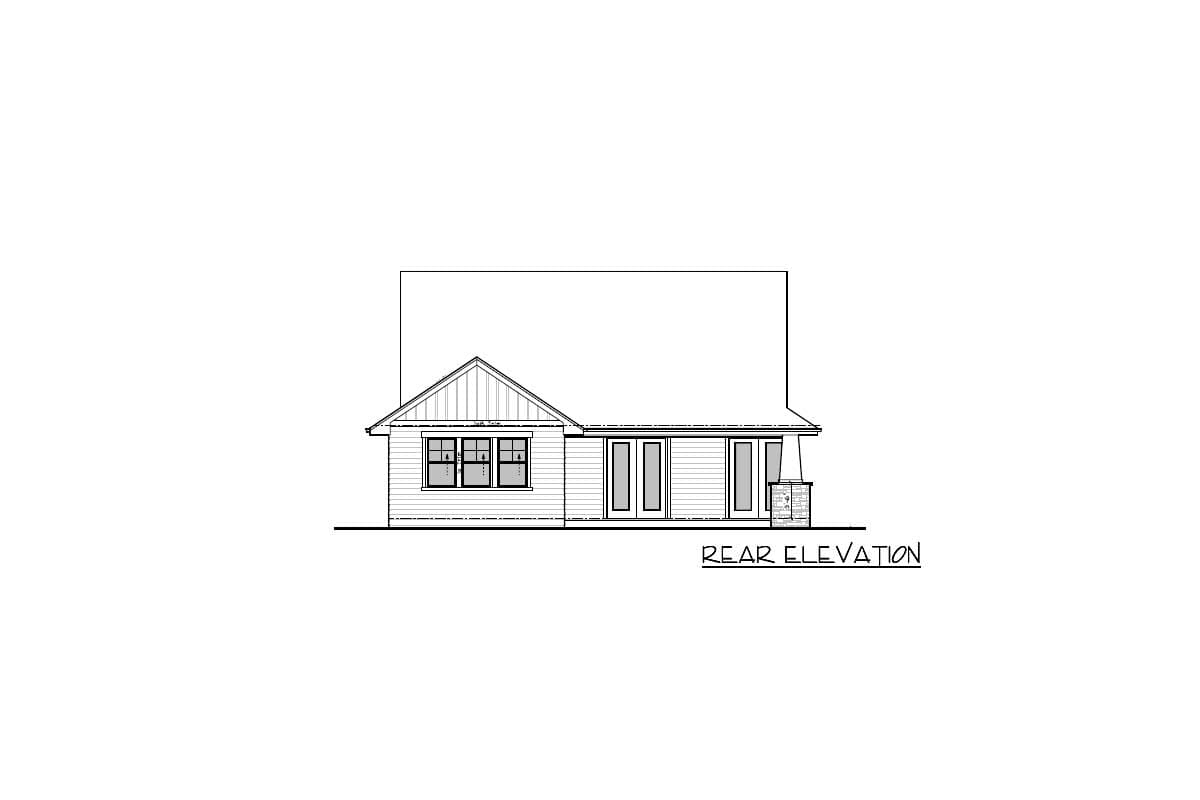

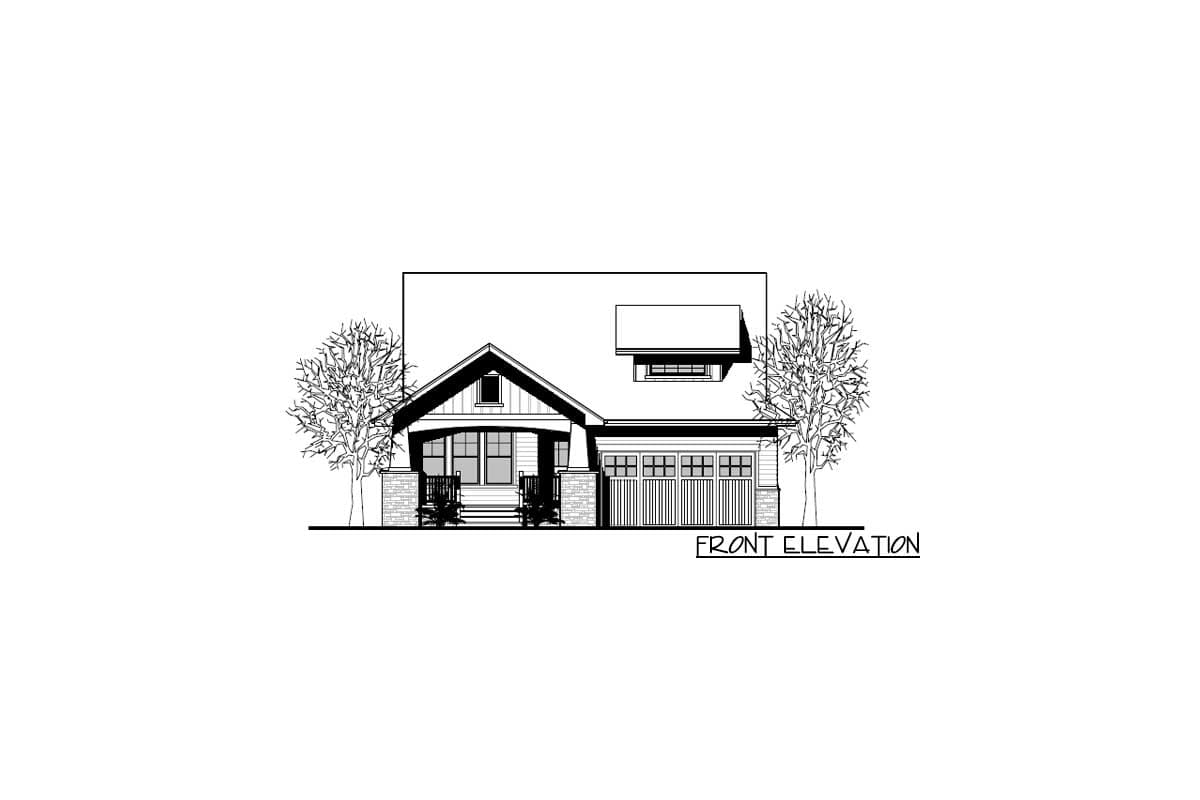

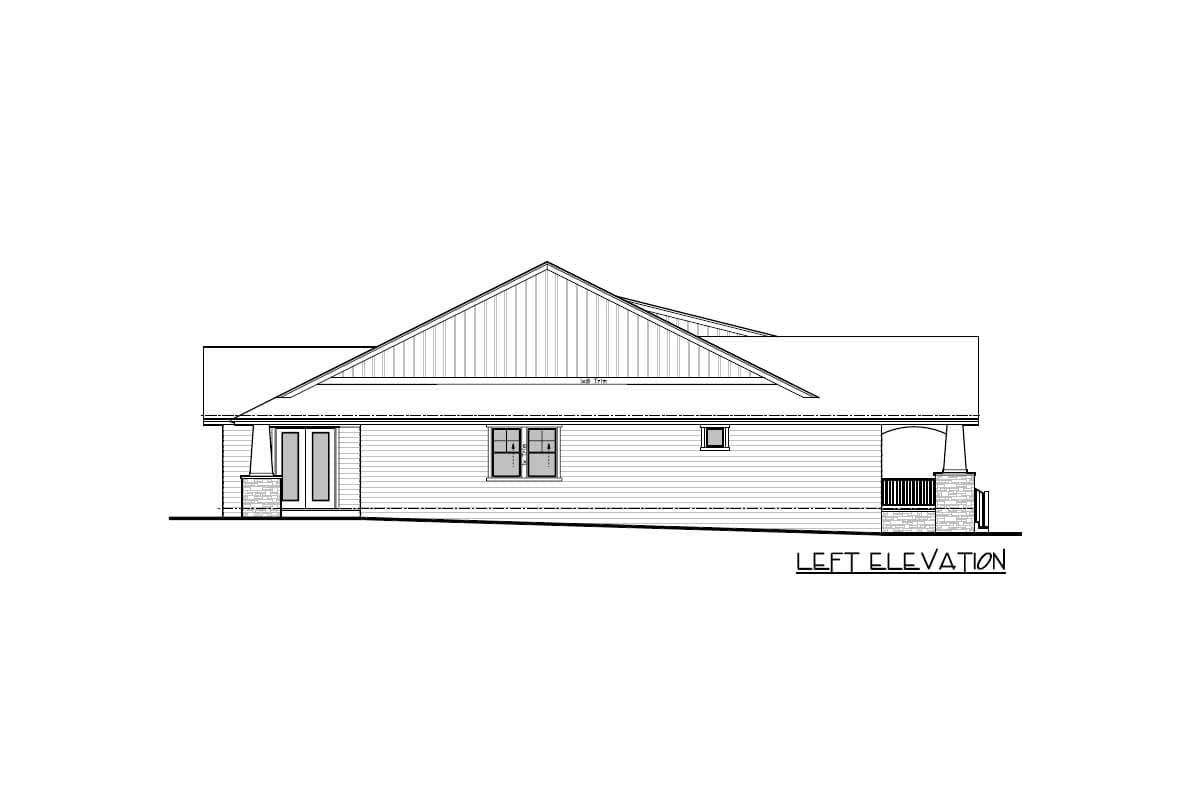

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Cottage With Sturdy Front Porch

  • 1,630

    Heated s.f.

  • 1-4

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

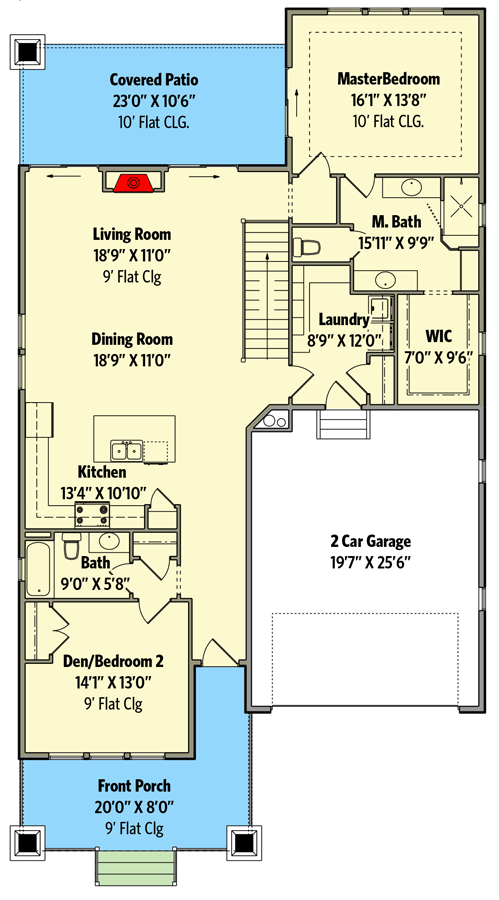

  • Main Level

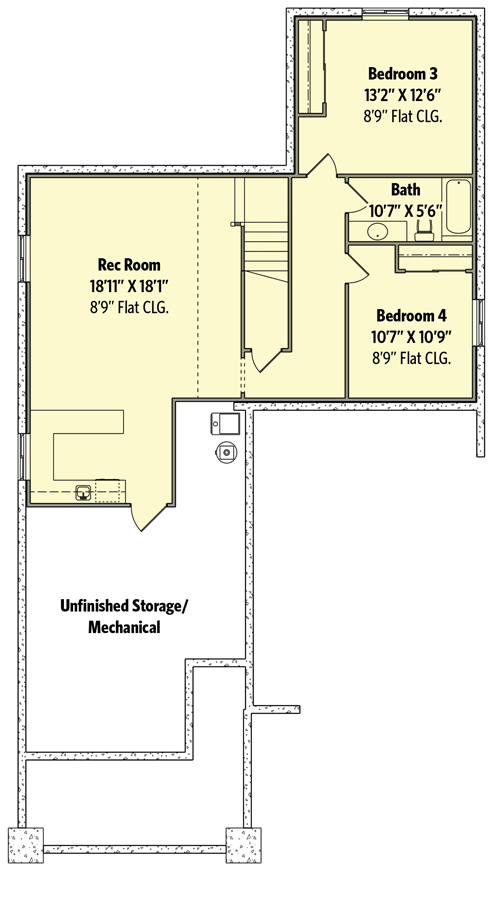

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,630 sq. ft.
  • 1st Floor: 1,630 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 72' 6"
  • Max ridge height: 24' 3"

Beds/Baths

  • Bedrooms: 1, 2, 3, or 4
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 521 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
