Plan 72663DA

Craftsman Detailing

Heated S.F.
2,893
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 72663DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72663DA

M-F 9am-5pm EST |

1-203-761-8500

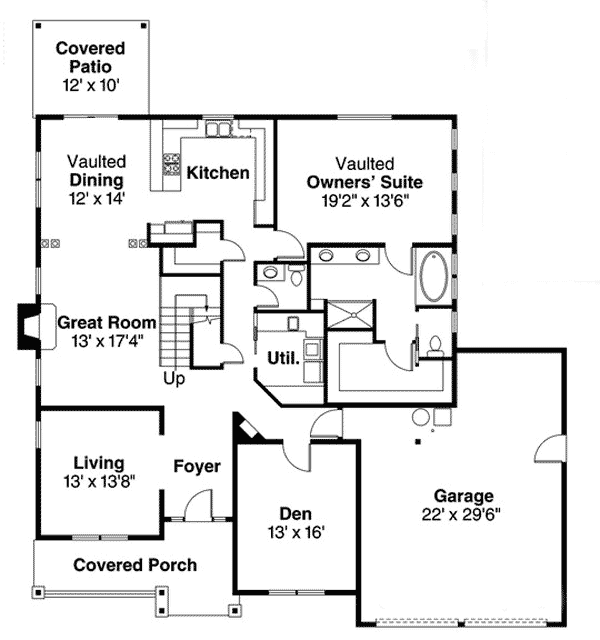

Main Level

Plan 72663DA: Craftsman Detailing - Floor Plan - Main Level - Country, Craftsman, Northwest

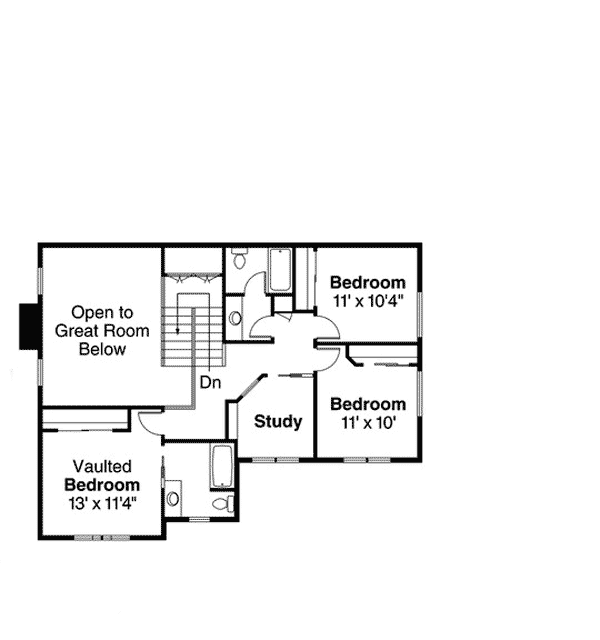

2nd Floor

Plan 72663DA: Craftsman Detailing - Floor Plan - 2nd Floor - Country, Craftsman, Northwest

Plan Details

  • Craftsman detailing adds nostalgic charm to this update of a country-style house plan. Notice the gridded window uppers and the stone veneer clad post supports.
  • On the ground floor, formal and informal gathering spaces fill the left wing. A den, utility room, half bath, and luxurious owners' suite are on the right side, along with direct access to the garage. Three bedrooms, two bathrooms, and a study are upstairs.
  • The living room and den are well separated from the more relaxed family living areas at the rear. The foyer is totally open to the living room, while den access is around the corner to the right. A bright and expansive two-story great room has fireplace a fireplace flanked by two rows of windows.
  • Twin sets of columns line the wide opening between the great room and vaulted dining room. Sliding glass doors at the rear of the dining room offer increased air circulation, plus easy access to a covered patio.
  • An open passageway and a long raised eating counter bound the dining room and step-efficient kitchen. Standing at the cooktop, you can see out onto the patio. The kitchen sink offers a wide view of the rear yard.
  • The vaulted owners' suite has windows that face the back yard along with three slender side windows. Luxury amenities include a deep walk-in closet, dual vanity, a shower, spa tub, and totally private toilet.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,893 sq. ft.

1st Floor

2,059 sq. ft.

2nd Floor

834 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

66' 0"

Max Ridge Height

27' 9"

Garage

Type

Attached

Area

627 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Special Features

Den

Library/Study

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,893 sq. ft.

1st Floor

2,059 sq. ft.

2nd Floor

834 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

66' 0"

Max Ridge Height

27' 9"

Garage

Type

Attached

Area

627 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Special Features

Den

Library/Study

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry
