Plan 890021AH

Craftsman Detailing

Heated S.F.

2,357

Beds

4

Baths

2

Stories

1

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

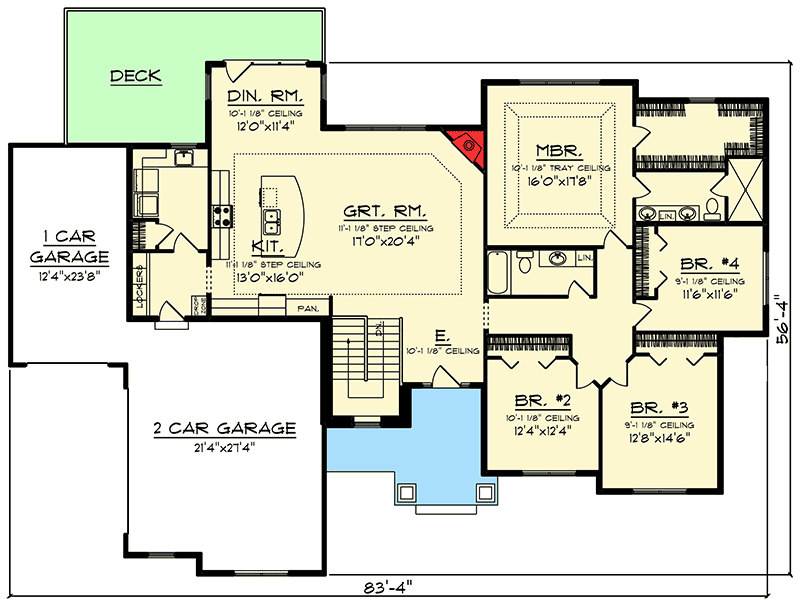

Craftsman Detailing - 890021AH floor plan - Main Level

Plan Details

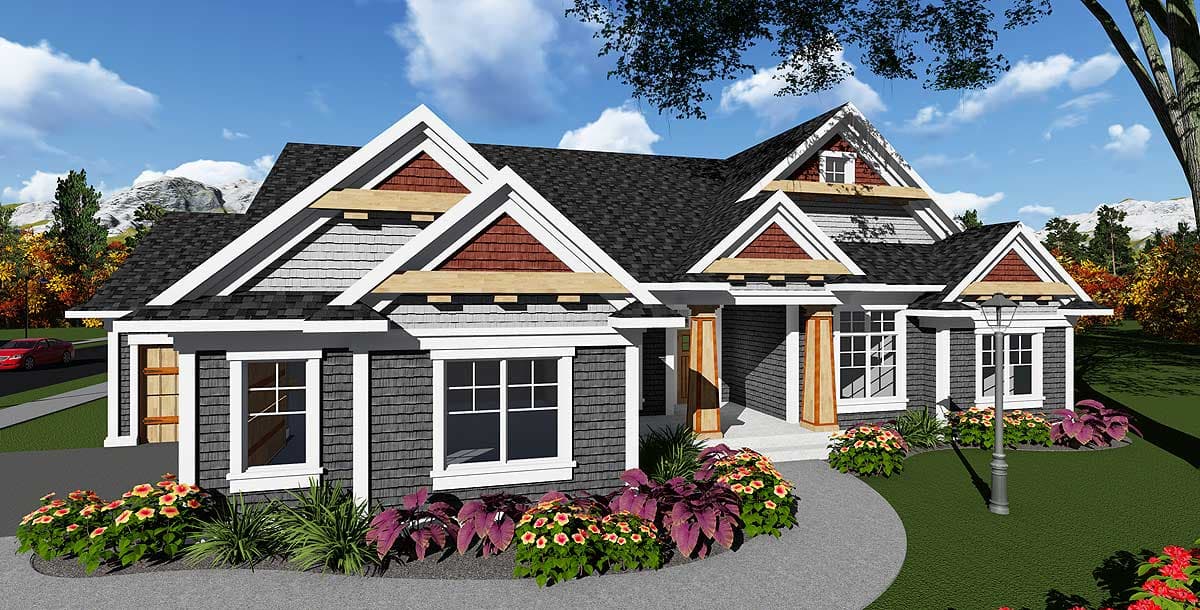

Craftsman details include beamed gables, shingle siding and heavy columns on this four-bedroom ranch home.
10’ ceilings draw you into the home through the entry with the bedrooms off to the right and the living area ahead and left.
An 11’ step ceiling embraces the kitchen and great room creating a spacious comfortable living area.

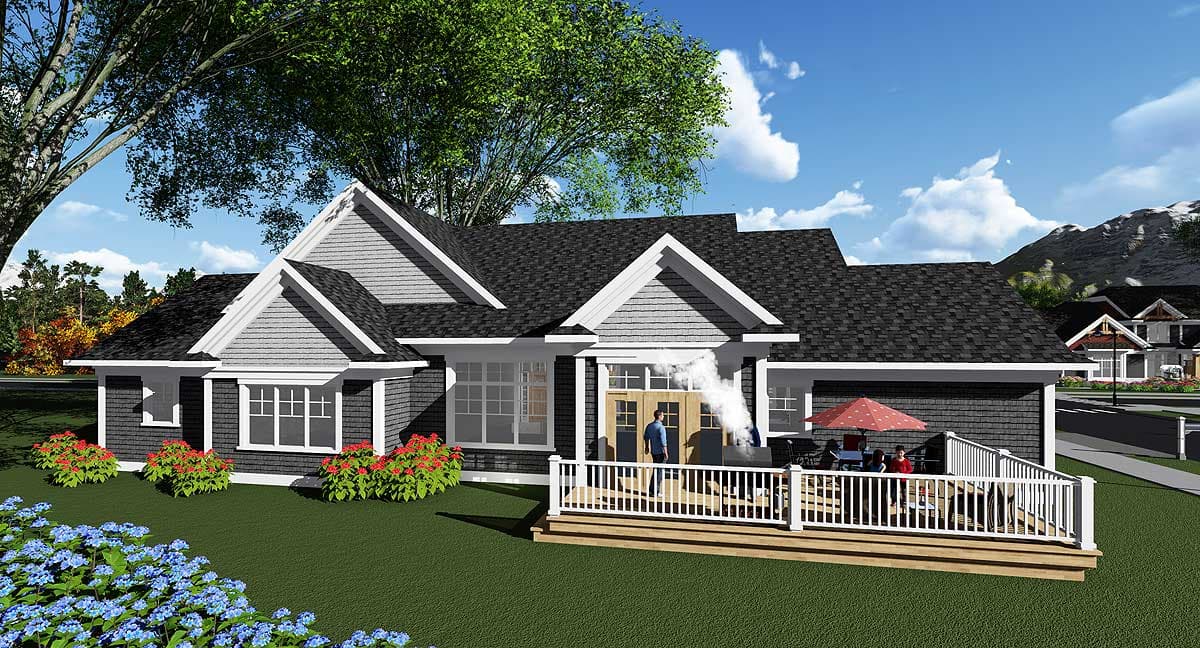

A wrap-around deck is accessed off the dining area to the back of the home.
The master suite is found to the back right of the home and includes a step ceiling, spacious walk-in closet and dual sinks.
Three additional bedrooms share an extra-large bathroom off the hall.
A three-stall, split-load garage completes the home.

What's Included

General Notes
Rendering
Elevations
Fully dimensioned floor plans
Foundation
Typical wall section & stair section
Cross section
Cabinet elevations
Electrical Plan
Roof plan

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations

Square Footage Breakdown

Total Heated Area:

2,357 sq. ft.

1st Floor:

2,357 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

2

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

83' 4"

Depth:

56' 4"

Max Ridge Height:

26' 8"

Garage

Type:

Attached

Area:

913 sq. ft.

Count:

3 Cars

Entry Location:

Front, Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Room	Ceiling Type	Width	Depth	Height
Entry	Flat			10' 0"
Great Room	Flat			10' 0"
Dining Room	Flat			10' 0"
Kitchen	Flat			10' 0"
Bedroom 2	Flat			10' 0"
Master Bedroom	Tray			10' 0"

Roof Details

Primary Pitch:

10 on 12

Secondary Pitch:

8 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
