Plan 72665DA

Craftsman Duplex Home Plan

Heated S.F.
2,426
Units
2
Width
Depth

Floor Plan

Plan 72665DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72665DA

M-F 9am-5pm EST |

1-203-761-8500

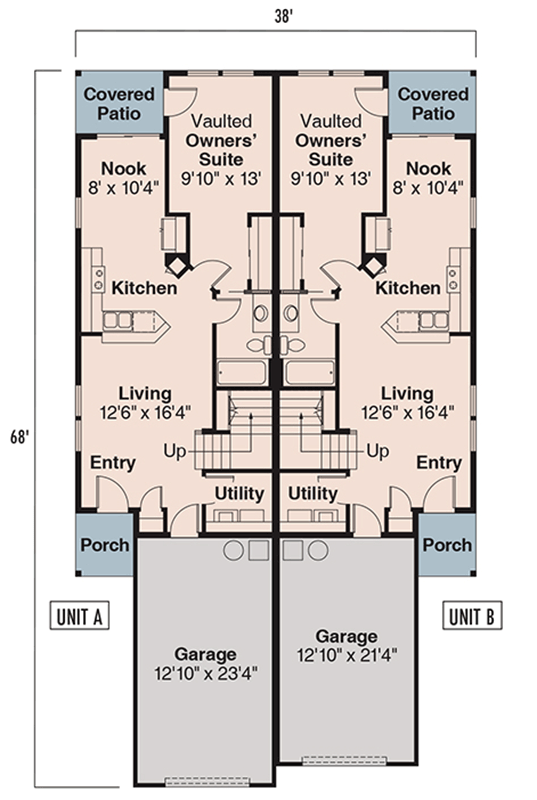

Main Level

Plan 72665DA: Craftsman Duplex Home Plan - Floor Plan - Main Level - Country, Craftsman, Traditional

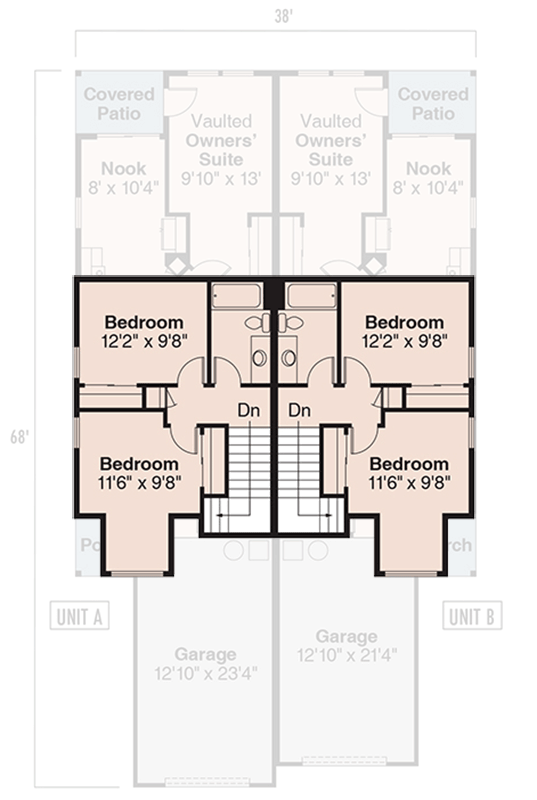

2nd Floor

Plan 72665DA: Craftsman Duplex Home Plan - Floor Plan - 2nd Floor - Country, Craftsman, Traditional

Plan Details

  • The units of this craftsman duplex each have three bedrooms, including vaulted master suites.
  • Eating/conversation bars minimally separate kitchens from living rooms.
  • There are bathrooms on ground floor as well as upstairs, near secondary bedrooms.
Unit A
Heated Area
1,213Sq. Ft.
780 Sq. Ft. 1st
433 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
320 Sq. Ft.
Dimensions
17'width
68'depth
25' 3"height
Unfinished Areas
320 Sq. Ft. Garage
Unit B
Heated Area
1,213Sq. Ft.
780 Sq. Ft. 1st
433 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
293 Sq. Ft.
Dimensions
19'width
68'depth
25' 3"height
Unfinished Areas
293 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,426 sq. ft.

1st Floor

1,560 sq. ft.

2nd Floor

866 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

68' 0"

Max Ridge Height

25' 3"

Garage

Type

Attached

Area

586 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,426 sq. ft.

1st Floor

1,560 sq. ft.

2nd Floor

866 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

68' 0"

Max Ridge Height

25' 3"

Garage

Type

Attached

Area

586 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
