Plan 72918DA

Craftsman Duplex House Plan with Matching 3-Bed Units

Heated S.F.
2,852
Units
2
Width
Depth

Floor Plan

Plan 72918DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72918DA

M-F 9am-5pm EST |

1-203-761-8500

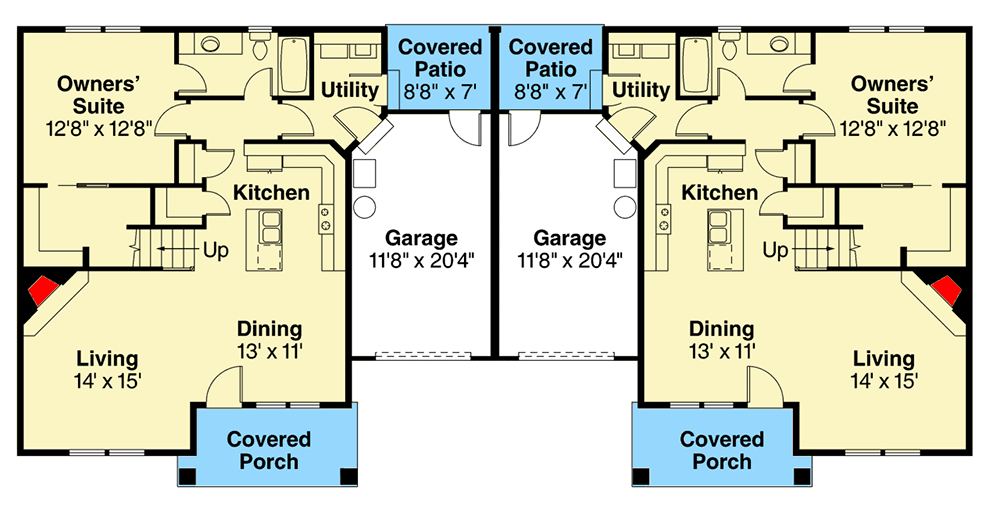

Main Level

Plan 72918DA: Craftsman Duplex House Plan with Matching 3-Bed Units - Floor Plan - Main Level - Country, Craftsman

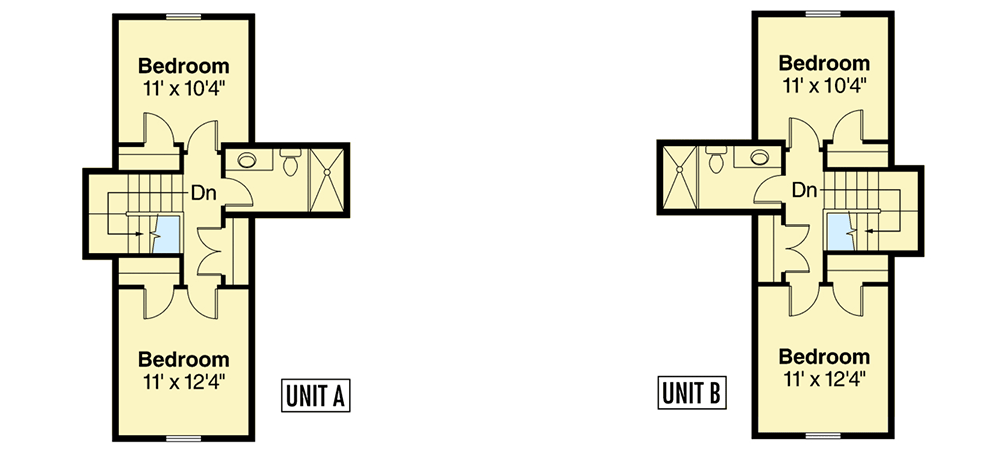

2nd Floor

Plan 72918DA: Craftsman Duplex House Plan with Matching 3-Bed Units - Floor Plan - 2nd Floor - Country, Craftsman

Plan Details

  • Gabled porches and Craftsman windows are showcased in this two-story duplex with a country cottage look and matching units. Only the garages and covered patios share a common wall, so each unit's interior is well isolated from sounds in the other. Each unit gives you 3 beds, 2 baths and 1,426 square feet of heated living space (983 sq. ft. on the main floor; 443 sq. ft. on the upper floor) and a 246 square foot garage.
  • Entering, you step into a large open area where the dining room, living room and kitchen flow together. Plenty of natural light washes in through two sets of wide windows that face the street. Near the stairs, a fireplace is nestled into the living room's rear corner. Standing at the kitchen sink, you're at the center of everything. You can chat with family and friends seated at the eating bar, while keeping tabs on activities in the dining and living areas. Cupboards wrap around two sides of the kitchen. Cabinets beneath the work island counter, plus a step-in pantry, add to this abundance of storage space.
  • The owners’ suite and utility room fill the back. An under-the-stairway storage area expands the roomy walk-in closet there. The suite’s bathroom has two doors. One opens off of the hallway, and the other provides direct access from the owners’ bedroom. The garage links to the utility room, which is just a few steps from the kitchen. This feature comes in handy when unloading groceries in stormy weather. Two bedrooms, a second bathroom and a wide storage closet are upstairs. The Donovan's front bedroom is slightly larger.
Unit A
Heated Area
1,426Sq. Ft.
983 Sq. Ft. 1st
443 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
246 Sq. Ft.
Dimensions
40'width
38'depth
22' 6"height
Unfinished Areas
246 Sq. Ft. Garage
Unit B
Heated Area
1,426Sq. Ft.
983 Sq. Ft. 1st
443 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
246 Sq. Ft.
Dimensions
40'width
38'depth
22' 6"height
Unfinished Areas
246 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,852 sq. ft.

1st Floor

1,966 sq. ft.

2nd Floor

886 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

38' 0"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

492 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

Craftsman

Special Features

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,852 sq. ft.

1st Floor

1,966 sq. ft.

2nd Floor

886 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

38' 0"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

492 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

Craftsman

Special Features

Master Suite - 1st Floor
