Craftsman Duplex House Plan with Mirrored 2045 Square Foot 3 Bed Units

Heated S.F.
4,090
Units
2
Width
Depth

Floor Plan

Plan 42729DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42729DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

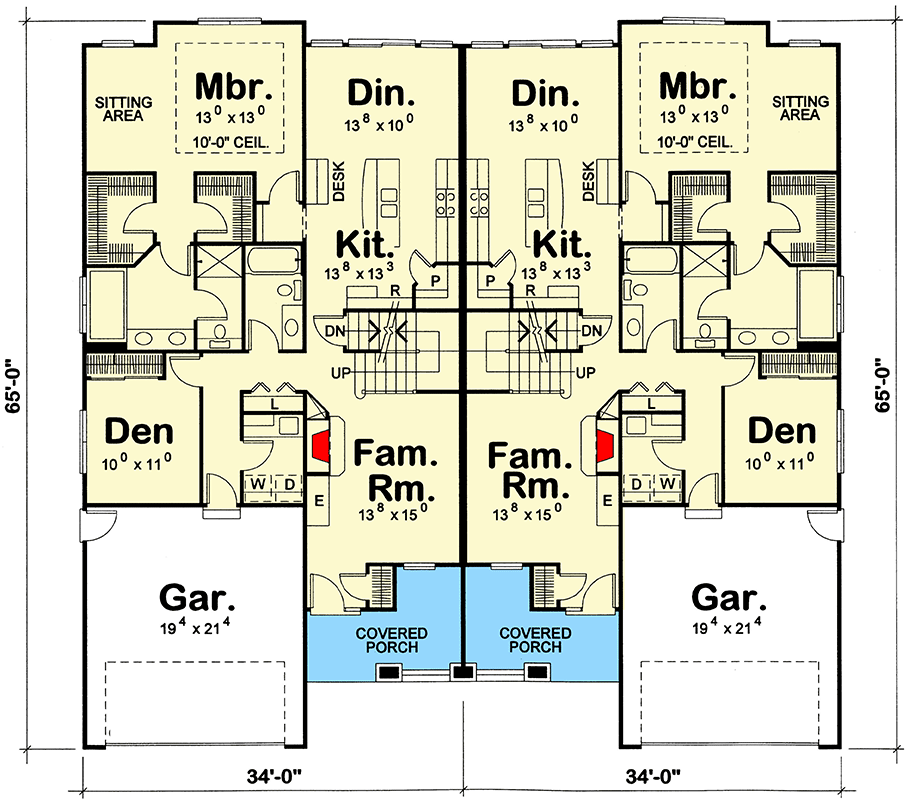

Plan 42729DB: Craftsman Duplex House Plan with Mirrored 2045 Square Foot 3 Bed Units - Floor Plan - Main Level - Craftsman, Traditional

2nd Floor

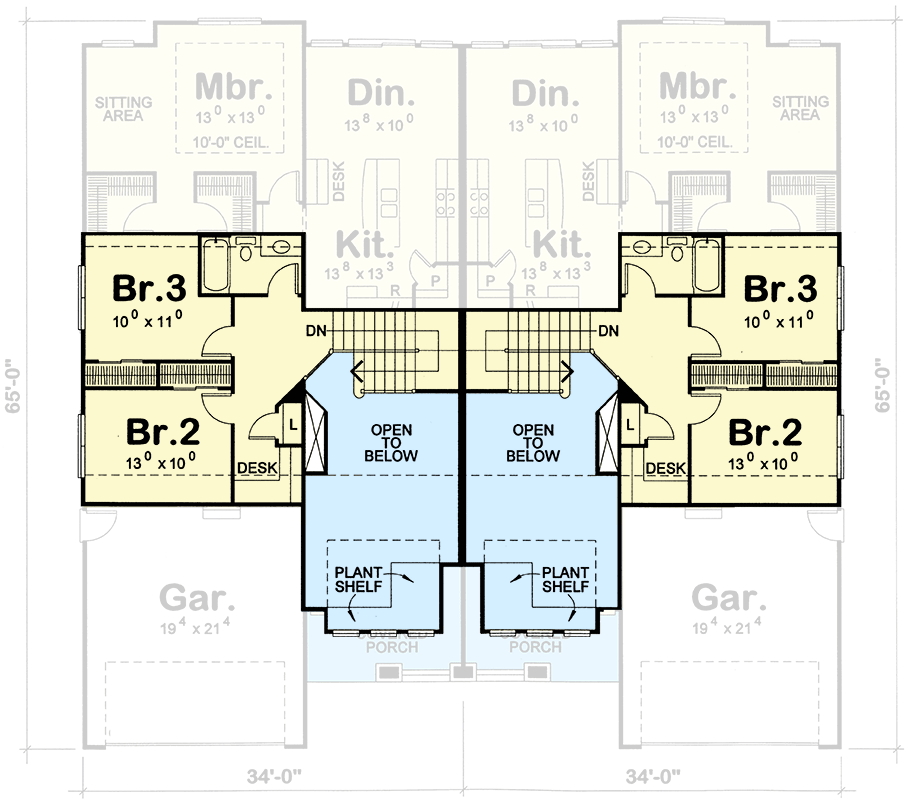

Plan 42729DB: Craftsman Duplex House Plan with Mirrored 2045 Square Foot 3 Bed Units - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

  • This duplex house plan gives you mirrored 3 bed, 3.5 bath units with 2045 square feet of heated living and a 2-car 430 square foot garage.
  • Attractive shed dormers sit above the front porches and add to the curb appeal.
  • Inside, the master suit is alone on the main floor while Beds 2 and 3 are upstairs.
  • The entry opens to the family room with fireplace while in back, the island kitchen opens to the dining room which has sliding door access to the back yard.
Unit A
Heated Area
2,045Sq. Ft.
1542 Sq. Ft. 1st
503 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
430 Sq. Ft.
Dimensions
34'width
65'depth
25'height
Unfinished Areas
430 Sq. Ft. Garage
Unit B
Heated Area
2,045Sq. Ft.
3084 Sq. Ft. 1st
1006 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
430 Sq. Ft.
Dimensions
34'width
65'depth
25'height
Unfinished Areas
430 Sq. Ft. Garage

What's Included

  • General Notes

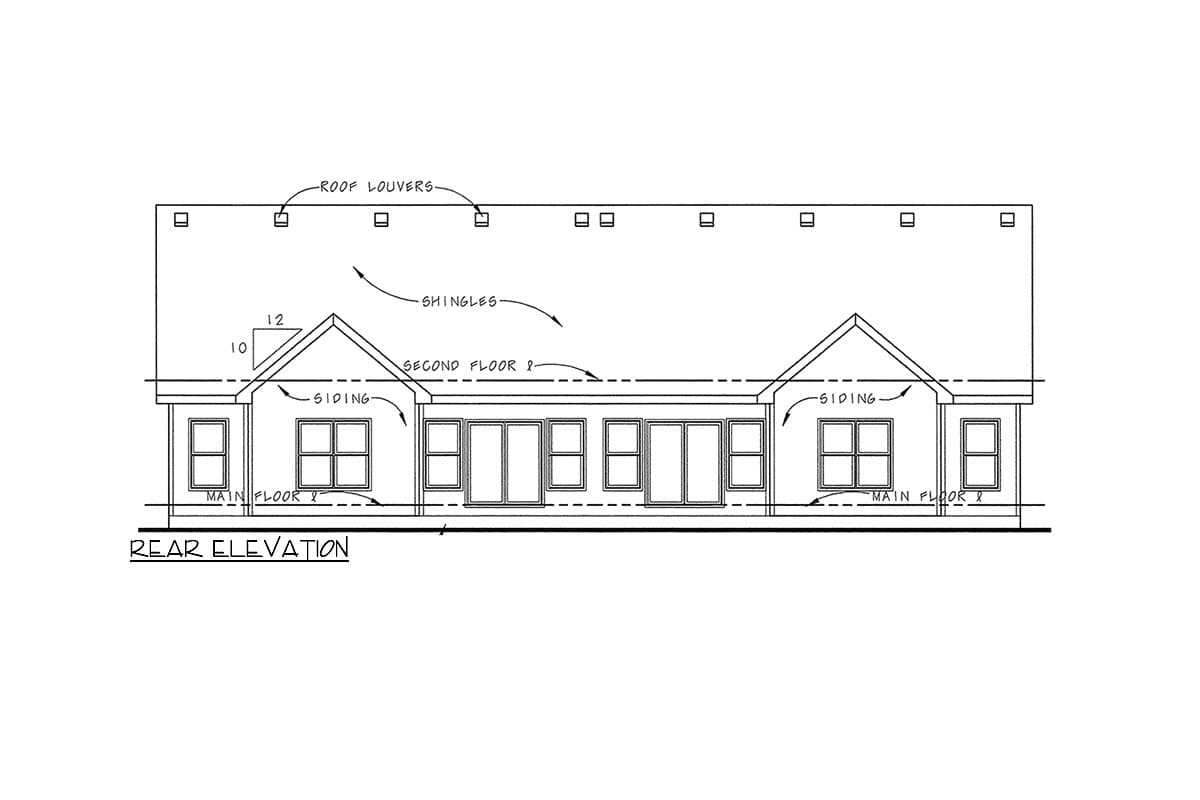

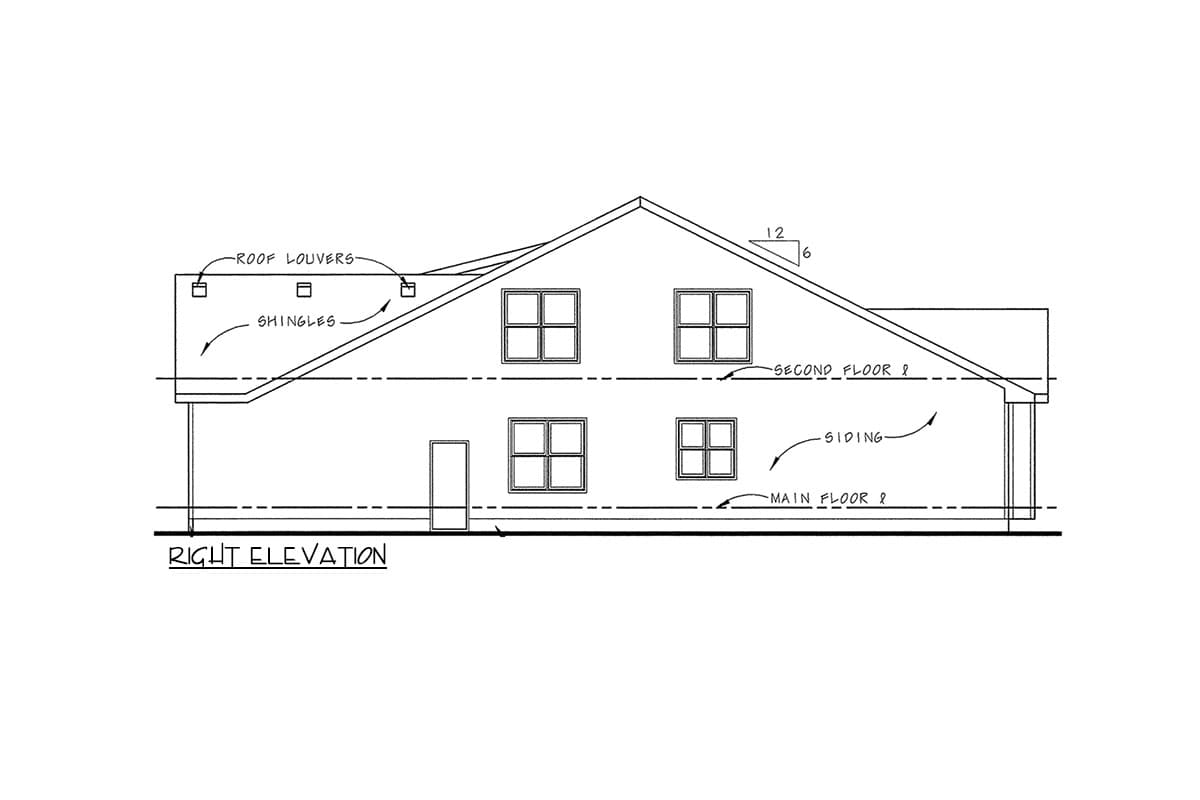

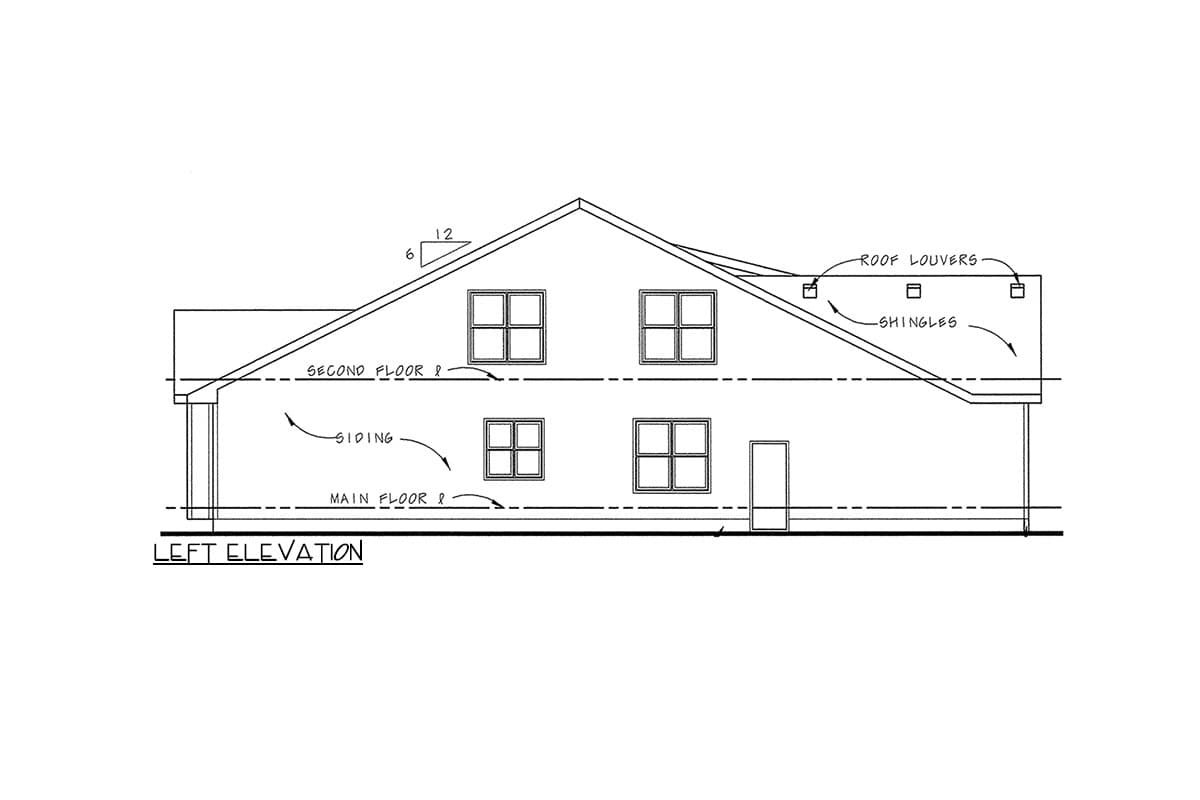

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,090 sq. ft.

1st Floor

3,084 sq. ft.

2nd Floor

1,006 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 0"

Depth

65' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

860 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

Traditional

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

4,090 sq. ft.

1st Floor

3,084 sq. ft.

2nd Floor

1,006 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 0"

Depth

65' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

860 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Craftsman

Traditional

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery
