Plan 60645ND

Craftsman Duplex with Breezeway and 3 Bed Units Under 1400 Sq Ft

Heated S.F.
2,758
Units
2
Width
Depth

Floor Plan

Plan 60645ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60645ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

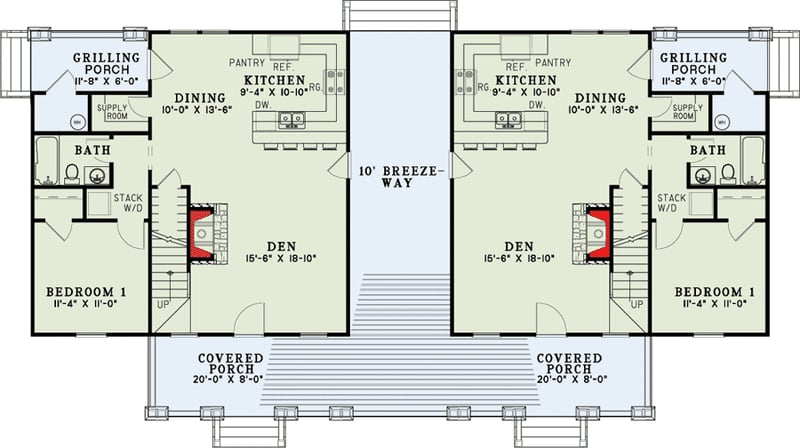

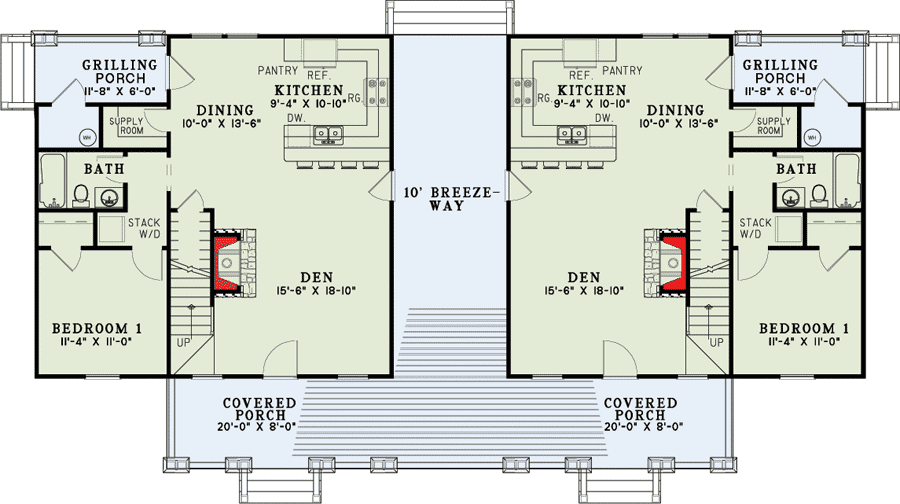

Plan 60645ND: Craftsman Duplex with Breezeway and 3 Bed Units Under 1400 Sq Ft - Floor Plan - Main Level - Cabin, Country, Log Cabin, Traditional

2nd Floor

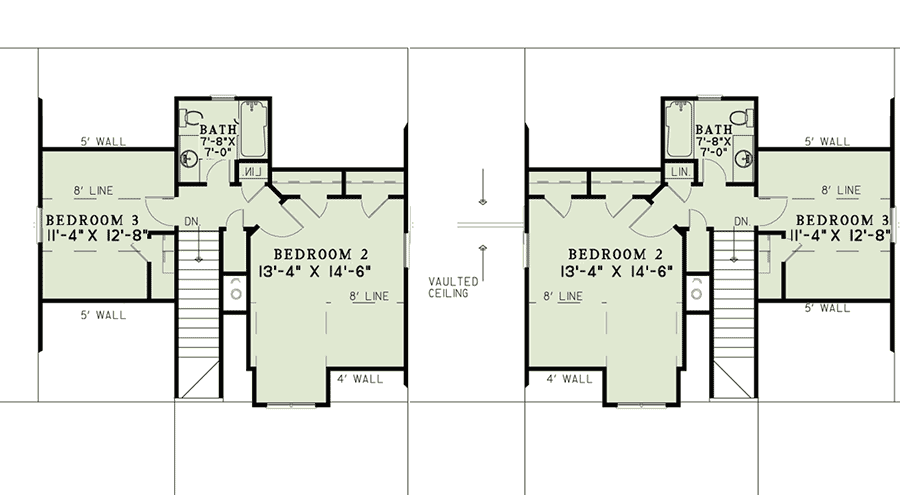

Plan 60645ND: Craftsman Duplex with Breezeway and 3 Bed Units Under 1400 Sq Ft - Floor Plan - 2nd Floor - Cabin, Country, Log Cabin, Traditional

Plan Details

  • Perfect for a water front location, this multi-family home has a breezeway and features stone and timber columns along the covered front porch.
  • Each unit gives you 1,379 square feet of heated living (867 sq. ft. on the main floor and 512 sq. ft. on the second floor) with 3 beds and 2 baths.
  • The den features a stone fireplace and is open to the kitchen and dining room.
  • A quaint grilling porch is off the dining room.
  • Bedroom 1 is located in the front corner with a full bath and a nearby stackable washer/dryer.
  • There are 2 more spacious bedrooms upstairs as well as a full bath.
Unit A
Heated Area
1,379Sq. Ft.
867 Sq. Ft. 1st
512 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
36' 8"width
38' 4"depth
22'height
Unfinished Areas
150 Sq. Ft. Porch, Combined
Unit B
Heated Area
1,379Sq. Ft.
867 Sq. Ft. 1st
512 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
36' 8"width
38' 4"depth
22'height
Unfinished Areas
150 Sq. Ft. Porch, Combined

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,758 sq. ft.

1st Floor

1,734 sq. ft.

2nd Floor

1,024 sq. ft.

Porch, Combined

602 sq. ft.

Storage

506 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 4"

Depth

38' 4"

Max Ridge Height

22' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cabin

Country

Log Cabin

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Wraparound Porch

Square Footage Breakdown

Total Heated Area

2,758 sq. ft.

1st Floor

1,734 sq. ft.

2nd Floor

1,024 sq. ft.

Porch, Combined

602 sq. ft.

Storage

506 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 4"

Depth

38' 4"

Max Ridge Height

22' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cabin

Country

Log Cabin

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Wraparound Porch
