Craftsman Era Cottage

Plan 59187ND

  • 1,933

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • The detailing of this Craftsman house plan warmly invites friends and family.
  • A covered porch leads to a foyer separating the guest bedrooms from the rest of the home.
  • The great room entry has eight-inch columns, a media center, a cozy fireplace and a hidden computer center for study time or a small home office.
  • A spacious kitchen with bar seating adjoins the dining room and has a wall of windows for plenty of natural lighting.
  • Conveniently located near the garage entry is a kid's nook with bench to help keep family areas clutter free.
  • A ten-foot boxed ceiling, a large walk-in closet, whirlpool tub and a separate shower with seat enhance the master suite for the ultimate privacy and relaxation.
  • Bedrooms 2 and 3 have a full bath between them.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

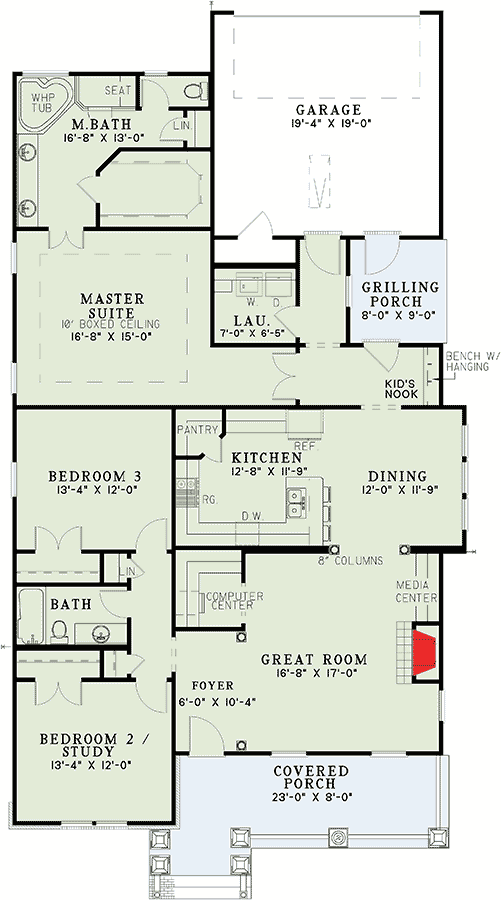

Craftsman Era Cottage - 59187ND floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,933 sq. ft.
  • 1st Floor: 1,933 sq. ft.
  • Porch, Rear: 72 sq. ft.
  • Porch, Front: 196 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 74' 4"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Craftsman Era Cottage

  • 1,933

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $800
  • 5 Sets $900
  • 5 Sets + PDF $1,150
  • PDF - Unlimited Build $1,500
  • CAD Unlimited + PDF $1,600
  • View all purchase option online

About This Plan

  • The detailing of this Craftsman house plan warmly invites friends and family.
  • A covered porch leads to a foyer separating the guest bedrooms from the rest of the home.
  • The great room entry has eight-inch columns, a media center, a cozy fireplace and a hidden computer center for study time or a small home office.
  • A spacious kitchen with bar seating adjoins the dining room and has a wall of windows for plenty of natural lighting.
  • Conveniently located near the garage entry is a kid's nook with bench to help keep family areas clutter free.
  • A ten-foot boxed ceiling, a large walk-in closet, whirlpool tub and a separate shower with seat enhance the master suite for the ultimate privacy and relaxation.
  • Bedrooms 2 and 3 have a full bath between them.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,933 sq. ft.
  • 1st Floor: 1,933 sq. ft.
  • Porch, Rear: 72 sq. ft.
  • Porch, Front: 196 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 74' 4"
  • Max ridge height: 25' 10"

Garage

  • Type: Attached
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
Plan 59187ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59187ND
|
Need Help? 800-854-7852
|
