Plan 86300HH

  • 3,445

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This Farmhouse house plan has a rugged Craftsman exterior and lots of outdoor living space including a front wrap-around porch.
  • The formal dining room is open to the foyer and has a gorgeous coffered ceiling plus views of the huge vaulted and beamed family room.
  • A built-in tech center lies at one end of the kitchen so you can watch the kids so homework or surf the web while cooking.
  • The huge walk-in pantry has plenty of room for food storage and pots and pans.
  • With the split bedroom layout, homeowners get a very private master suite off by themselves.
  • Double doors open to the rear porch and there's a lovely tray ceiling to look up at.
  • Bedrooms 2 and 3 are all the way across the house and there's a giant second floor bonus room waiting for your finishing touches.
  • The bonus space adds 574 square feet of living space if finished.

Cover Sheet

Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

Floor Plan

Plan details



Craftsman Farmhouse House Plan

  • 3,445

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $1,580
  • 5 Sets $1,600
  • 8 Sets $1,650
  • PDF - single-use $1,695
  • Reproducible Set $1,735
  • CAD $1,855
  • View all purchase option online

About This Plan

  • This Farmhouse house plan has a rugged Craftsman exterior and lots of outdoor living space including a front wrap-around porch.
  • The formal dining room is open to the foyer and has a gorgeous coffered ceiling plus views of the huge vaulted and beamed family room.
  • A built-in tech center lies at one end of the kitchen so you can watch the kids so homework or surf the web while cooking.
  • The huge walk-in pantry has plenty of room for food storage and pots and pans.
  • With the split bedroom layout, homeowners get a very private master suite off by themselves.
  • Double doors open to the rear porch and there's a lovely tray ceiling to look up at.
  • Bedrooms 2 and 3 are all the way across the house and there's a giant second floor bonus room waiting for your finishing touches.
  • The bonus space adds 574 square feet of living space if finished.

Floor Plans

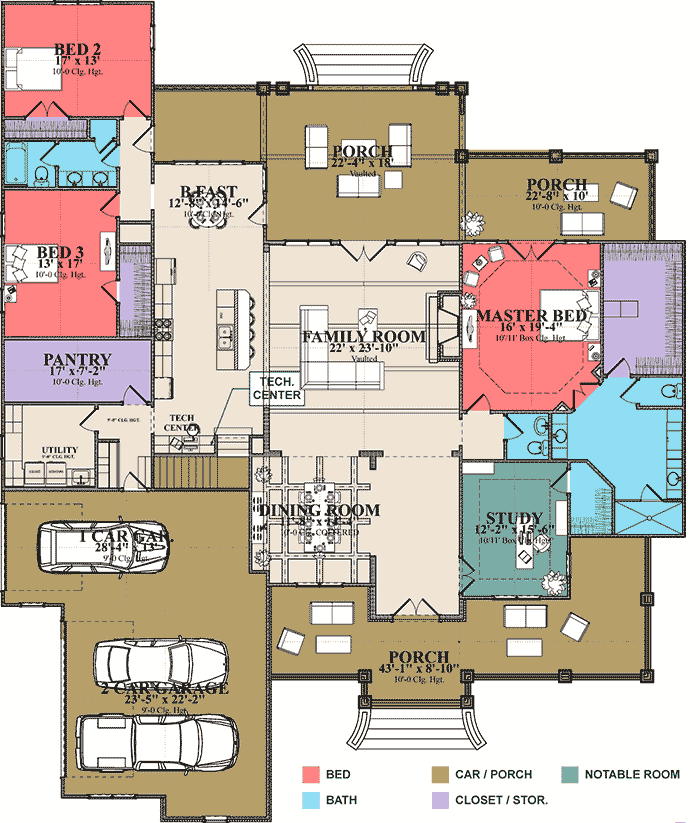

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,445 sq. ft.
  • 1st Floor: 3,445 sq. ft.
  • Porch, Combined: 1,254 sq. ft.

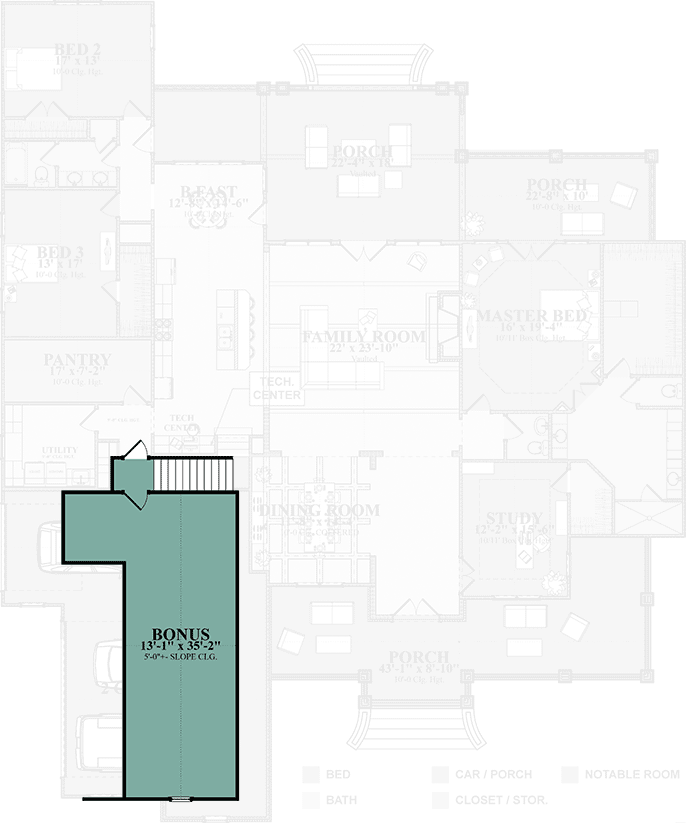

  • Bonus: 574 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 79' 8"
  • Depth: 95' 2"
  • Max ridge height: 31' 3"

Garage

  • Type: Attached
  • Area: 966 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
