Plan 246019DLR

Exclusive

Craftsman Farmhouse Plan with Main-Level Master Suite

Heated S.F.
1,597
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 246019DLR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 246019DLR

M-F 9am-5pm EST |

1-203-761-8500

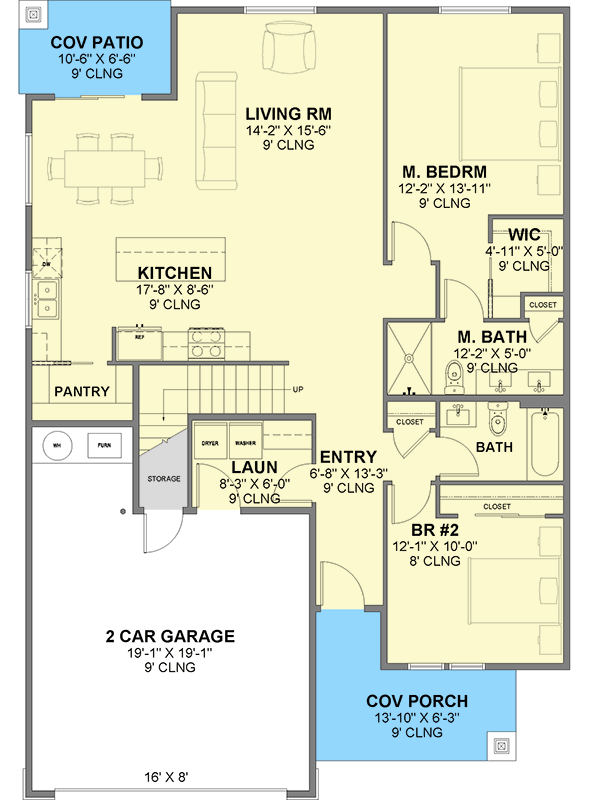

Main Level

Plan 246019DLR: Craftsman Farmhouse Plan with Main-Level Master Suite - Floor Plan - Main Level - Craftsman, Farmhouse, Traditional

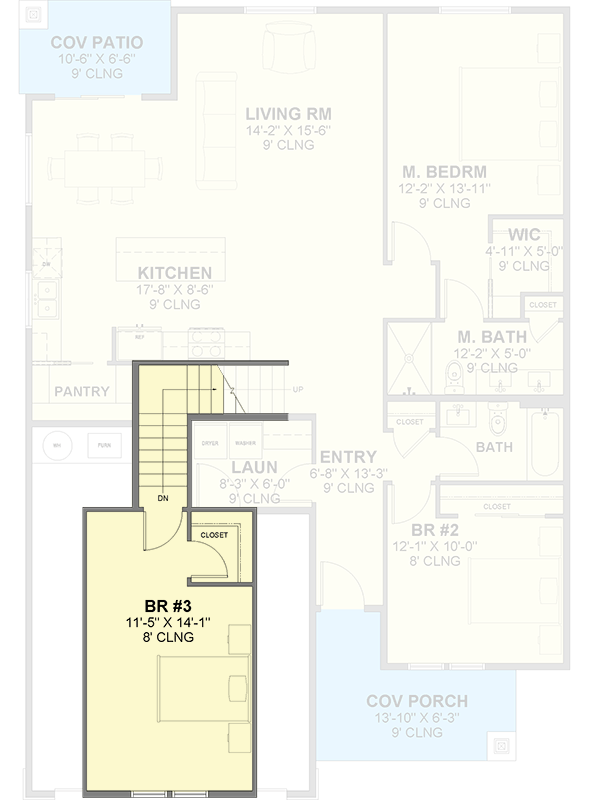

2nd Floor

Plan 246019DLR: Craftsman Farmhouse Plan with Main-Level Master Suite - Floor Plan - 2nd Floor - Craftsman, Farmhouse, Traditional

Plan Details

  • This 1,597 sq. ft. Traditional Craftsman house plan features 3 bedrooms, 2 full bathrooms, and an attached 447 sq. ft. two-car garage, presenting a striking exterior with crisp white siding, dark trim, and warm wood accents.
  • Upon entry, discover a practical and inviting layout that thoughtfully integrates essential daily spaces, including a mudroom conveniently located for managing household comings and goings.
  • The main living areas are designed for effortless flow, connecting the central kitchen to the dining and gathering spaces, fostering a sense of togetherness. A sophisticated butler's walk-in pantry offers exceptional storage and prep capabilities, while the main-level laundry room ensures convenience.
  • The private primary suite, located on the first floor, offers a serene retreat, thoughtfully separated from the additional bedrooms for optimal privacy. The split bedroom design ensures comfort and personal space for all residents.
  • Enjoy quiet mornings or relaxed evenings on the inviting 155 sq. ft. combined porch, offering a charming outdoor extension of the home's comfortable living spaces.

What's Included

  • Floor plans
  • Foundation plan
  • Floor framing plan
  • Roof framing plan
  • Cross Sections

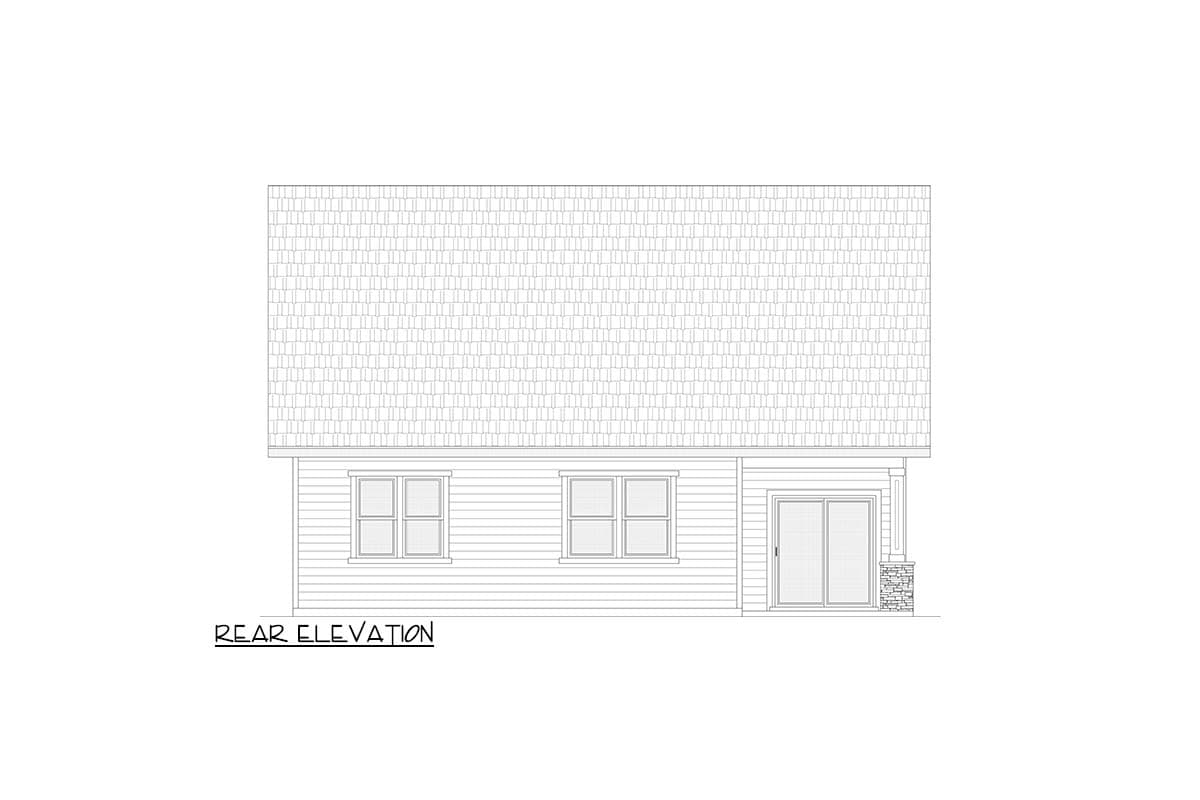

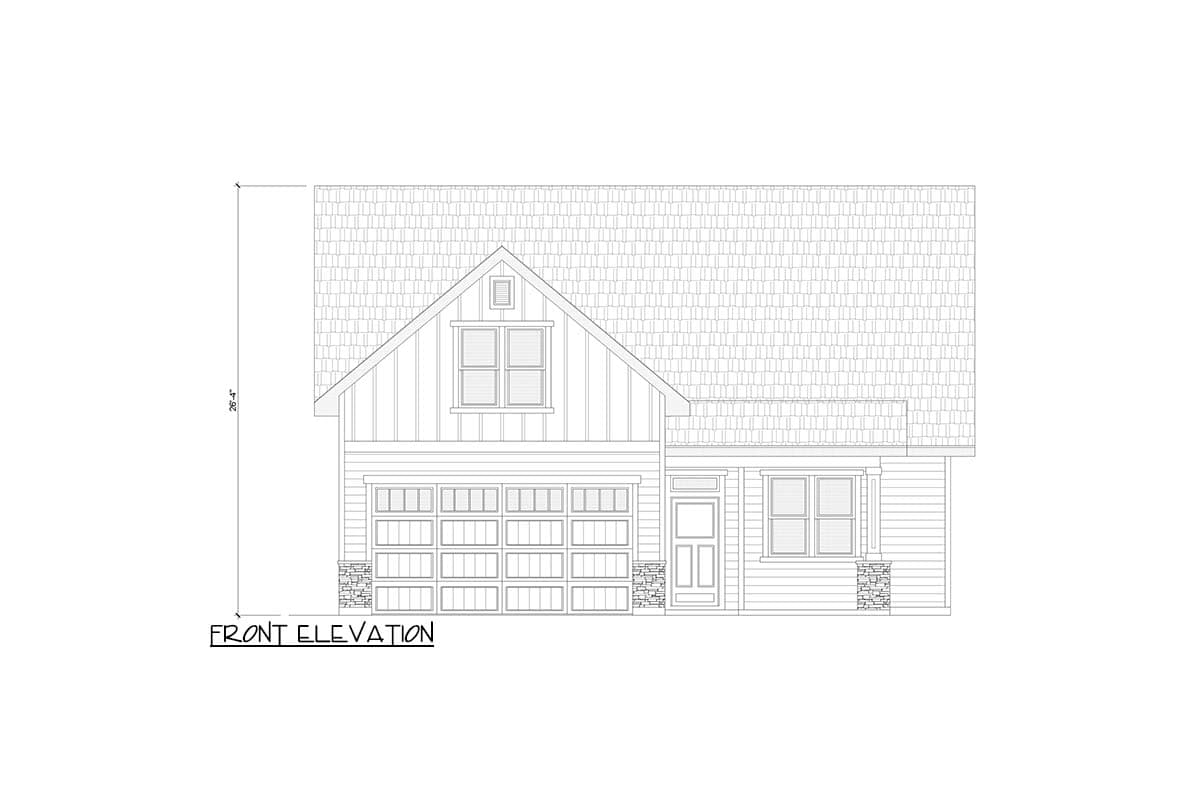

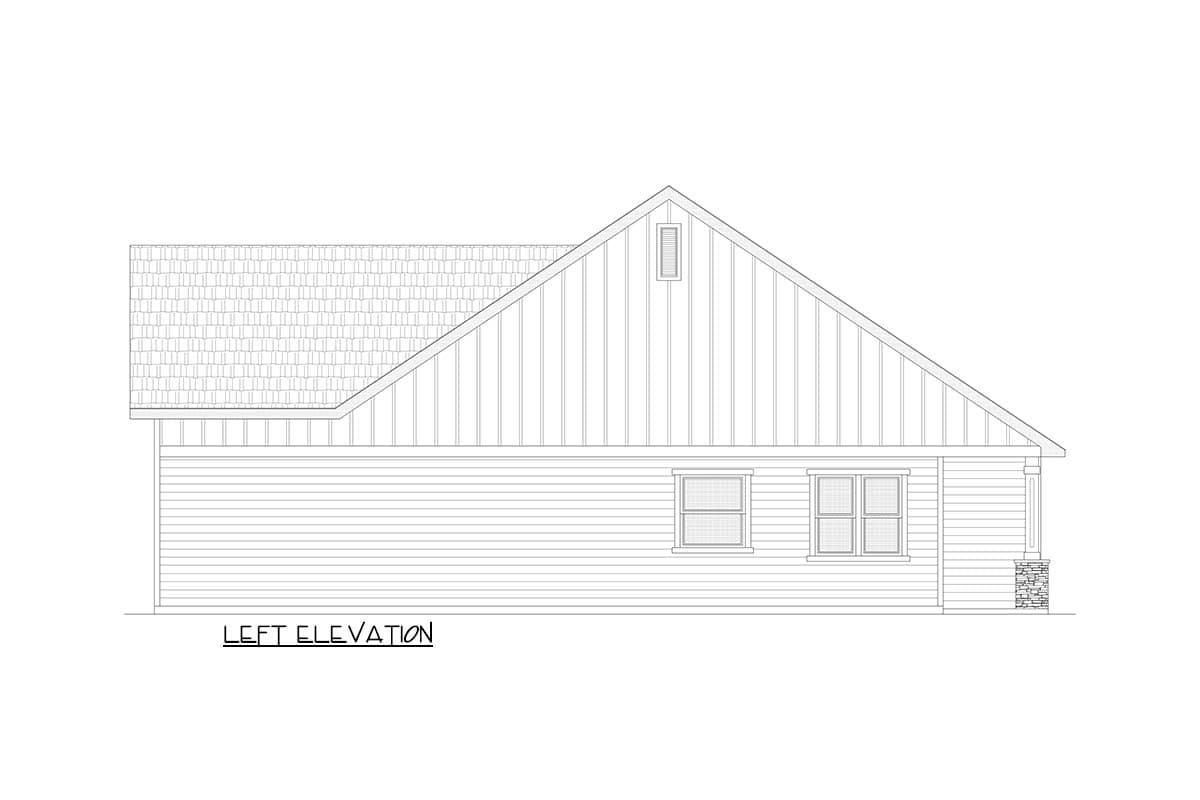

  • Exterior Elevations
  • Exterior Elevations
  • Electrical Plan and notes
  • Detail Page

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,597 sq. ft.

1st Floor

1,357 sq. ft.

2nd Floor

240 sq. ft.

Porch, Combined

155 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 10"

Depth

55' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

447 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Farmhouse

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
