Craftsman Flavored House Plan

Plan 72126DA

  • 2,208

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Tapered porch columns atop stone veneer bases give a Craftsman flavor to this home plan. The three-car garage, with its overhead bonus room, adds more space to the design.
  • Sidelights brighten the two-story foyer. Double doors on the right open into a den, office or study. This room is also closely linked to the utility room, garage, powder room, and master suite. The entire ground floor is well designed for ease of movement from room to room.
  • The dining room connects to the kitchen, which in turn is open to the vaulted nook and great room. Glass fills much of the great room's rear wall, and more light washes in through the nook's side windows. The partially covered patio could be screened.
  • Luxury amenities in the master suite include two roomy walk-in closets and a private bathroom with dual sinks, a deep soaking tub, cultured marble shower, and private toilet. The sleeping area also offers direct access to the patio.
  • Upstairs, the front bedroom boasts a vaulted ceiling and walk-in closet. The rear bedroom is slightly larger.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

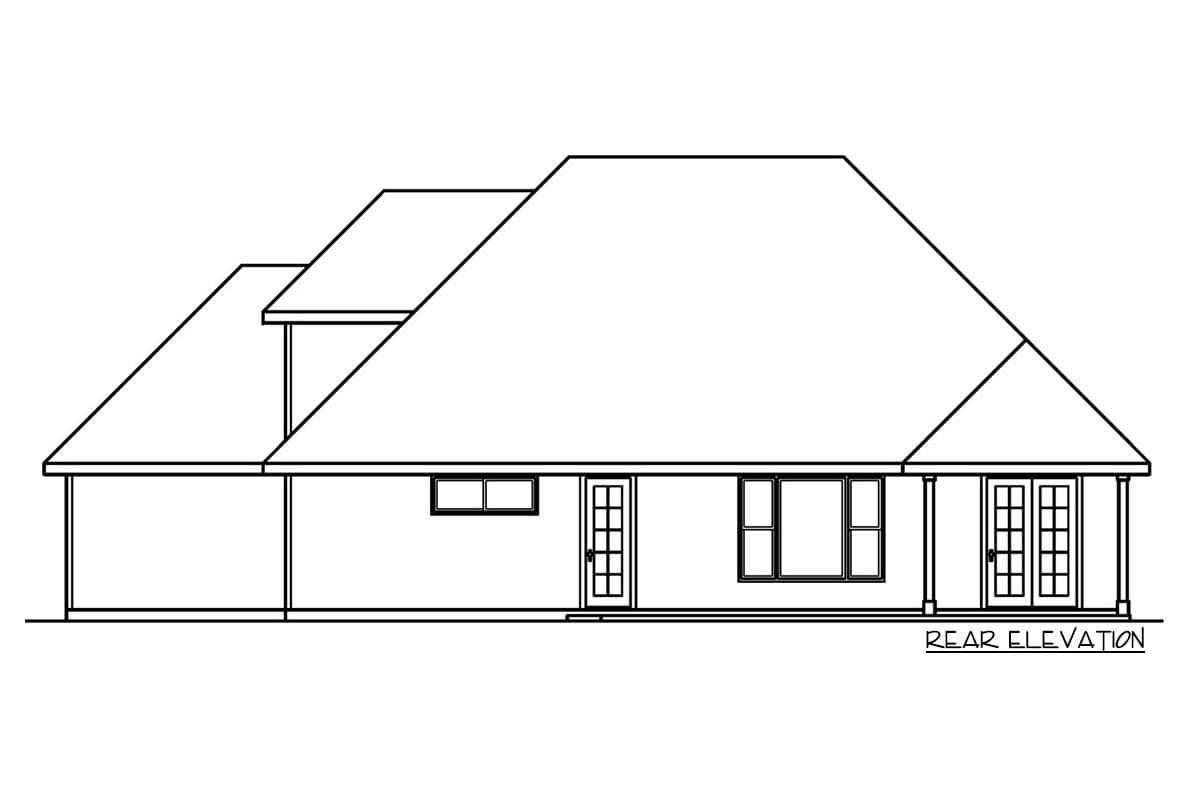

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Craftsman Flavored House Plan

  • 2,208

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 5 Sets PLUS $1,085
  • 8 Sets $1,140
  • PDF - single-use $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Tapered porch columns atop stone veneer bases give a Craftsman flavor to this home plan. The three-car garage, with its overhead bonus room, adds more space to the design.
  • Sidelights brighten the two-story foyer. Double doors on the right open into a den, office or study. This room is also closely linked to the utility room, garage, powder room, and master suite. The entire ground floor is well designed for ease of movement from room to room.
  • The dining room connects to the kitchen, which in turn is open to the vaulted nook and great room. Glass fills much of the great room's rear wall, and more light washes in through the nook's side windows. The partially covered patio could be screened.
  • Luxury amenities in the master suite include two roomy walk-in closets and a private bathroom with dual sinks, a deep soaking tub, cultured marble shower, and private toilet. The sleeping area also offers direct access to the patio.
  • Upstairs, the front bedroom boasts a vaulted ceiling and walk-in closet. The rear bedroom is slightly larger.

Floor Plans

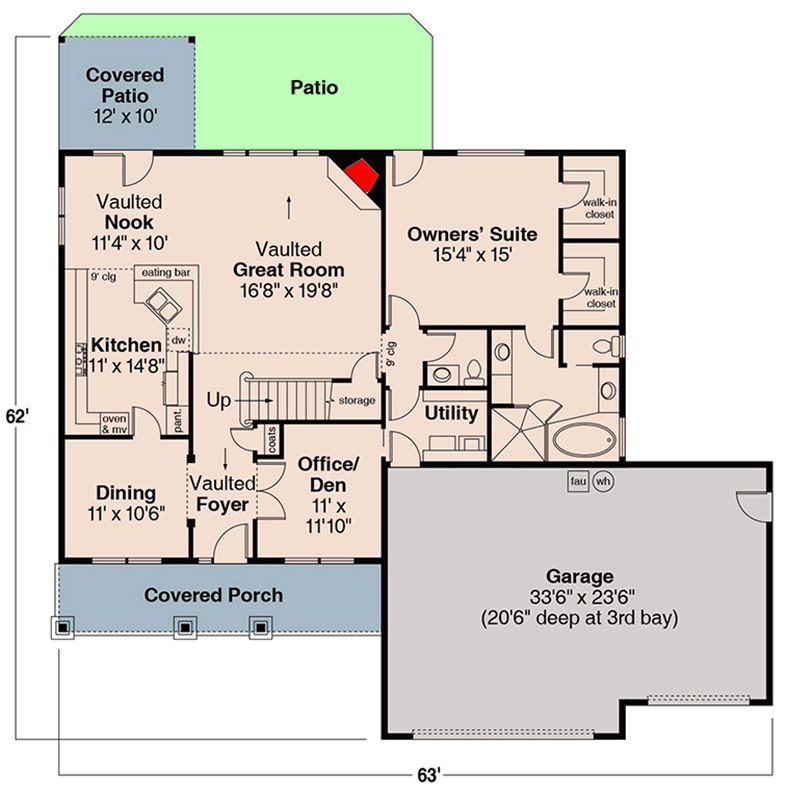

  • Main Level

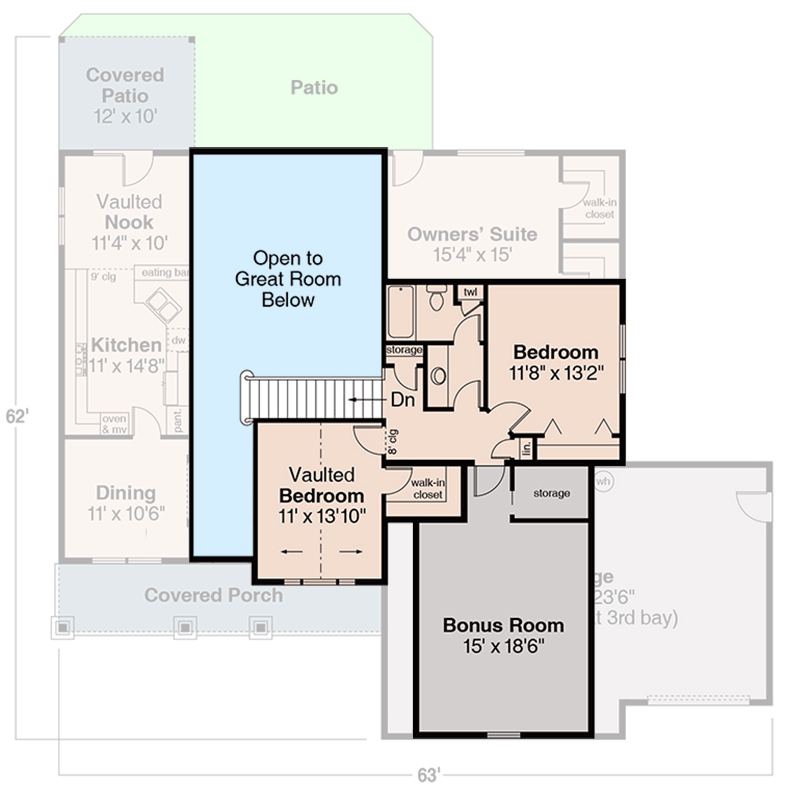

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,208 sq. ft.
  • 1st Floor: 1,646 sq. ft.
  • 2nd Floor: 562 sq. ft.
  • Bonus: 361 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 62' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 791 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
