Plan 710083BTZ
Craftsman Home Plan Offering Spacious Luxury Living
Heated S.F.
3,878
Beds
4
Baths
4.5+
Stories
2
Cars
3
Plan Details

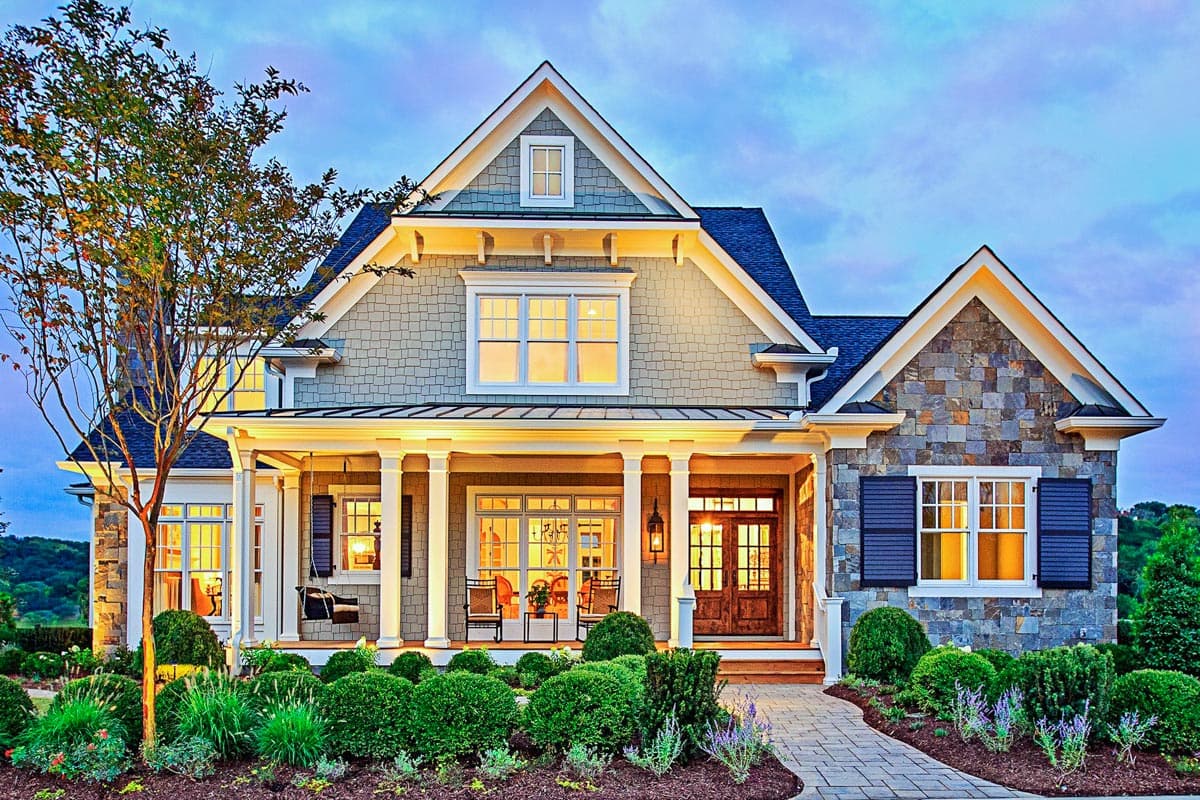

  • Stone and shingles combine in brilliant fashion on this 4-bed Craftsman home plan that offers spacious luxury living inside.

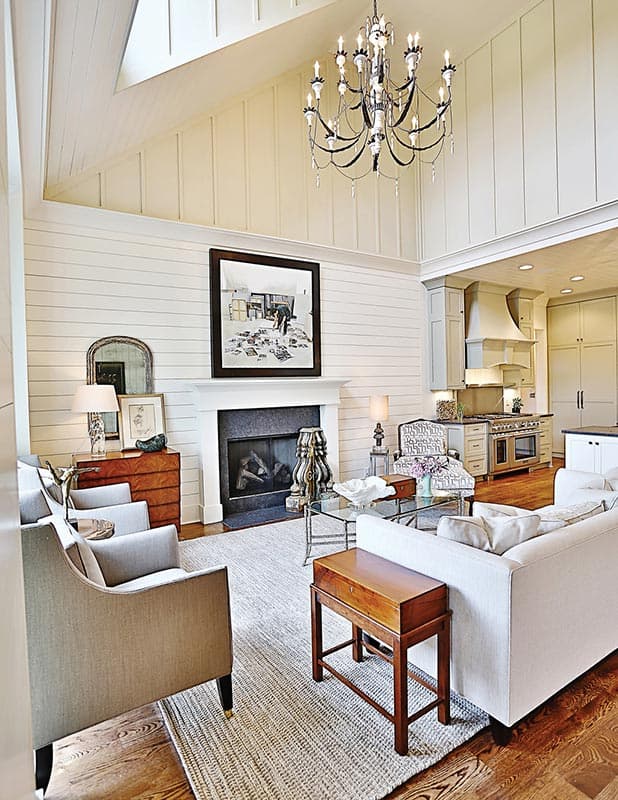

  • A coffered ceiling in the family room is visible as soon as you enter through the french doors on the front covered porch.

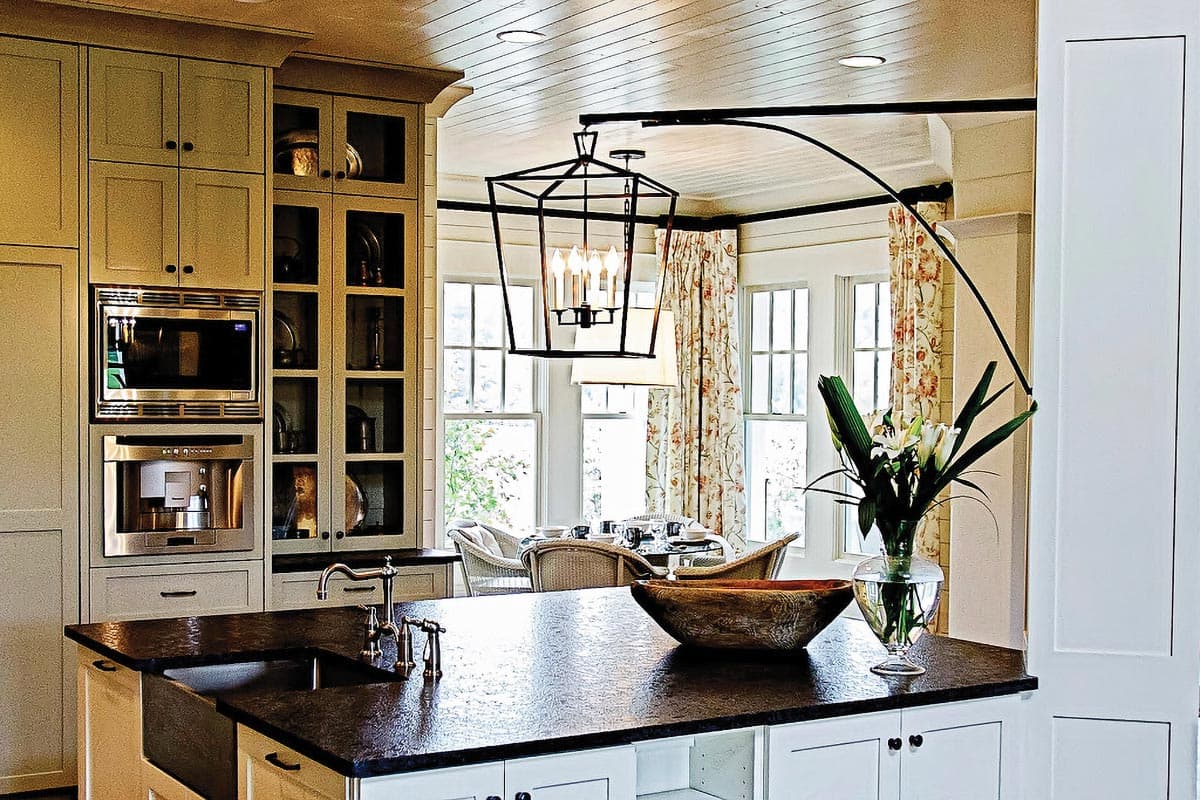

  • The kitchen has views to the family room and the vaulted keeping room. Located by the garage entry makes it simple to unload groceries.

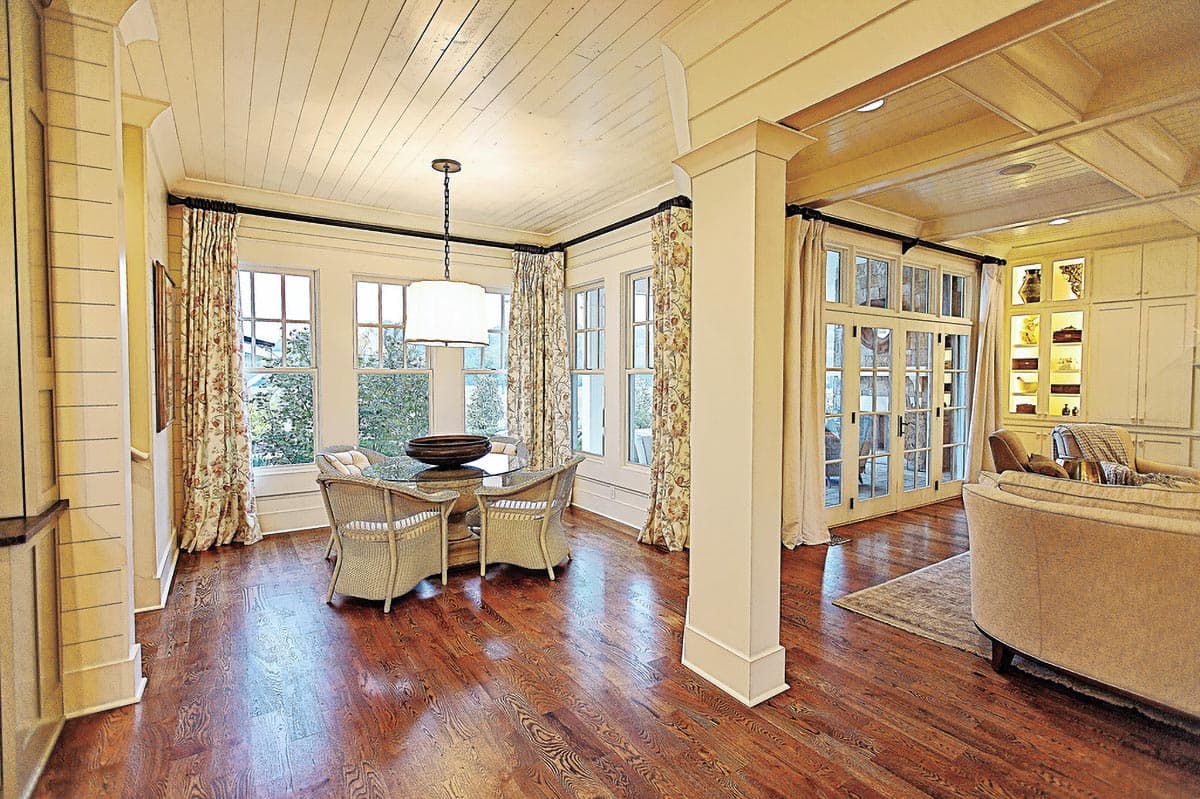

  • A bayed breakfast nook overlooks the rear deck, a great spot for outdoor meals.
  • The master suite extends the entire depth of the plan and features a private sitting room and deck access.
  • The second floor houses three additional bedrooms, each with their own bathrooms and an an optional bonus room above the garage.
  • Related Plans: Get alternate versions with house plans 710095BTZ and 710110BTZ.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Home Plan Offering Spacious Luxury Living

  • 3,878

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

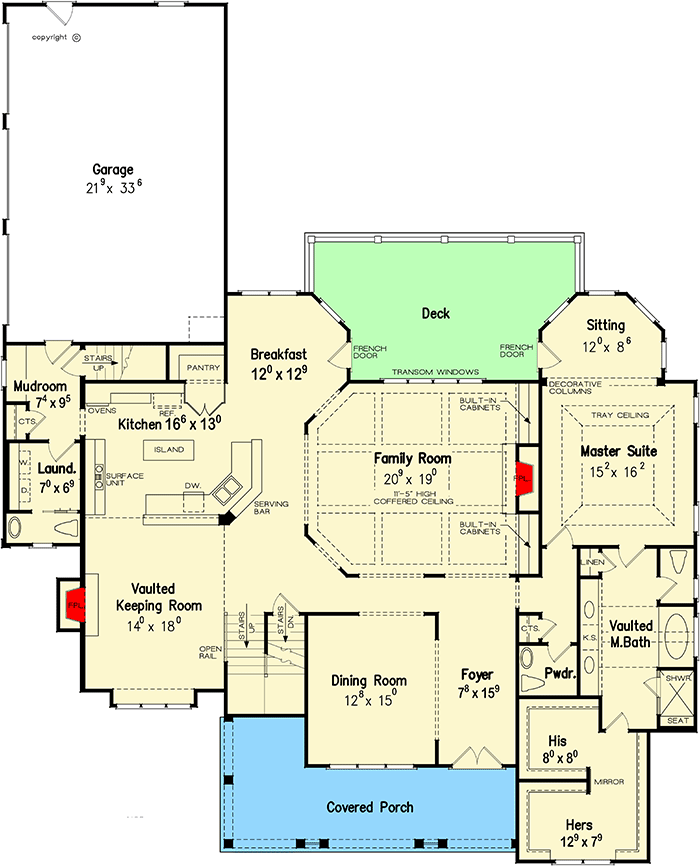

Floor Plan

  • Main Level

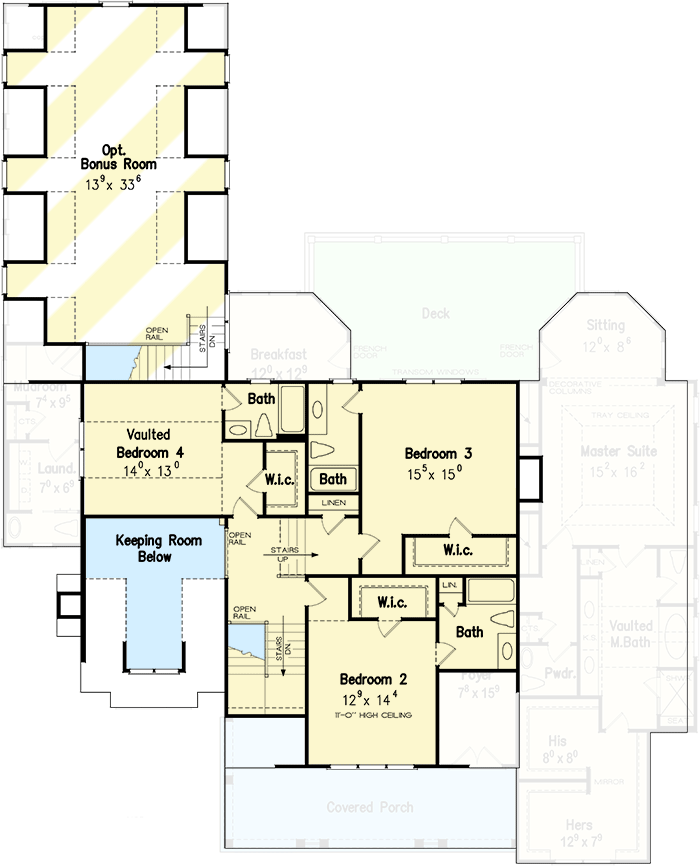

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,878 sq. ft.
  • 1st Floor: 2,745 sq. ft.
  • 2nd Floor: 1,133 sq. ft.

Dimensions

  • Width: 69' 0"
  • Depth: 85' 6"
  • Max ridge height: 32' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 751 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
