Craftsman Home Plan with 3 Upstairs Bedrooms and Master On Main
Heated S.F.
2,066
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This 2,0666 square foot Craftsman-style house plan has a covered entry porch with a shed dormer above that let's light into the 2-story family room just inside the front door.
  • An open floor plan greets you when you enter the home with nothing to break your view from the front to the back where the kitchen and dining room are located. A door by the kitchen takes you to the back patio.

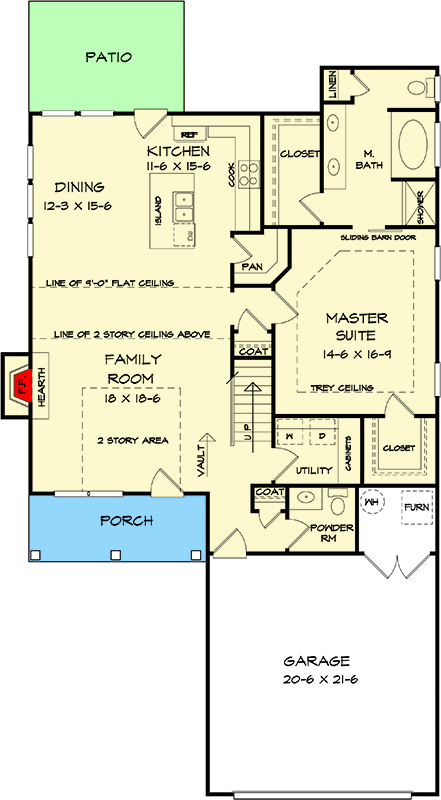

  • Your master suite is located on the main floor and has a tray ceiling in the bedroom, a walk-in closet and a sliding barn door that opens to reveal the 5-fixture bath and a second walk-in closet.

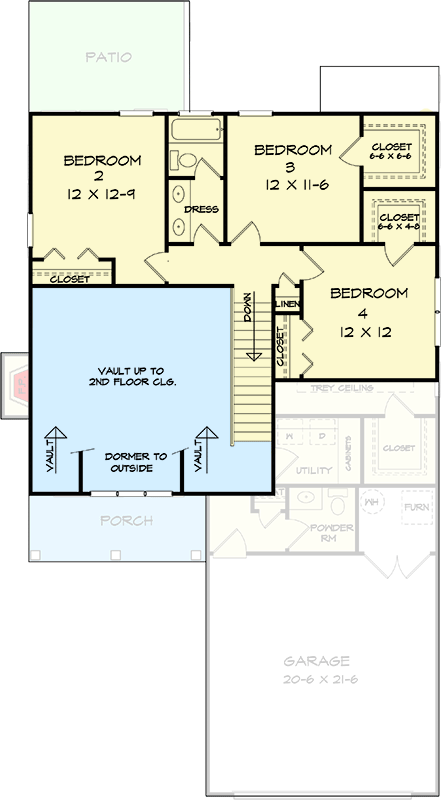

  • Upstairs, three bedrooms share a bathroom and you have a view to the family room below from the front stairs.
What's Included
  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Home Plan with 3 Upstairs Bedrooms and Master On Main

  • 2,066

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,066 sq. ft.
  • 1st Floor: 1,393 sq. ft.
  • 2nd Floor: 673 sq. ft.

Dimensions

  • Width: 39' 9"
  • Depth: 65' 10"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 501 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
