Plan 25722GE Craftsman Home Plan with Angled Garage and Open Floor Plan - 1948 Sq Ft

1,948 3 3 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Home Plan with Angled Garage and Open Floor Plan - 1948 Sq Ft

Plan 25722GE

  • 1,948

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Craftsman home plan gives you 3 beds, 3 baths and 1948 square feet of heated living. Its inviting exterior combines shake, stone and timber accents creating a rustic curb appeal.
  • Inside, a comfortable lodge room is crafted with a coffered ceiling, fireplace and built in cabinetry and opens to the kitchen and casual dining.
  • A corner fireplace accents a spacious rear covered porch which is accessible from both the lodge room and the casual dining area.
  • The master bedroom is detailed with a coffered ceiling and private access to a covered porch. Two additional bedrooms complete this rustic mountain style house plan.
  • Related Plan: Get an alternate version with house plan 15650GE.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

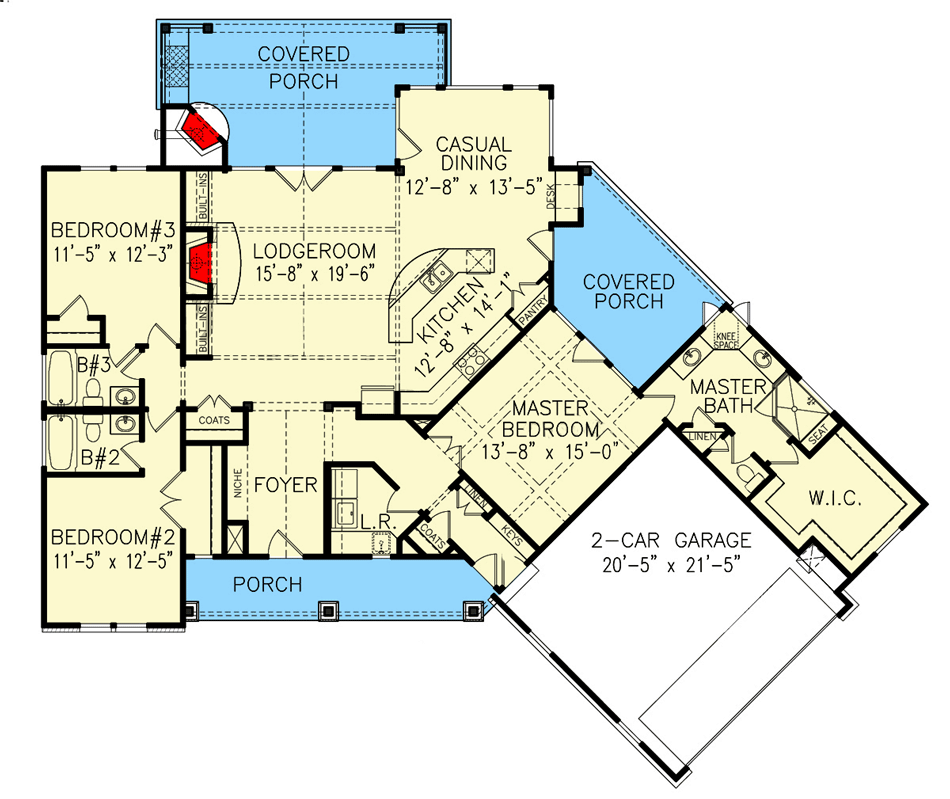

Craftsman Home Plan with Angled Garage and Open Floor Plan - 1948 Sq Ft - 25722GE floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,948 sq. ft.
  • 1st Floor: 1,948 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 8"
  • Depth: 64' 2"

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

Craftsman Home Plan with Angled Garage and Open Floor Plan - 1948 Sq Ft

  • 1,948

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • CAD - Single-Build $2,845
  • View all purchase option online

About This Plan

  • This Craftsman home plan gives you 3 beds, 3 baths and 1948 square feet of heated living. Its inviting exterior combines shake, stone and timber accents creating a rustic curb appeal.
  • Inside, a comfortable lodge room is crafted with a coffered ceiling, fireplace and built in cabinetry and opens to the kitchen and casual dining.
  • A corner fireplace accents a spacious rear covered porch which is accessible from both the lodge room and the casual dining area.
  • The master bedroom is detailed with a coffered ceiling and private access to a covered porch. Two additional bedrooms complete this rustic mountain style house plan.
  • Related Plan: Get an alternate version with house plan 15650GE.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,948 sq. ft.
  • 1st Floor: 1,948 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 8"
  • Depth: 64' 2"

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Plan 25722GE
View this and more for this plan by visiting www.architechtecturaldesigns.com/25722GE
|
Need Help? 800-854-7852
|
