Plan 17777LV
Craftsman Home with Second Floor Rec Room
Heated S.F.
2,738
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • You can entertain in either the spacious great room on the first floor of this Craftsman home or head on up to the enormous rec room upstairs.
  • The dining room and great room form one large space that makes it easy to move from room to room.
  • Nearby, the kitchen has a corner window sink and a walk-in pantry.
  • Homeowners will appreciate the first floor master suite away from the other bedrooms.
  • An open rail balcony on the second floor lets you look down into the great room below.
What's Included
Each plan set includes the following:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Home with Second Floor Rec Room

  • 2,738

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

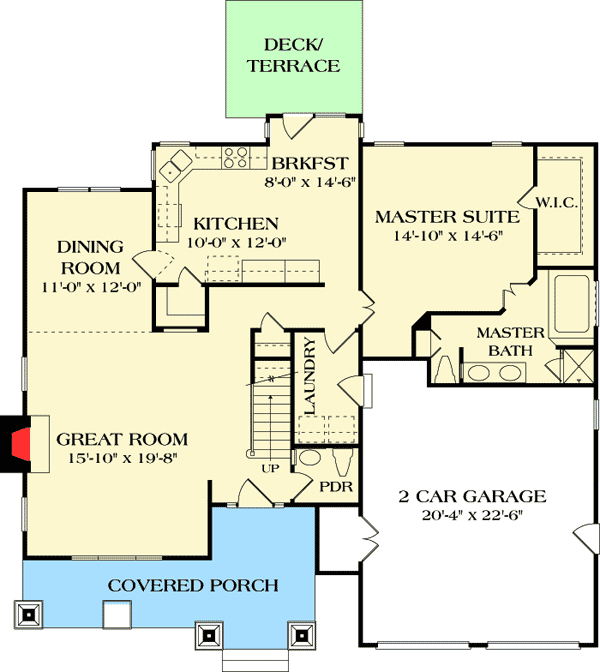

  • Main Level

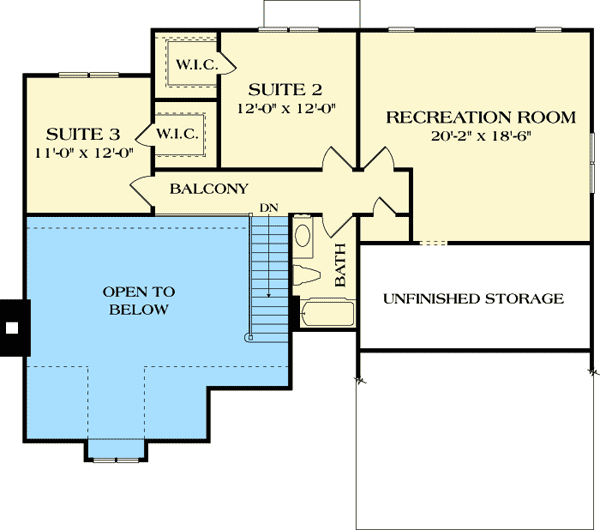

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,738 sq. ft.
  • 1st Floor: 1,439 sq. ft.
  • 2nd Floor: 1,299 sq. ft.

Dimensions

  • Width: 50' 6"
  • Depth: 46' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 709 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
