Craftsman House Plan for a Sloping Lot

Plan 95036RW

  • 2,196

    Heated s.f.

  • 2-5

    Beds

  • 2 - 4

    Baths

  • 1

    Stories

  • 3

    Cars

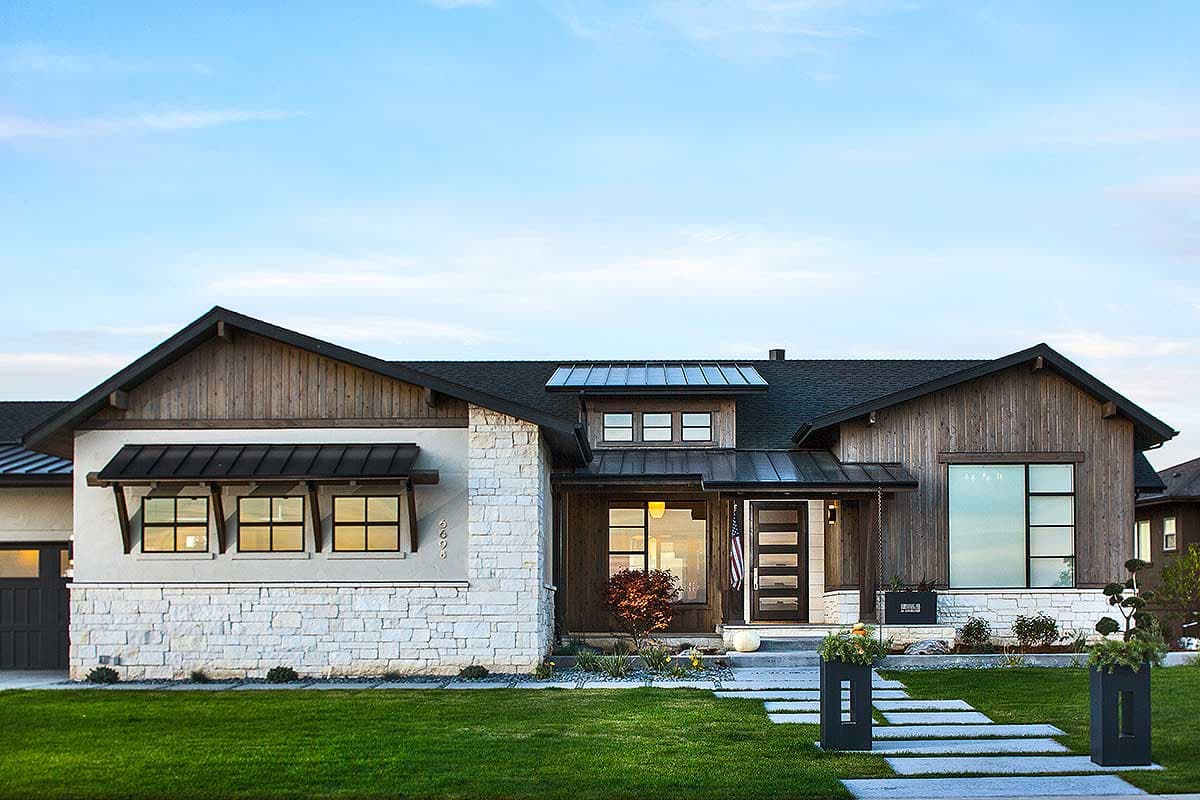

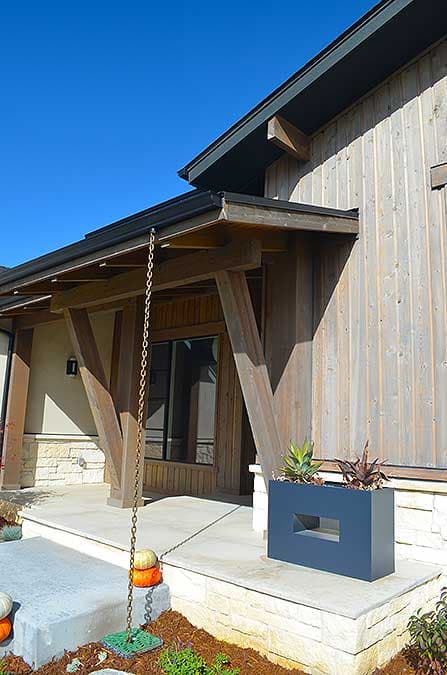

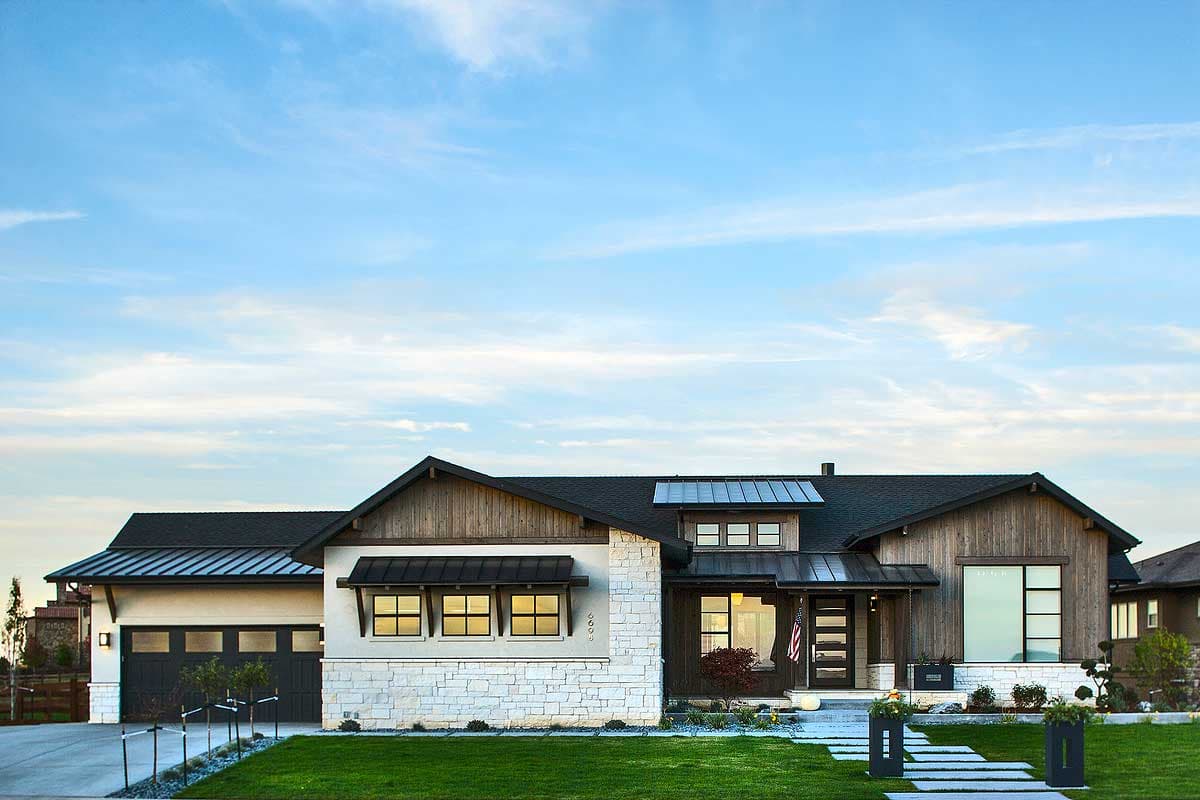

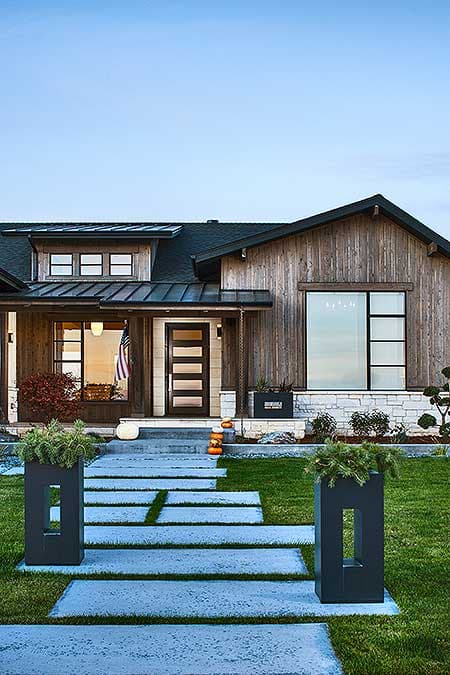

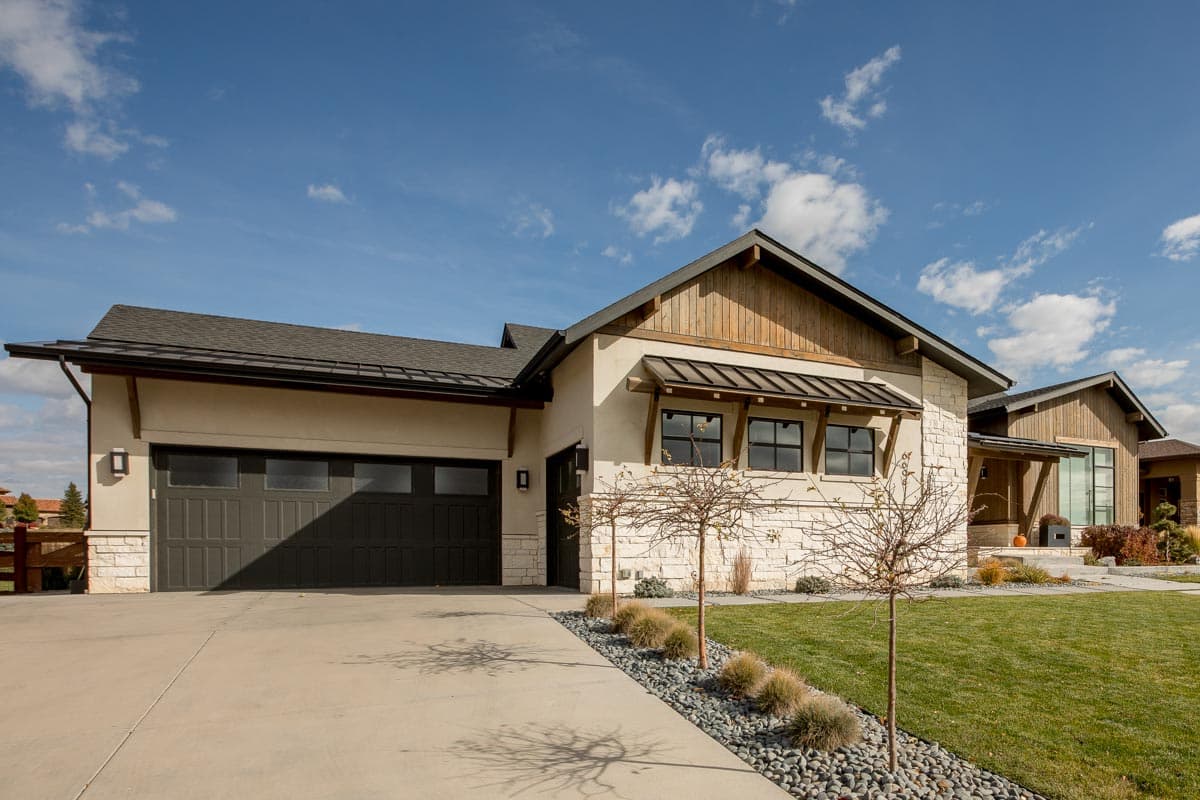

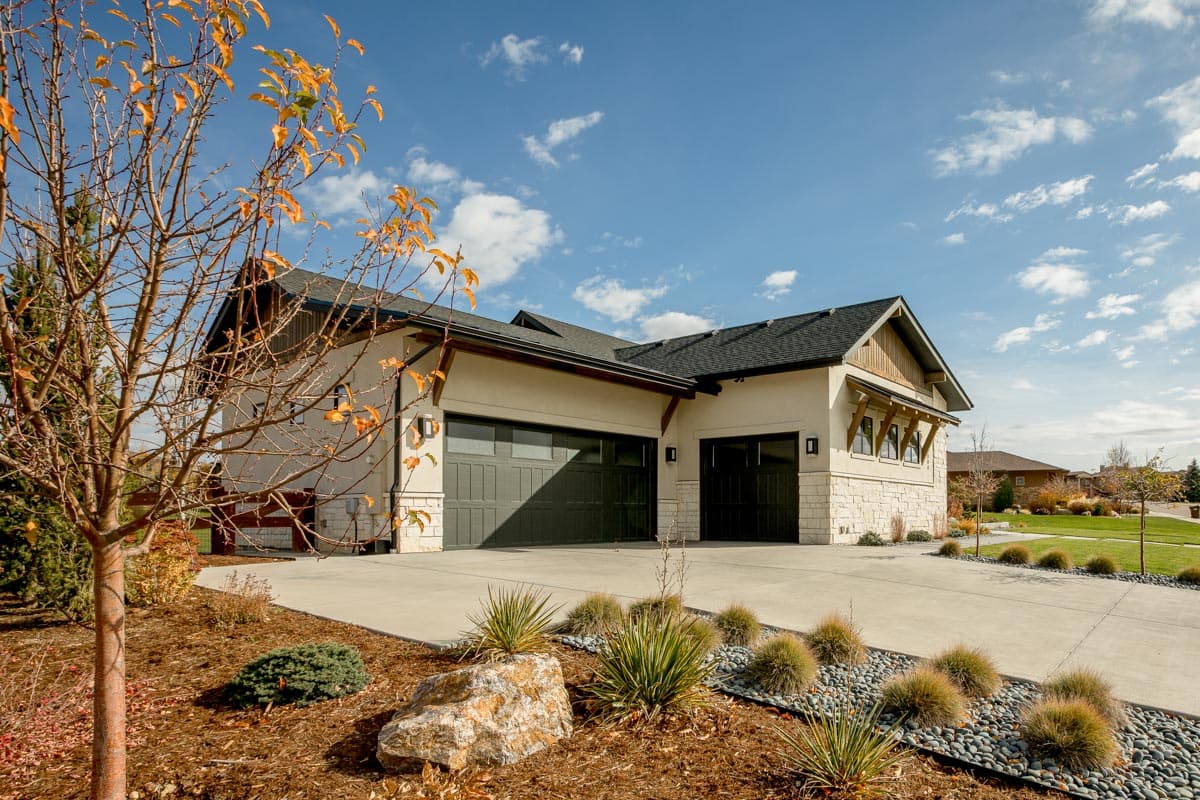

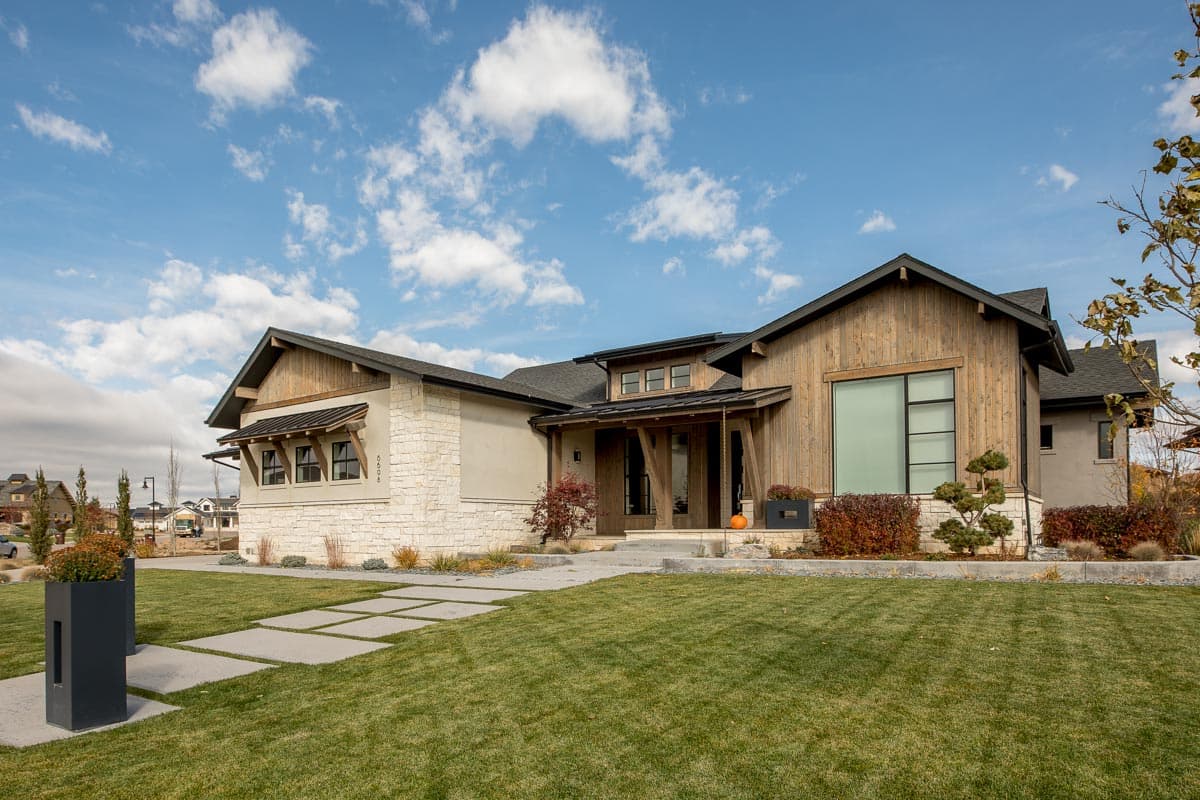

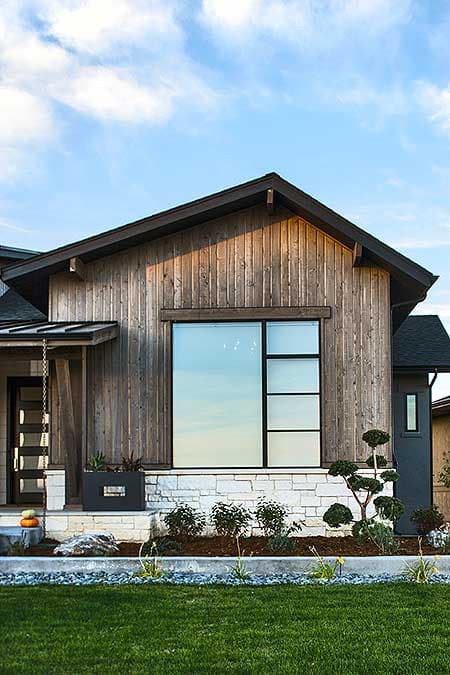

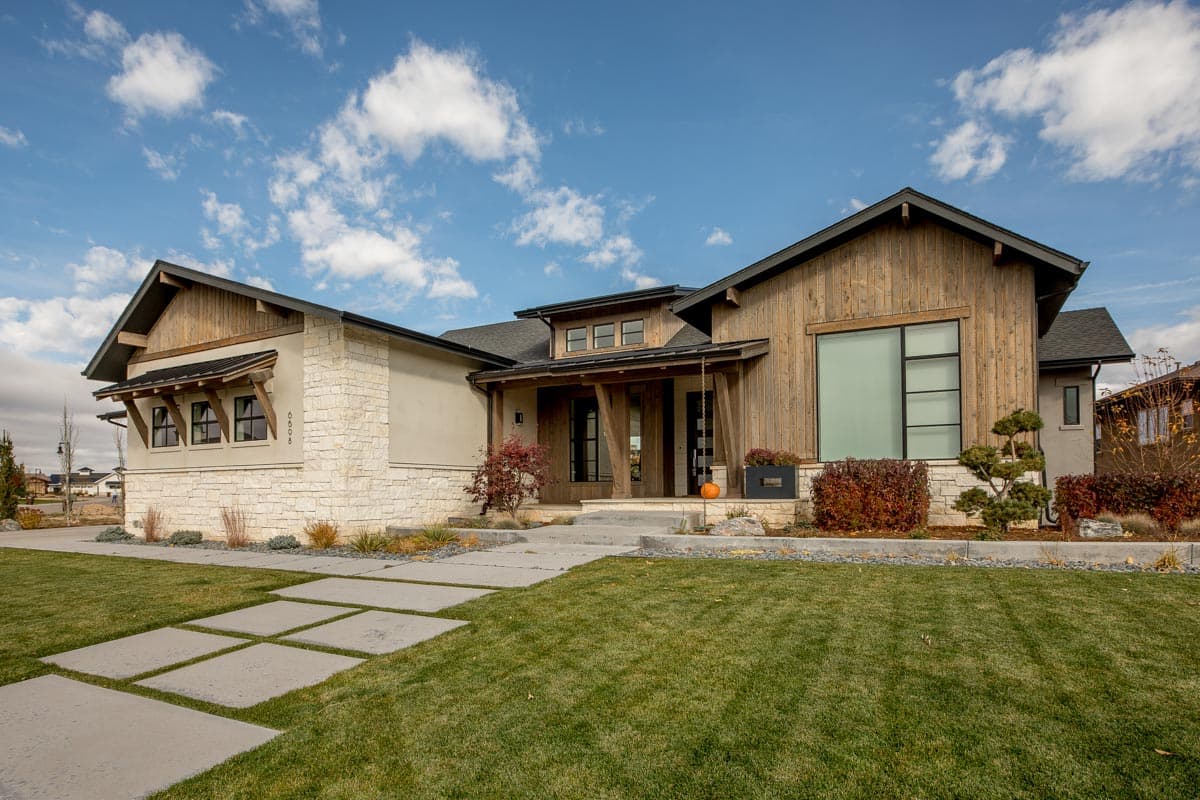

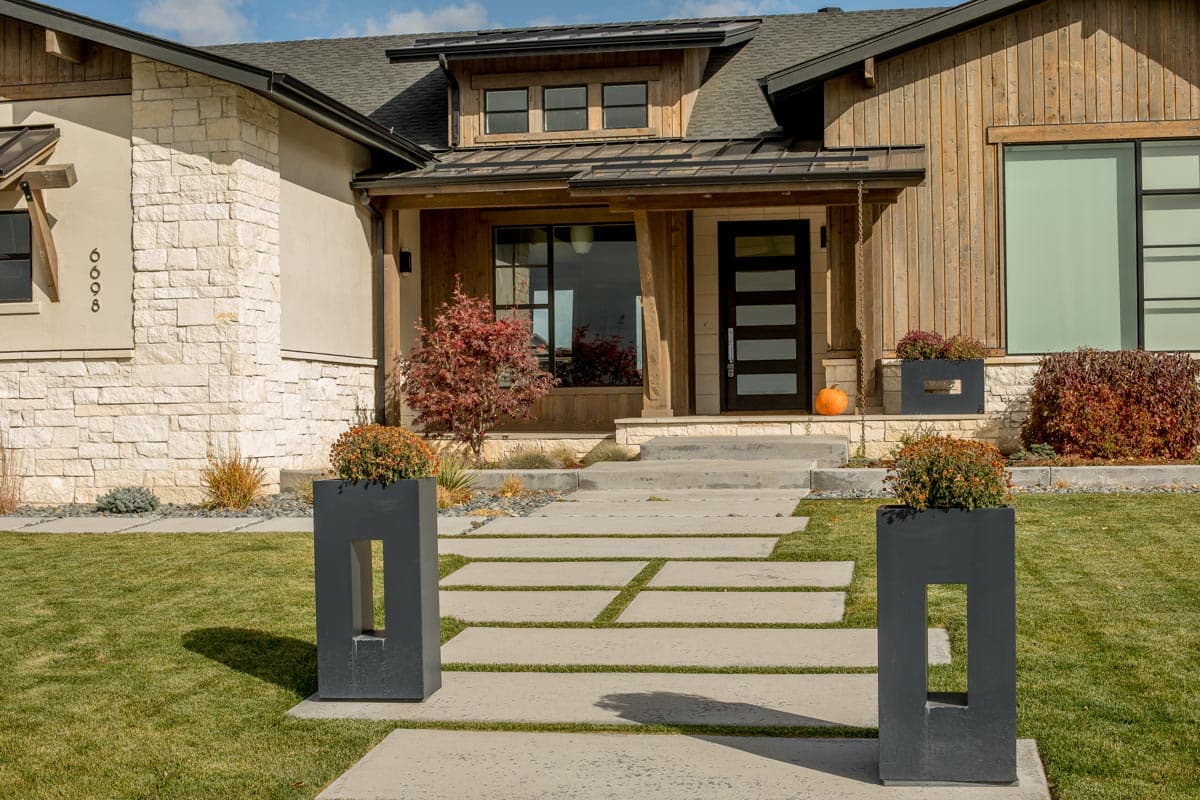

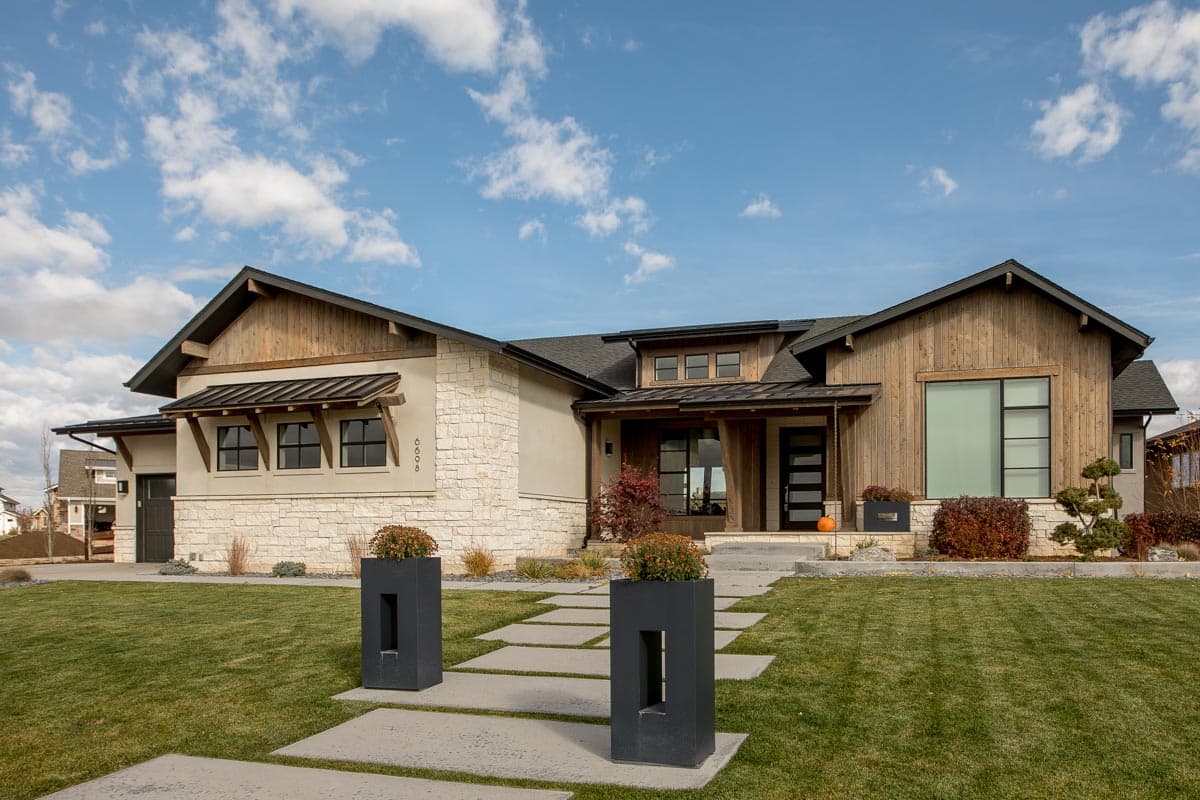

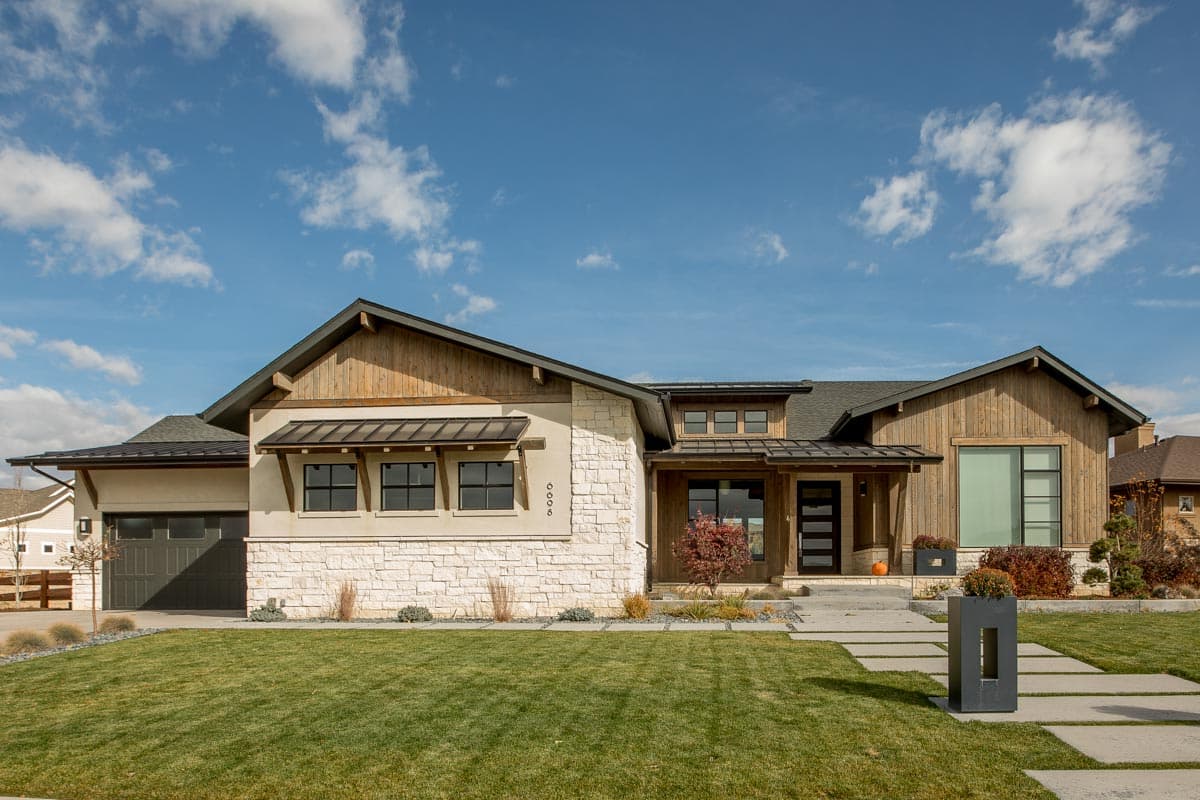

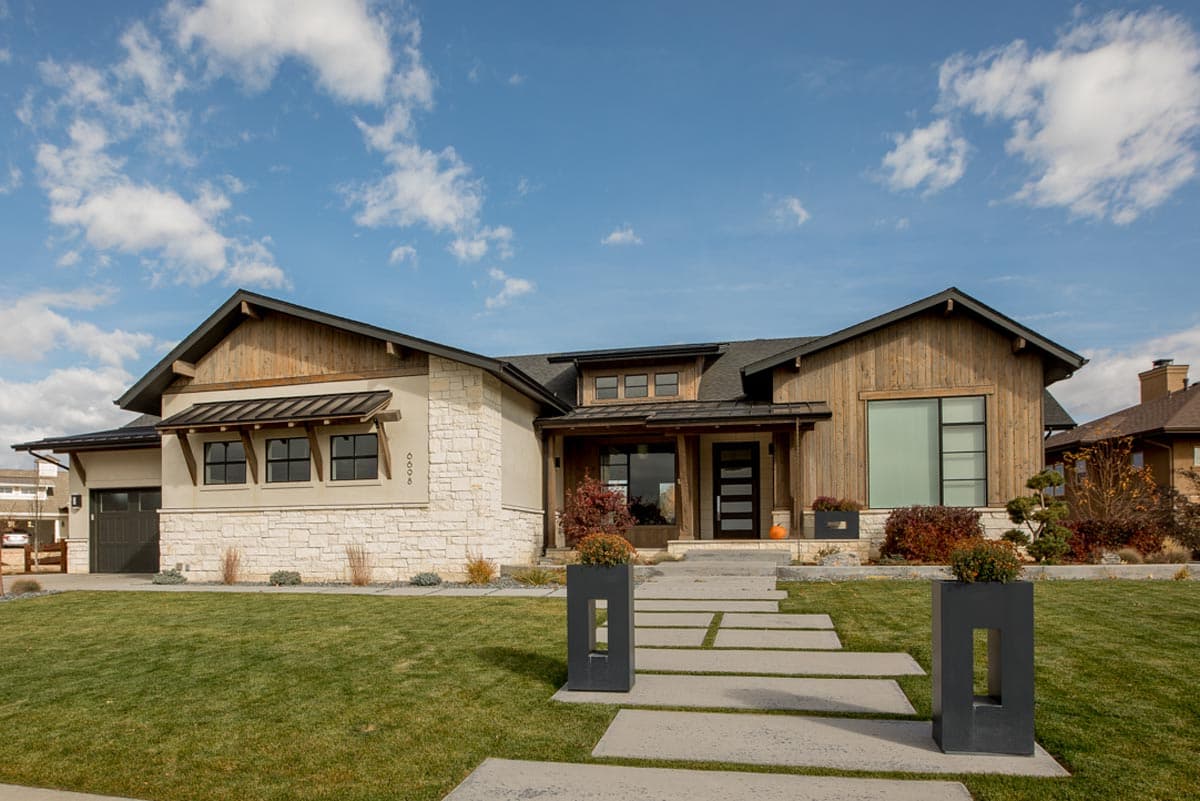

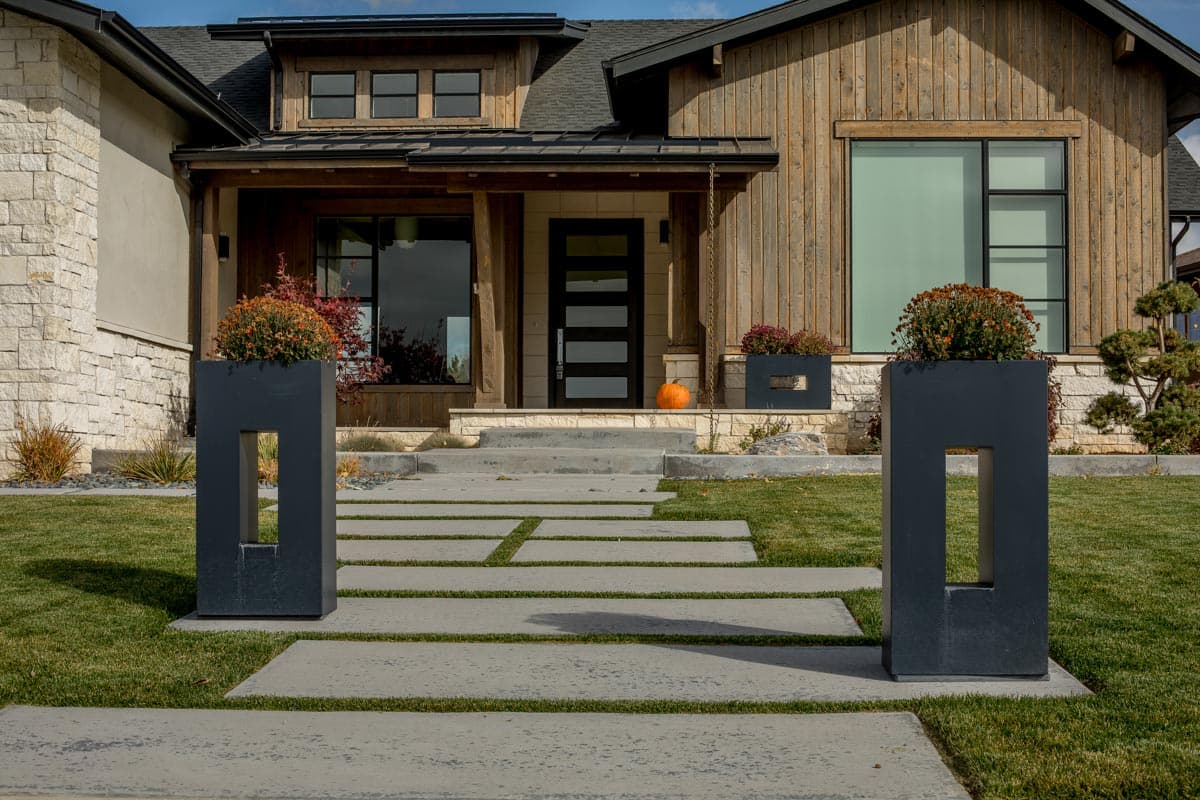

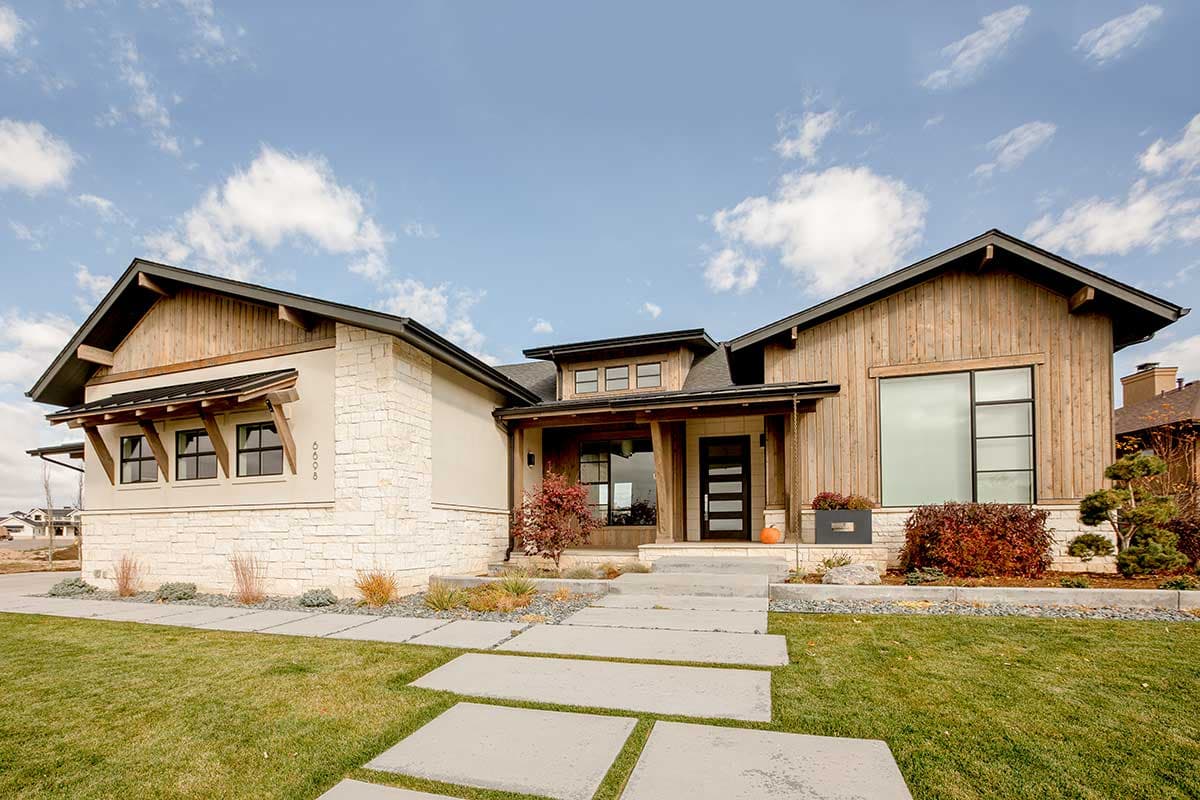

  • A mix of exterior materials and a touch of metal roofing have a striking effect on this Craftsman house plan.

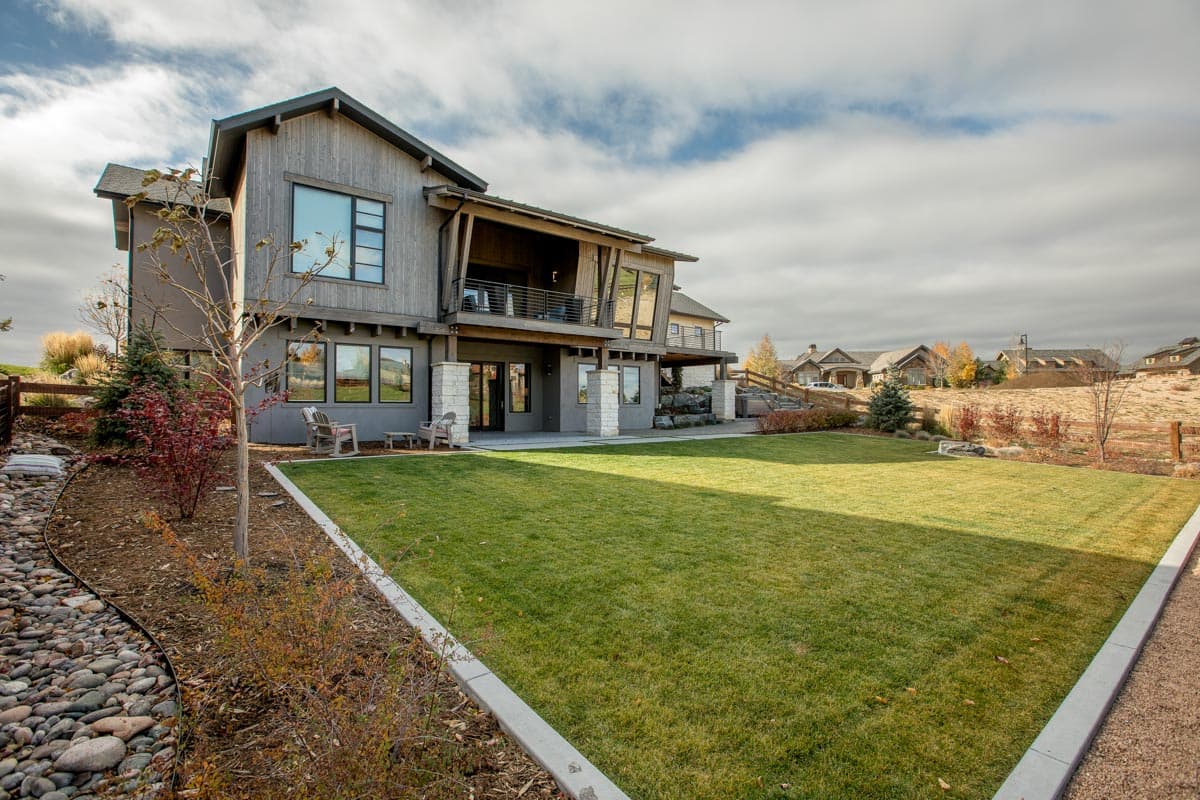

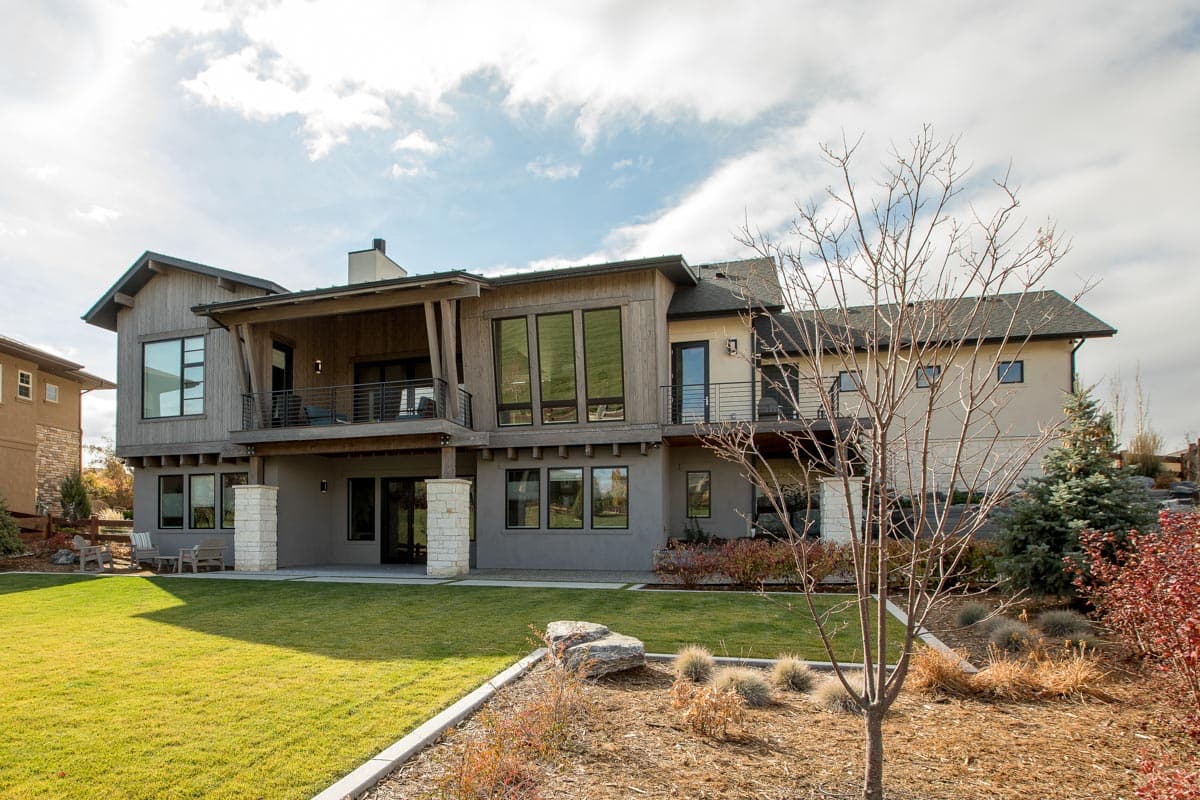

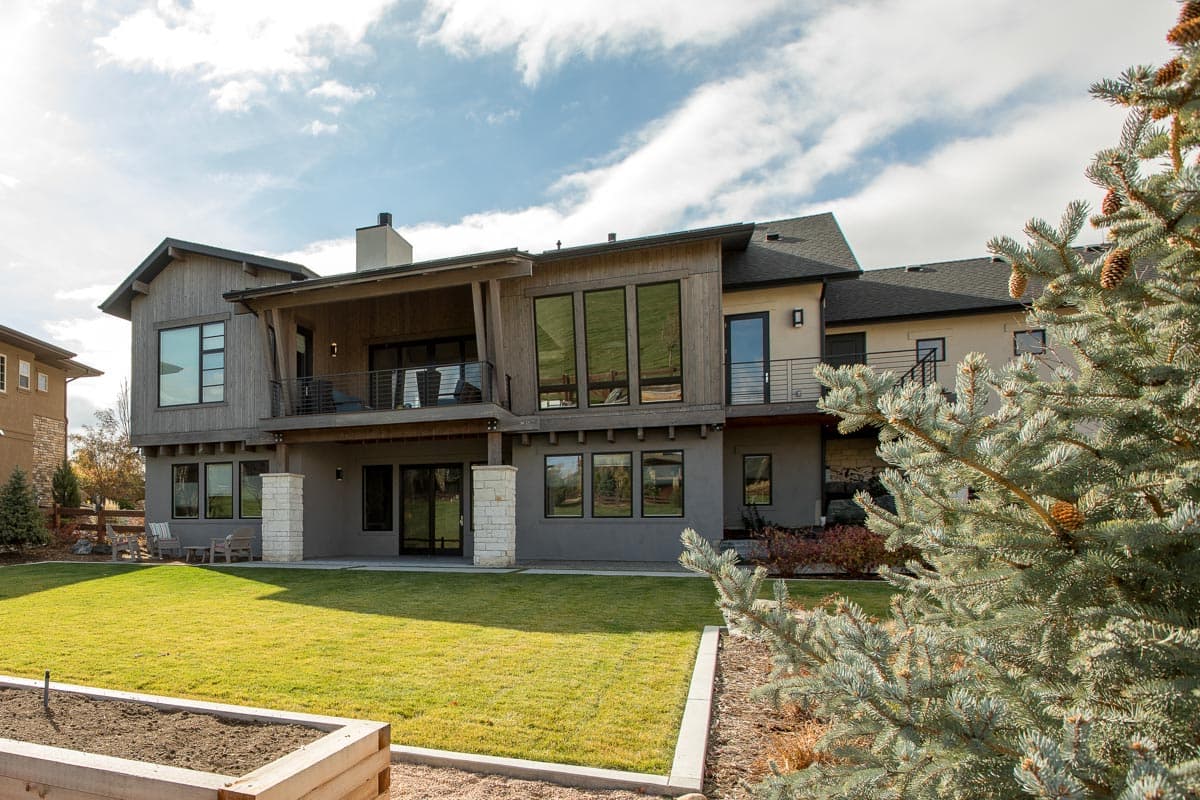

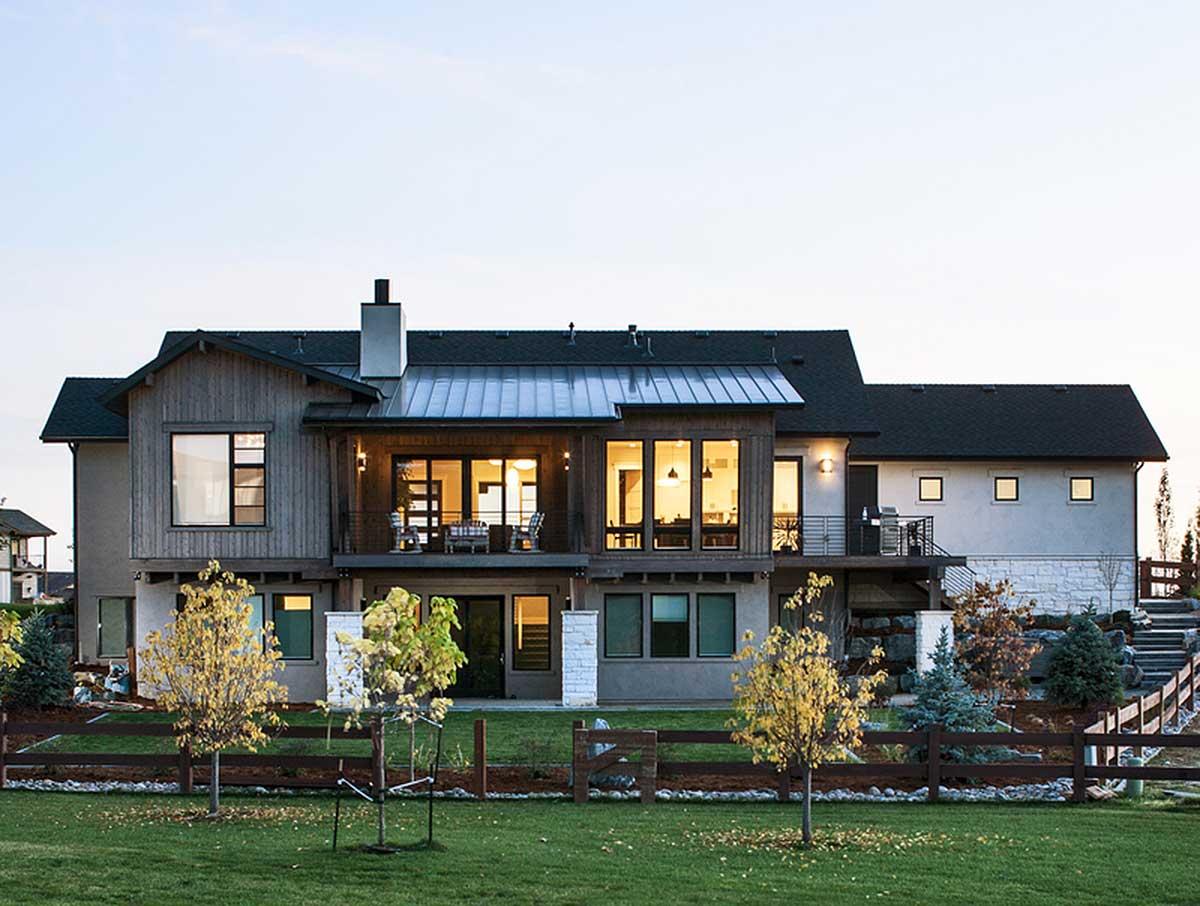

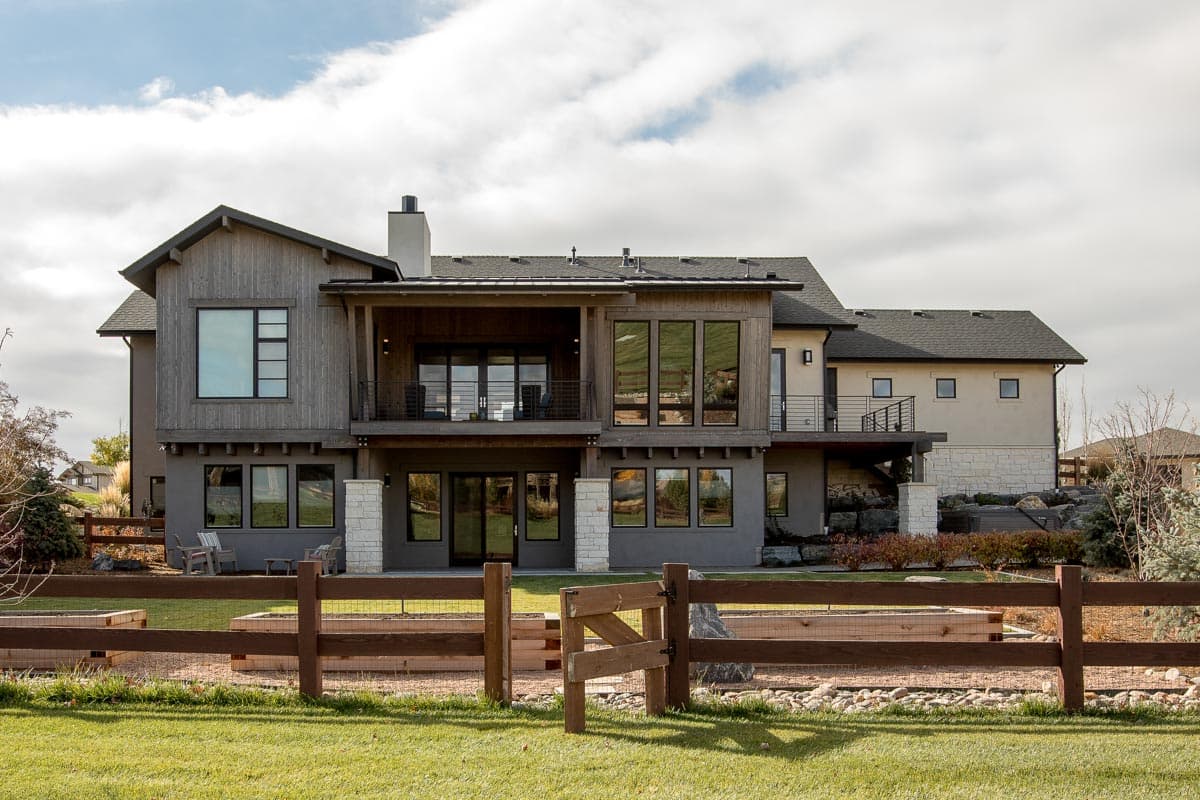

  • Designed for a lot that slopes in back, the home comes with an optional finished lower level that allows you to add three more bedrooms and two more bathrooms.

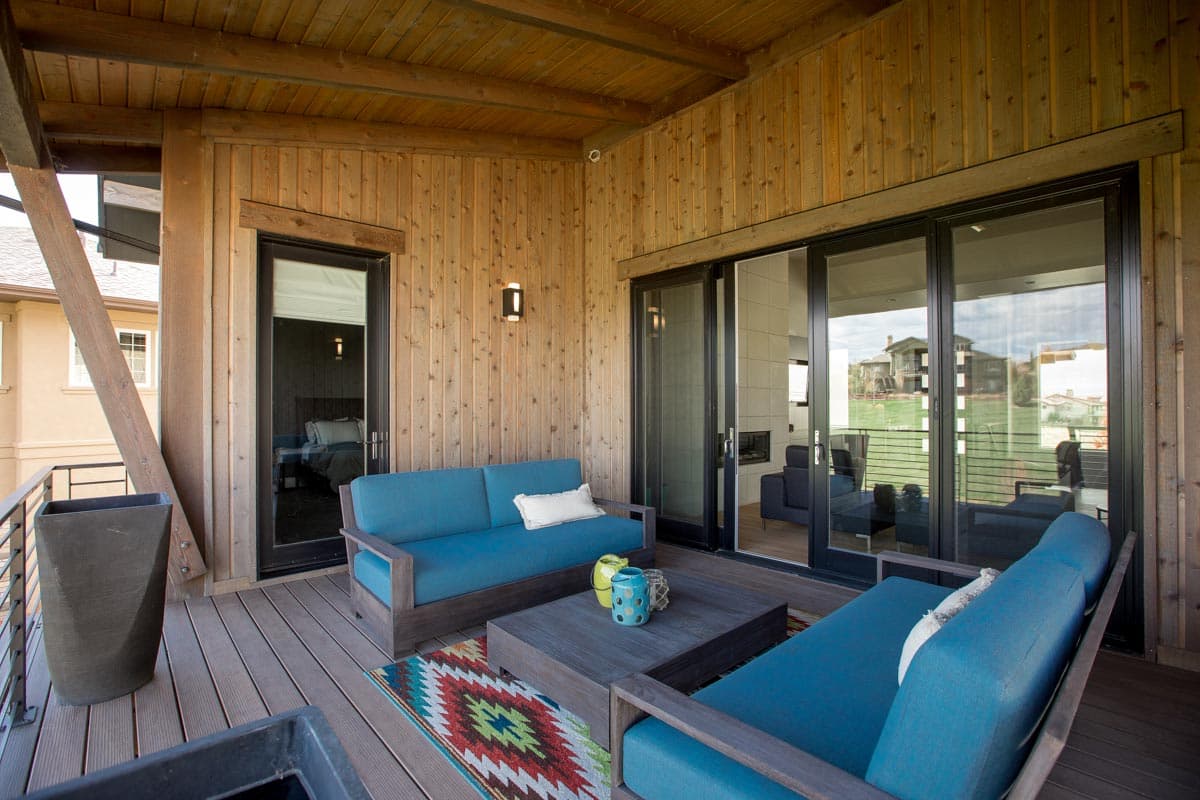

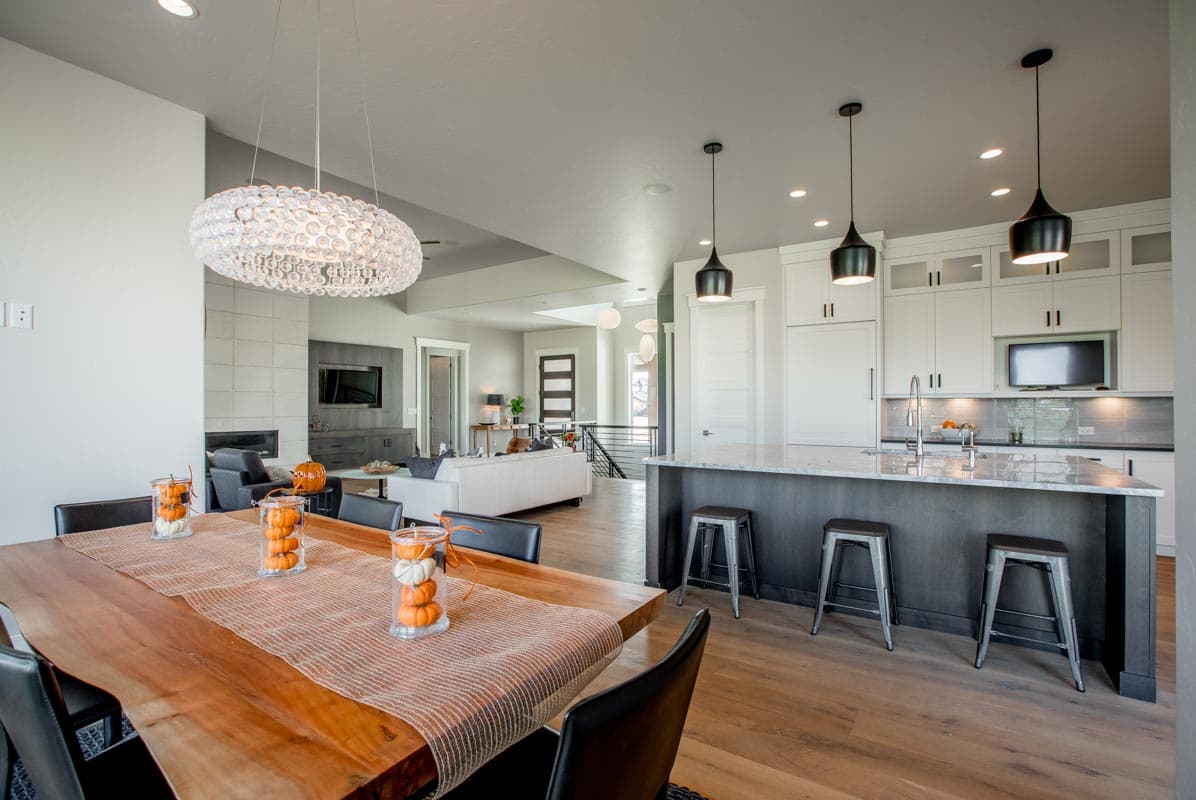

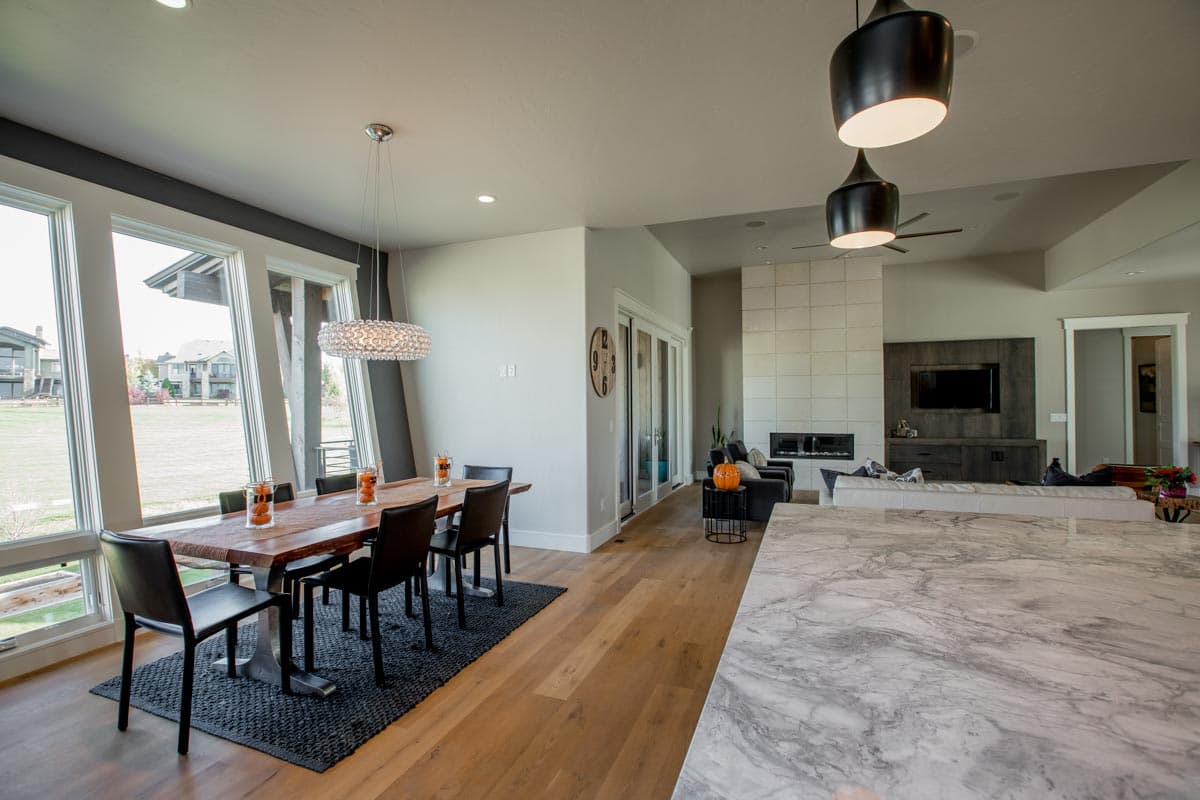

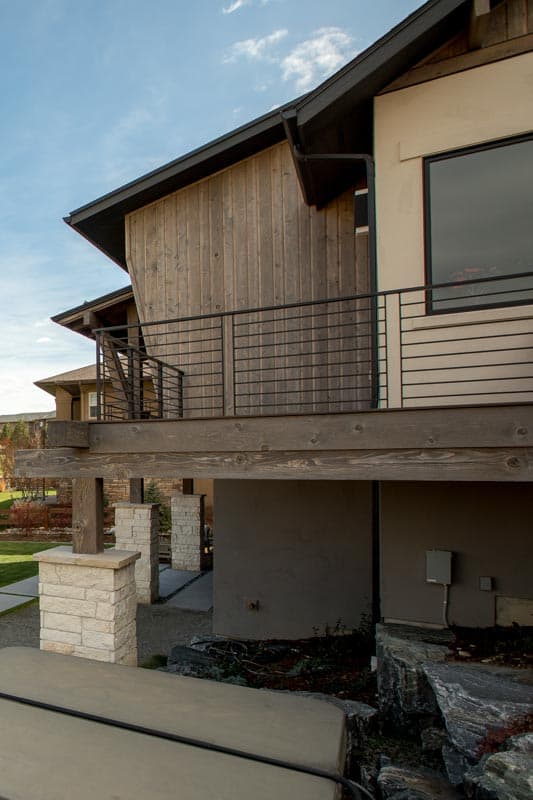

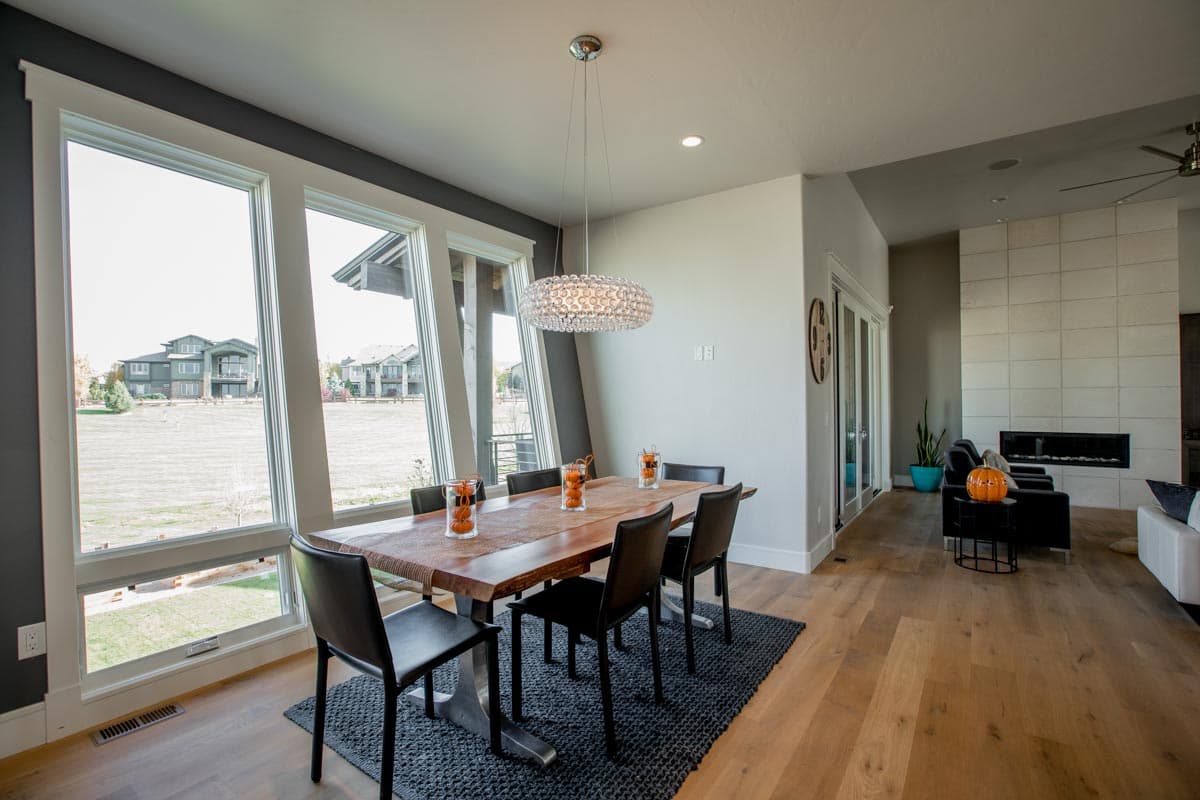

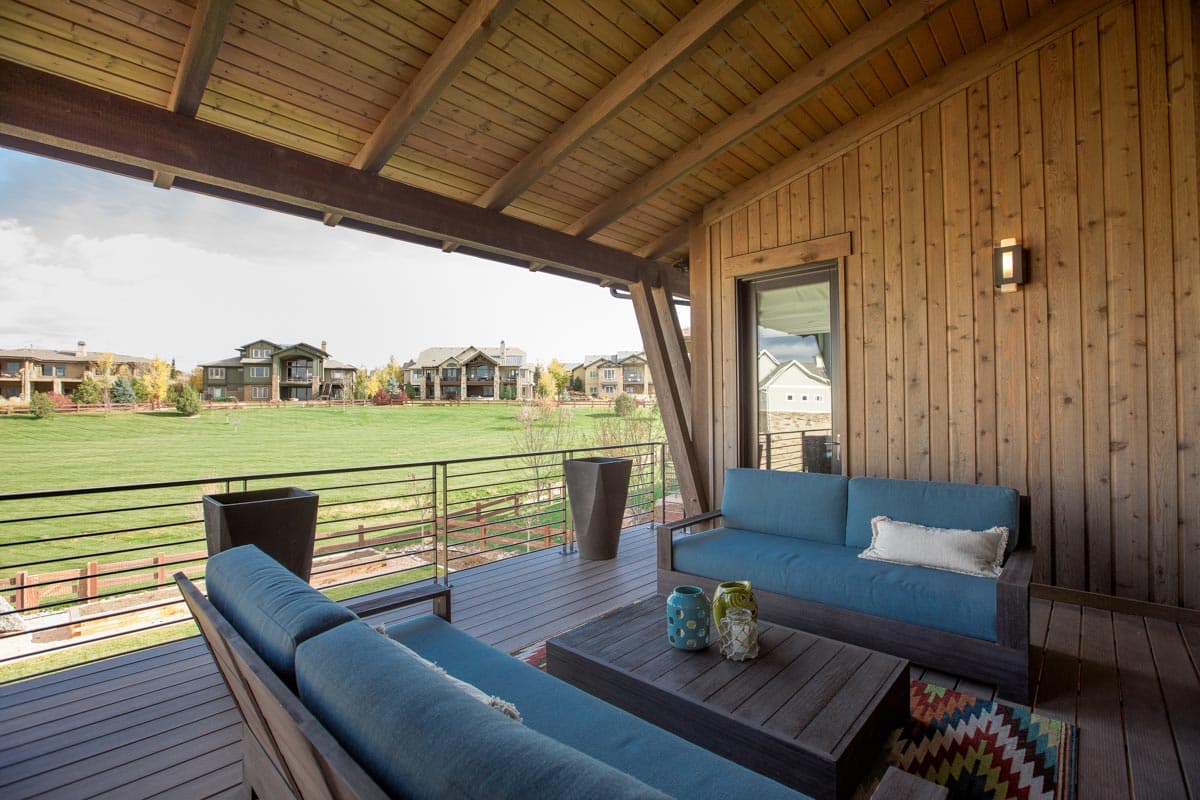

  • Both the dining room and covered deck angle in back out to create an interesting look.

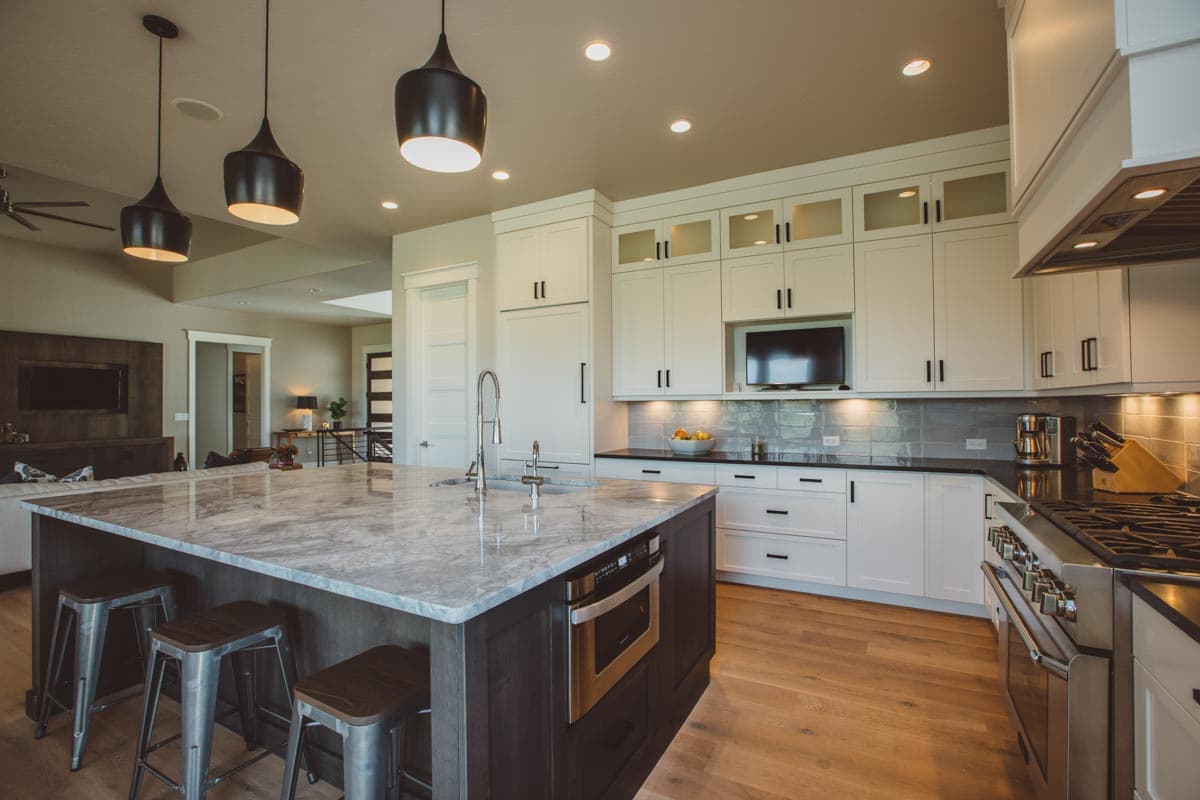

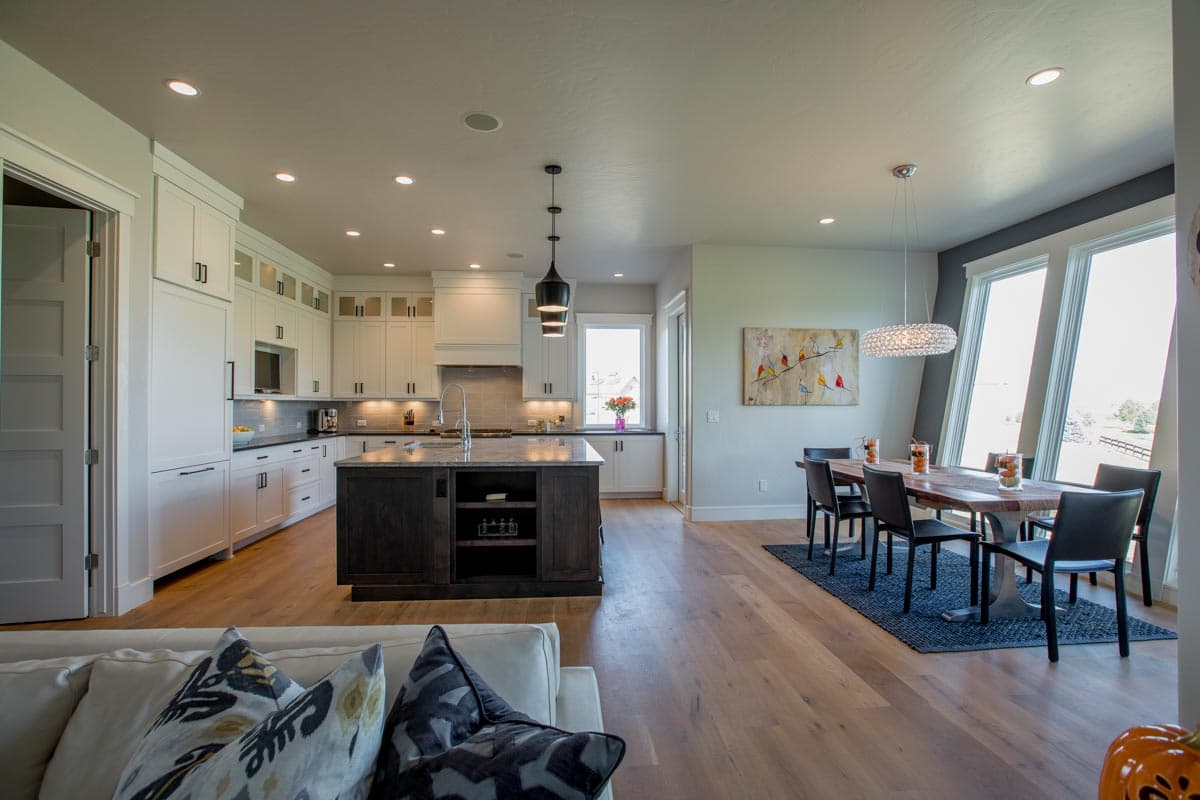

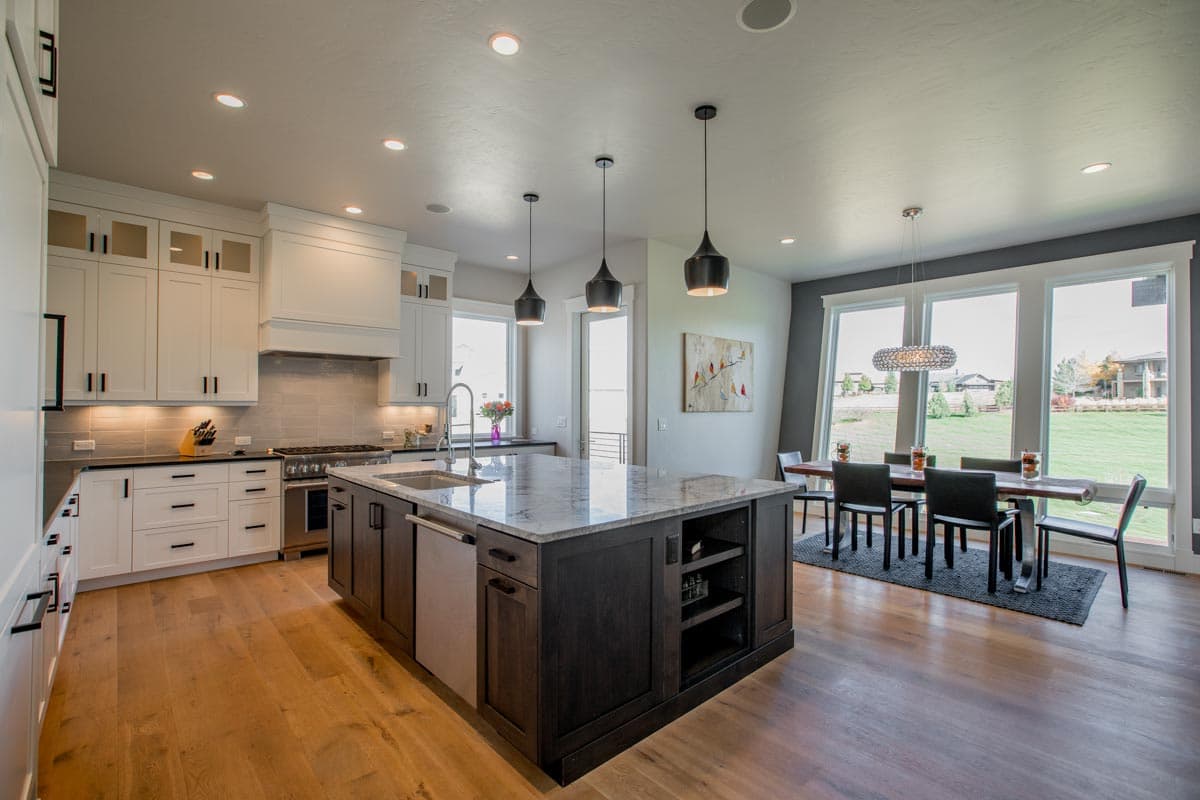

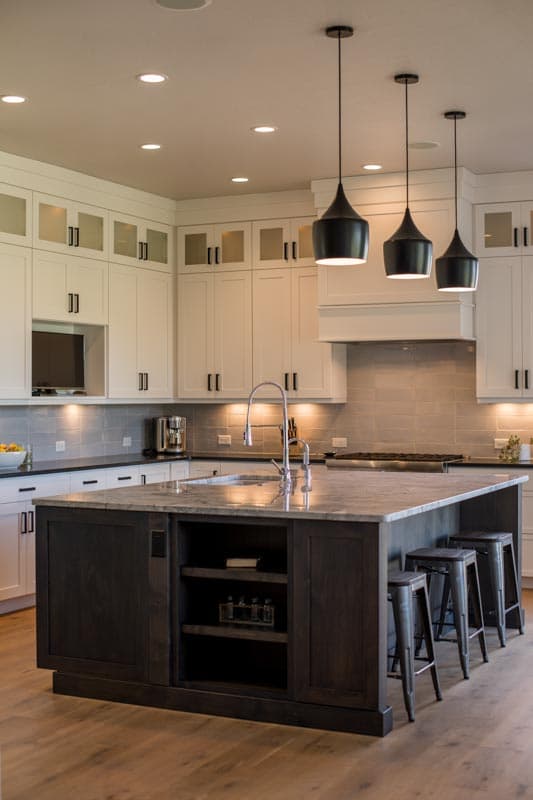

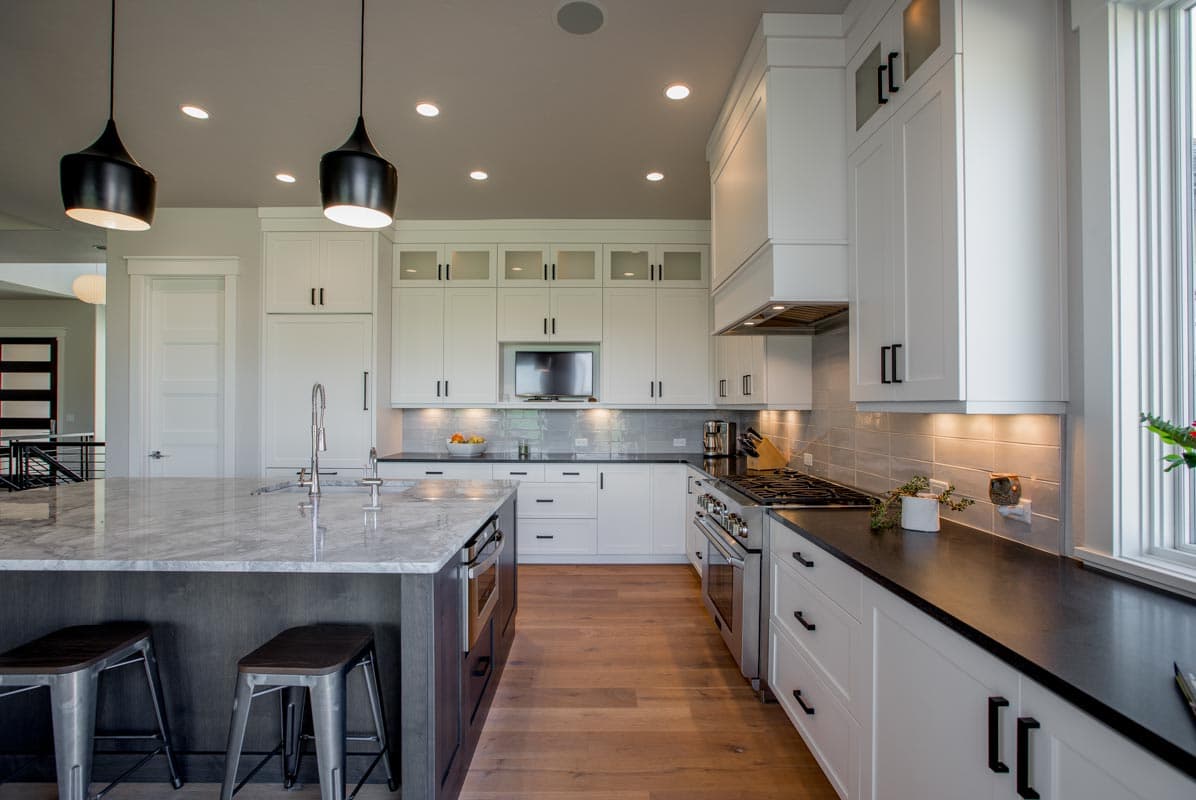

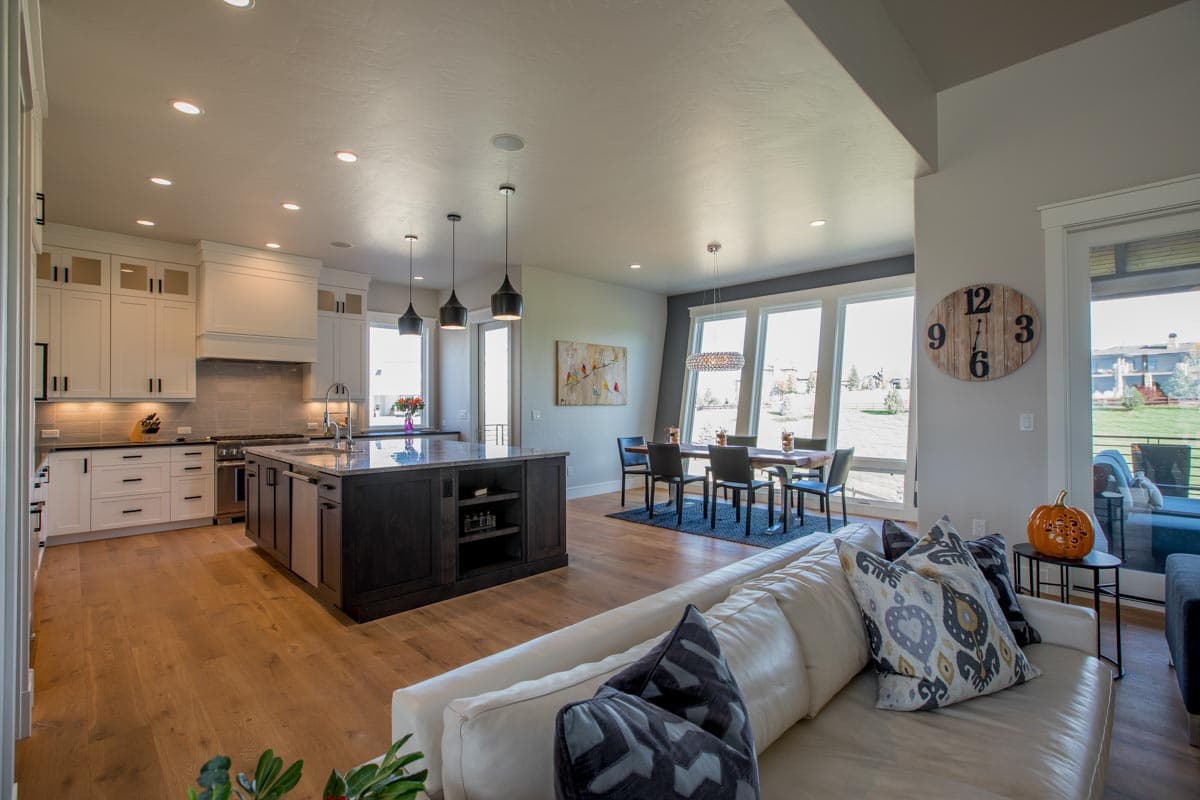

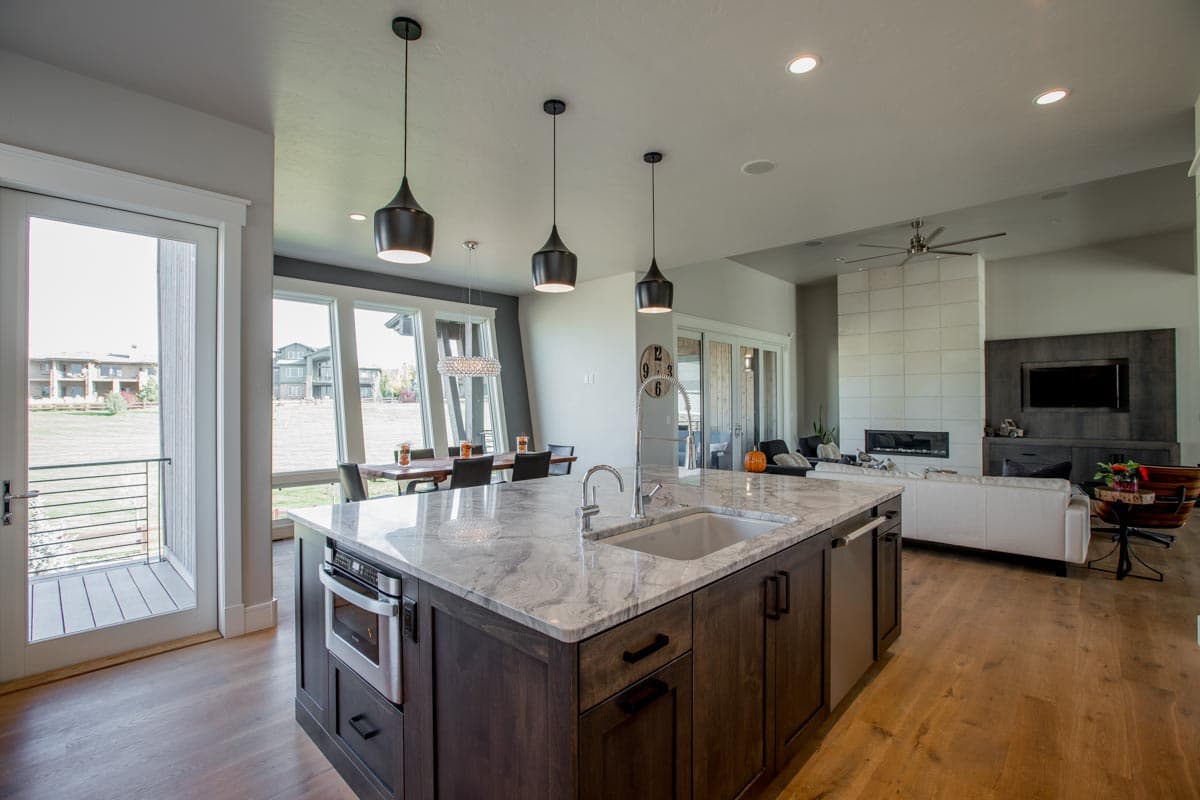

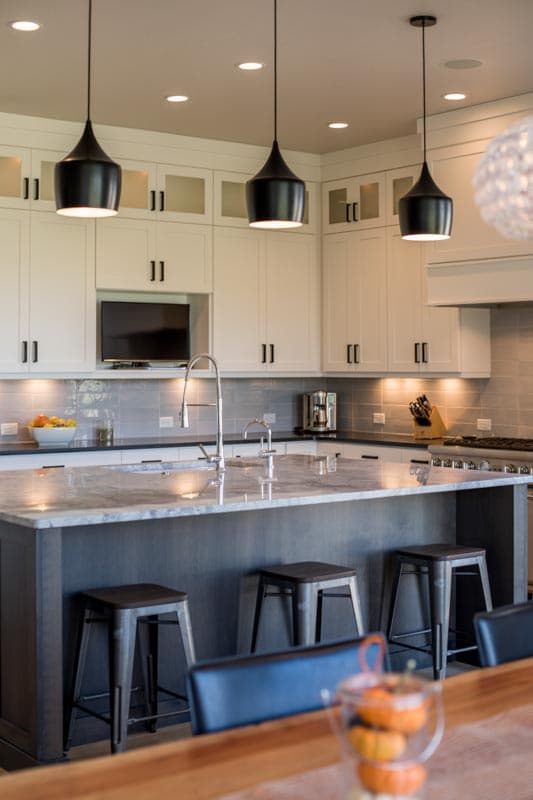

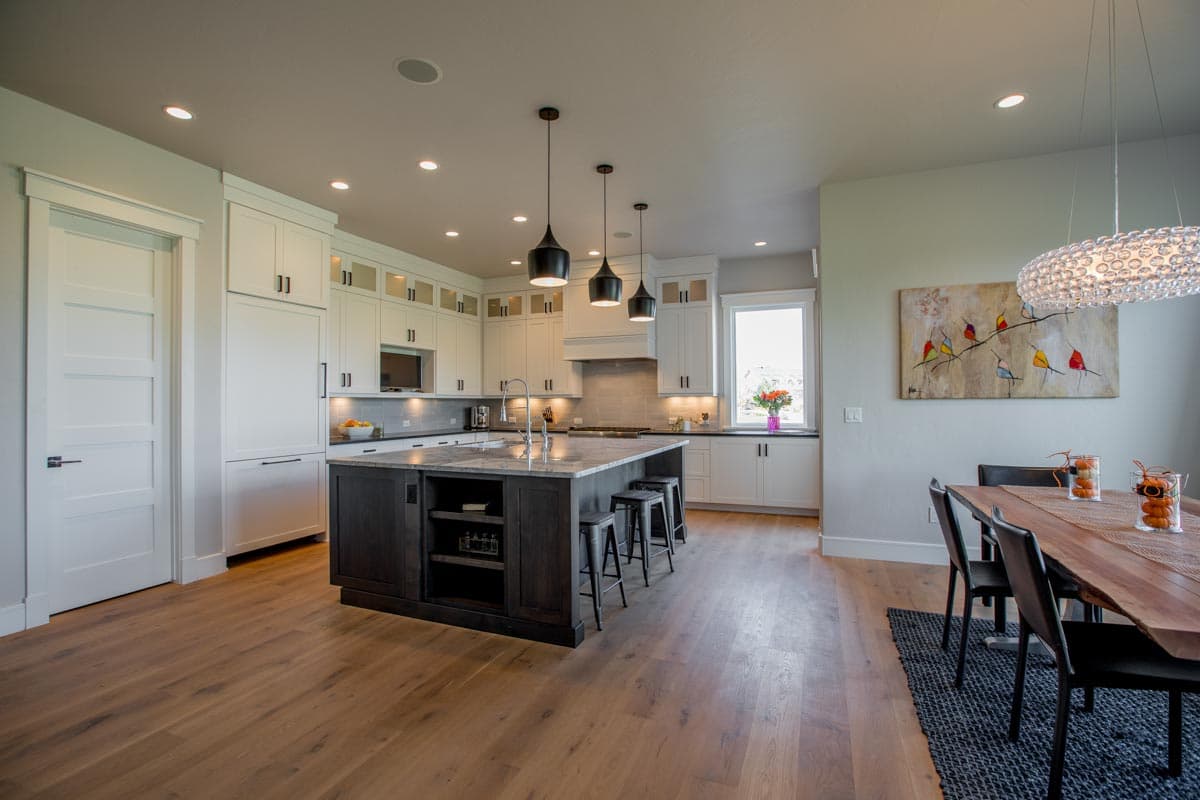

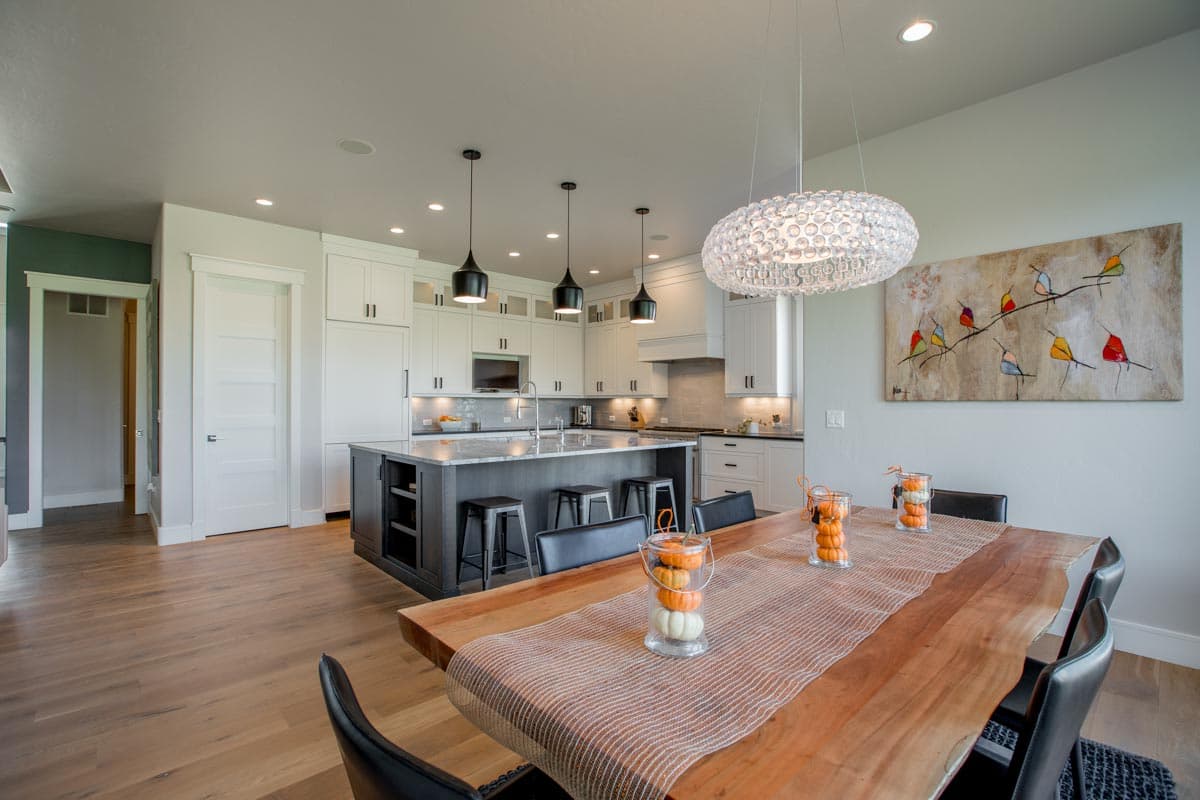

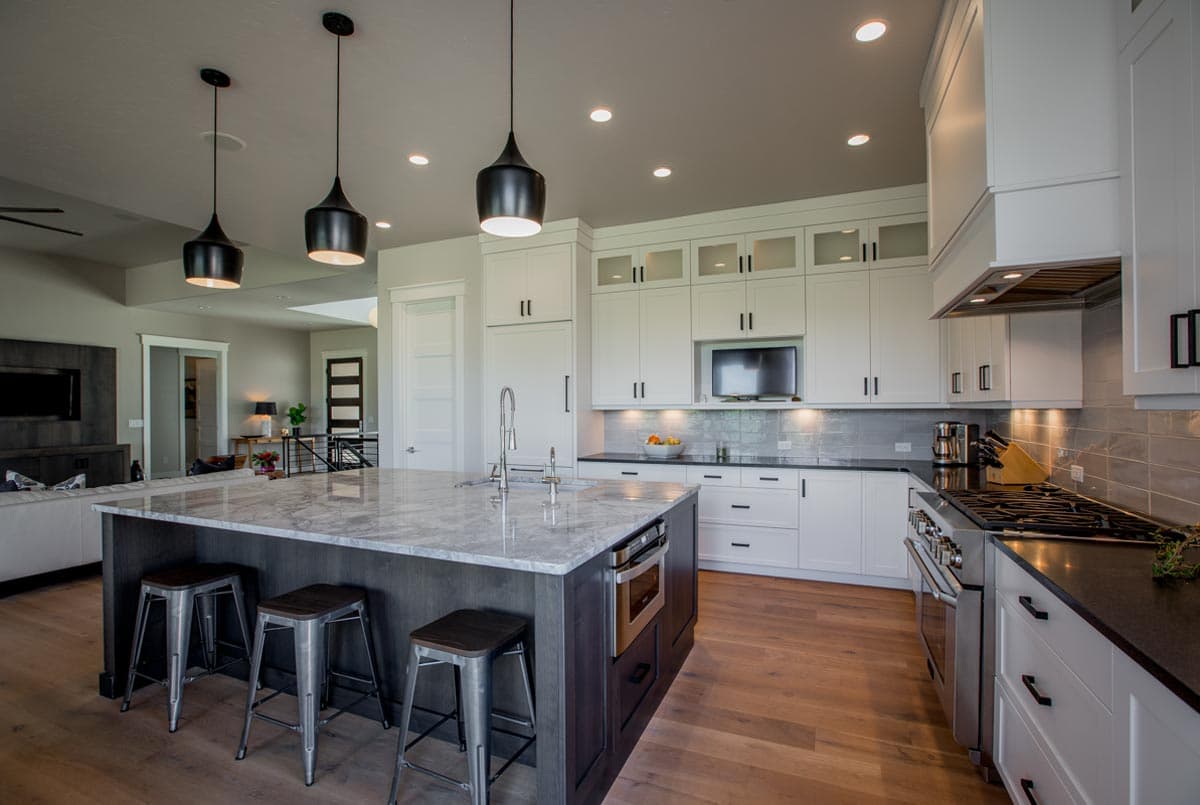

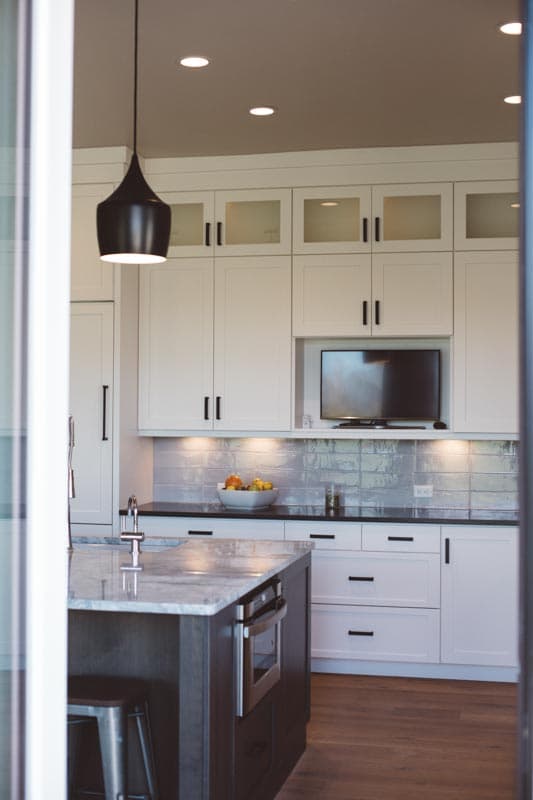

  • There's a huge amount of counter space in the kitchen with an L-shaped island to add even more.
  • The mud room has bench seating with built-in storage cubbies above.

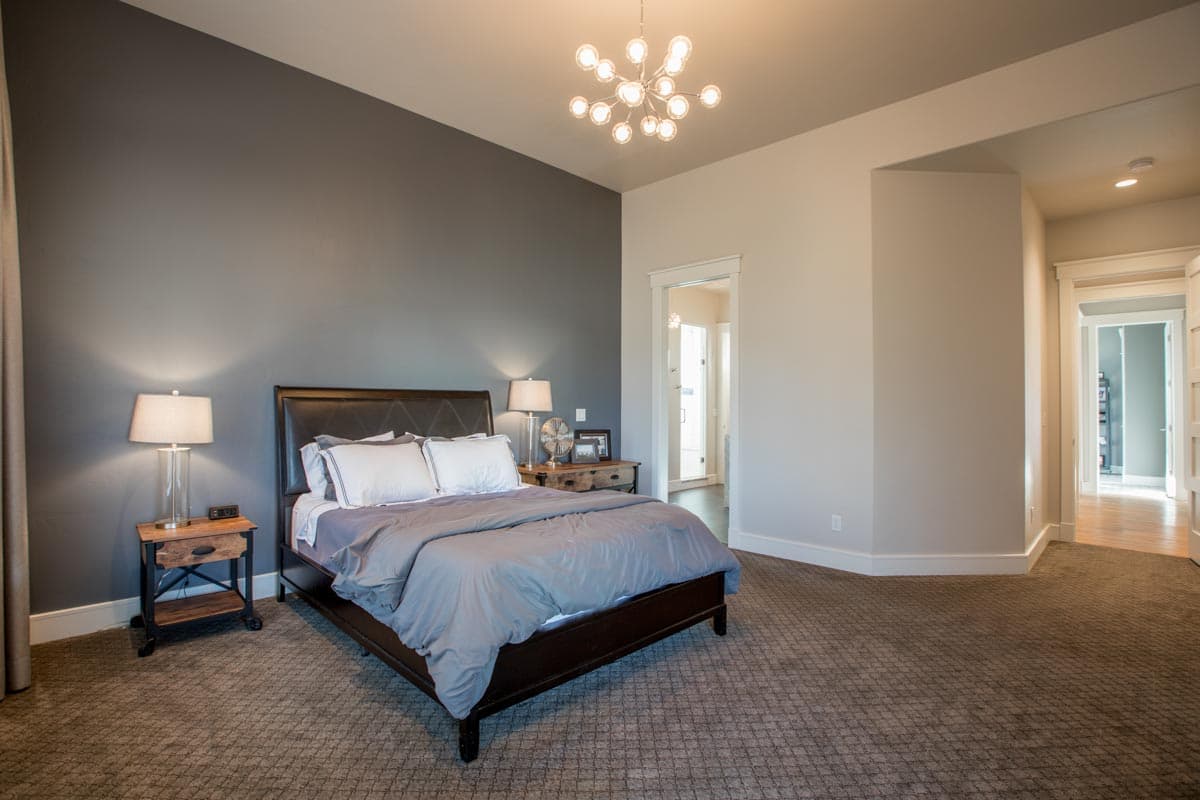

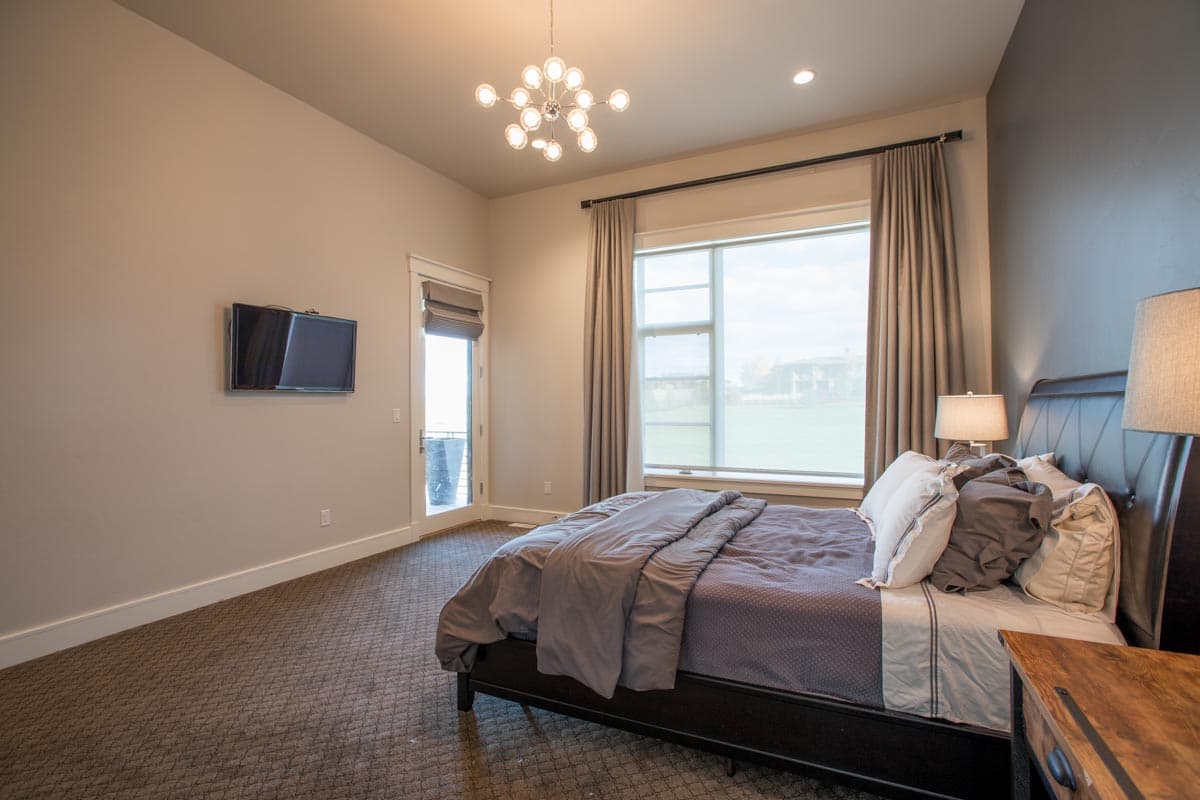

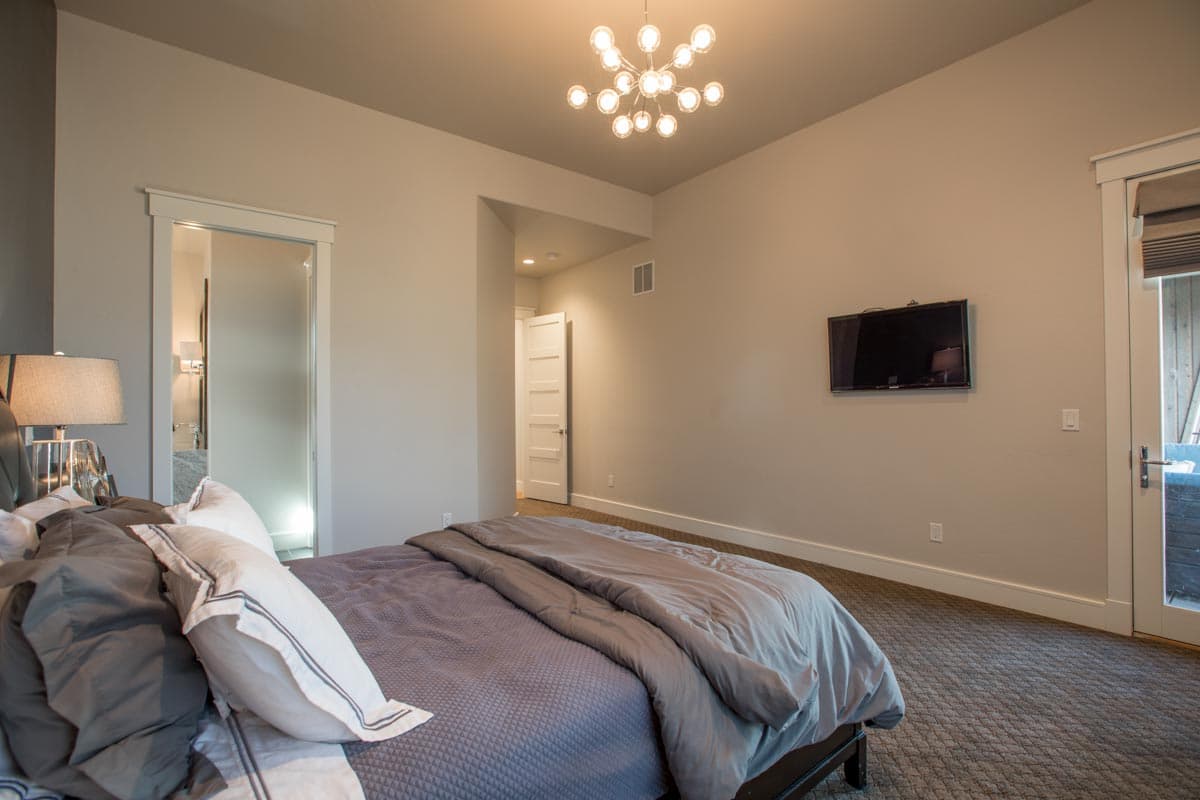

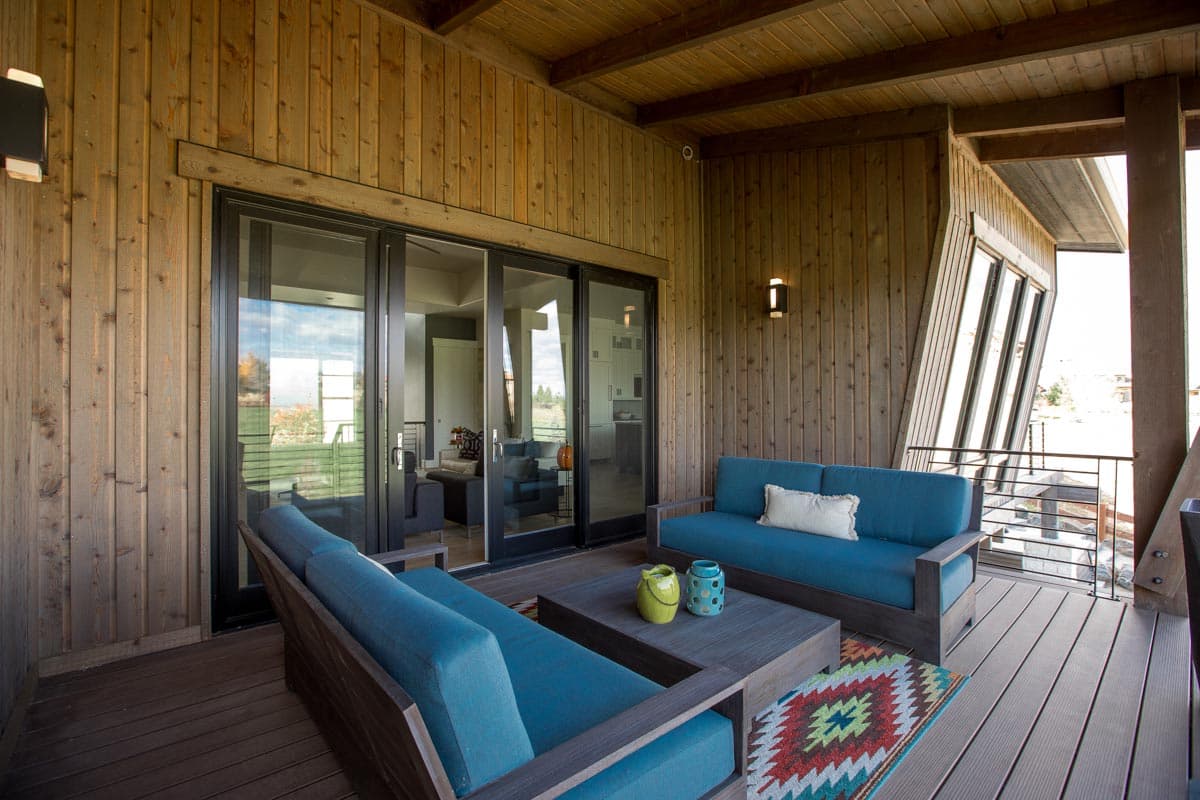

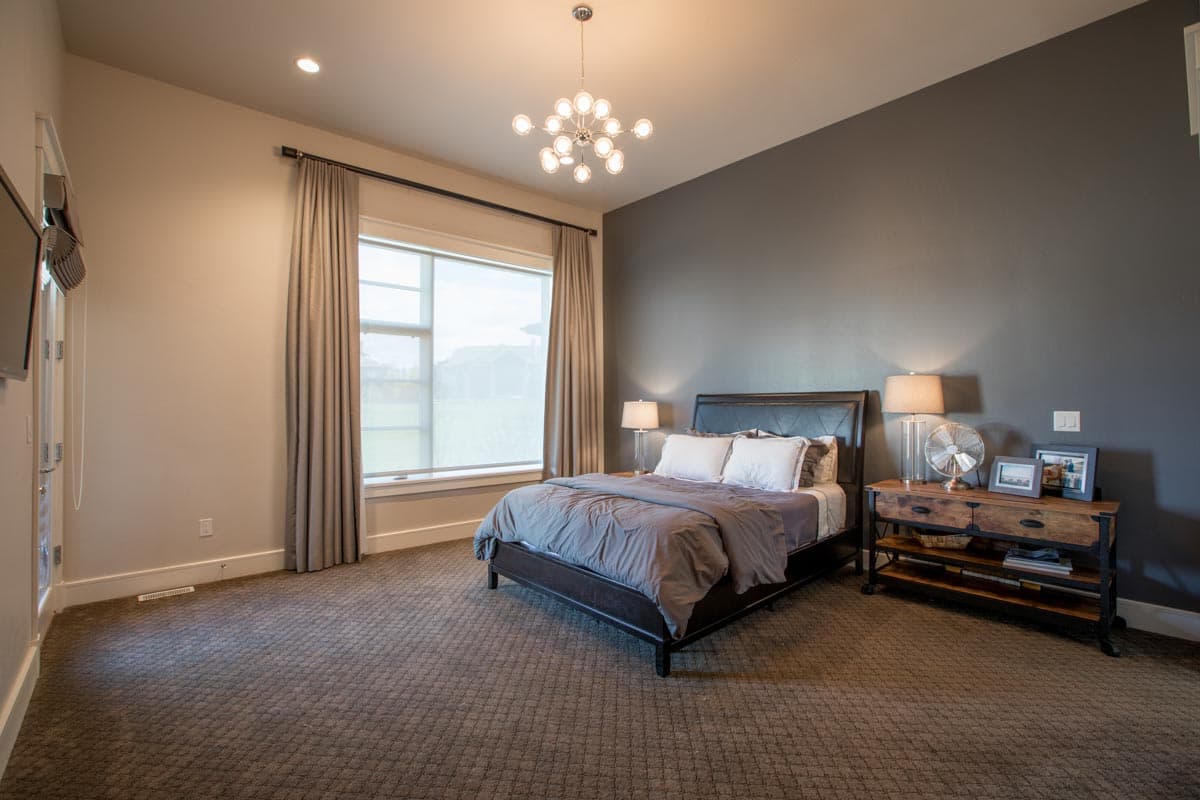

  • Homeowners can walk right out to the back deck from the master bedroom.

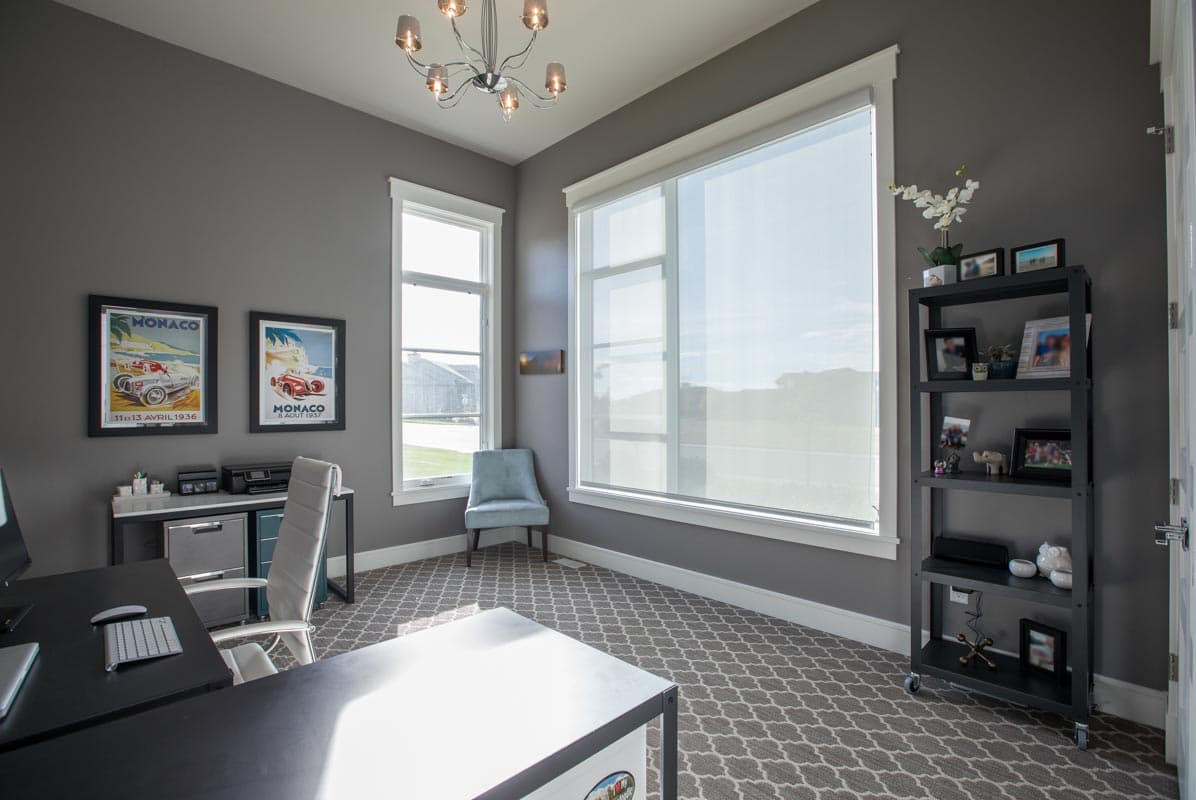

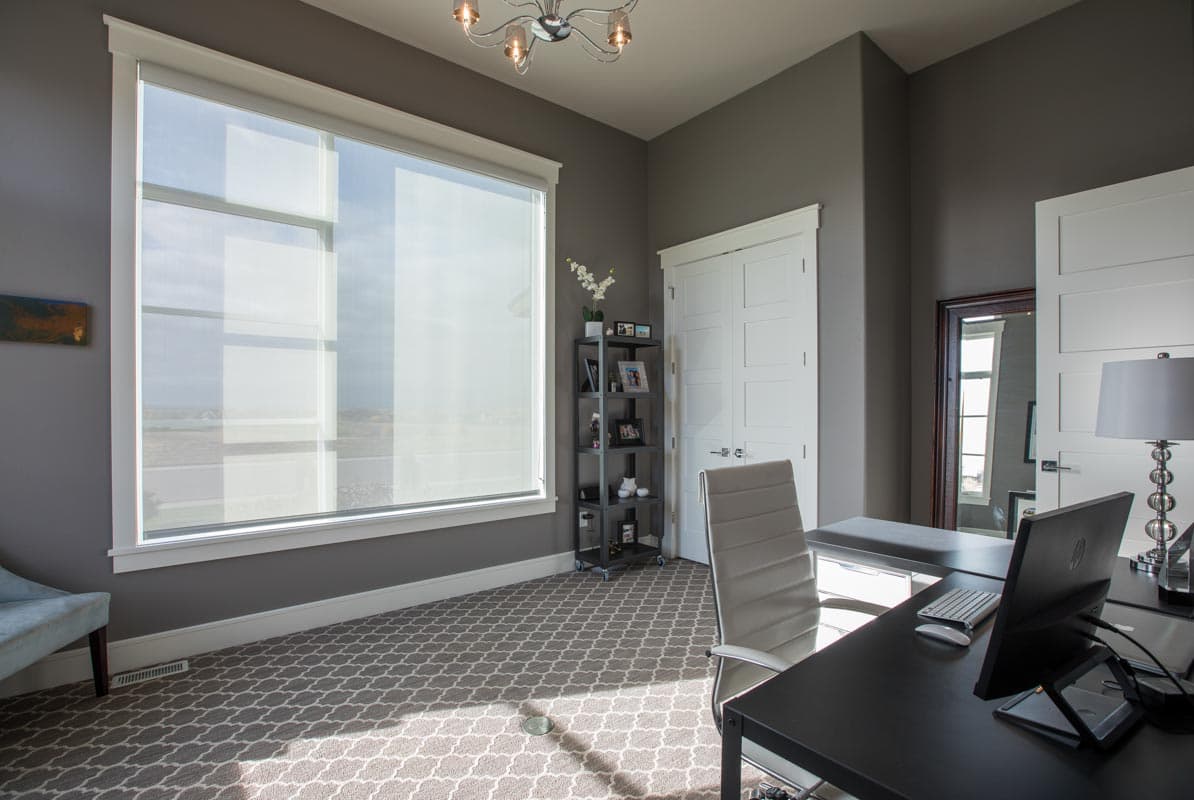

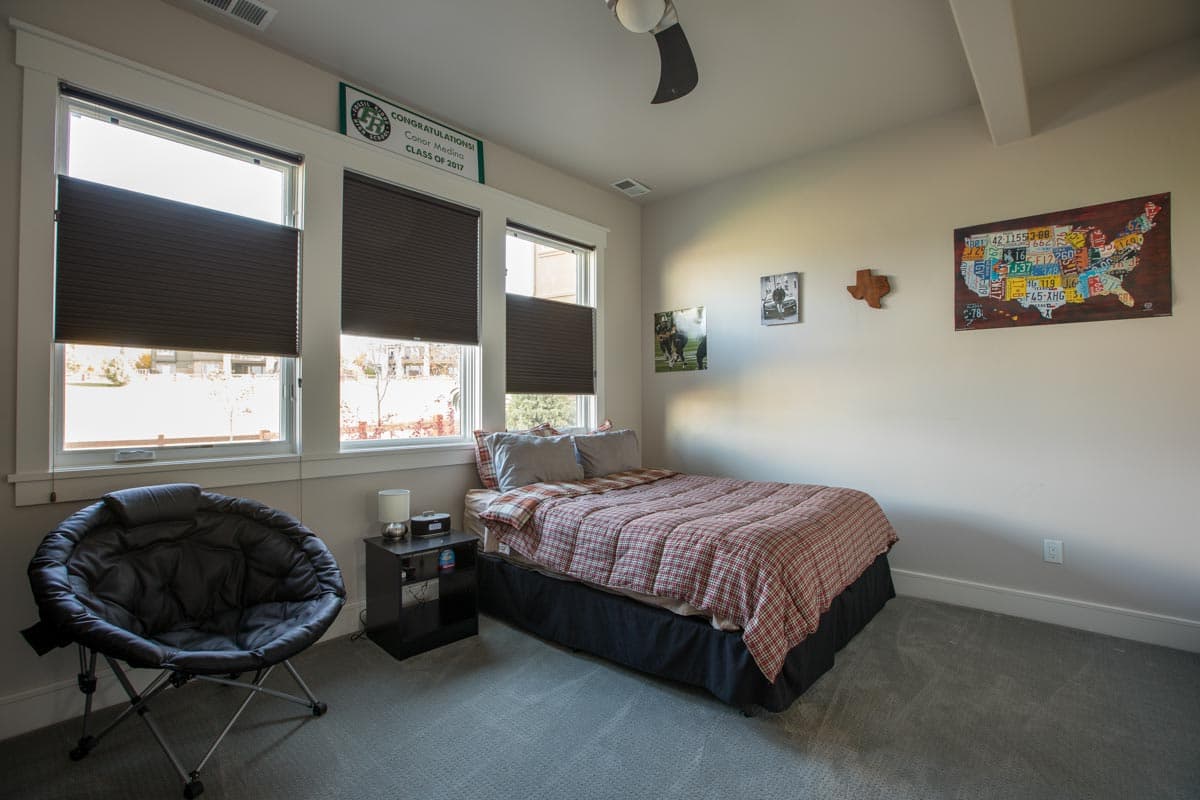

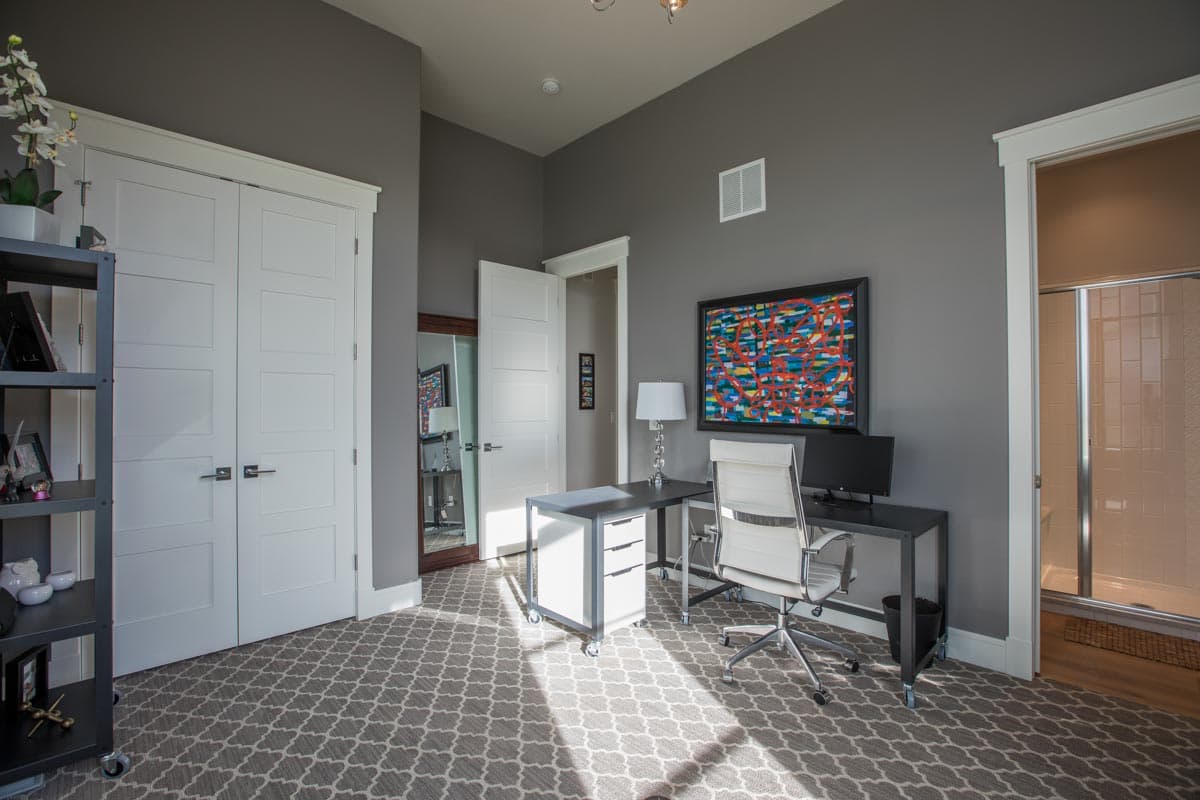

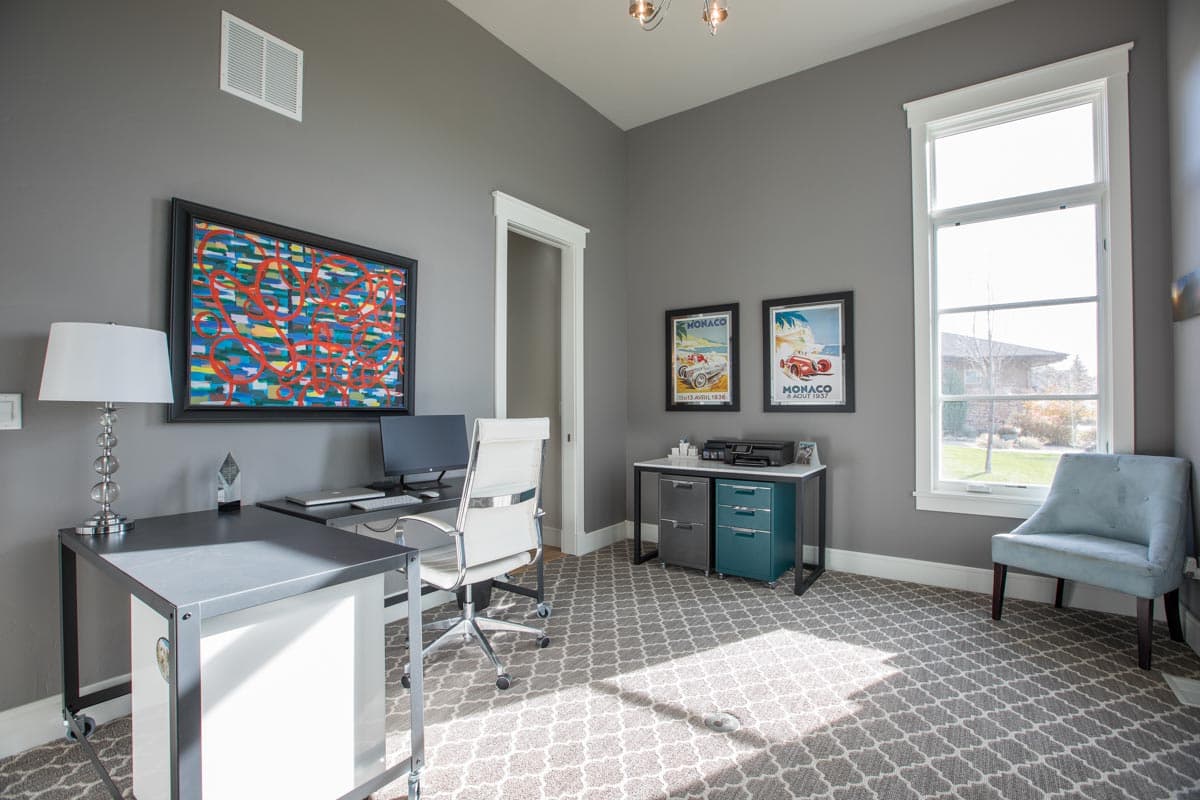

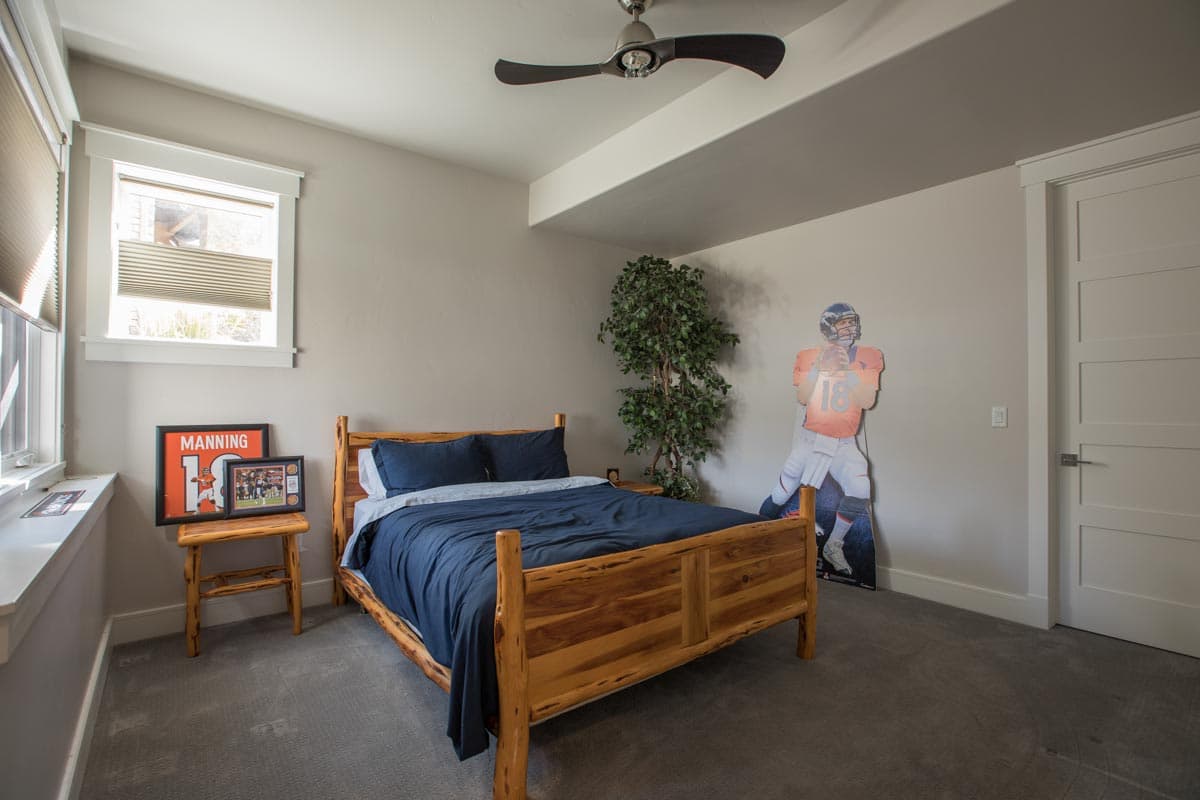

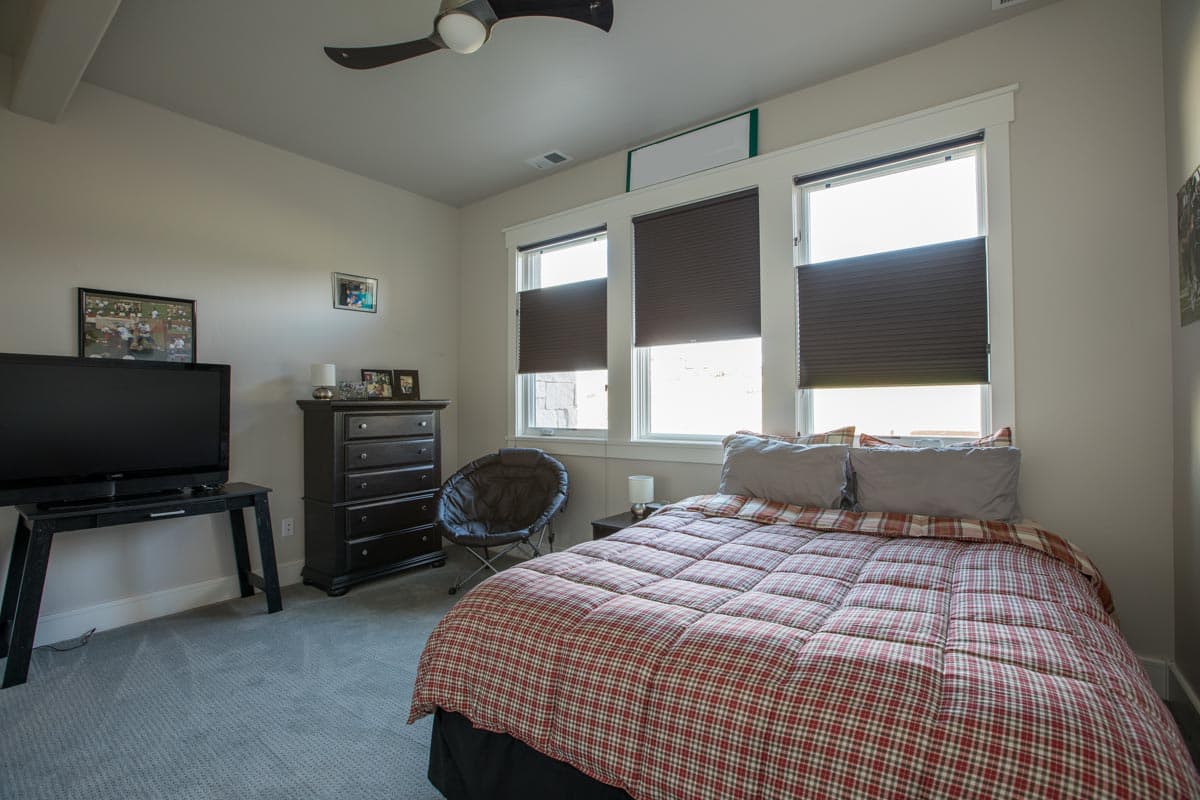

  • The second bedroom faces front and can be used as a den if desired.

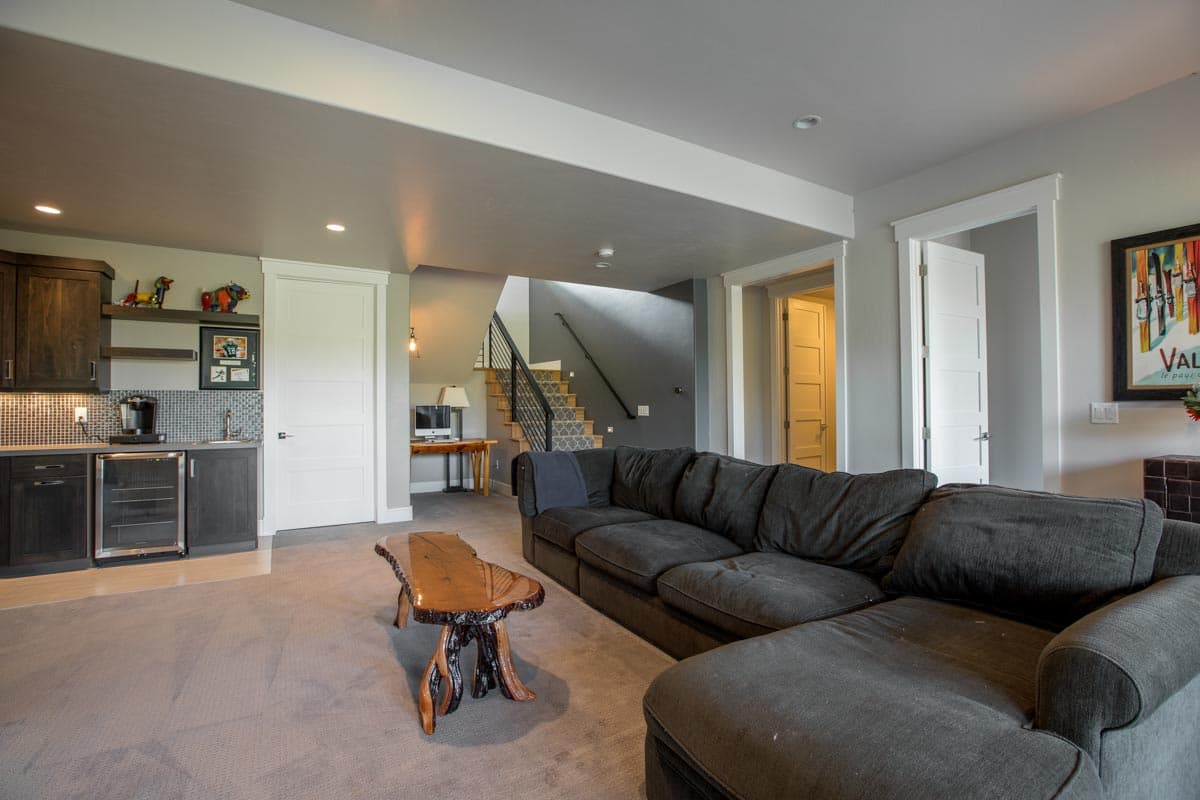

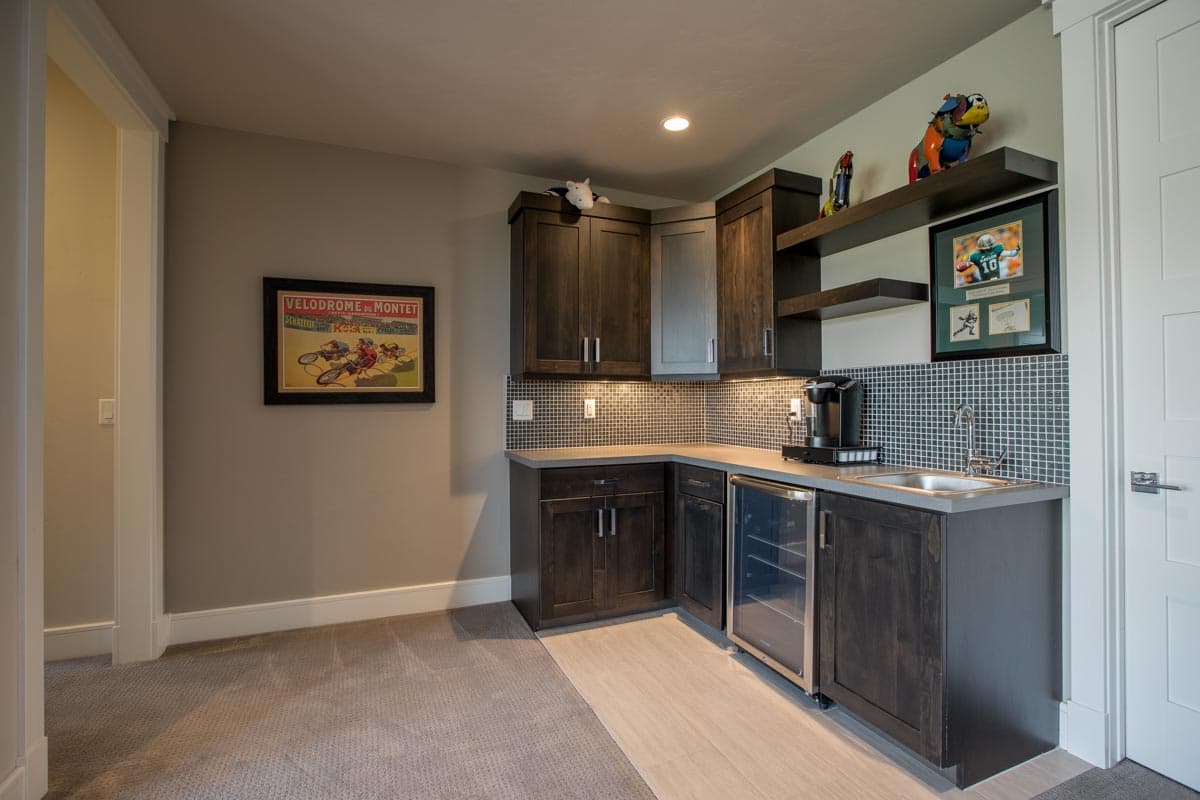

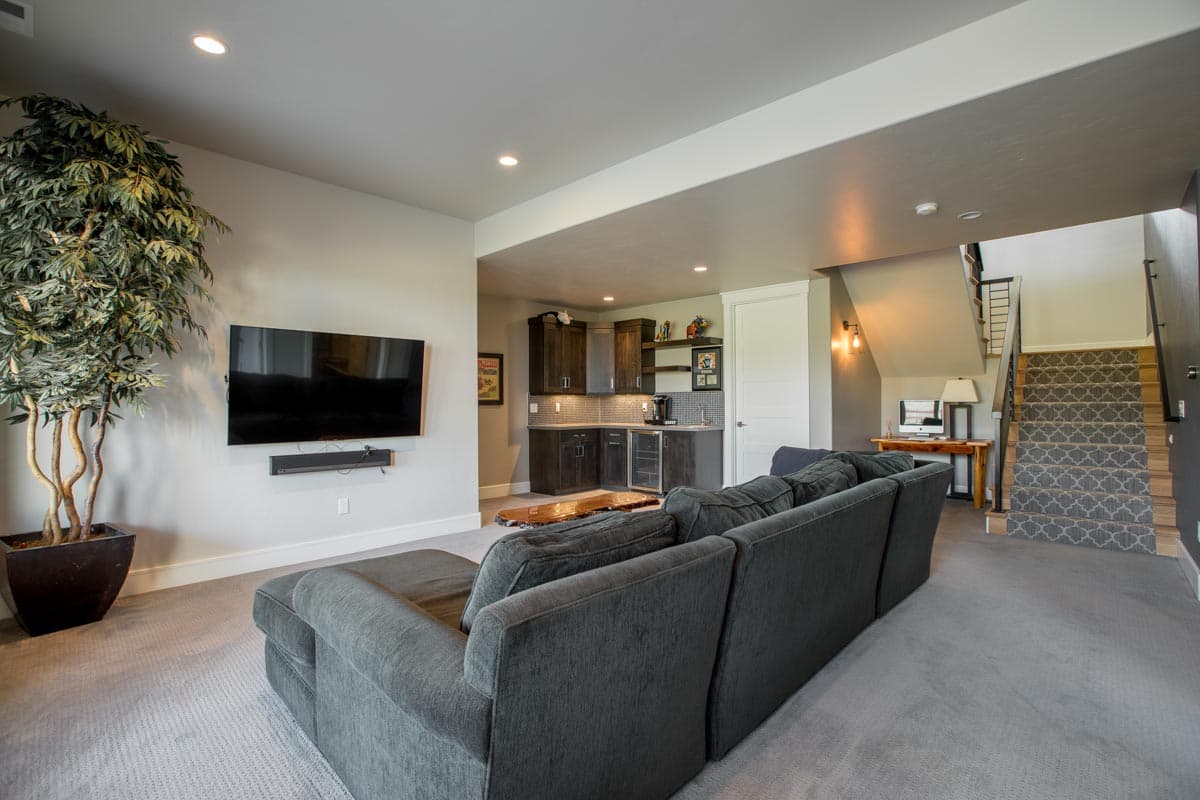

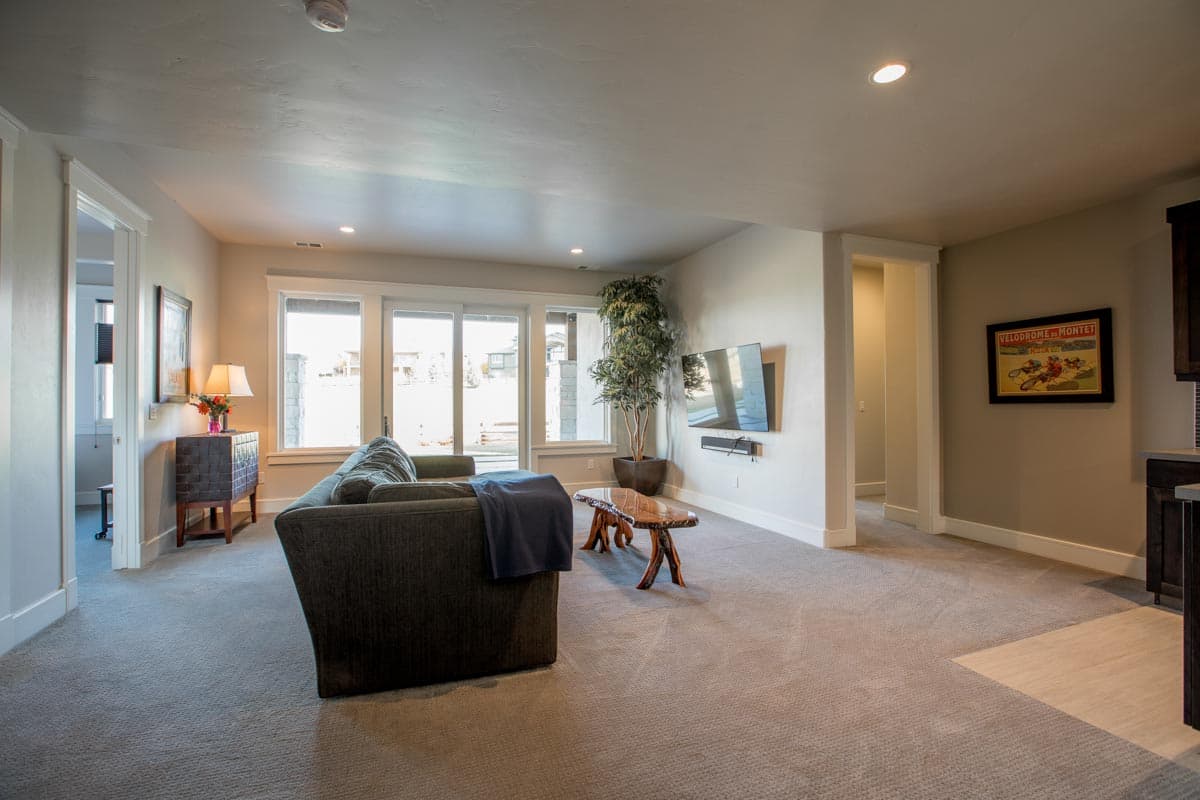

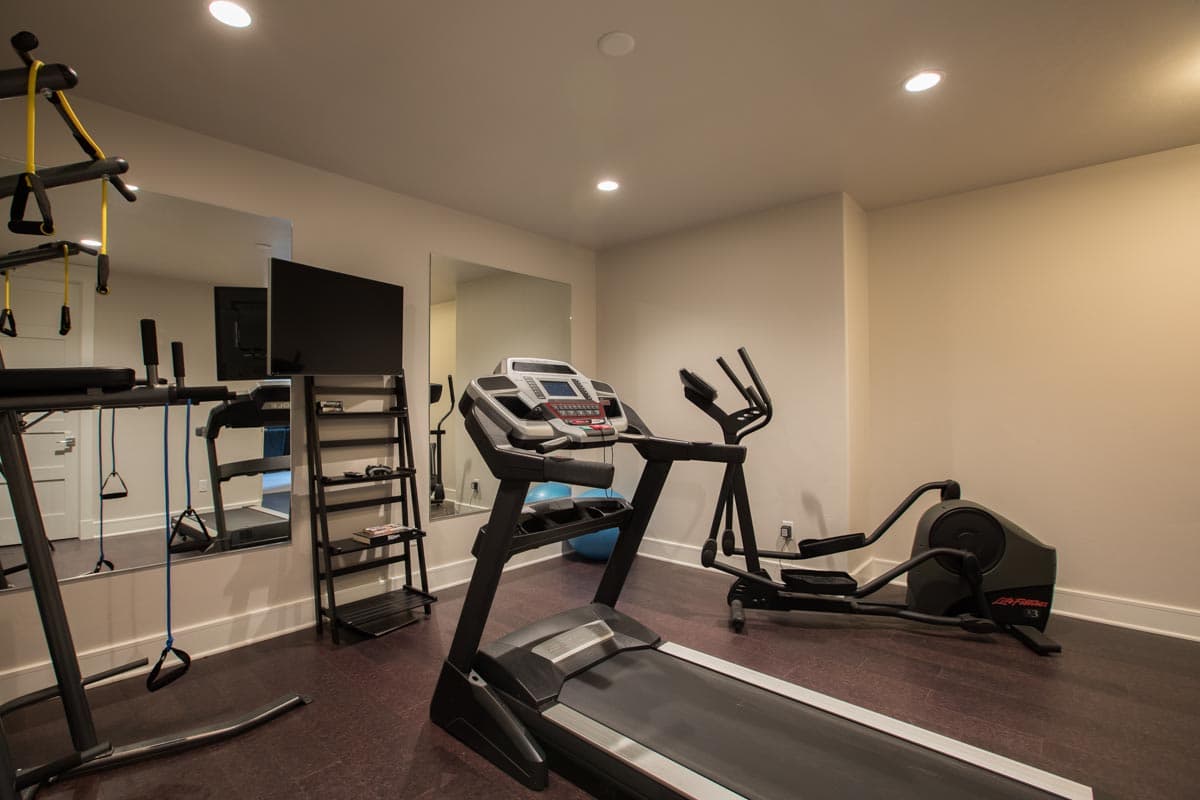

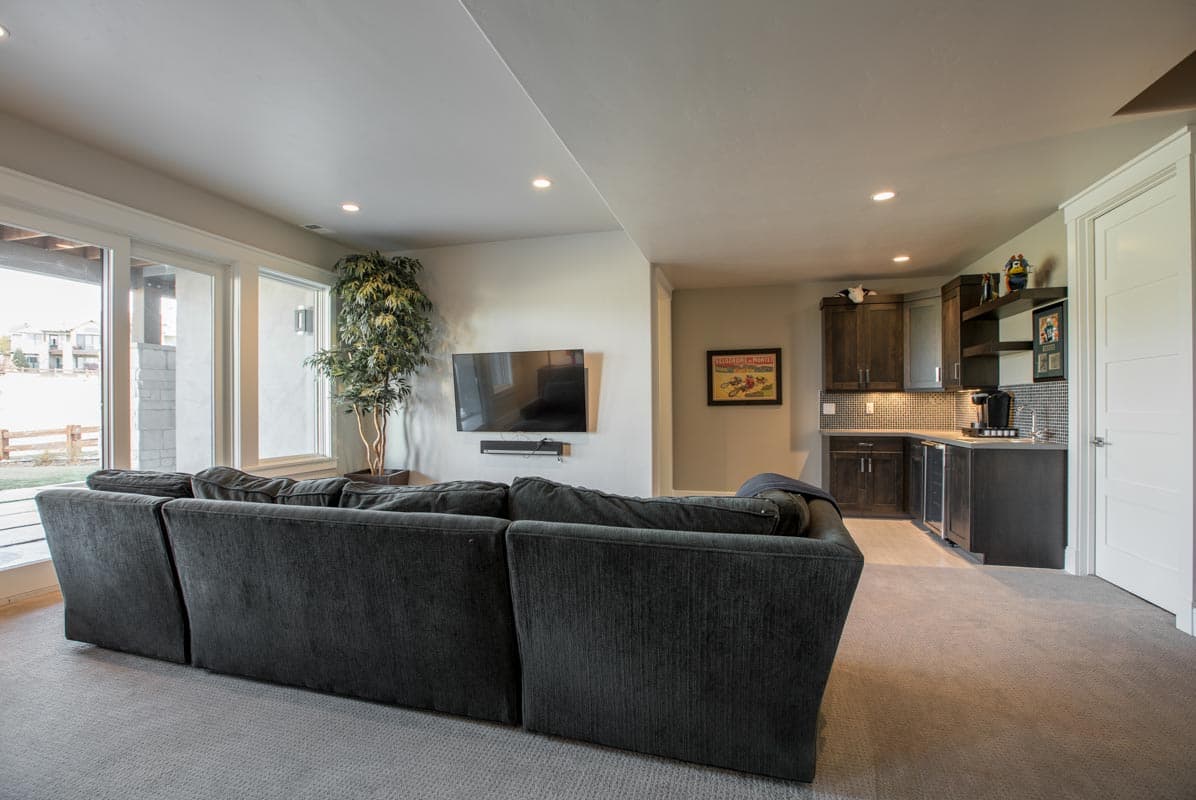

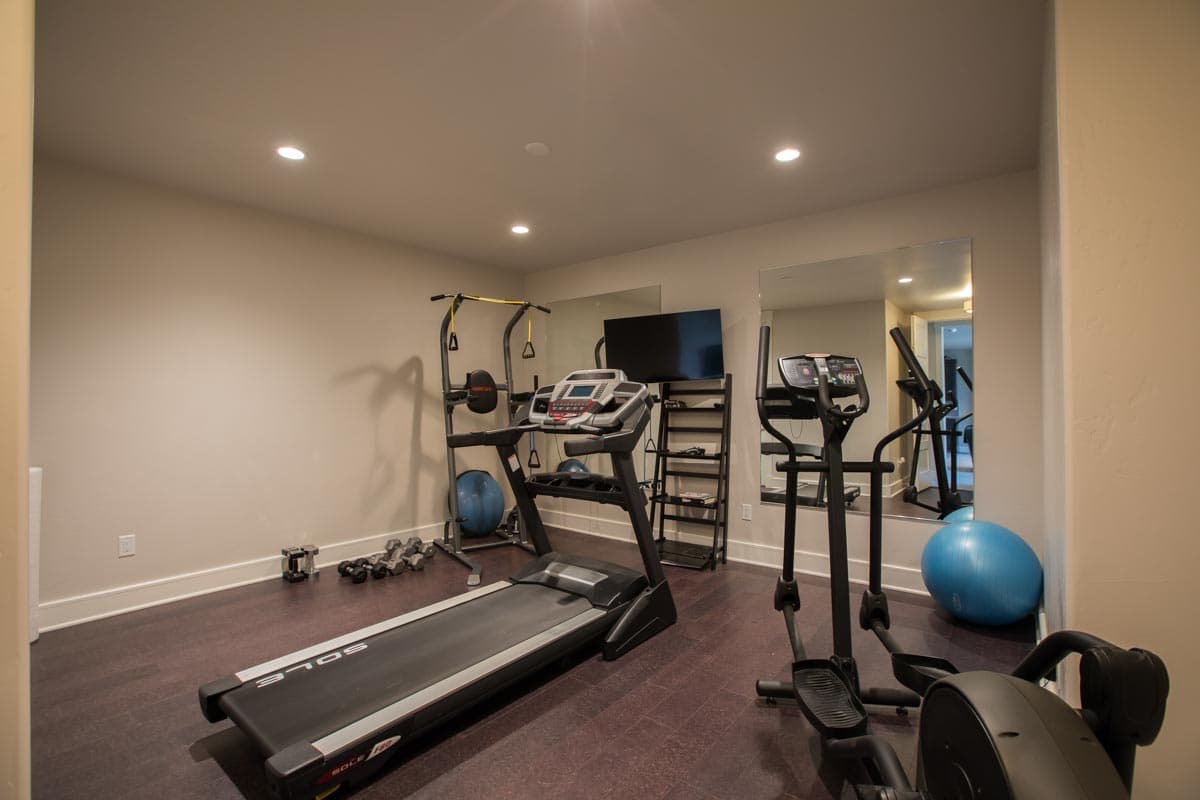

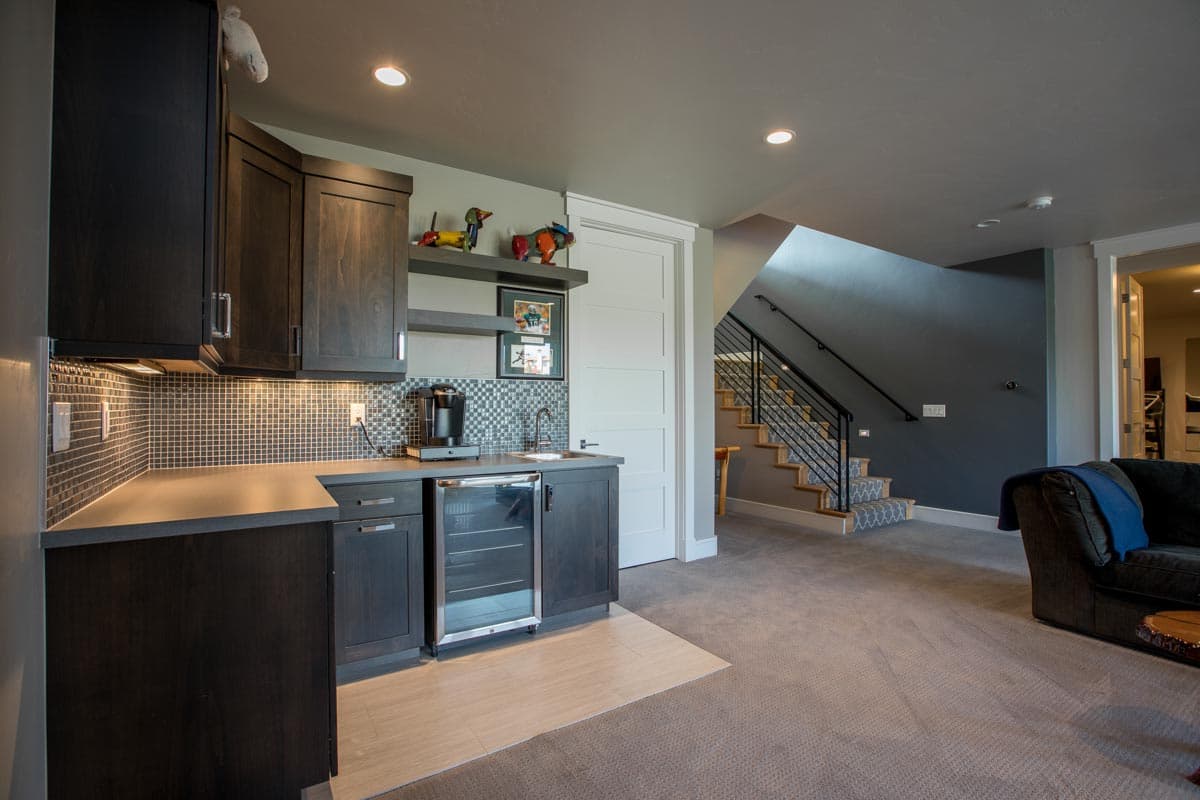

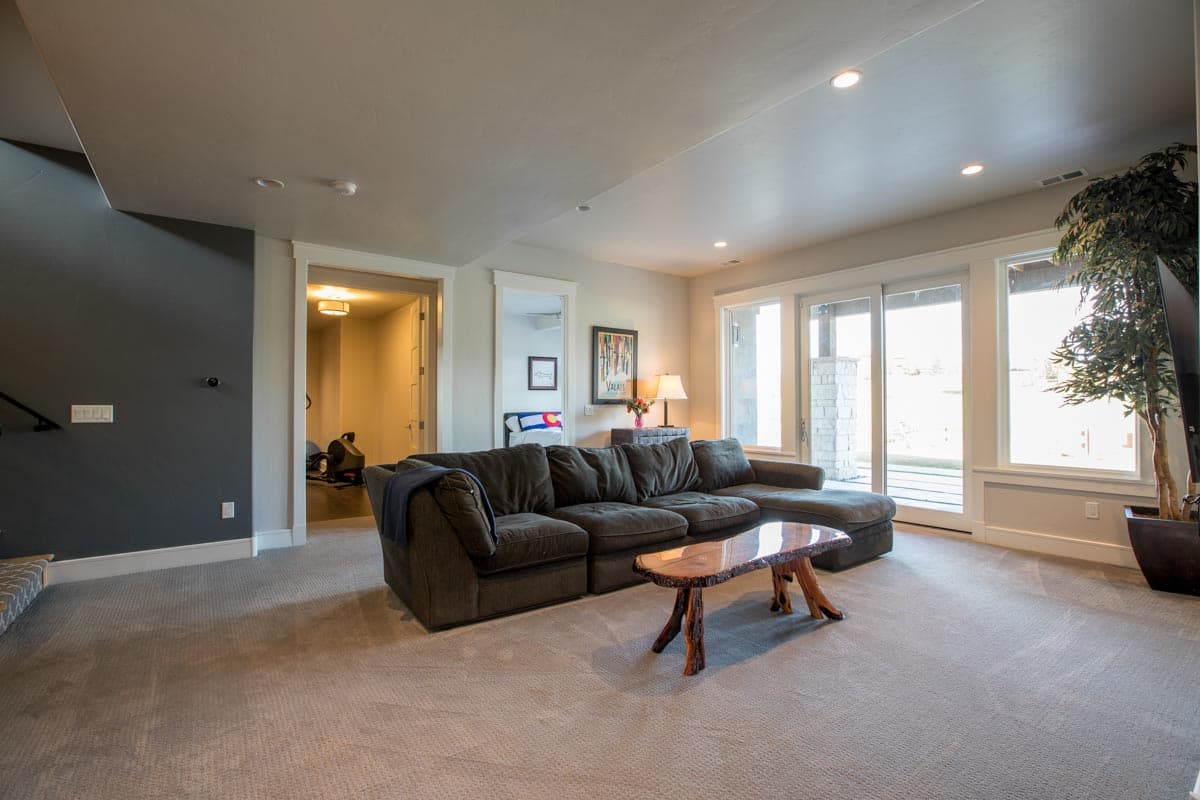

  • Finish the lower level to gain a huge rec room with wet bar, a dedicated exercise room and three more bedrooms.

The following details are included with this house plan:
  • Cover Page

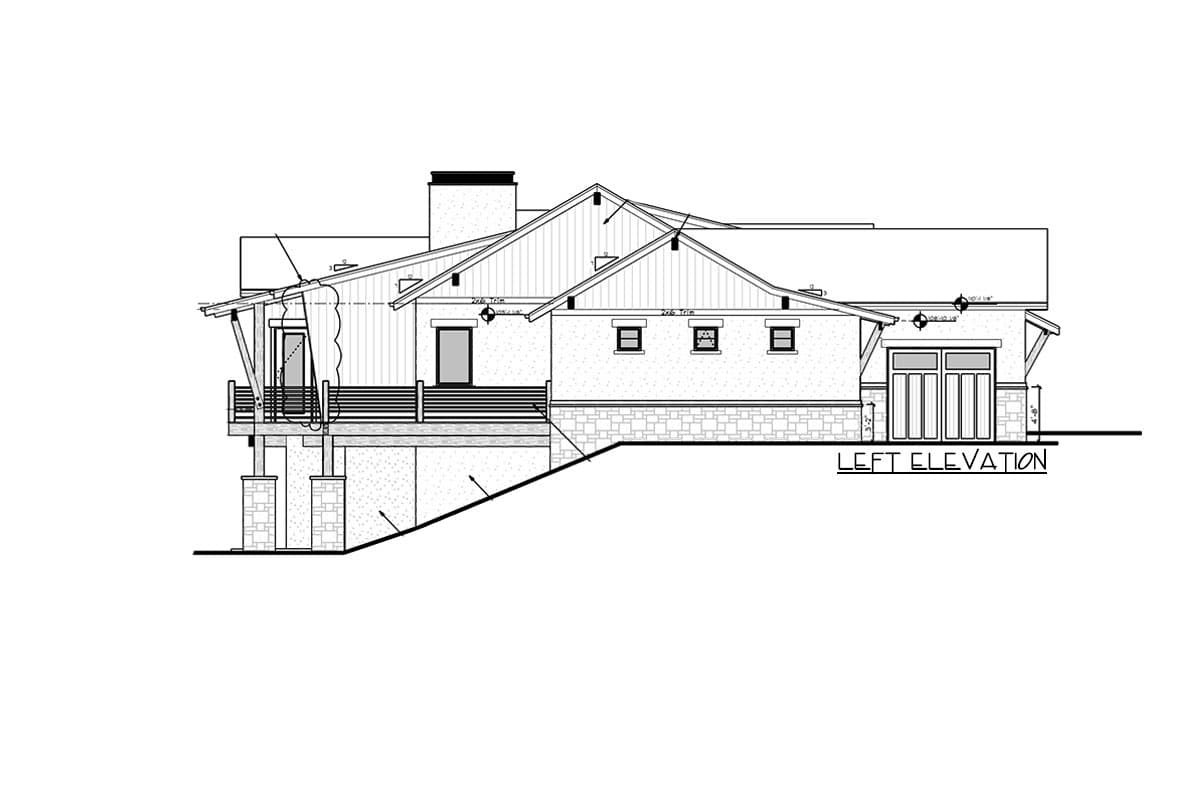

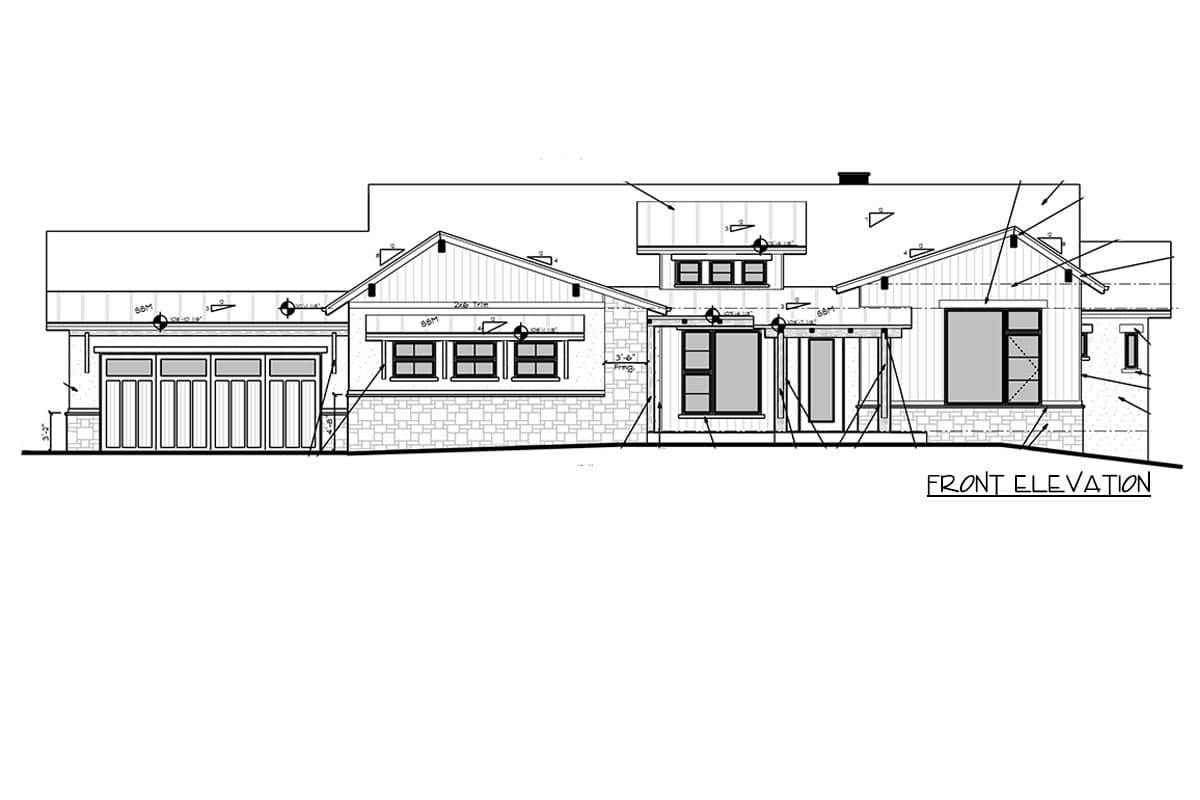

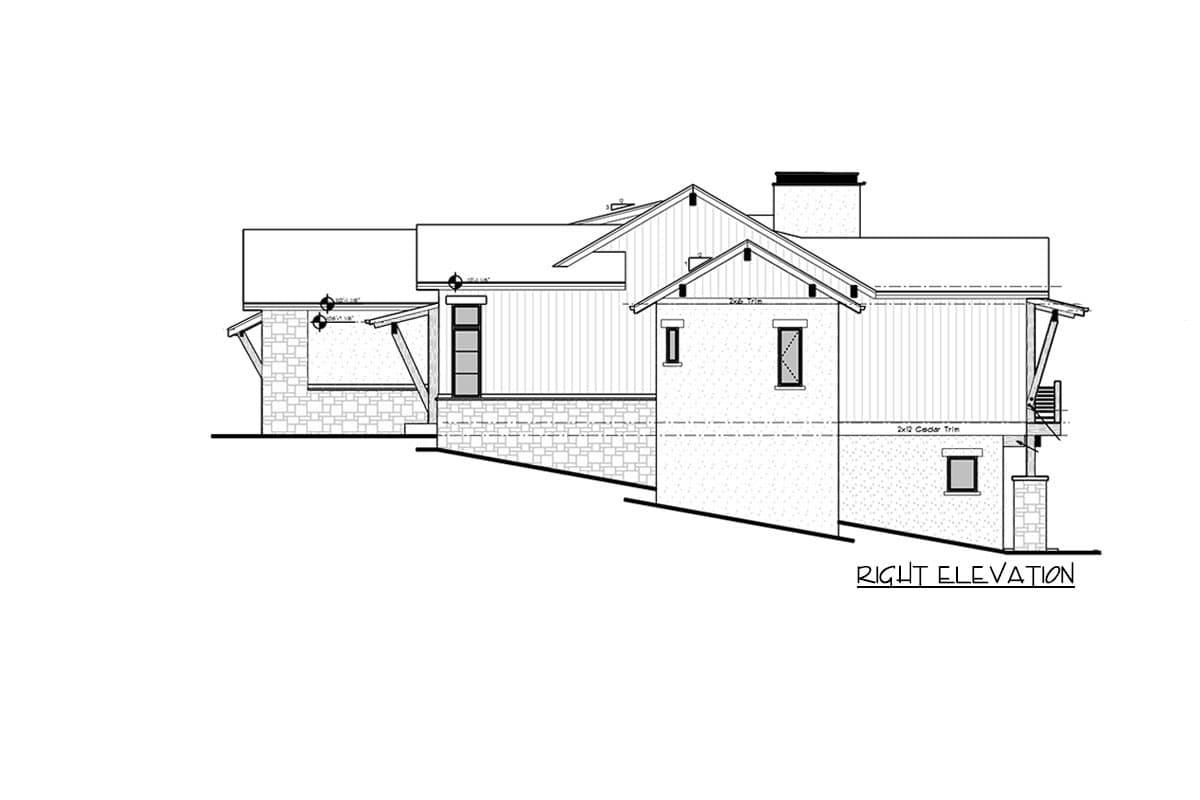

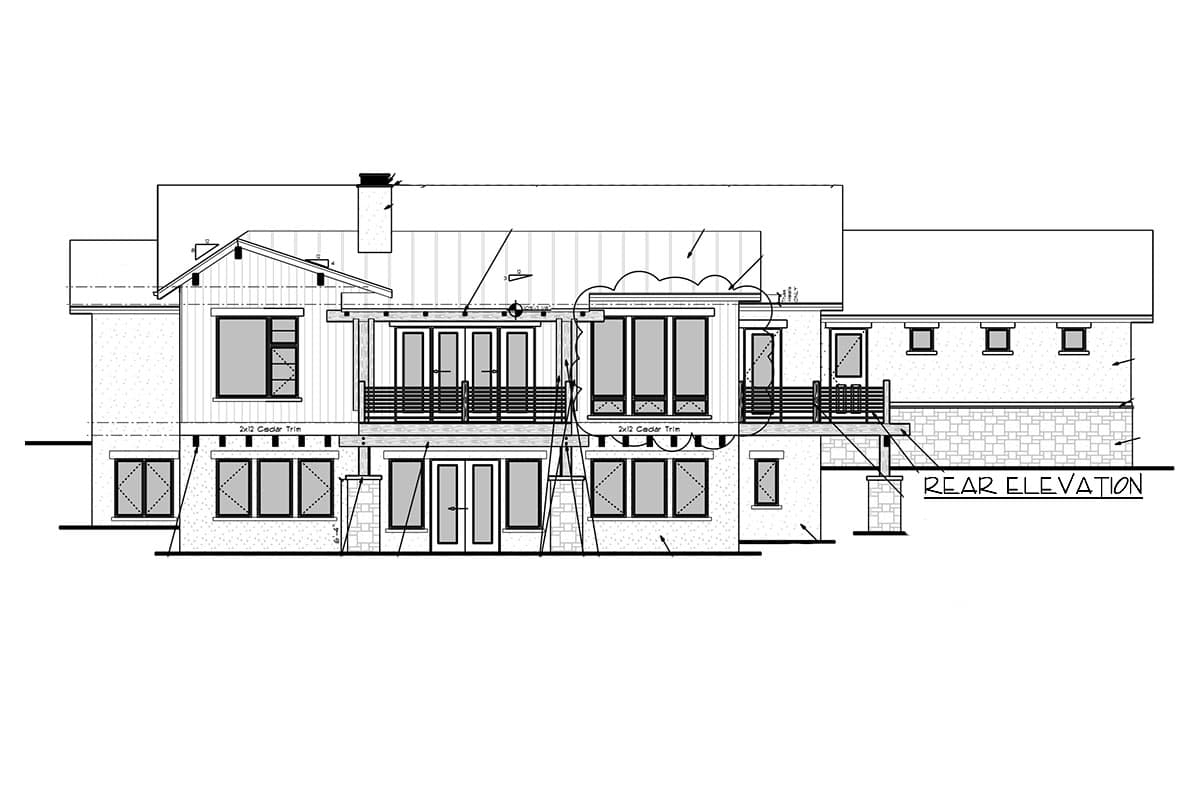

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

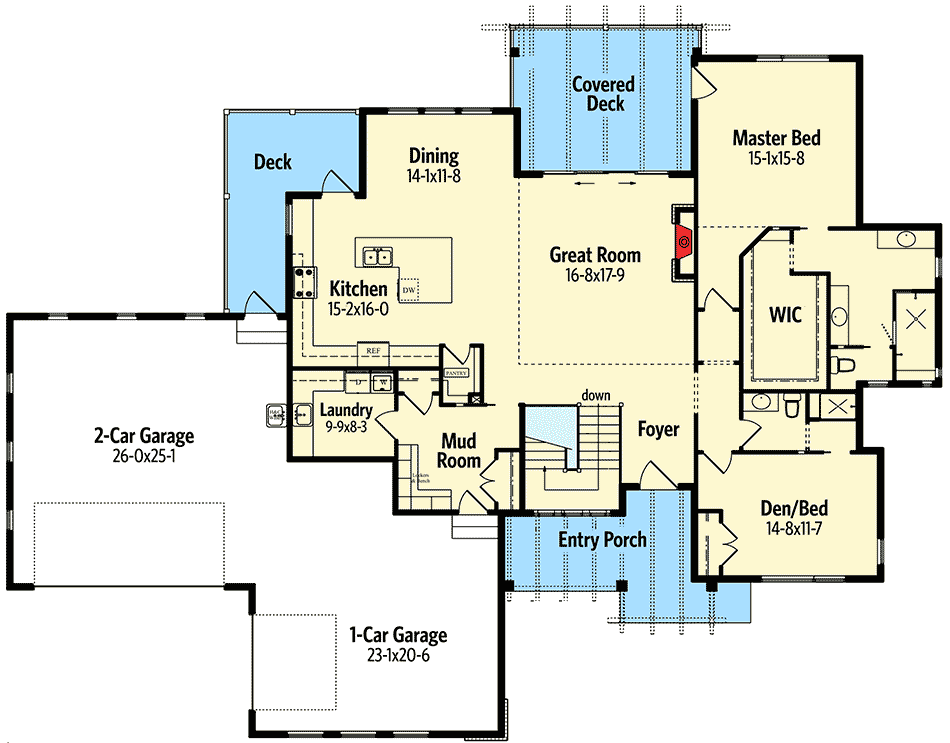

Craftsman House Plan for a Sloping Lot - 95036RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

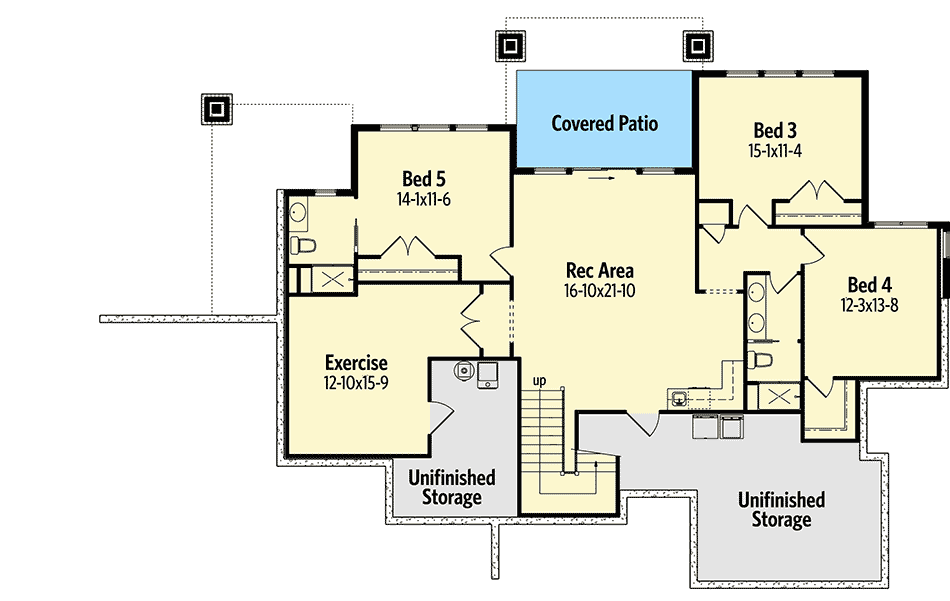

Craftsman House Plan for a Sloping Lot - 95036RW floor plan - Lower Level

Craftsman House Plan for a Sloping Lot

  • 2,196

    Heated s.f.

  • 2-5

    Beds

  • 2 - 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,196 sq. ft.
  • 1st Floor: 2,196 sq. ft.

Dimensions

  • Width: 88' 6"
  • Depth: 67' 6"
  • Max ridge height: 20' 3"

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4

Garage

  • Type: Attached
  • Area: 1219 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
