Plan 849127PGE

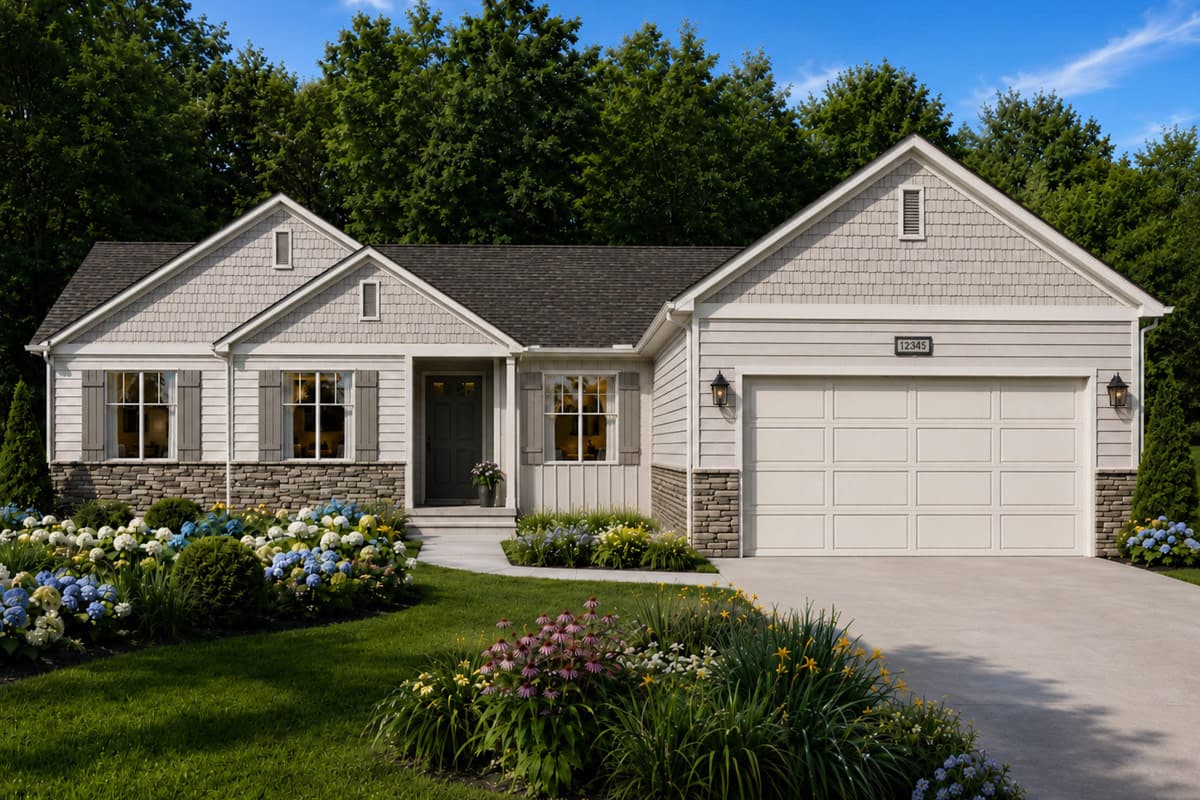

Craftsman House Plan with 3 Bedrooms and 2-Car Garage

Heated S.F.
1,565
Beds
3
Baths
2.5
Stories
1
Cars
2

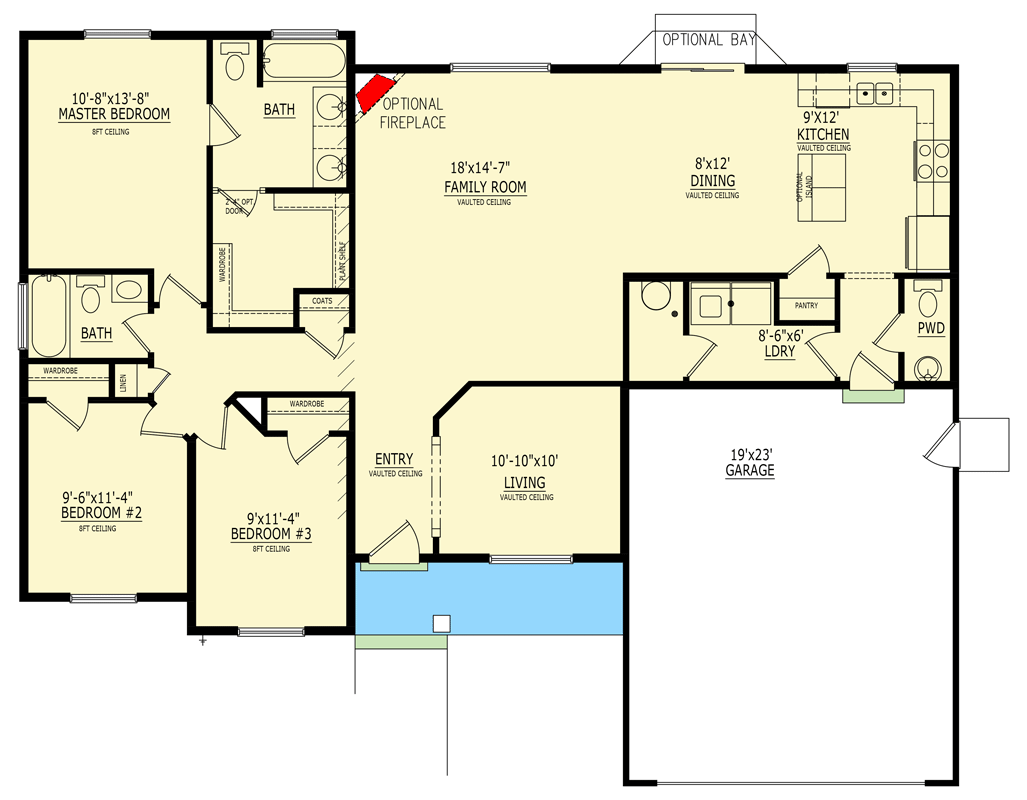

Floor Plan

Plan 849127PGE

Floor Plan 1

Plan 849127PGE

M-F 9am-5pm EST |

1-203-761-8500

Plan 849127PGE: Craftsman House Plan with 3 Bedrooms and 2-Car Garage - Floor Plan - - Craftsman, Traditional

Plan Details

  • This charming Craftsman-style home offers 1,565 square feet of heated living space, three bedrooms, two full bathrooms, a half bath, and an attached 451-square-foot two-car garage.
  • The welcoming front entry opens into a thoughtful, efficient layout that maximizes every square foot of the single-level design.
  • A central living area provides a comfortable flow between the kitchen and the sunlit breakfast nook, creating an ideal heart of the home for daily life.
  • The primary bedroom suite is conveniently located on the main level, offering a private retreat away from the two secondary bedrooms, which are clustered together for family convenience.
  • The main floor also includes a dedicated laundry area, ensuring that household chores remain organized and easily accessible.
  • An expansive unfinished basement provides exceptional potential for future expansion, allowing homeowners to customize the space to suit their specific needs as a home gym, workshop, or additional living area.

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,565 sq. ft.

1st Floor

1,565 sq. ft.

Basement Unfinished

1,699 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

45' 0"

Max Ridge Height

18' 10"

Garage

Type

Standard

Area

451 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
