Plan 405028FDC

Craftsman House Plan with 3 Beds, Split Layout, and Vaulted Living

Heated S.F.
1,364
Beds
3
Baths
2
Stories
1

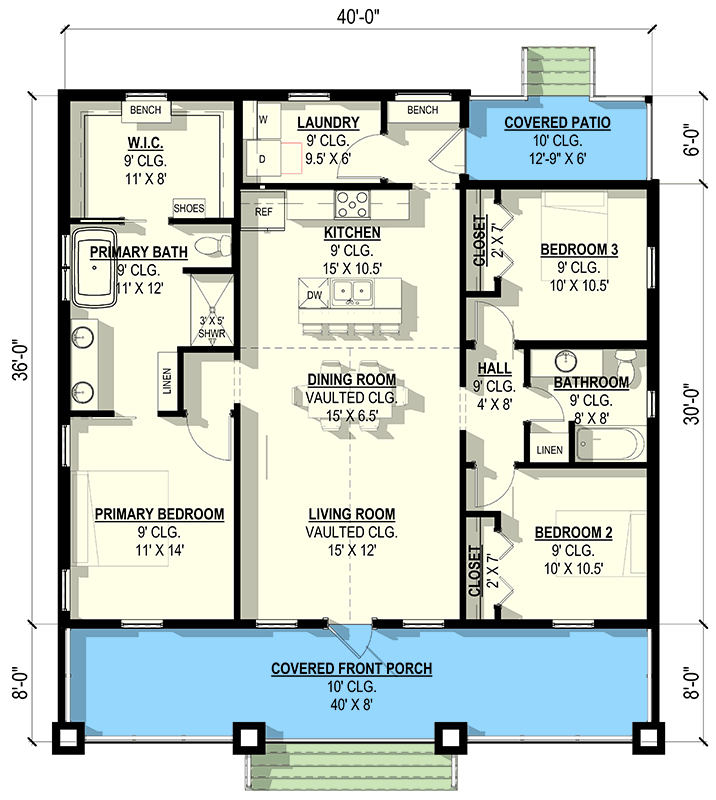

Floor Plan

Plan 405028FDC

Main Level
Main Level

Plan 405028FDC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 405028FDC: Craftsman House Plan with 3 Beds, Split Layout, and Vaulted Living - Floor Plan - Main Level - Craftsman

Plan Details

  • This charming 1,364 sq. ft. Craftsman house plan features 3 bedrooms and 2 full bathrooms, designed for comfortable single-level living with a distinctive architectural style.
  • Step inside to discover an inviting open-concept living space, where the entry flows directly into the vaulted living room, perfect for relaxed gatherings.
  • The heart of the home is the well-appointed kitchen, featuring a central island with a breakfast nook, seamlessly connecting to the dining area and the spacious vaulted living room for effortless entertaining. Adjacent to the kitchen, a practical laundry area doubles as a mudroom with a built-in bench, offering convenient daily utility.
  • Retreat to the private primary bedroom suite, thoughtfully separated from the secondary bedrooms for ultimate tranquility, boasting a generous walk-in closet and an en-suite bathroom with a spacious shower and dual vanity. Two additional bedrooms are located on the opposite side of the home, sharing a full hall bathroom, ideal for family or guests.
  • Enjoy the outdoors on the expansive 312 sq. ft. covered front porch, perfect for morning coffee, or unwind on the more secluded 76 sq. ft. covered patio at the rear of the home.

What's Included

  • Cover Sheet - General Notes
  • Foundation
  • Floor Plan (s)
  • Electrical
  • Roof

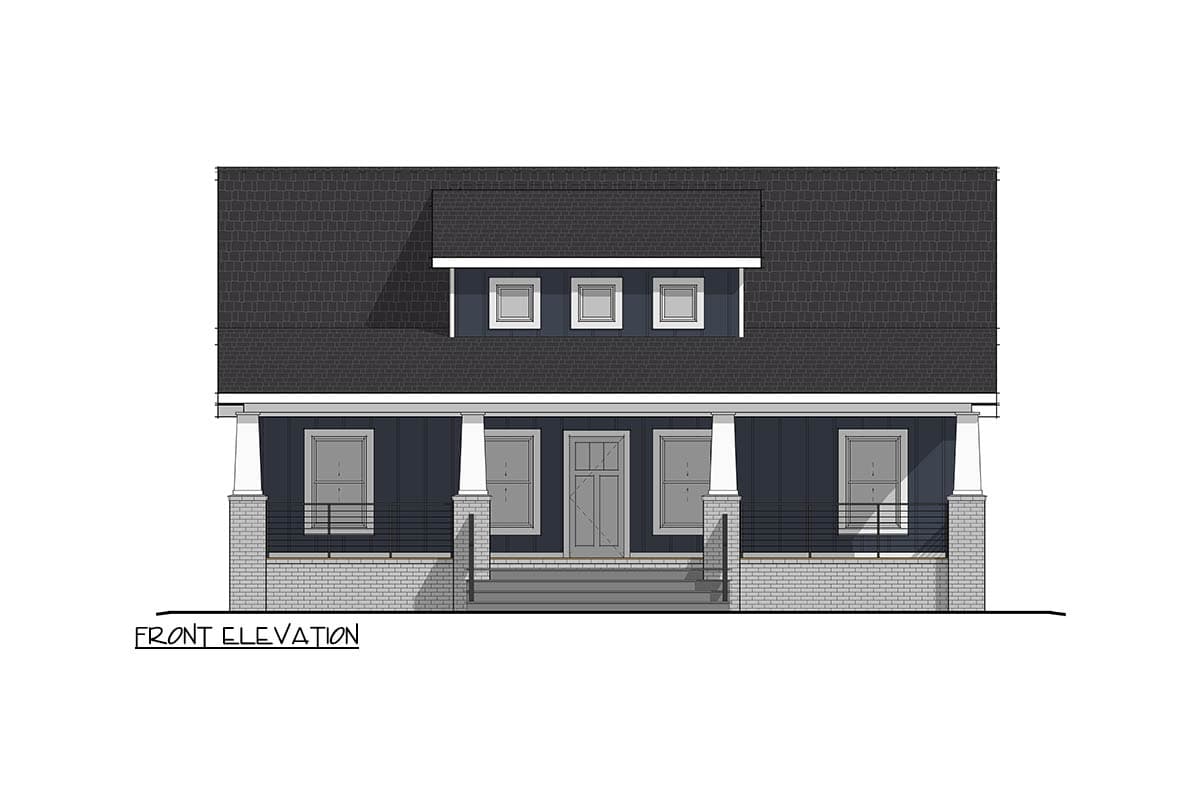

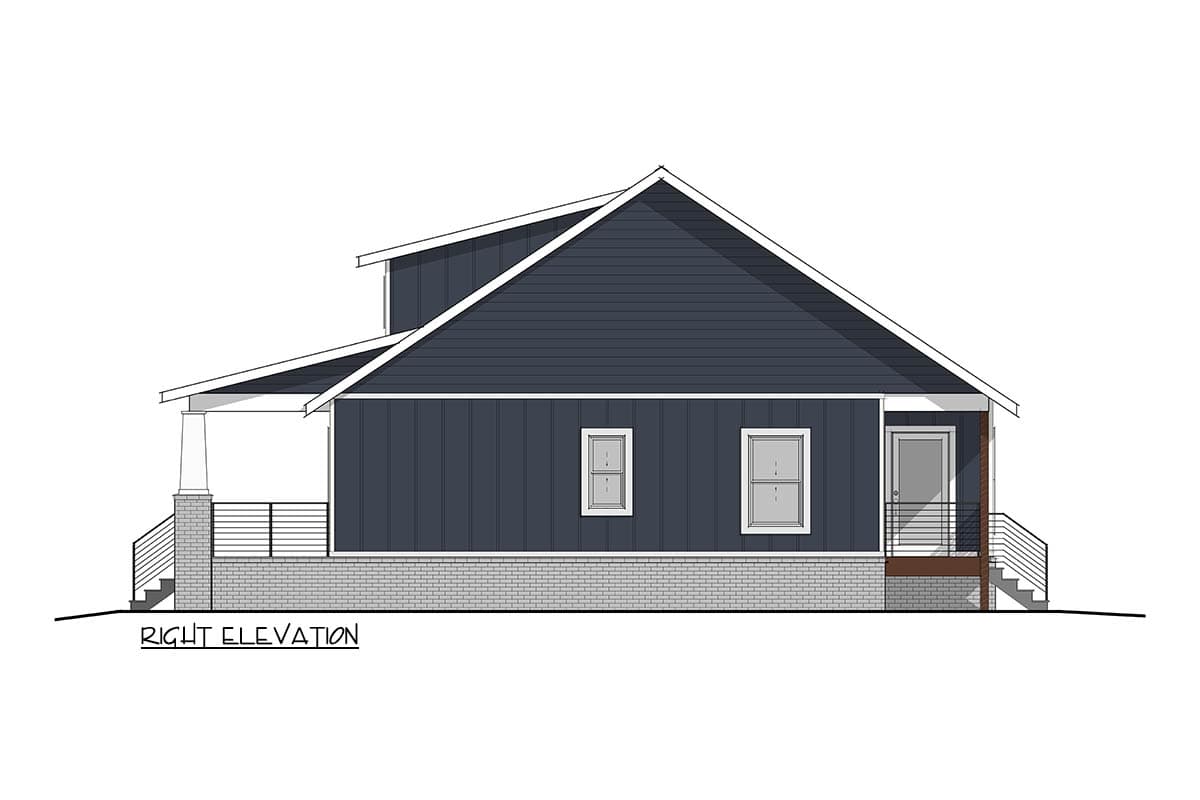

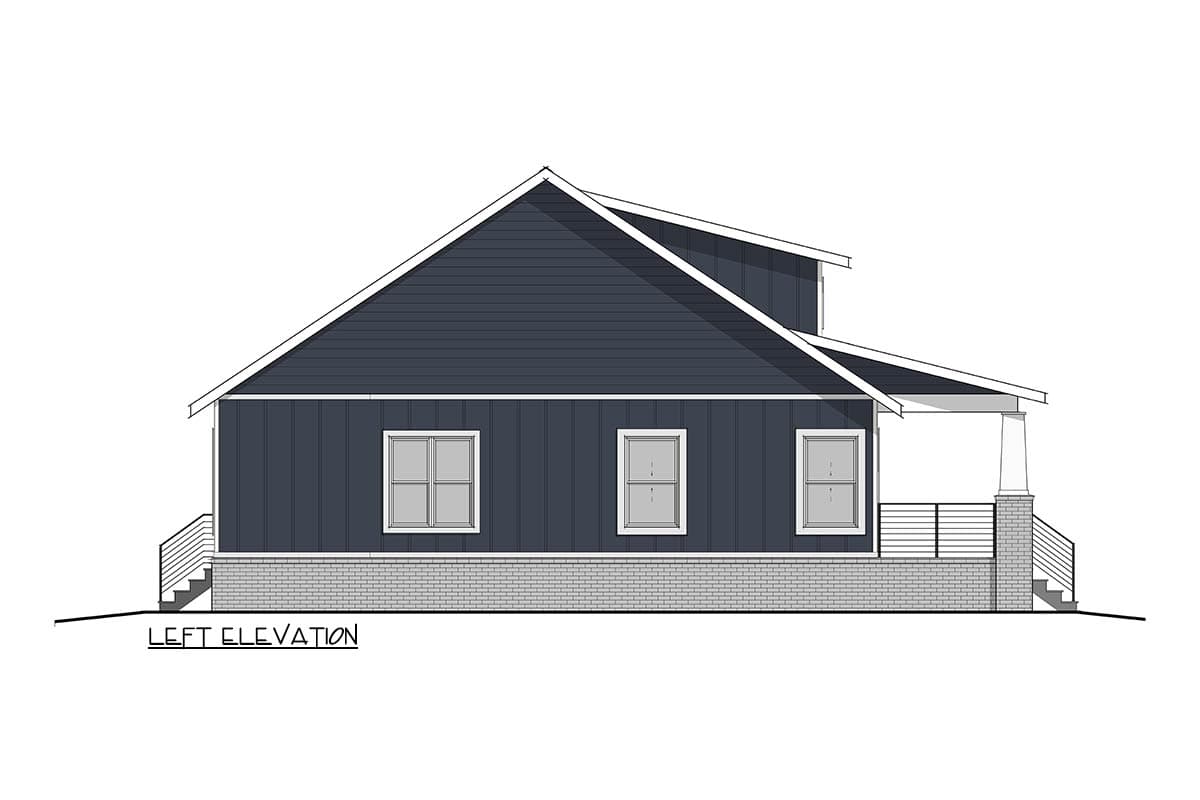

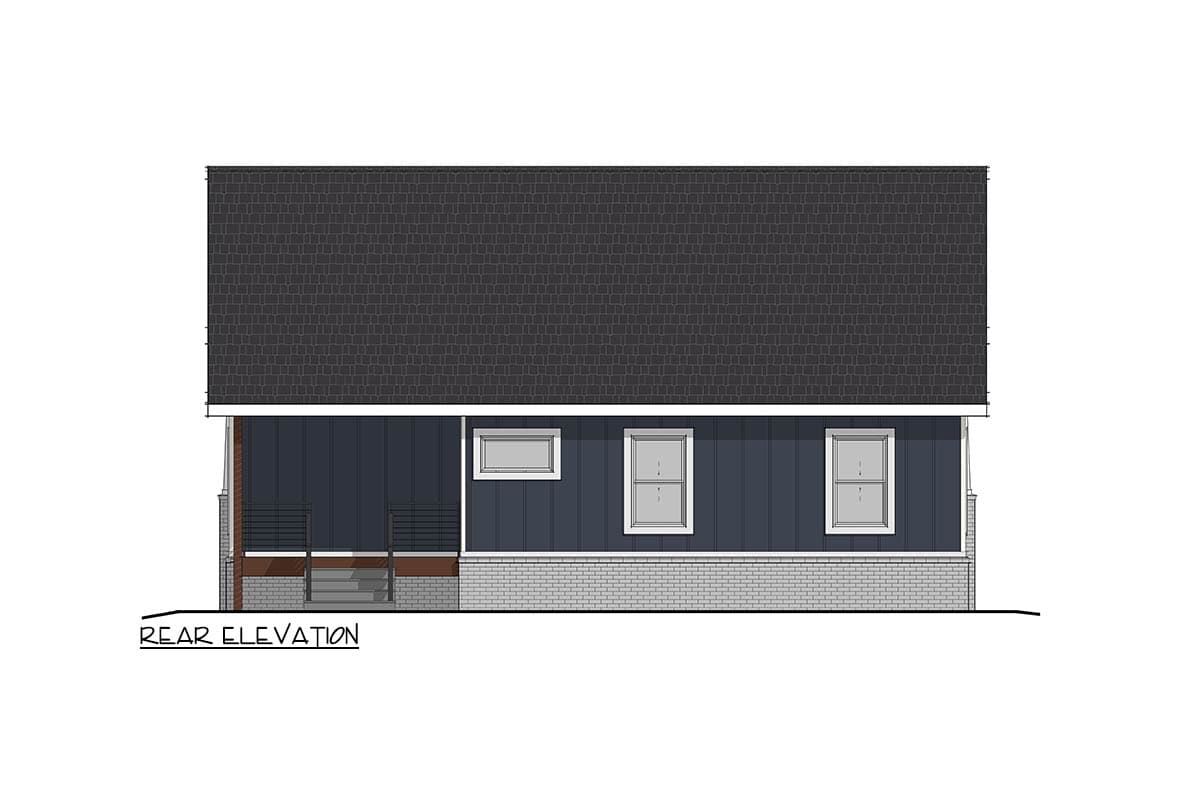

  • Exterior Elevation
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,364 sq. ft.

1st Floor

1,364 sq. ft.

Porch, Front

312 sq. ft.

Covered Patio

76 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 8

Framing Type

Stick Or Truss

Architectural Style

Craftsman

Special Features

Accessible Design

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,364 sq. ft.

1st Floor

1,364 sq. ft.

Porch, Front

312 sq. ft.

Covered Patio

76 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 8

Framing Type

Stick Or Truss

Architectural Style

Craftsman

Special Features

Accessible Design

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
