Craftsman House Plan with 3 Split Bedrooms and 2-Car Garage

Heated S.F.
1,713
Beds
3
Baths
2.5
Stories
1
Cars
2

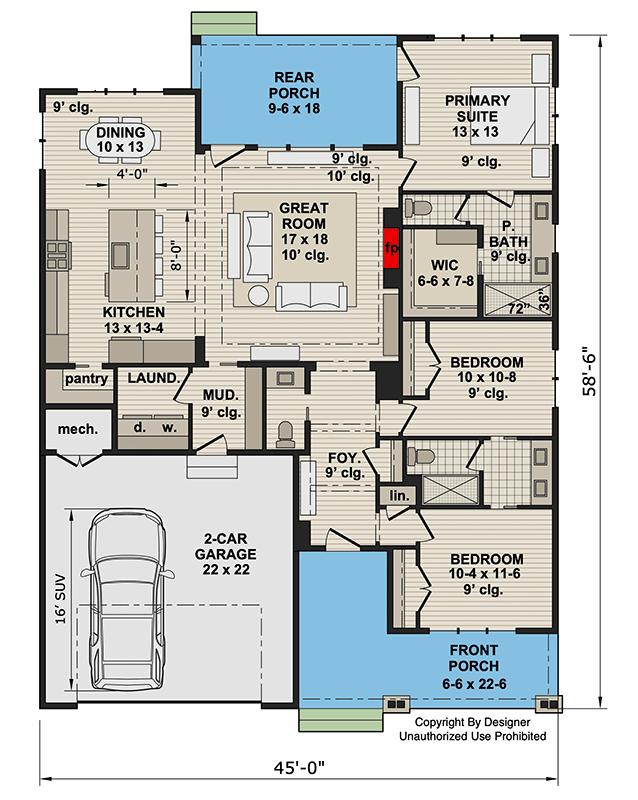

Floor Plan

Plan 140064RK

Floor Plan 1

Plan 140064RK

M-F 9am-5pm EST |

1-203-761-8500

Plan 140064RK: Craftsman House Plan with 3 Split Bedrooms and 2-Car Garage - Floor Plan - - Craftsman, Traditional

Plan Details

  • Boasting 1,713 finished sq ft, this charming Craftsman-Traditional House Plan features 3 bedrooms, 2.5 baths, and a 484 sq ft, 2-car garage.
  • A welcoming covered front porch invites you into a thoughtfully designed single-story layout, complete with a convenient mudroom and main-level laundry.
  • The heart of the home offers an integrated living space, perfect for everyday life, complemented by a practical walk-in pantry for culinary enthusiasts.
  • The master suite is privately situated on the first floor, benefiting from a split bedroom layout that ensures separation from the two secondary bedrooms.
  • An inviting covered front porch offers a perfect spot for relaxation and enhances the home's curb appeal.
  • NOTE: Please allow 7 to 10 business days for delivery.

What's Included

  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy Calculations - handled locally when required
IMPORTANT NOTE:  Not all plans come with a lighting layout.  Please contact us to check for availability.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,713 sq. ft.

1st Floor

1,713 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

58' 6"

Max Ridge Height

23' 9"

Garage

Type

Standard

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,713 sq. ft.

1st Floor

1,713 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

58' 6"

Max Ridge Height

23' 9"

Garage

Type

Standard

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
