Plan 14651RK Craftsman House Plan with Angled 2-Car Garage with Bonus Above

Craftsman House Plan with Angled 2-Car Garage with Bonus Above

Plan 14651RK

  • 2,374

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Wide open views greet you as soon as you step through the front door of this exciting Craftsman house plan.
  • The home is filled with custom touches like the built-ins and art niches and best of all, sliding barn doors to the large walk-in pantry off the kitchen.
  • Two unusual islands in the kitchen are bi-level, one with seating for 4.
  • Split bedrooms give the master suite a quiet location off by itself with a lovely sitting area to relax in.
  • Across the house, two family bedrooms share a connected bathroom.
  • Use the study as a fourth bedroom if needed.
  • Related Plan: Flip the master suite to the other side of the home with house plan 14649RK (2,341 sq. ft.).

Each plan includes the following:

Foundation Plan: Complete with dimensions, referenced details, General Notes and Schedules.
Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

IMPORTANT NOTE:  NOT all plans come with a lighting layout.  Please contact us to check for availability.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

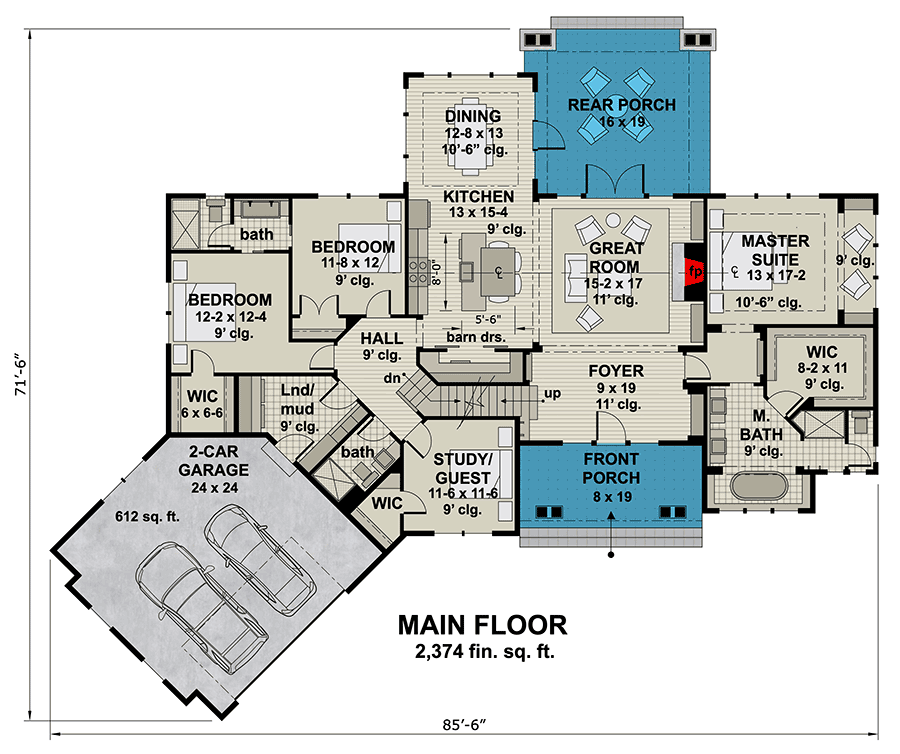

Craftsman House Plan with Angled 2-Car Garage with Bonus Above - 14651RK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

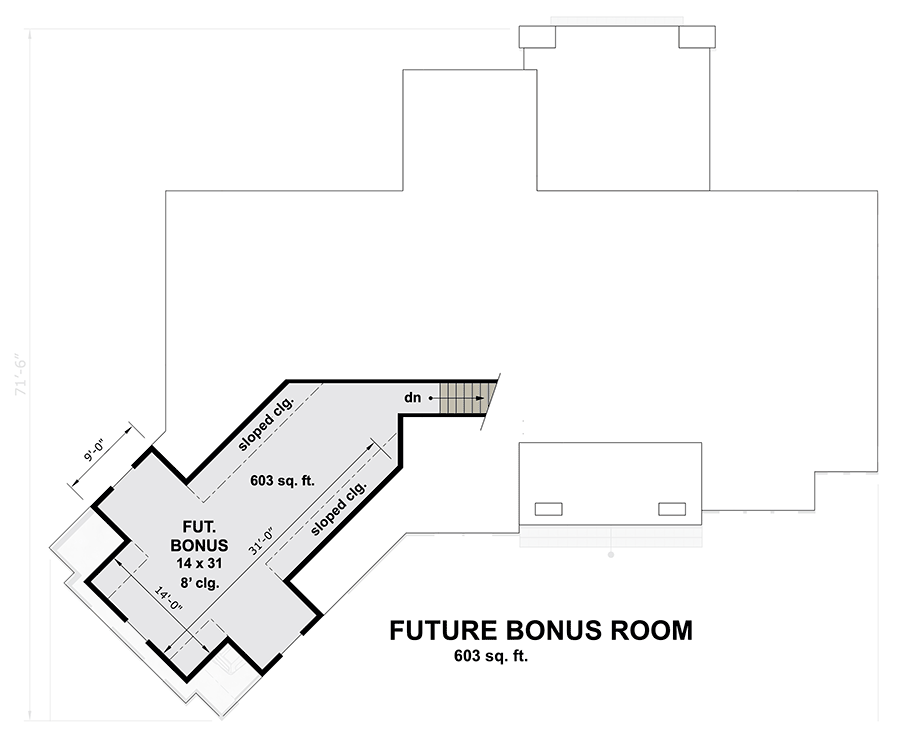

Craftsman House Plan with Angled 2-Car Garage with Bonus Above - 14651RK floor plan - Bonus

Plan details

Craftsman House Plan with Angled 2-Car Garage with Bonus Above

  • 2,374

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $650
  • PDF - Single-Build $2,050
  • 5 Sets $2,250
  • 5 Sets + PDF $2,350
  • 8 Sets $2,350
  • CAD + PDF - Single-Build $2,700
  • View all purchase option online

About This Plan

  • Wide open views greet you as soon as you step through the front door of this exciting Craftsman house plan.
  • The home is filled with custom touches like the built-ins and art niches and best of all, sliding barn doors to the large walk-in pantry off the kitchen.
  • Two unusual islands in the kitchen are bi-level, one with seating for 4.
  • Split bedrooms give the master suite a quiet location off by itself with a lovely sitting area to relax in.
  • Across the house, two family bedrooms share a connected bathroom.
  • Use the study as a fourth bedroom if needed.
  • Related Plan: Flip the master suite to the other side of the home with house plan 14649RK (2,341 sq. ft.).

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,374 sq. ft.
  • 1st Floor: 2,374 sq. ft.
  • Porch, Rear: 304 sq. ft.
  • Porch, Front: 152 sq. ft.
  • Bonus: 603 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 85' 7"
  • Depth: 71' 5"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 603 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
