Craftsman House Plan with Angled Bedrooms and a 3-Car Angled Garage

Plan 444205GDN

  • 3,188

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

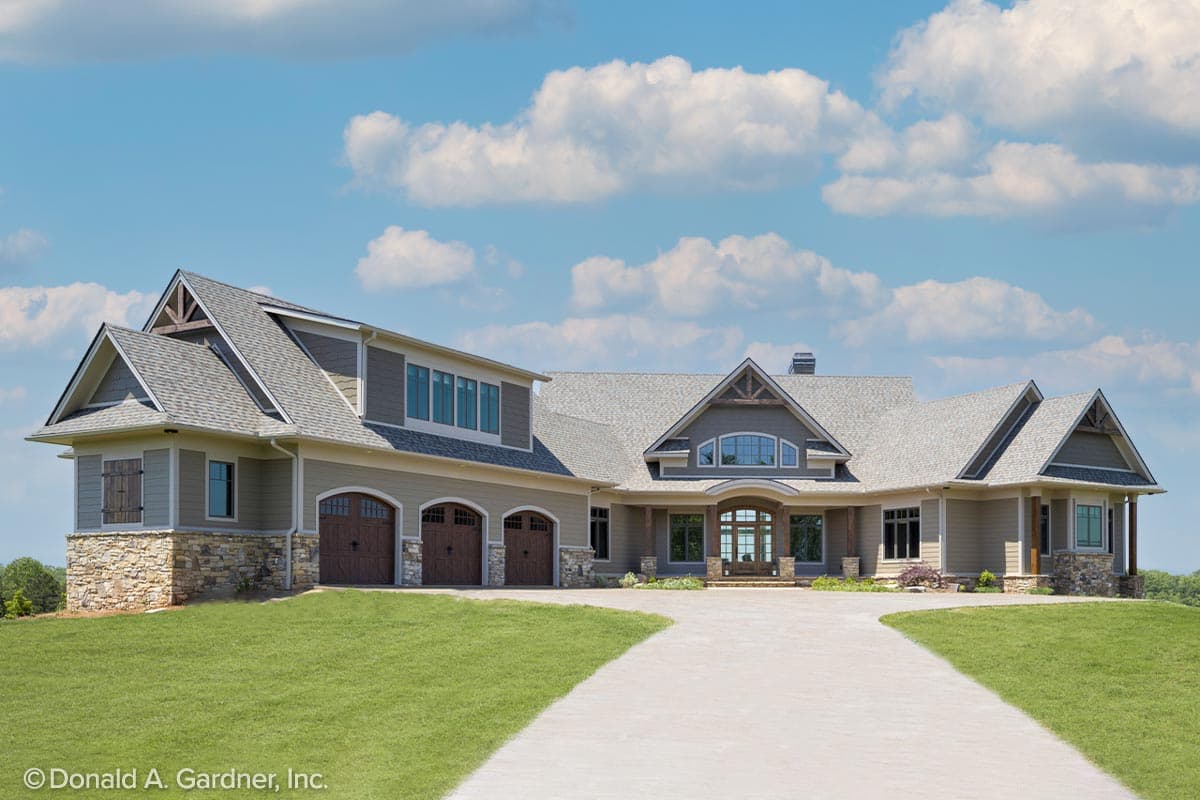

  • This stately Craftsman house plan has classic wood detailing and deep eaves. A 3-car garage comes off at an angle on one side and a bedroom wing comes off at an angle on the other side (the master bedroom also comes off at an angle at the back).

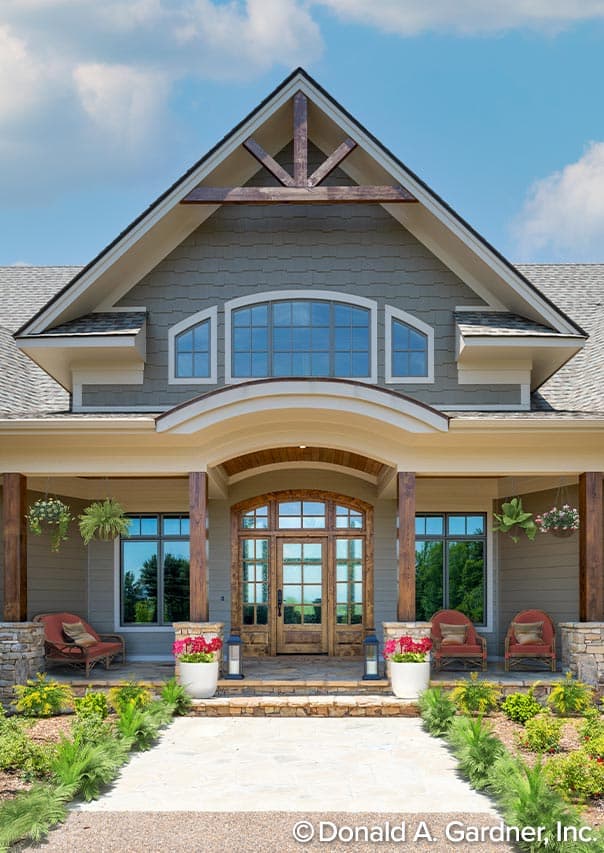

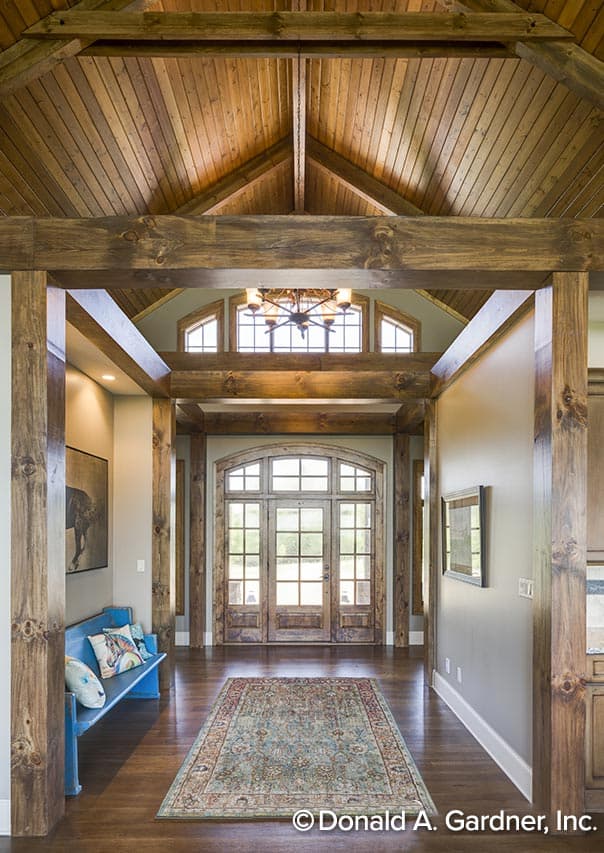

  • Step in off the front porch (27'5" wide and 7'10" deep) and find yourself in a foyer with a 25'1" cathedral ceiling.

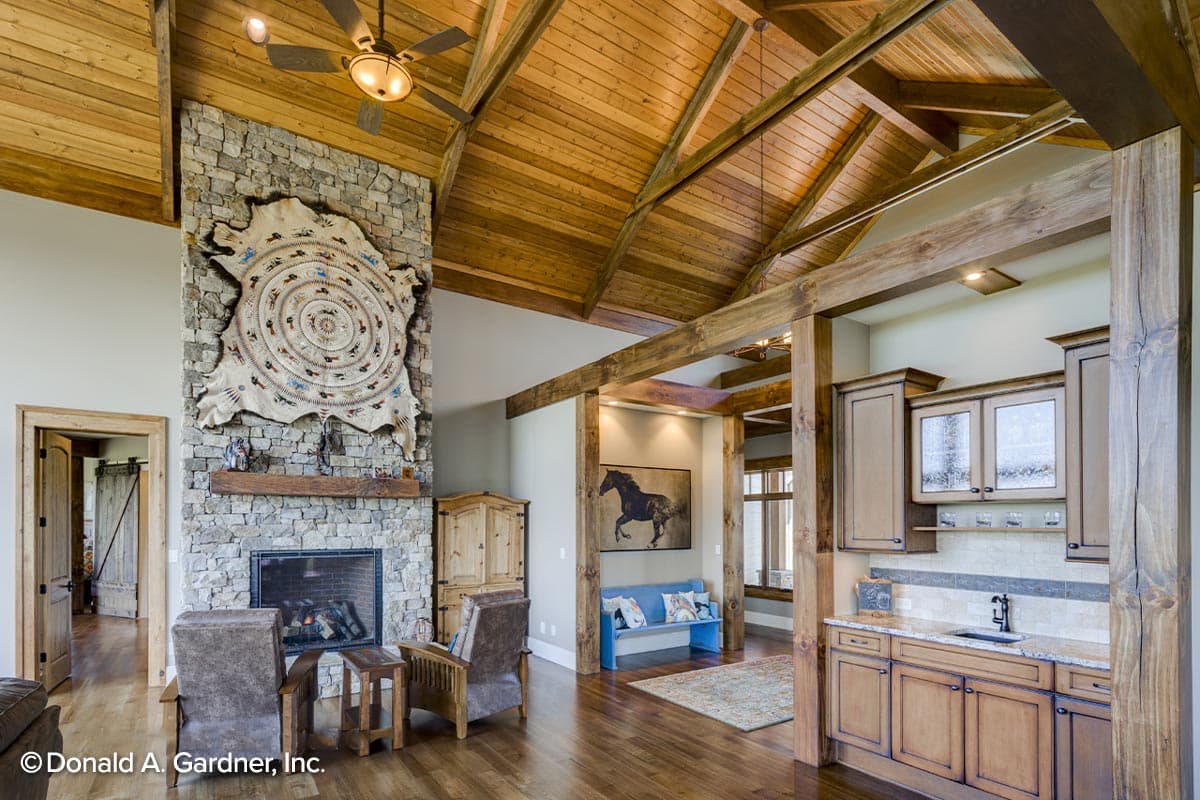

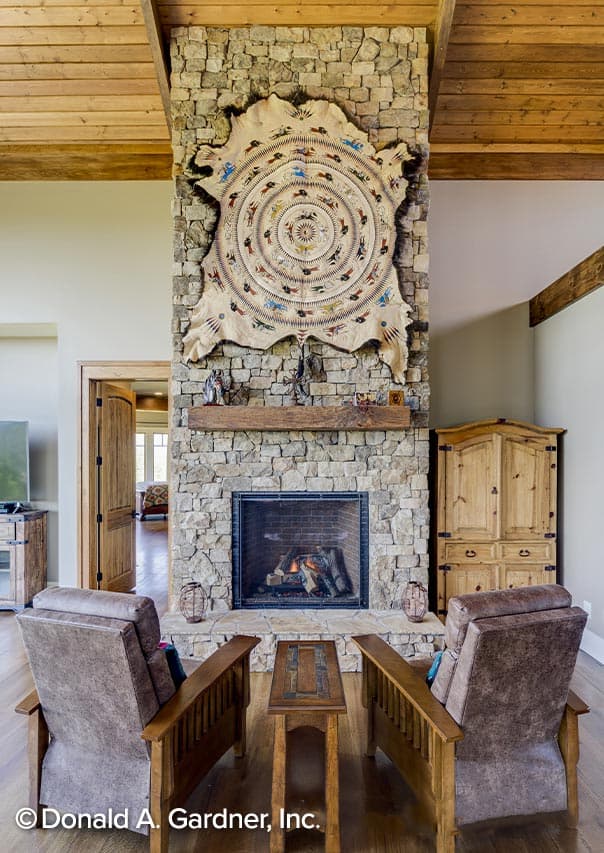

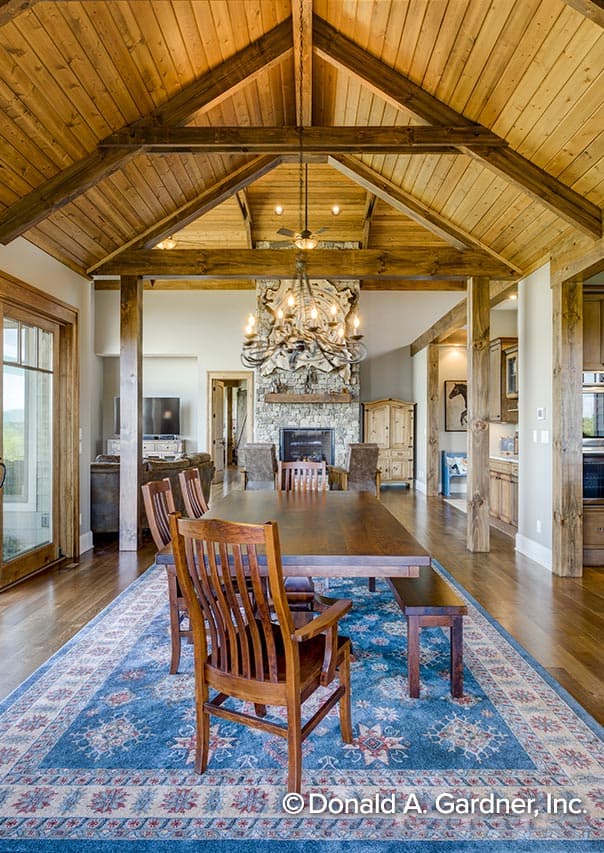

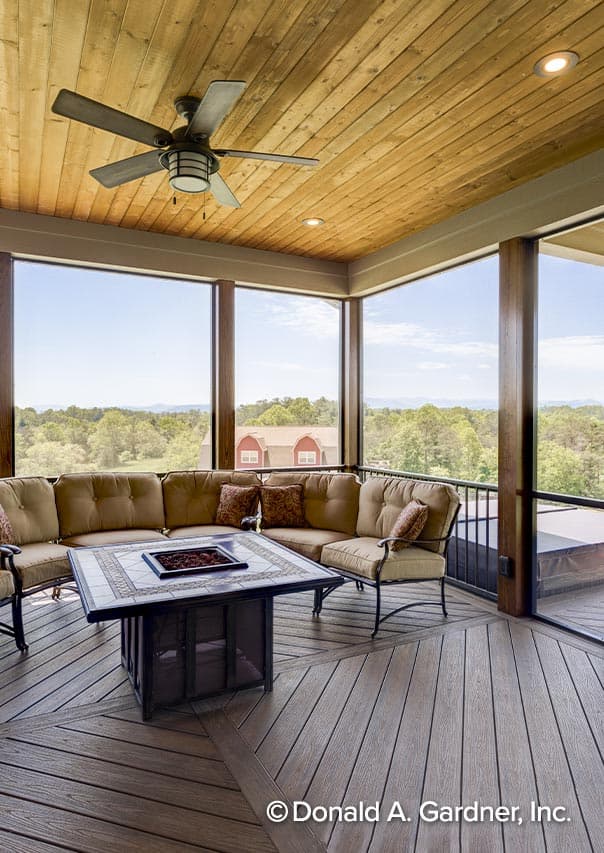

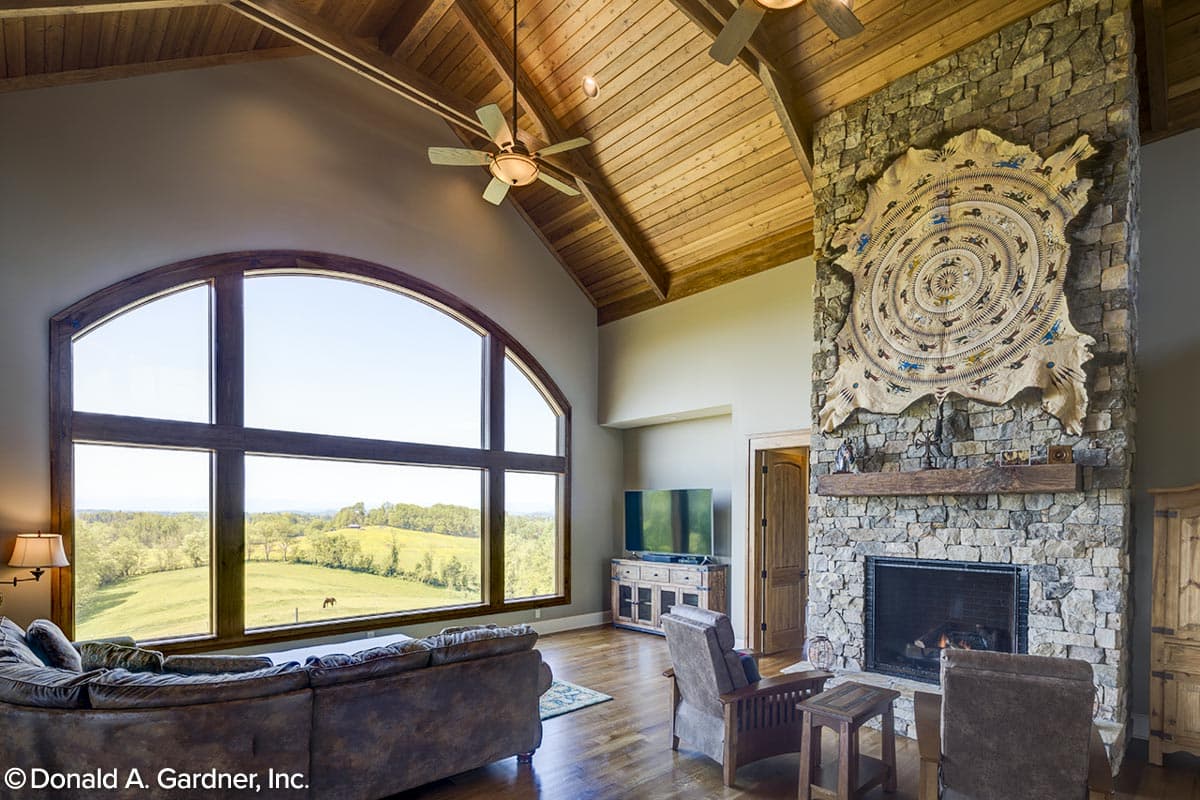

  • You are lead into the great room with views to the back. This space has a 25'1" cathedral ceiling with exposed beams. It is open to the dining room which has access to the back porch as well as the screened porch with fireplace.

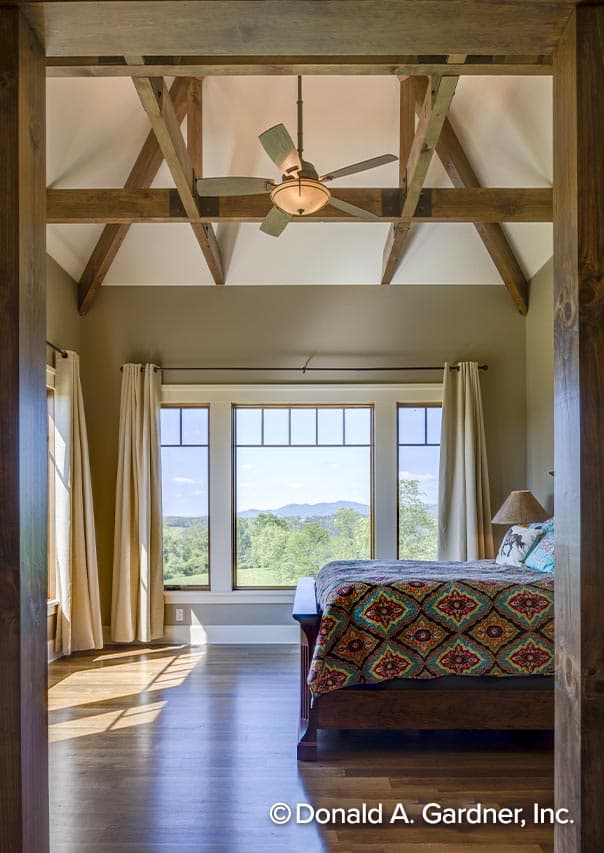

  • There is a sitting room in front of the master bedroom which has 23'4" cathedral ceiling and a massive walk-in closet.
  • Stairs by the garage entry take you to a 615 square foot bonus room above the garage.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

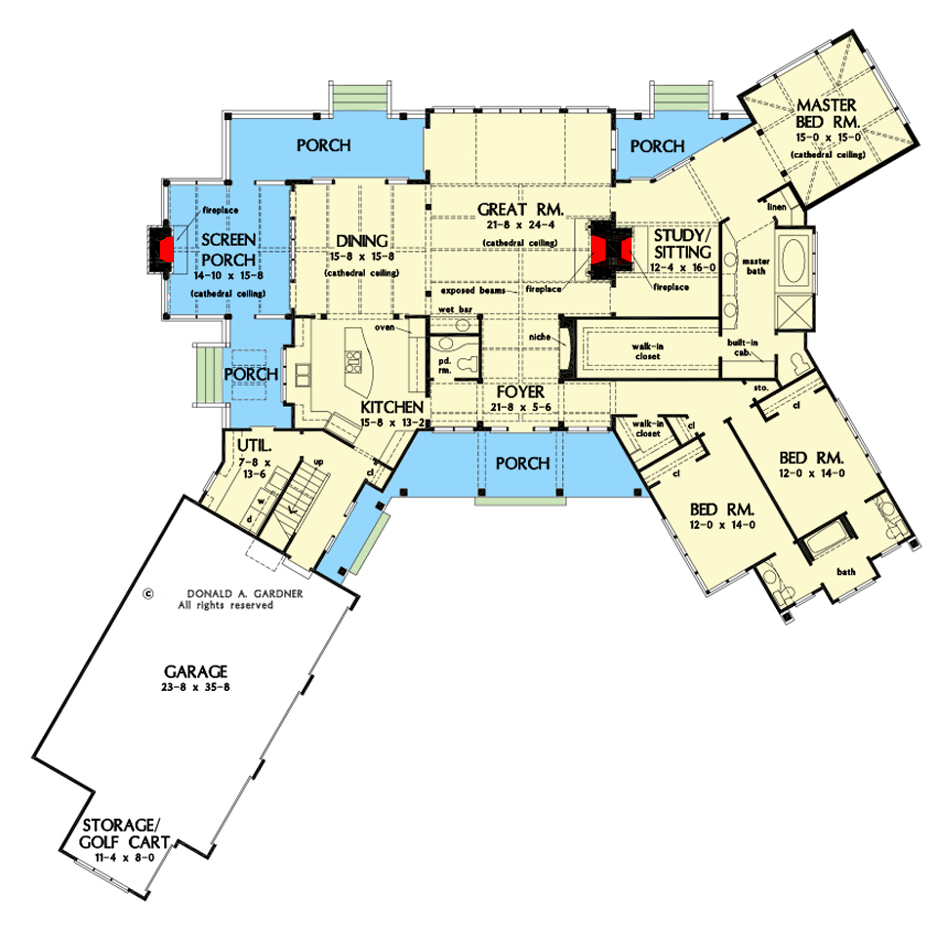

Craftsman House Plan with Angled Bedrooms and a 3-Car Angled Garage - 444205GDN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

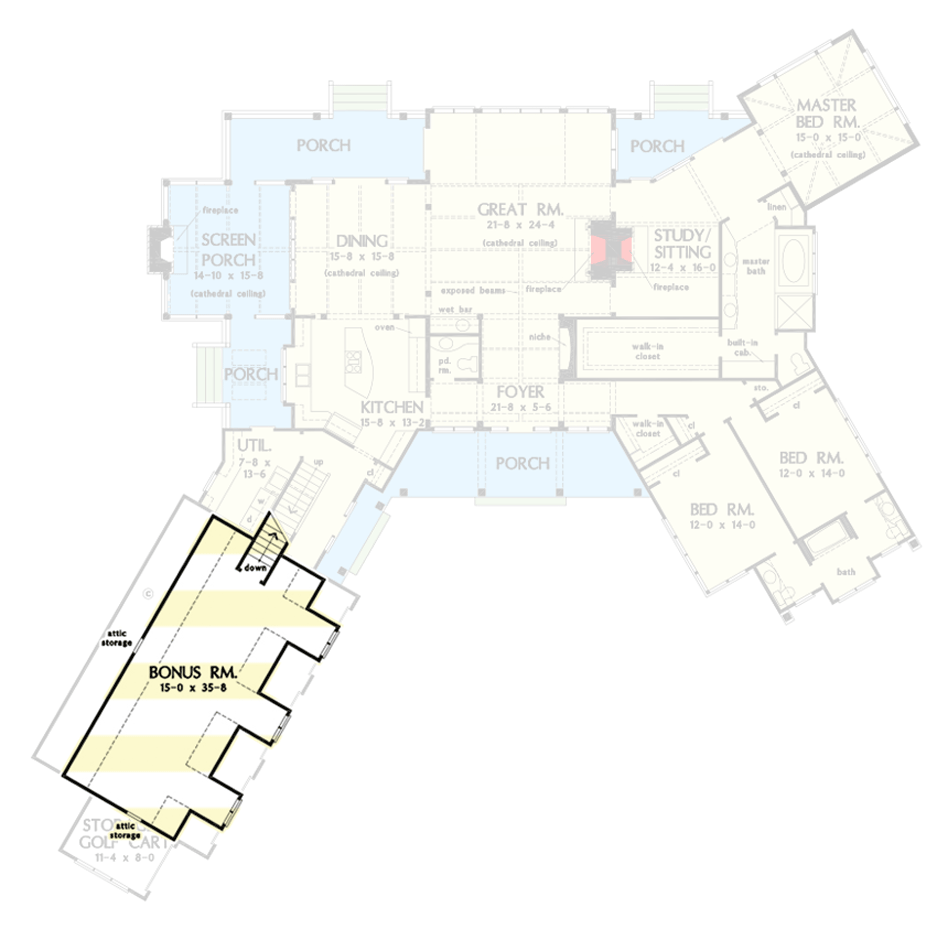

Craftsman House Plan with Angled Bedrooms and a 3-Car Angled Garage - 444205GDN floor plan - Bonus Room

Basement Stair Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

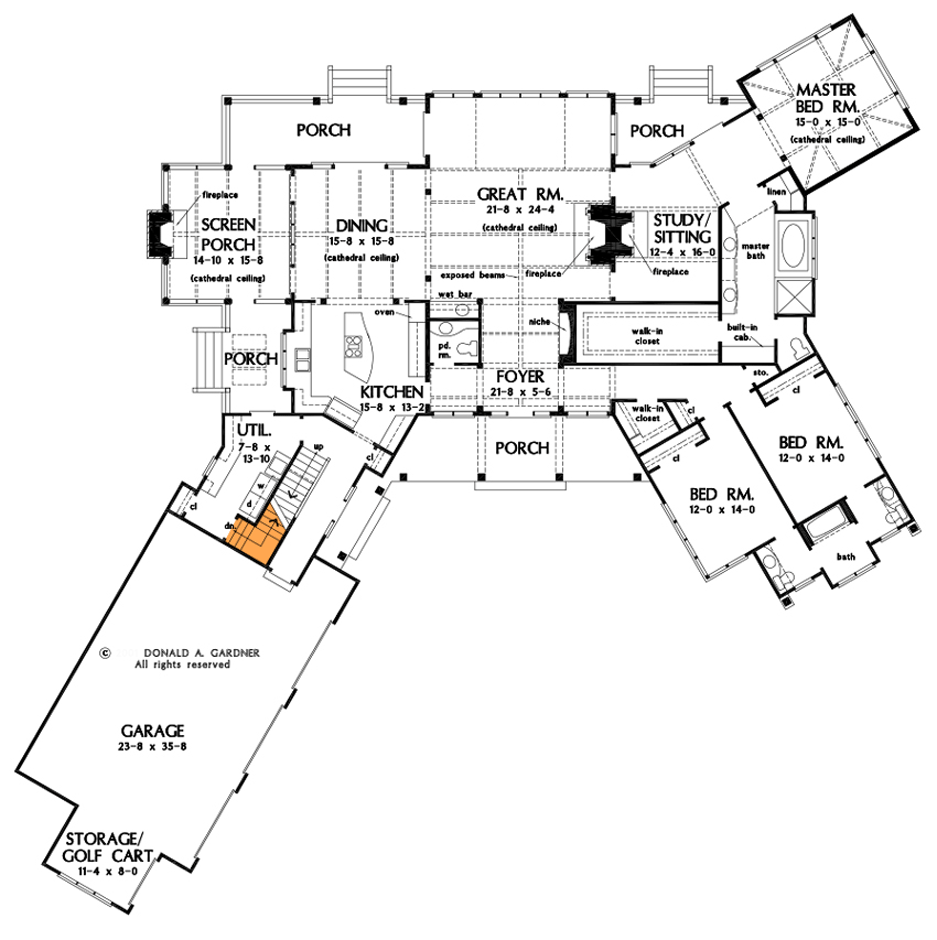

Craftsman House Plan with Angled Bedrooms and a 3-Car Angled Garage - 444205GDN floor plan - Basement Stair Location

Plan details

Craftsman House Plan with Angled Bedrooms and a 3-Car Angled Garage

  • 3,188

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $1,455
  • PDF - Single-Build $1,655
  • 5 Sets + PDF $1,905
  • CAD Unlimited + PDF $3,310
  • View all purchase option online

About This Plan

  • This stately Craftsman house plan has classic wood detailing and deep eaves. A 3-car garage comes off at an angle on one side and a bedroom wing comes off at an angle on the other side (the master bedroom also comes off at an angle at the back).
  • Step in off the front porch (27'5" wide and 7'10" deep) and find yourself in a foyer with a 25'1" cathedral ceiling.
  • You are lead into the great room with views to the back. This space has a 25'1" cathedral ceiling with exposed beams. It is open to the dining room which has access to the back porch as well as the screened porch with fireplace.
  • There is a sitting room in front of the master bedroom which has 23'4" cathedral ceiling and a massive walk-in closet.
  • Stairs by the garage entry take you to a 615 square foot bonus room above the garage.

Floor Plans

  • Main Level

  • Bonus Room

  • Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,188 sq. ft.
  • 1st Floor: 3,188 sq. ft.
  • Porch, Combined: 654 sq. ft.
  • Bonus: 615 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 106' 4"
  • Depth: 104' 1"
  • Max ridge height: 31' 8"

Garage

  • Type: Attached
  • Area: 975 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 13 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
