Plan 280010JWD
Craftsman House Plan with Bonus Room Included
Heated S.F.
2,570
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • Traditional in style, this Craftsman house plan comes adorned with craftsman wood trim and shake siding.
  • The entry foyer rises up two stories with a quiet den off to the left.
  • An L-shaped great room area keeps the sight lines open between the kitchen, dining room, and vaulted great room with its grand fireplace.
  • A covered deck lets you grill outside even in the rain.
  • The first floor master suite is a wonderful convenience, while two additional bedrooms are are located on the second floor, along with bonus space that is included in the total living area.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman House Plan with Bonus Room Included

  • 2,570

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

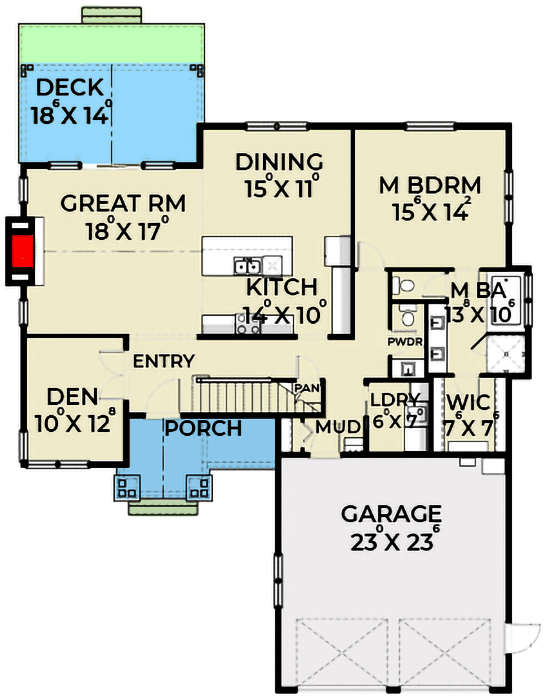

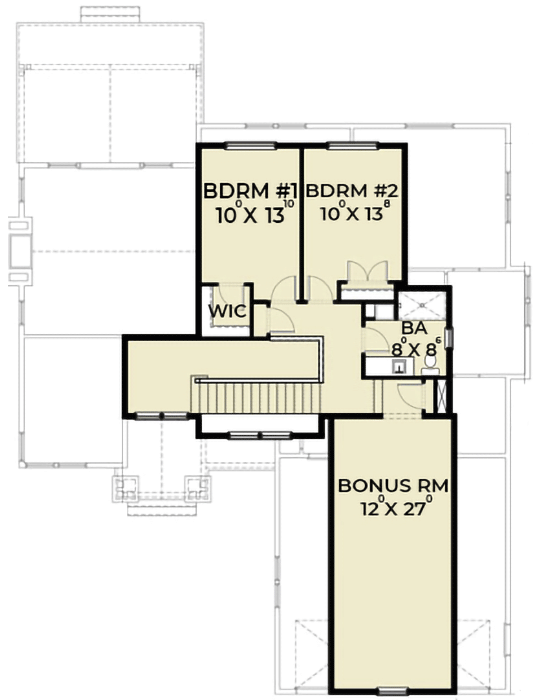

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,570 sq. ft.
  • 1st Floor: 1,612 sq. ft.
  • 2nd Floor: 594 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 58' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 587 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
