Plan 70569MK

Craftsman House Plan With Courtyard Garage and Rustic Appeal - 2464 Sq Ft

Heated S.F.
2,464
Beds
4
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 70569MK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 70569MK

M-F 9am-5pm EST |

1-203-761-8500

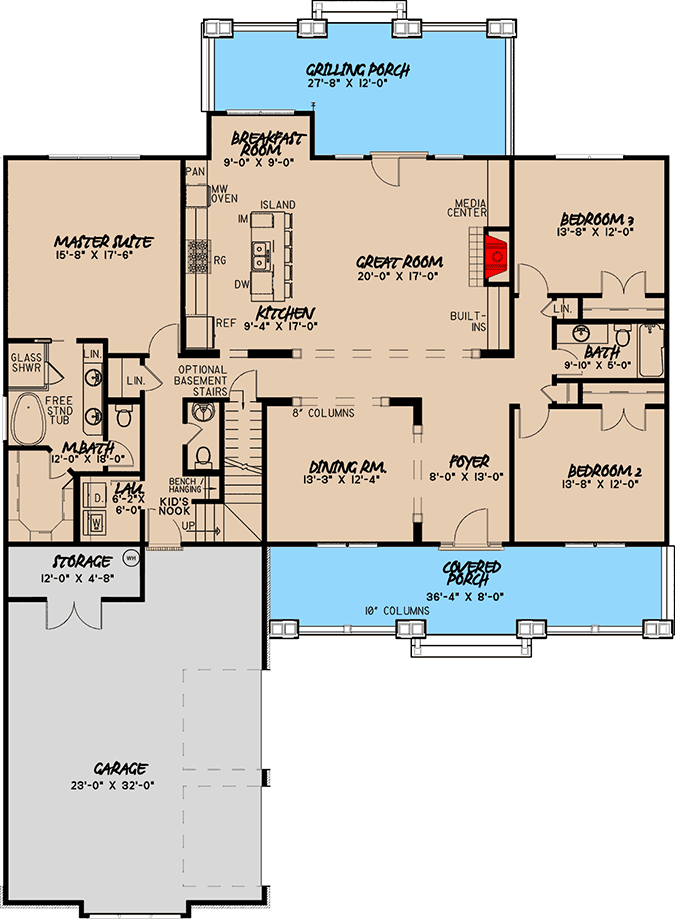

Main Level

Plan 70569MK: Craftsman House Plan With Courtyard Garage and Rustic Appeal - 2464 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Farmhouse, Traditional

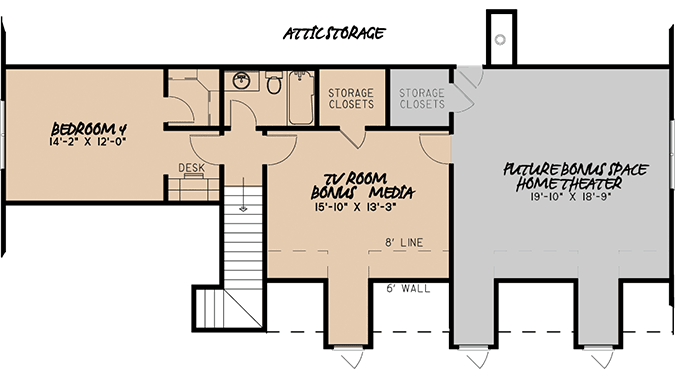

2nd Floor

Plan 70569MK: Craftsman House Plan With Courtyard Garage and Rustic Appeal - 2464 Sq Ft - Floor Plan - 2nd Floor - Country, Craftsman, Farmhouse, Traditional

Plan Details

  • A 2-car courtyard entry garage and a front porch with three matching dormers above greet you to this 3-bed Craftsman house plan with rustic appeal.
  • As you step into the foyer you make your way into either the dining room or the great room which is open to the kitchen and breakfast room.
  • A split bedroom design allows the master suite to have total privacy from Bedrooms 2 and 3. The spacious bathroom is complete with a freestanding tub and separate glass shower as well as a large walk-in closet.
  • The rear grilling porch has plenty of space for outdoor entertaining.
  • Upstairs you'll find a 4th bedroom with full bath, a TV room and a separate bonus space.
  • Related Plans: Get alternate versions with house plans 70794MK (2,819 sq. ft.) and 59379ND (2,445 sq. ft.).

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,464 sq. ft.

1st Floor

2,148 sq. ft.

2nd Floor

316 sq. ft.

Bonus

758 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

80' 8"

Max Ridge Height

26' 0"

Garage

Type

Attached

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Traditional

Special Features

Bedrooms - Split

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Optionally Finished Bonus Room

Plan Collections

Sloping Lot
