Plan 20147GA

Craftsman House Plan with Detached Guest Nest

Name: Plan 20147GA: Craftsman House Plan with Detached Guest Nest
Brand: Architectural Designs
SKU: 20147GA
Price: 935.64 USD
Availability: InStock

Heated S.F.

1,671

Beds

3 - 5

Baths

2 - 3

Stories

Cars

Floor Plan

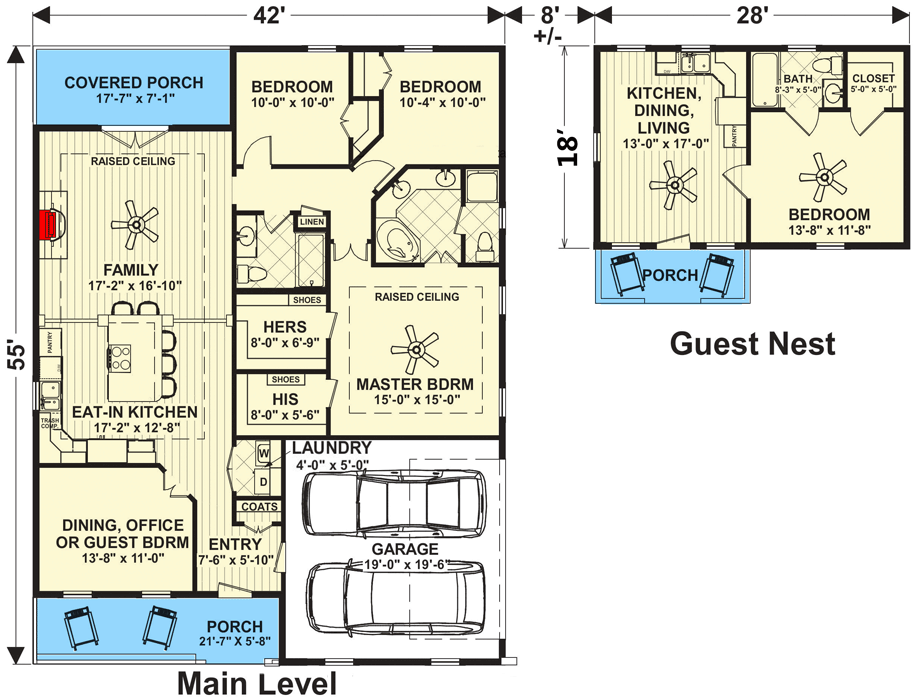

Main Level

Plan Details

This flexible Craftsman house plan comes with the option of a detached guest nest that is ideal as in-law accommodations.
The main house offers three bedrooms and a formal dining room or office or the option for four bedrooms.
In the informal main living area, the kitchen is combined with the family room and you can seat five people at the big kitchen island.
The master suite features separate his and her walk-in closets, each with built-in shoe racks or shelves.
The optional guest nest has a porch of its own and a walk-in closet plus a full kitchen.
Related Plan: Don't need a guest nest? See house plan 20148GA that comes in at 1,499 sq. ft.

What's Included

Digital exterior rendering cover page
Exterior elevation page
Main floor plan page with electrical, 3-D floor plan, and window and door schedule
Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
Cross sections and interior elevation page
Roof framing plan with 3-D roof framing schematic
IRC code specifications and methodologies
General construction details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
