Plan 95034RW Craftsman House Plan with Dramatic Views In Back

3,367 3 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman House Plan with Dramatic Views In Back

Plan 95034RW

  • 3,367

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

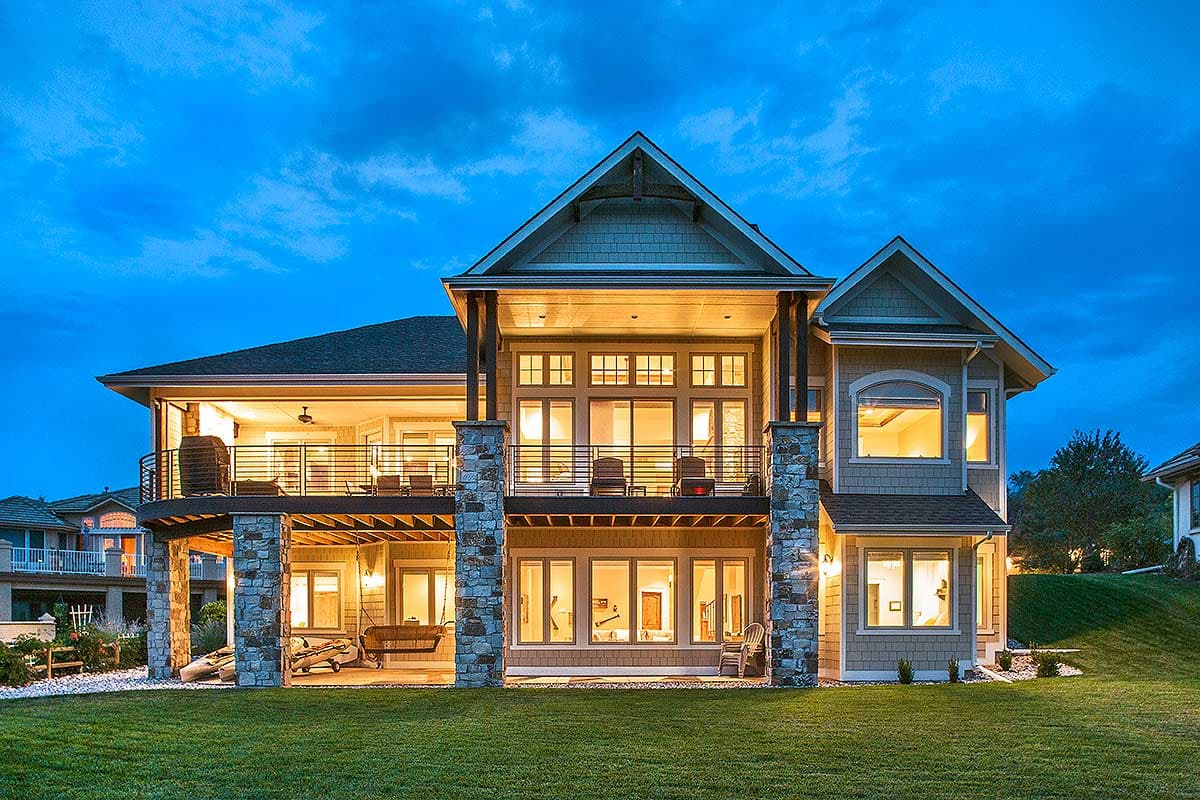

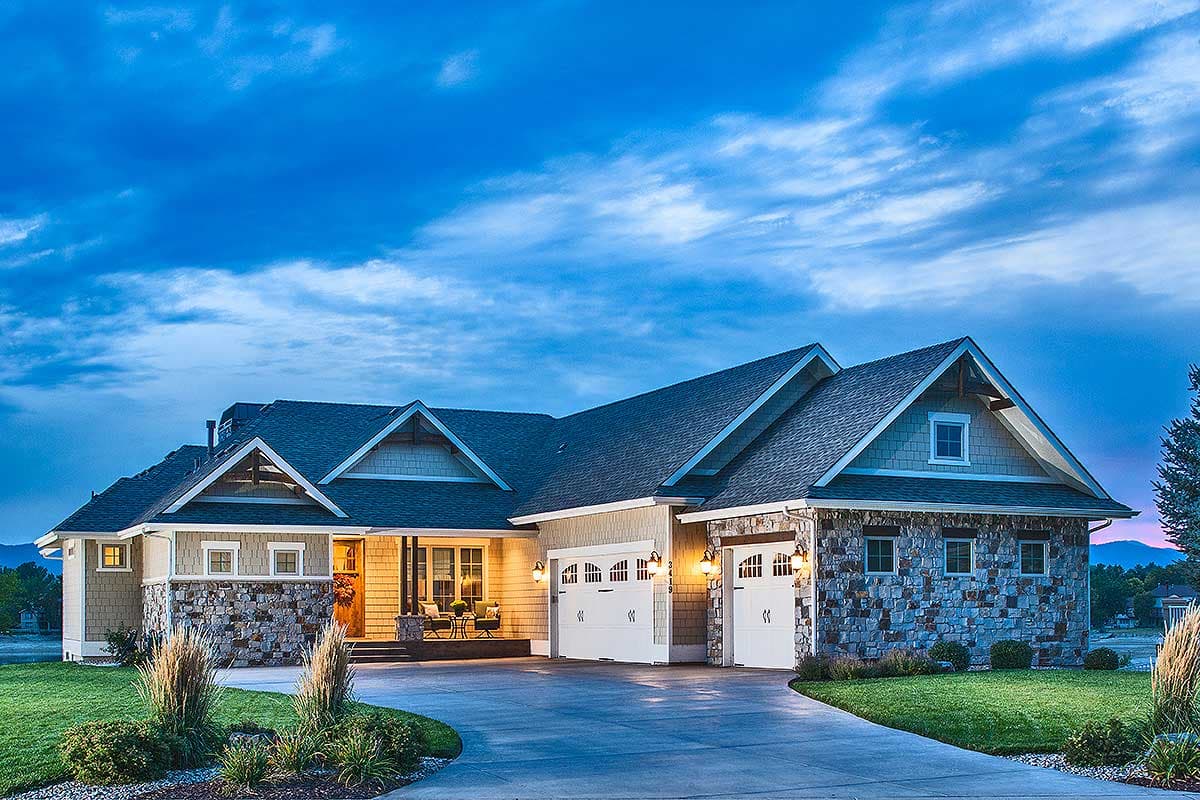

  • While this Craftsman house plan looks like a ranch from the front, the home comes with a finished lower level and dramatic walls of glass along the back.

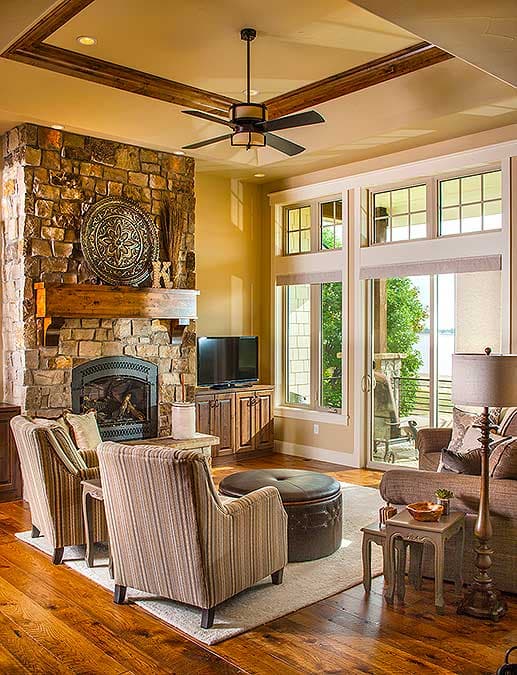

  • Transom windows sit on top of the sliding glass doors in the great room, adding light and even better views.

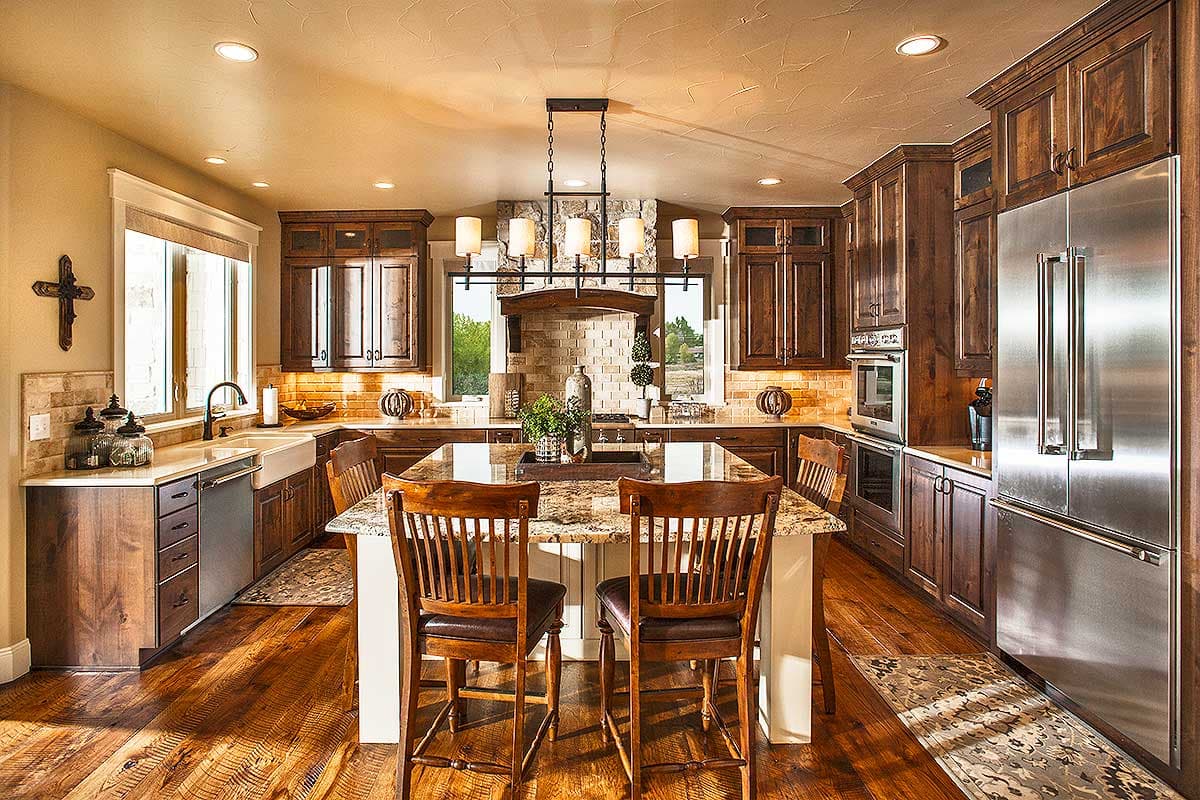

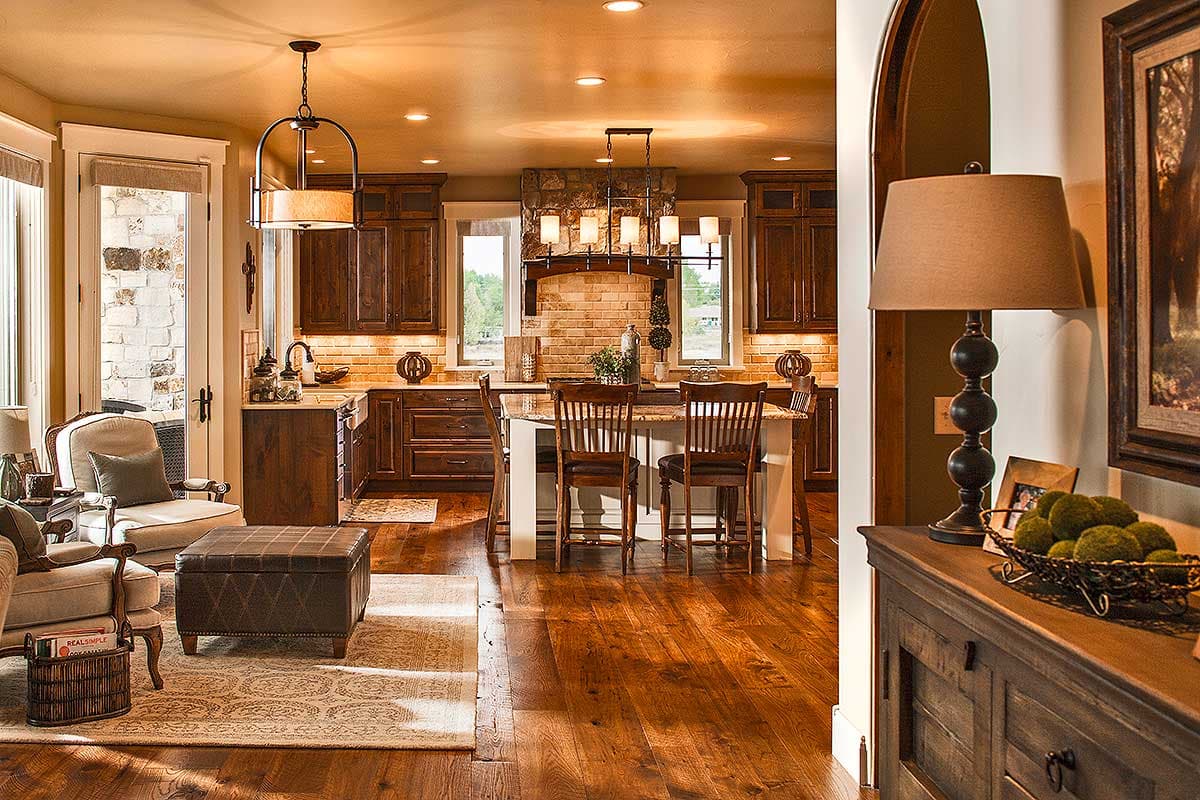

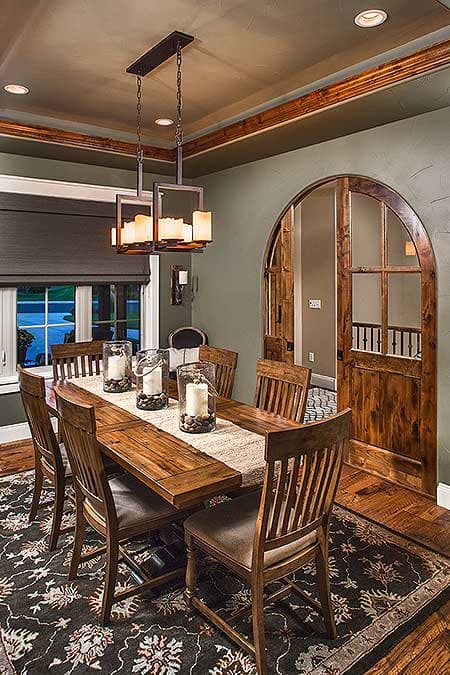

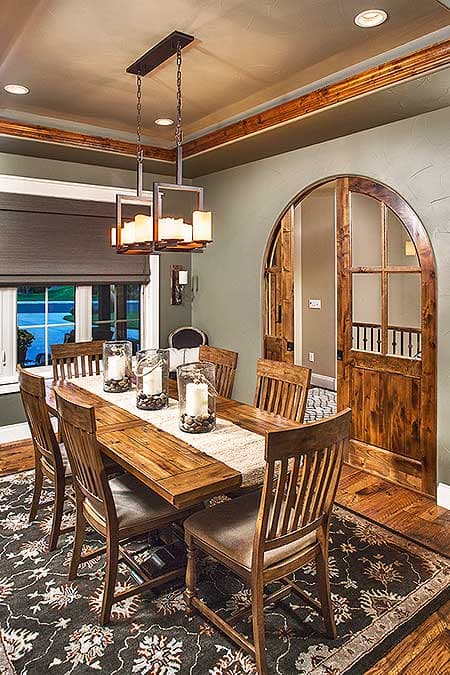

  • The home comes with both a formal dining room that can be closed off with pocket doors, and a casual eating nook by the kitchen.

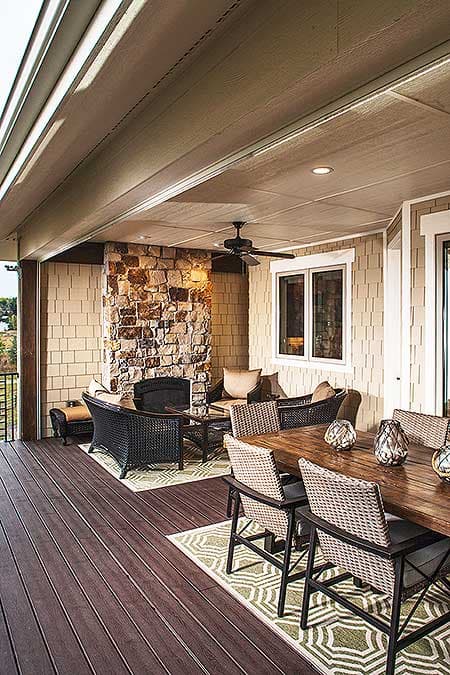

  • You can also eat outside on the huge open deck or the covered deck.

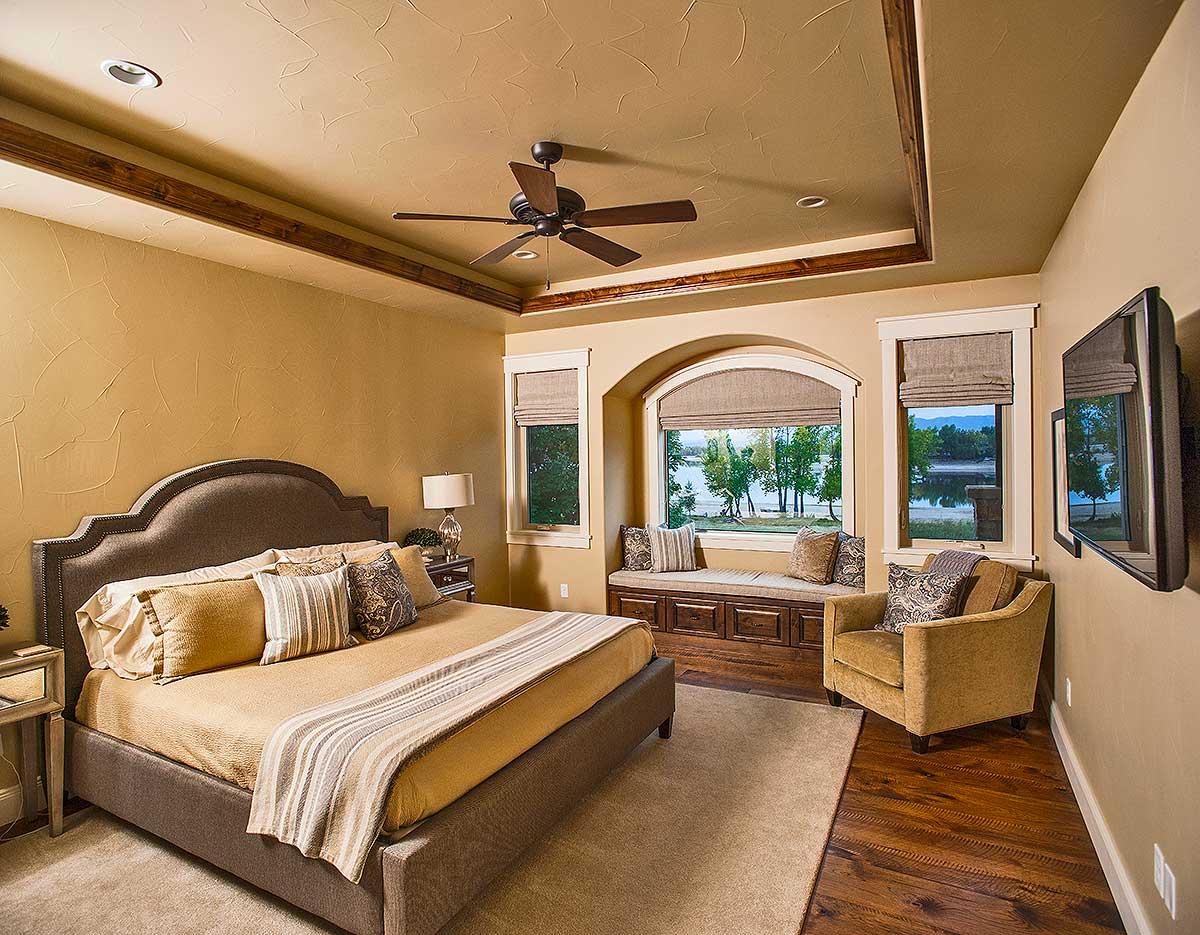

  • The master bedroom is the only one on this floor and it boasts a generous walk-in closet and lots of counter space in the bathroom.

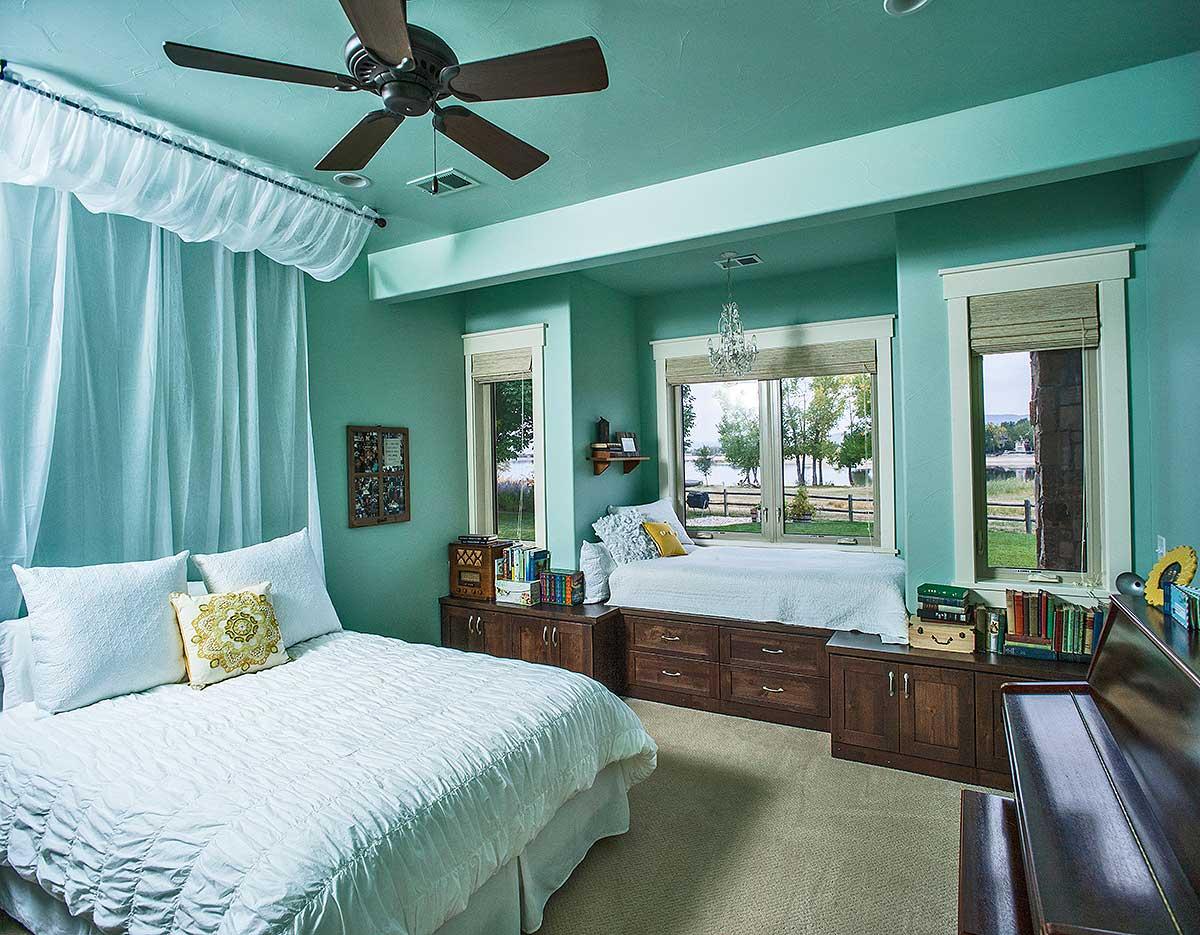

  • On the lower level, two more bedrooms are joined by a home office and an enormous rec area plus lots of unfinished storage.
  • The garage has an 18'-wide bay and a 9'-wide one and gives you 895 square feet of storage.

  • Cover Page

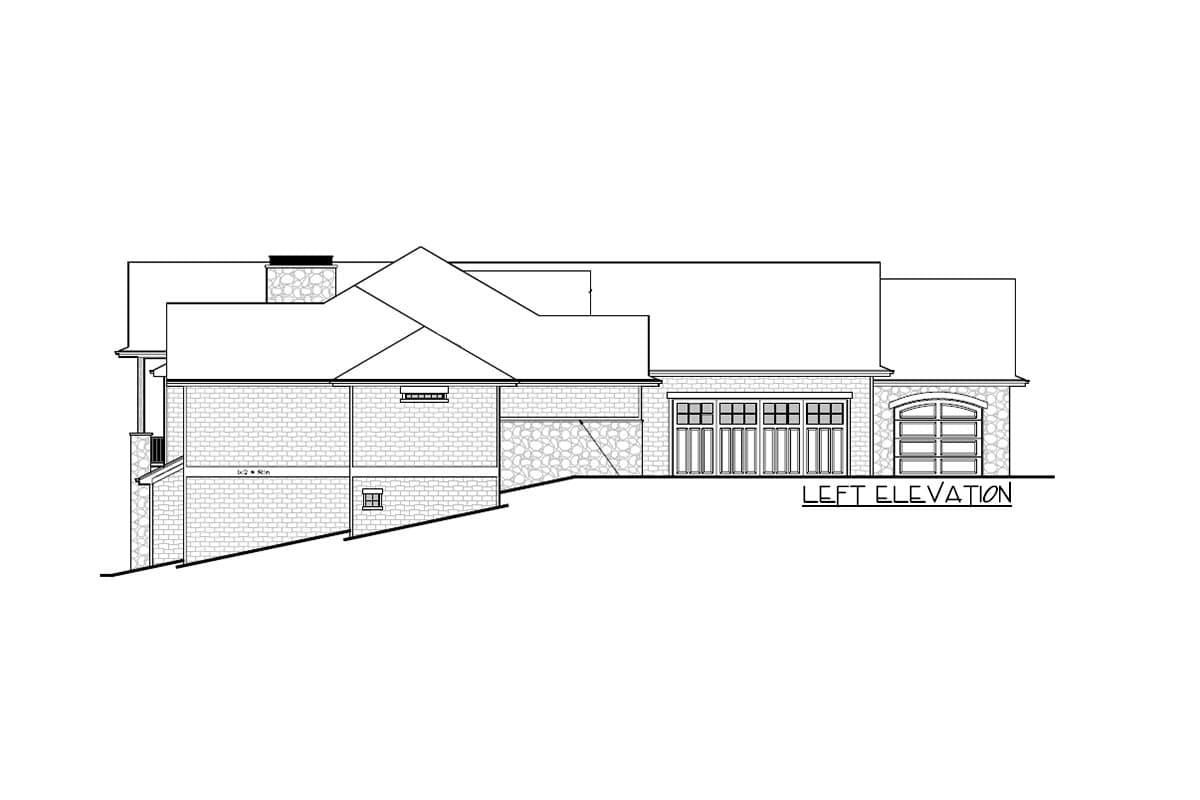

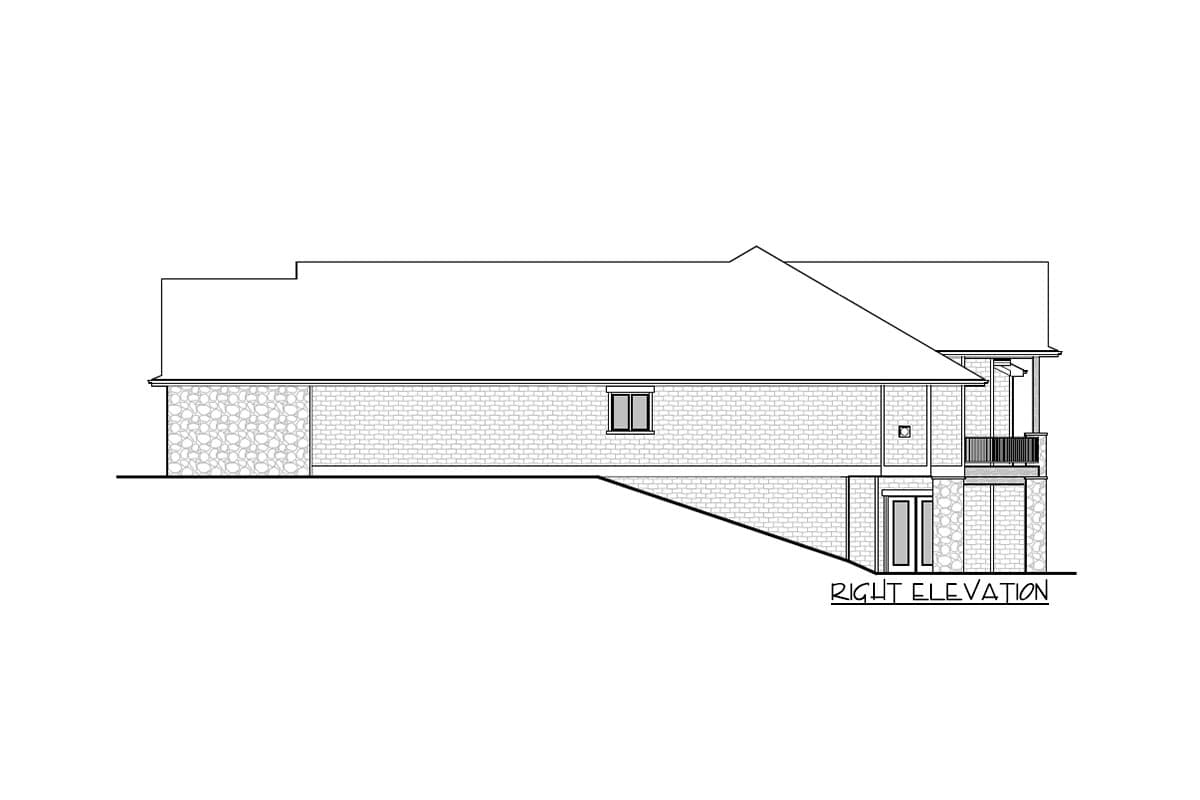

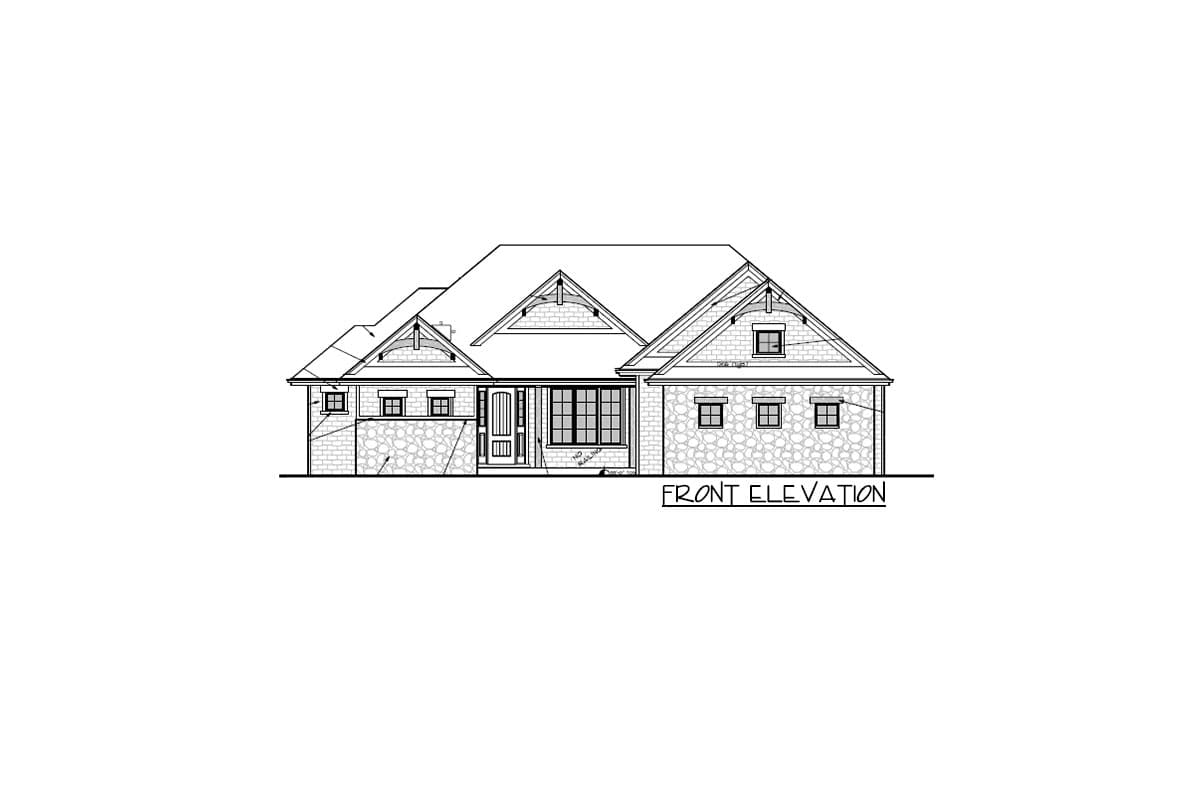

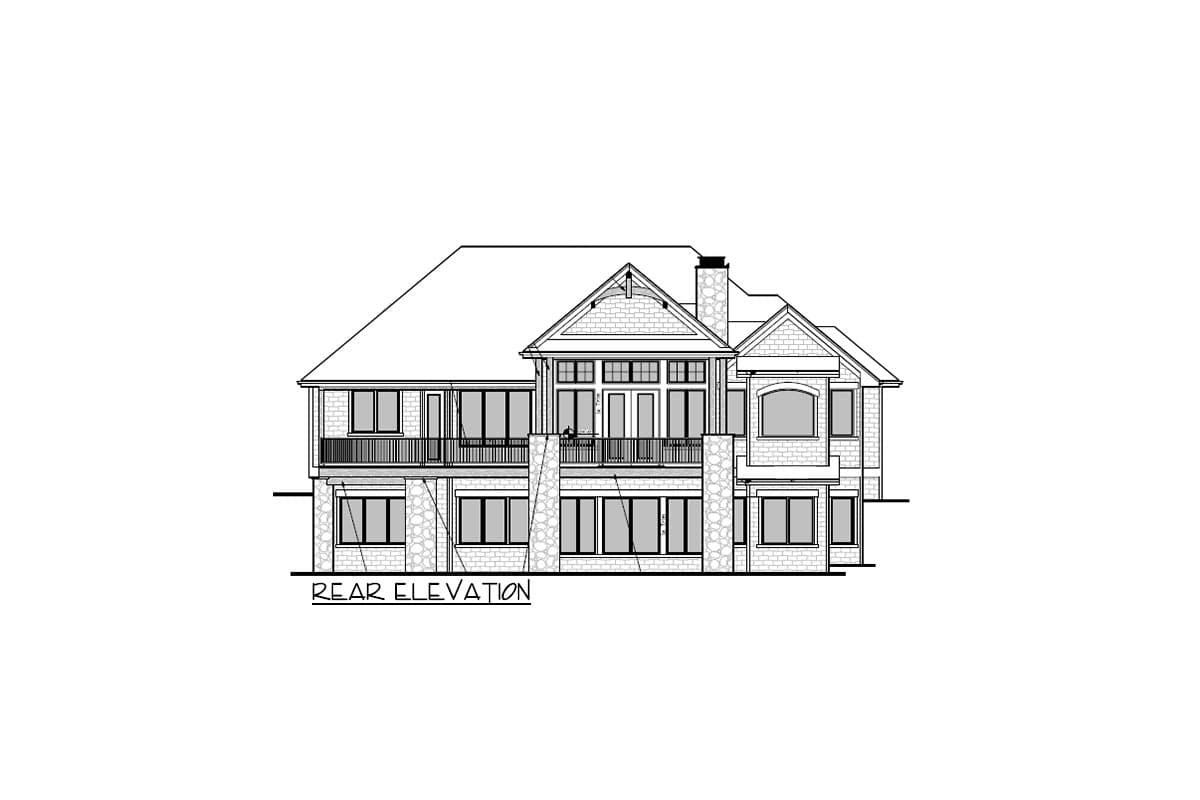

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

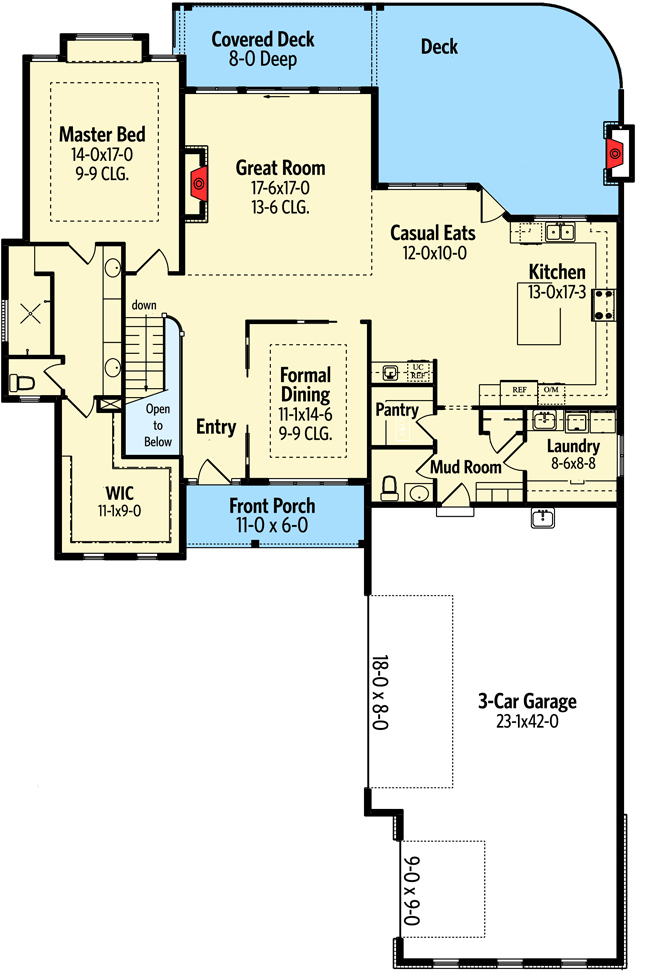

Craftsman House Plan with Dramatic Views In Back - 95034RW floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

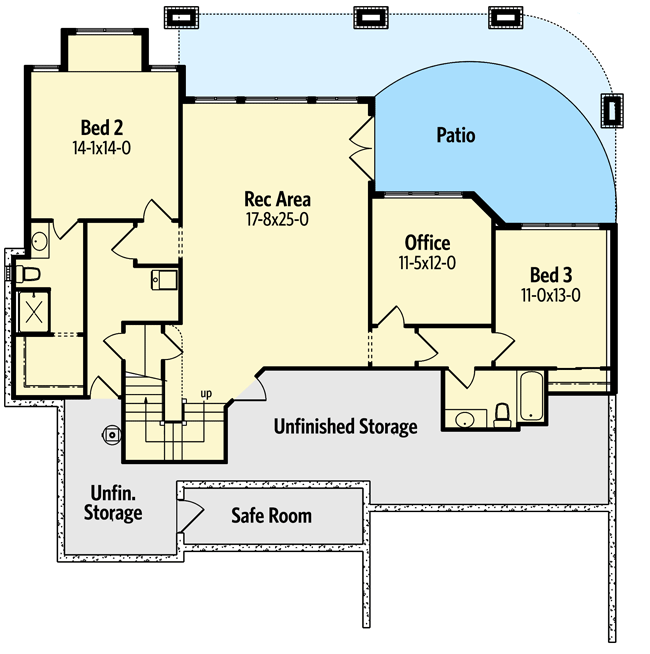

Craftsman House Plan with Dramatic Views In Back - 95034RW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,367 sq. ft.
  • Lower Level: 1,330 sq. ft.
  • 1st Floor: 2,037 sq. ft.
  • Porch, Combined: 957 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 98' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Attached
  • Area: 895 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Craftsman House Plan with Dramatic Views In Back

  • 3,367

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,100
  • CAD + PDF - Single Build $3,600
  • View all purchase option online

About This Plan

  • While this Craftsman house plan looks like a ranch from the front, the home comes with a finished lower level and dramatic walls of glass along the back.
  • Transom windows sit on top of the sliding glass doors in the great room, adding light and even better views.
  • The home comes with both a formal dining room that can be closed off with pocket doors, and a casual eating nook by the kitchen.
  • You can also eat outside on the huge open deck or the covered deck.
  • The master bedroom is the only one on this floor and it boasts a generous walk-in closet and lots of counter space in the bathroom.
  • On the lower level, two more bedrooms are joined by a home office and an enormous rec area plus lots of unfinished storage.
  • The garage has an 18'-wide bay and a 9'-wide one and gives you 895 square feet of storage.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,367 sq. ft.
  • Lower Level: 1,330 sq. ft.
  • 1st Floor: 2,037 sq. ft.
  • Porch, Combined: 957 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 98' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Attached
  • Area: 895 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
Plan 95034RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95034RW
|
Need Help? 800-854-7852
|
Plan 95034RW
