Plan 72890DA Craftsman House Plan with Gorgeous Vaulted Ceilings

4,350 4 4.5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman House Plan with Gorgeous Vaulted Ceilings

Plan 72890DA

  • 4,350

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A vaulted covered front porch  sets the stage for all the vaulted ceilings to be found within this striking house plan.
  • Decorative wood trim front and back is the icing on the cake.
  • The huge sunken great room has a wall of glass all across the back overlooking the deck beyond.
  • To the right, the vaulted owner's suite has a private patio where you can escape at the end of the day.
  • Both the kitchen and the breakfast nook form one large space with a double tray ceiling in the nook.
  • You can dine outside in comfort in the screened porch in back.
  • There are 3 bedrooms on the main floor and a guest bedroom upstairs along with a huge rec room for everyone to enjoy.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

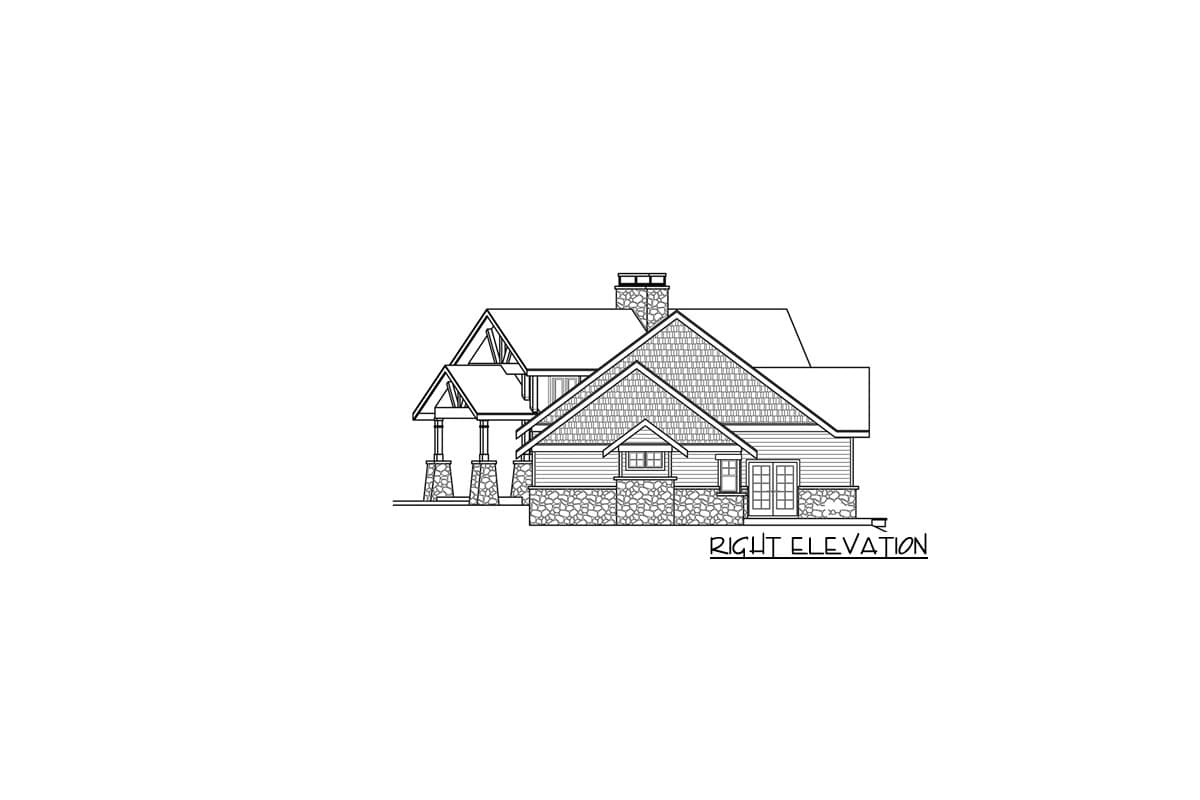

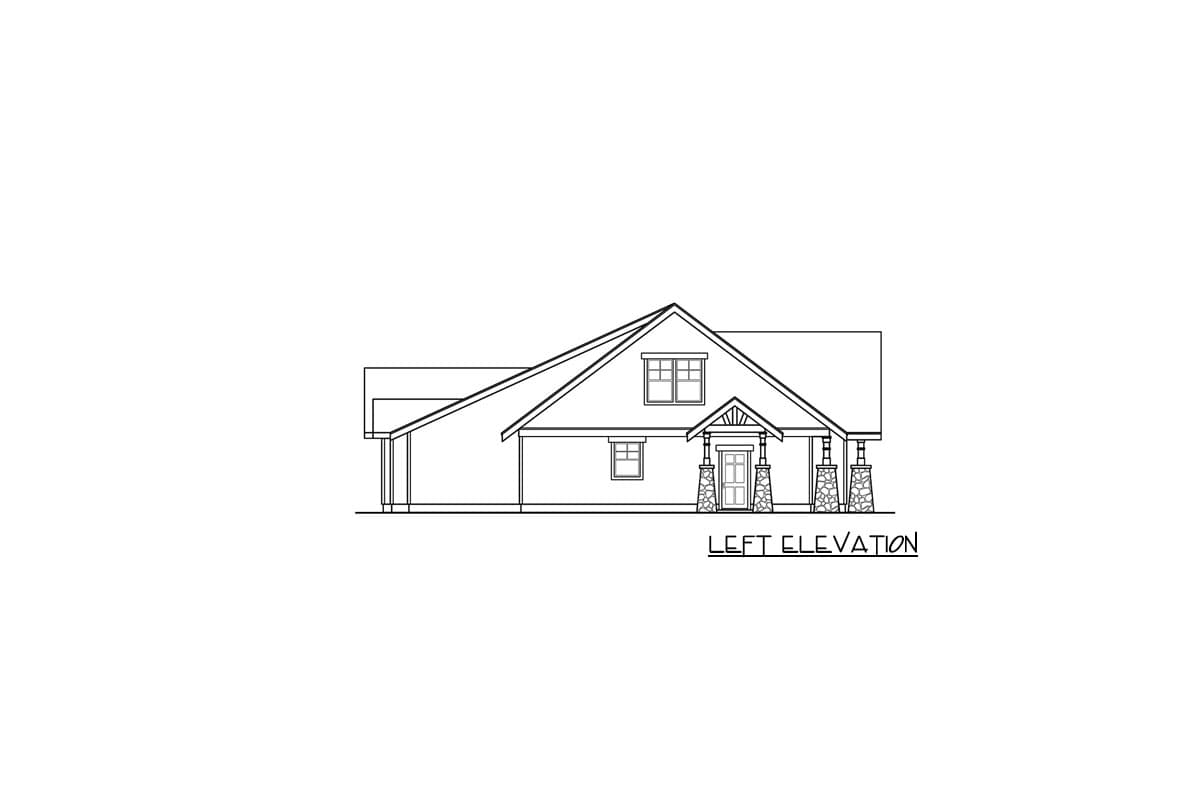

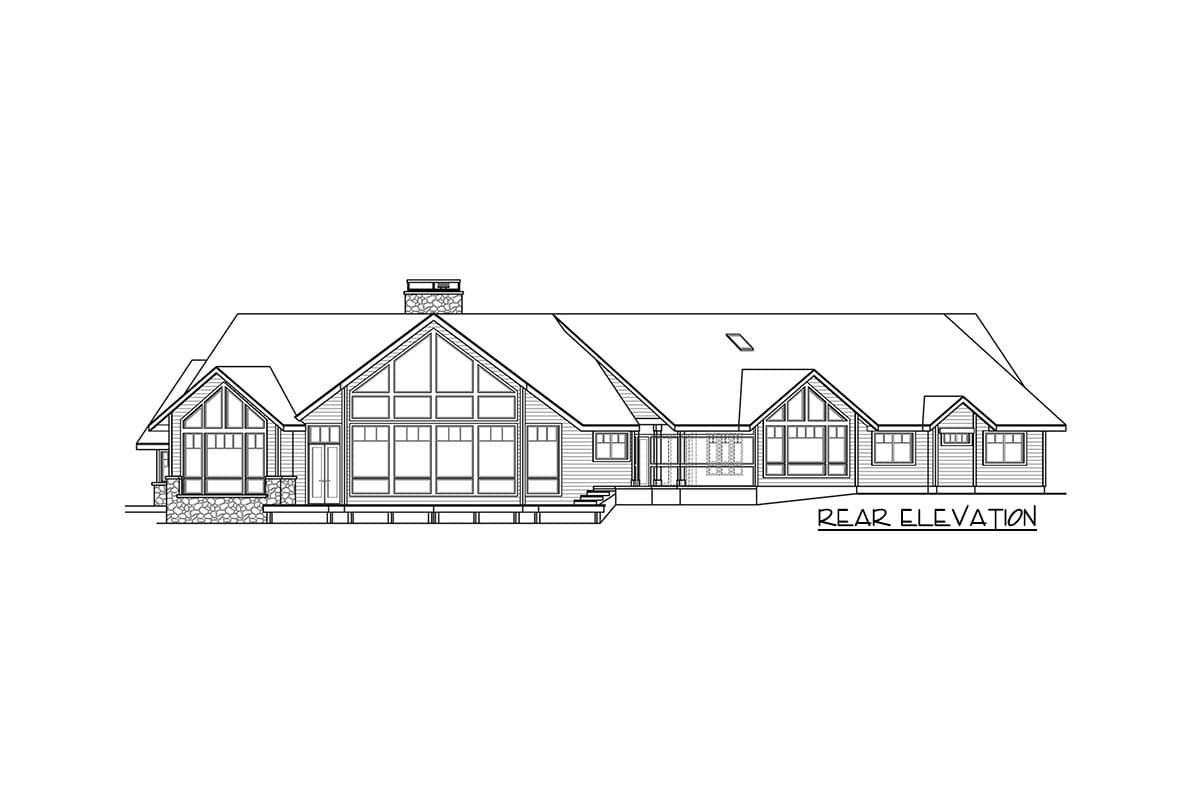

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Gorgeous Vaulted Ceilings - 72890DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Gorgeous Vaulted Ceilings - 72890DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,350 sq. ft.
  • 1st Floor: 3,492 sq. ft.
  • 2nd Floor: 858 sq. ft.
  • Screened Porch: 130 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 120' 1"
  • Depth: 73' 6"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 1260 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Craftsman House Plan with Gorgeous Vaulted Ceilings

  • 4,350

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $1,455
  • PDF Light $1,820
  • 5 Sets + PDF Light $2,185
  • PDF - Single-Build $3,685
  • CAD - Single-Build $4,045
  • CAD - Unlimited Build $4,450
  • View all purchase option online

About This Plan

  • A vaulted covered front porch  sets the stage for all the vaulted ceilings to be found within this striking house plan.
  • Decorative wood trim front and back is the icing on the cake.
  • The huge sunken great room has a wall of glass all across the back overlooking the deck beyond.
  • To the right, the vaulted owner's suite has a private patio where you can escape at the end of the day.
  • Both the kitchen and the breakfast nook form one large space with a double tray ceiling in the nook.
  • You can dine outside in comfort in the screened porch in back.
  • There are 3 bedrooms on the main floor and a guest bedroom upstairs along with a huge rec room for everyone to enjoy.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,350 sq. ft.
  • 1st Floor: 3,492 sq. ft.
  • 2nd Floor: 858 sq. ft.
  • Screened Porch: 130 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 120' 1"
  • Depth: 73' 6"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 1260 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
Plan 72890DA
View this and more for this plan by visiting www.architechtecturaldesigns.com/72890DA
|
